Vimar Arké Classic Cover Plate, 2-Module, Panel Mounting, Technopolymer

Overview

The Vimar Arké 19667 is a 2-module Classic cover plate in technopolymer for panel mounting. It is the visible trim piece for a compatible Arké installation, with a 40 x 139 mm face size, 8.6 mm depth, and support for either horizontal or vertical orientation.

On a boat, this type of plate is used where you want the switch or control area to look finished and consistent across interior panels. The matt technopolymer body is halogen-free, and the plate is best suited to protected mounting locations because it is an IP00 trim component rather than a sealed exterior fitting.

Key features

• 2-module Arké Classic cover plate for panel-mount assemblies
• Technopolymer construction with a matt surface
• Can be mounted horizontally or vertically

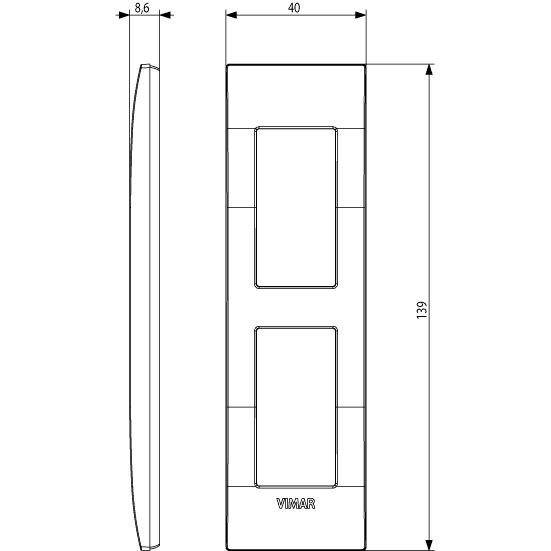

• Face size of 40 x 139 mm with 8.6 mm overall depth
• Halogen-free thermoplastic construction
• IP00 trim component for protected interior panel areas
• Available in four color variants: grey, ivory, black, and white

Variants

This range is offered in four color configurations so the trim can match the surrounding panel and the rest of the Arké devices in the installation.

Across these variants, the format stays the same: 2 modules, technopolymer construction, panel mounting, and the same Arké 19667 cover plate profile. The changing attribute in the listed options is color.

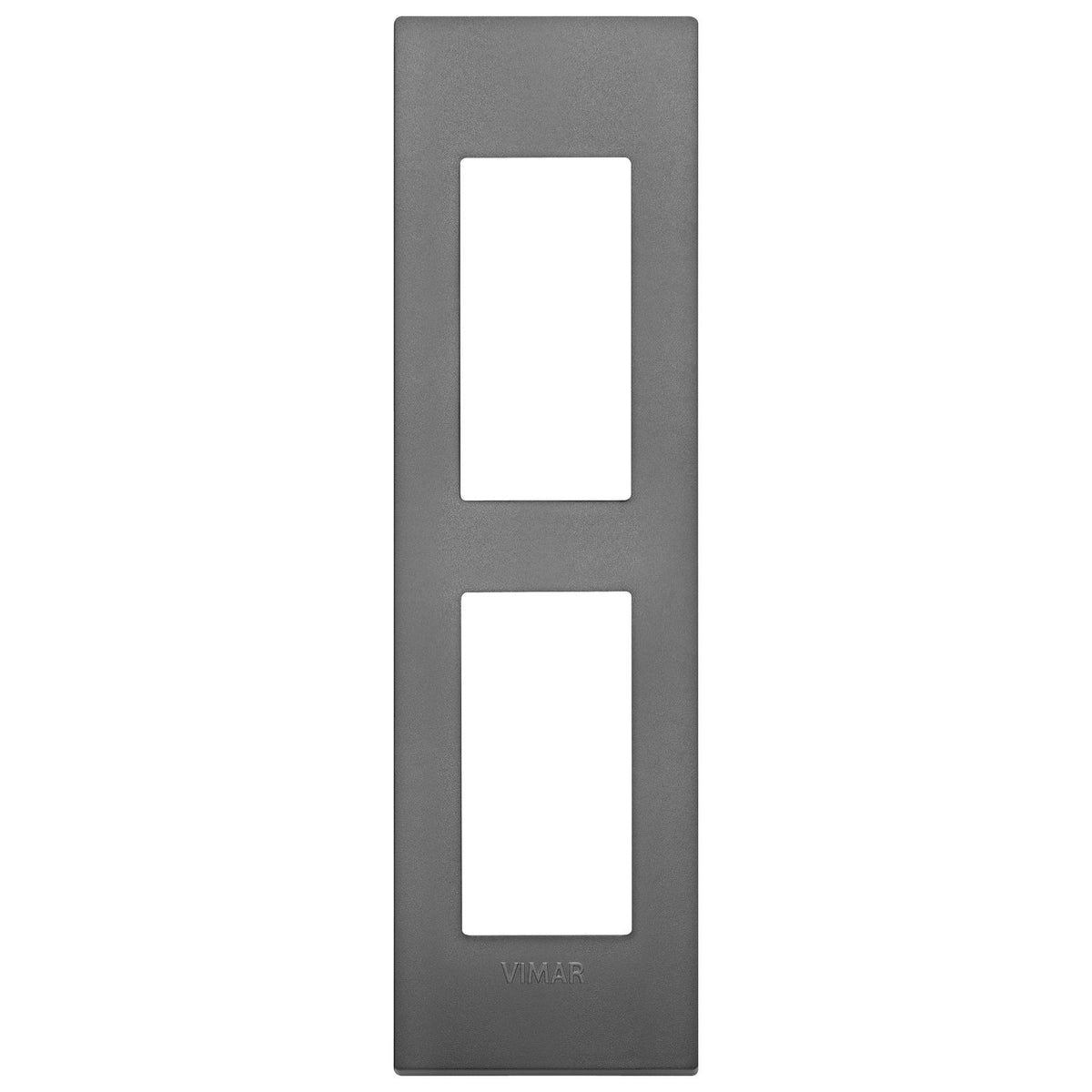

• VM19667.72, Grey. Grey keeps the trim understated on technical panels and works well with darker neutral interiors.
• VM19667.73, Ivory. Ivory has a warmer look that suits lighter cabin finishes and refits where bright white would feel out of place.
• VM19667.71, Black. Black gives the opening a lower-contrast look on dark helm panels and switch surrounds.

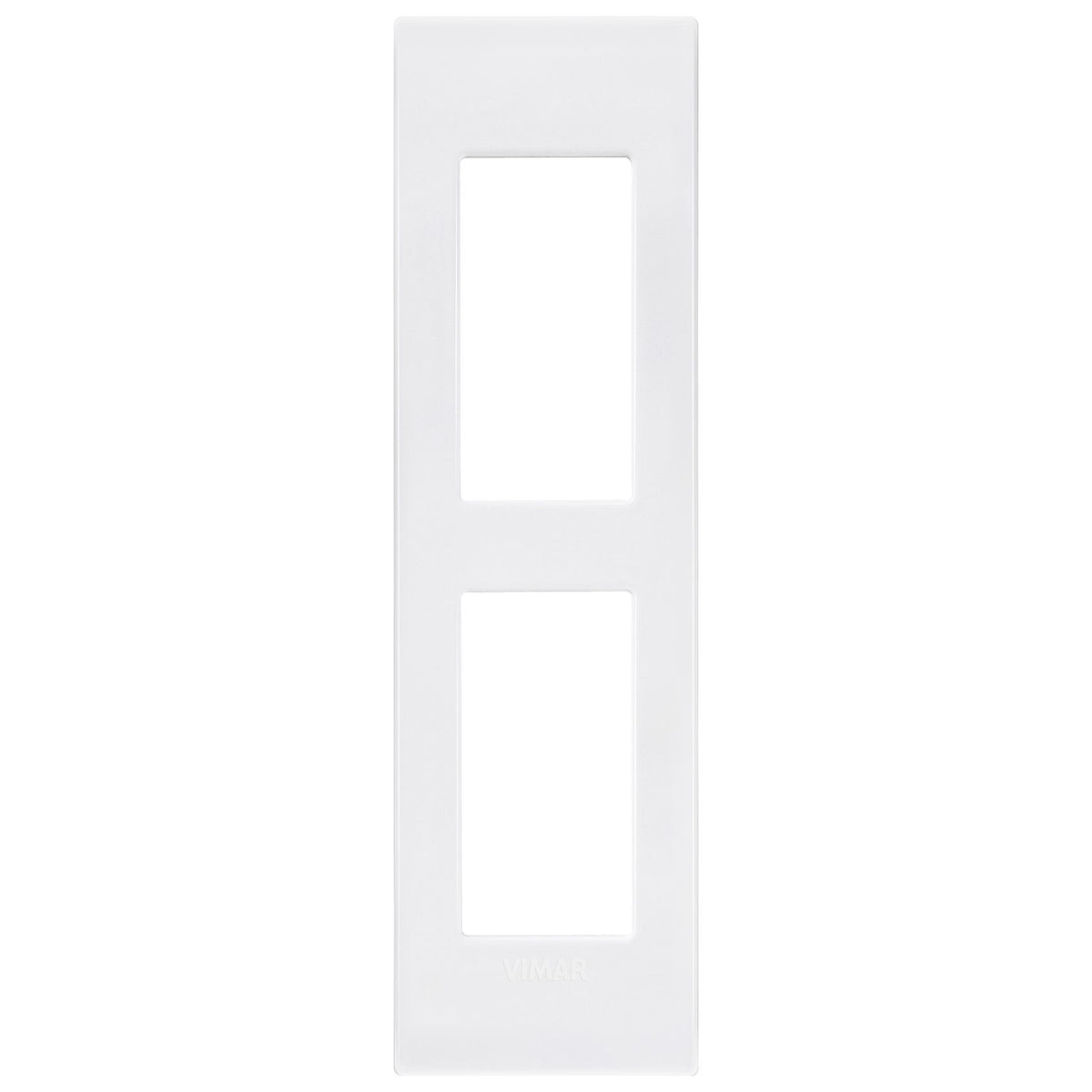

• VM19667.74, White. White gives the trim a clean appearance on light panels and matches other white interior hardware.

Compatibility and fit

This plate belongs to the Vimar Arké system and is meant to finish a compatible 2-module panel opening around the installed device assembly. It can be used across helm panels, cabin switch banks, and utility control areas where the same Arké layout is carried through the boat.

It fits best in refits and new builds that already use Arké switching components and need the trim to stay consistent across multiple panels. For exposed decks, open cockpits, or direct washdown areas, the surrounding assembly needs to provide the environmental protection because the plate itself is not a weather-sealed part.
