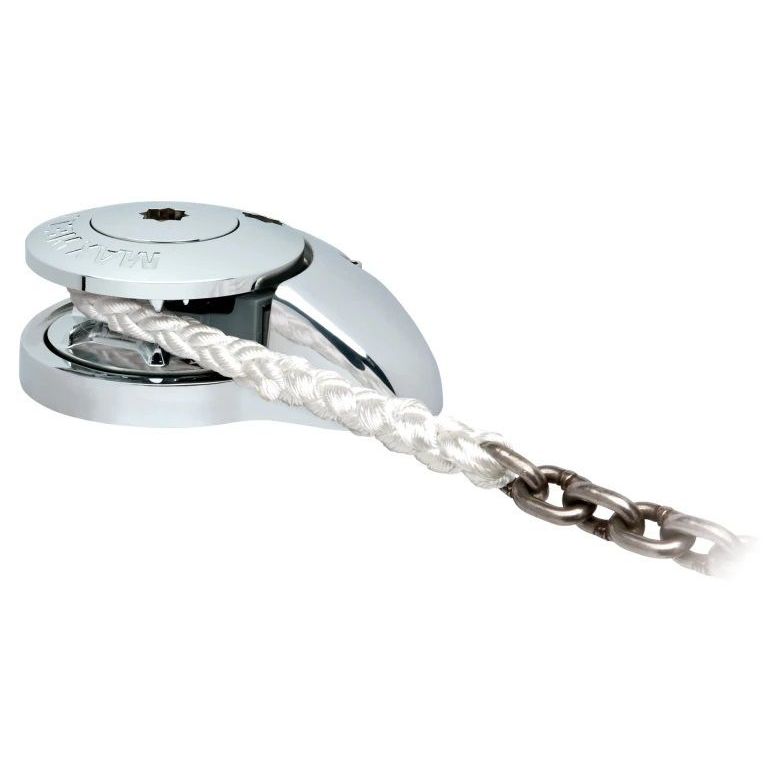

Maxwell - RC8 Vertical 12V Windlass

Effortless Anchor Management with Advanced Rope and Chain Handling

The Maxwell RC8-6 Vertical Windlass is a high-performance solution designed for smooth and efficient anchor deployment and retrieval. Engineered with a durable combination of AISI 316 stainless steel and chromed bronze, this windlass ensures longevity and corrosion resistance in harsh marine environments.

The innovative Wave Design™ chainwheel accommodates a wide range of chain pitch differences, providing superior holding power and smooth operation. With a user-friendly two-piece installation system, the RC8-6 allows for quick retrofitting without requiring disassembly. The heavy-duty stainless steel pressure arm, supported by a robust preloaded spring, ensures reliable rope/chain engagement for maximum control and efficiency.

This windlass is fully capable of handling both rope and chain rodes, offering seamless performance in all anchoring conditions. The large through-deck hawse pipe throat facilitates easy rope and chain passage, while the self-aligning gearbox and multiple mounting positions provide flexible installation options.

For added convenience and safety, the RC8-6 includes manual override functionality and a ‘Free Fall’ feature, allowing for quick anchor deployment in emergencies. The sealed oil bath and marine-grade hard-anodized alloy gearbox maximize output and durability, ensuring reliable operation trip after trip.

Technical Specifications

• Motor Power: 600W
• Maximum Pull/Lift: 350 kg
• Voltage: 12V DC
• Chain Compatibility: 6-7 mm (1/4") short link
• Rope Compatibility: 12 mm (1/2") three-strand or 8-braid (plait)
• Installation Type: Vertical
• Weight: 12.5 kg

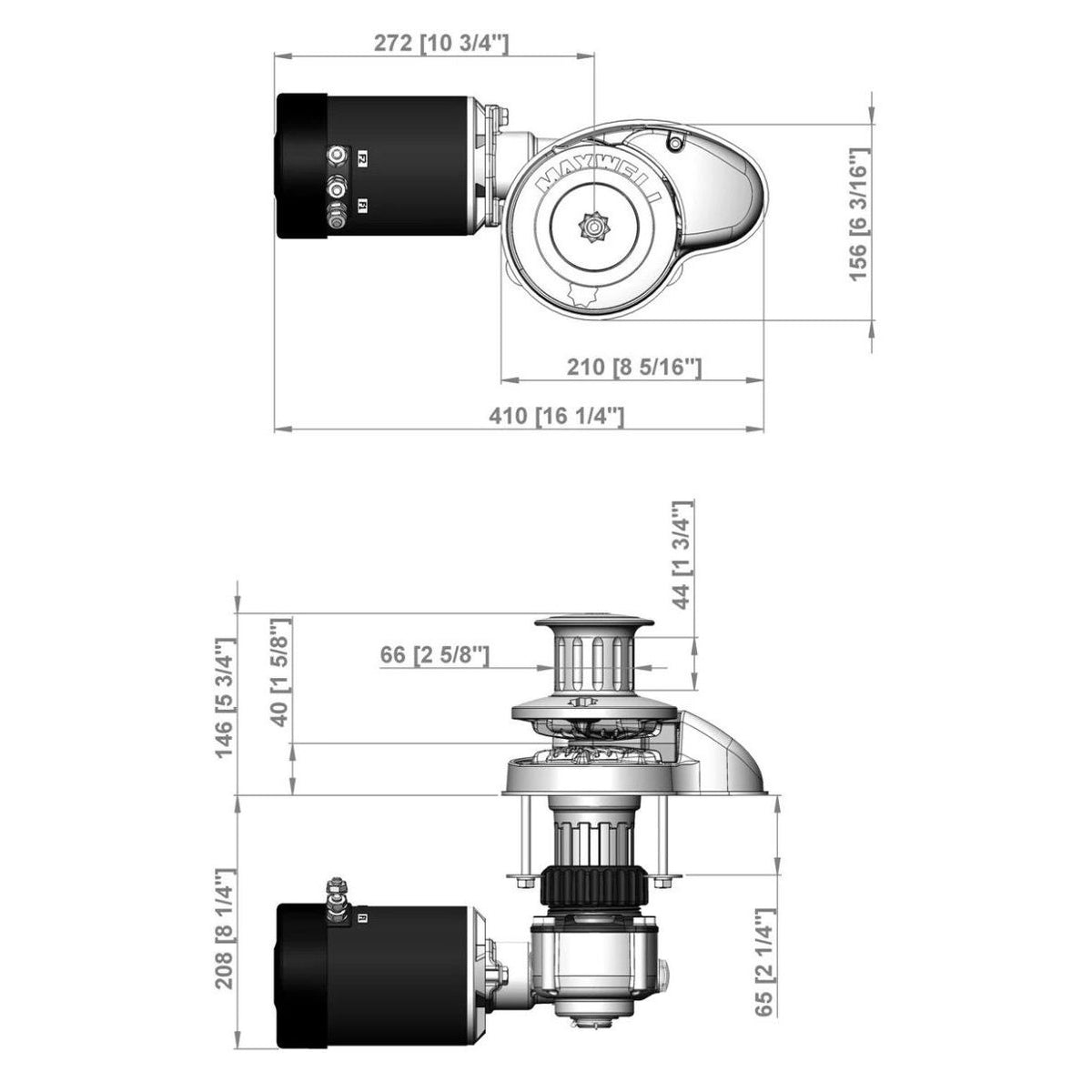

Product Dimensions

• Designed for installation through various deck thicknesses with a unique spacer tube system

Highlights

• Durable Construction: Stainless steel (AISI 316) and chromed bronze for superior corrosion resistance
• Versatile Rope & Chain Handling: Accommodates 6-7 mm (1/4") chain with 12 mm (1/2") rope
• Easy Installation: Two-piece system for quick retrofitting without disassembly
• Reliable Performance: Heavy-duty pressure arm and preloaded spring for maximum control
• Manual Override & Free Fall: Emergency deployment with included crank/clutch handle
• Self-Aligning Gearbox: Ensures optimal positioning for seamless operation
• Sealed Gearbox: Marine-grade, hard-anodized alloy construction for durability

Variations List

• RC8612V – Compatible with 1/4" chain & 1/2" line
• RC8812V – Compatible with 5/16" chain & 5/8" line

What's in the Box

• RC8-6 12V Windlass
• Breaker panel
• Reversing solenoid
• Up/Down panel switch
• Clutch release handle

Additional Notes

For optimal performance and longevity, Maxwell windlasses should always be used with a chain stopper or alternative snubbing device. This prevents unnecessary strain on the windlass while at anchor and secures the anchor in the raised position when underway.
