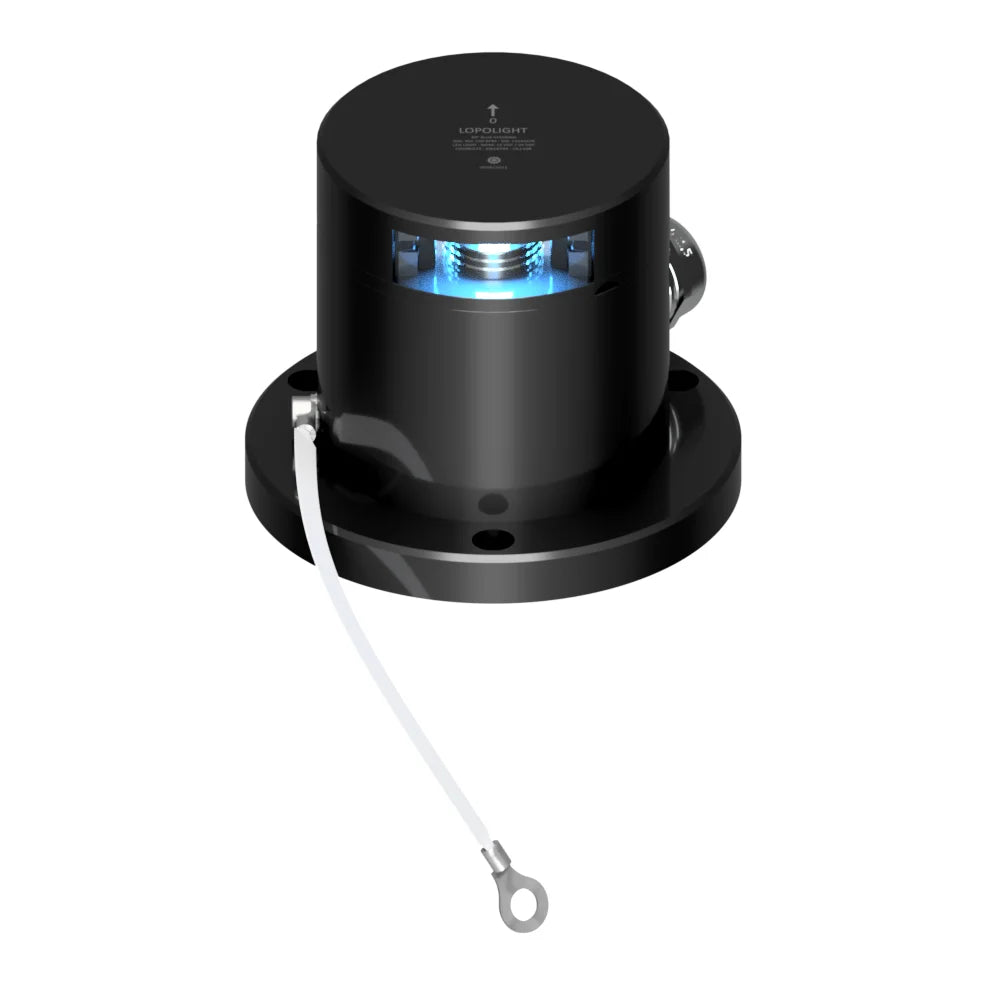

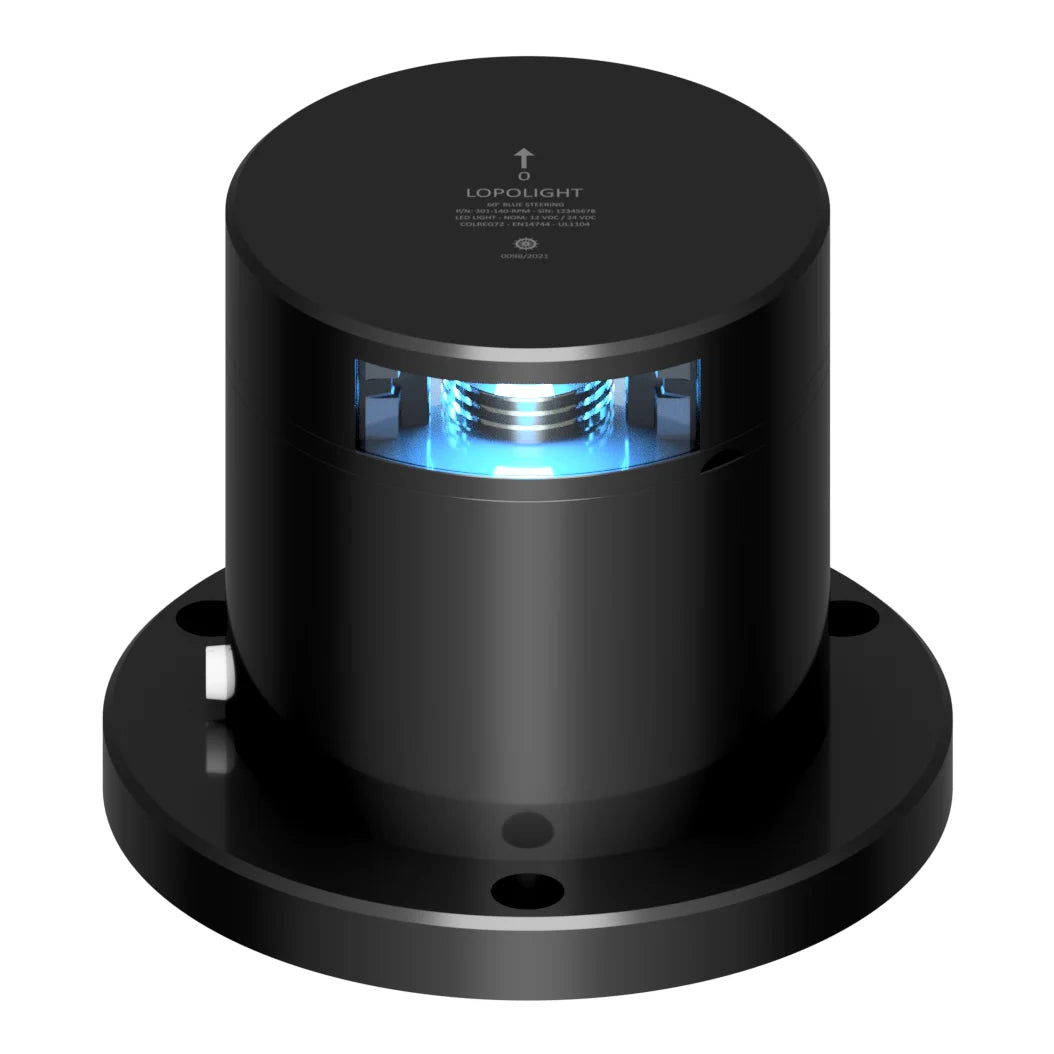

Lopolight PRO Blue Steering Light, 60° Beam, RPM Dimming, Ice-Class, ATEX Zone 1 & 2 Copy title

Overview

The Lopolight 301-140-RPM-PRO-I-EX is an ice-class LED steering light with a 60° blue light sector and 1 nautical mile visibility rating. It operates on 10-32VDC and is certified for hazardous-area installations in ATEX and IECEx Zones 1 and 2. Built-in de-icing and RPM-based dimming support steering light operation in demanding commercial marine environments.

The fixture features an IP68-rated enclosure with black hard-coat anodized aluminum construction, a PMMA lens, and A4 stainless steel screws. RPM-based dimming requires a Lopolight Navigation Light Controller (NLC). The light mounts horizontally on a 400-037 EX/MIL aluminum base with side-directed cable routing.

Key features

• Blue LED steering light with a 60° light sector and 1 nautical mile visibility.

• 10-32VDC operating range with a rated power draw of 3W.

• ATEX and IECEx Zone 1 and 2 certification for hazardous-area applications.

• Integrated ice-class defroster for de-icing capability.

• RPM-controlled dimming through a compatible Lopolight NLC.

• IP68 protection with black hard-coat anodized aluminum housing and PMMA lens.

• Horizontal mounting with side cable exit and plug connector.

• Overall dimensions of 92.5 mm diameter by 103.5 mm height.

Installation and system integration

The light is configured for horizontal installation on a 400-037 EX/MIL aluminum mounting base. Its side cable routing, included HDPE base plate, cable glands, and ground strap support the specified mounting arrangement. The electrical connection uses a plug connector, and the minimum feed wire size is 0.5 mm² (AWG 22).

For installations requiring RPM-based brightness adjustment, integration with a Lopolight NLC is necessary. The fixture supports 12V and 24V nominal marine electrical systems within its 10-32VDC operating range.

Materials and operating conditions

The housing uses black hard-coat anodized aluminum with a 50-micron coating, paired with a PMMA lens and A4 stainless steel fasteners. The operating temperature range is -25°C to +55°C. Its integrated de-icing function makes this configuration suitable for marine steering light installations where ice accumulation is a concern.

What's included

• 1 LED steering navigation light with integrated ice-class defroster

• HDPE base plate

• Cable glands

• Ground strap

• Installation guide
