Lopolight 180° LED Navigation Light, 2nm, 10-32VDC, IP68

Overview

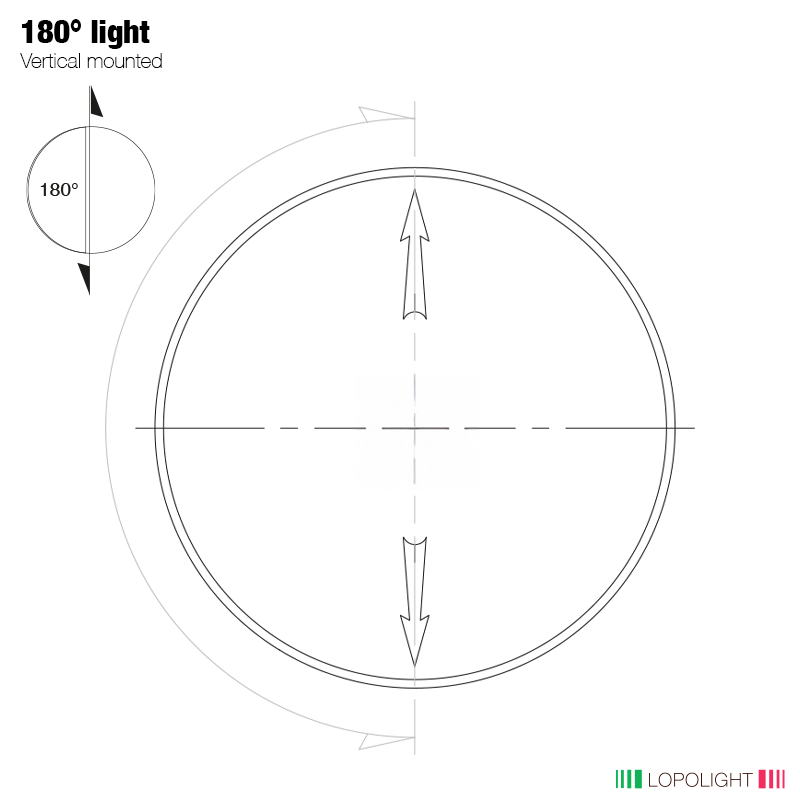

The Lopolight 200-012G2-PRO-180 is a 180° white LED navigation light with 2 nautical mile visibility for commercial marine installations. It operates from 10-32VDC and carries an IP68 rating.

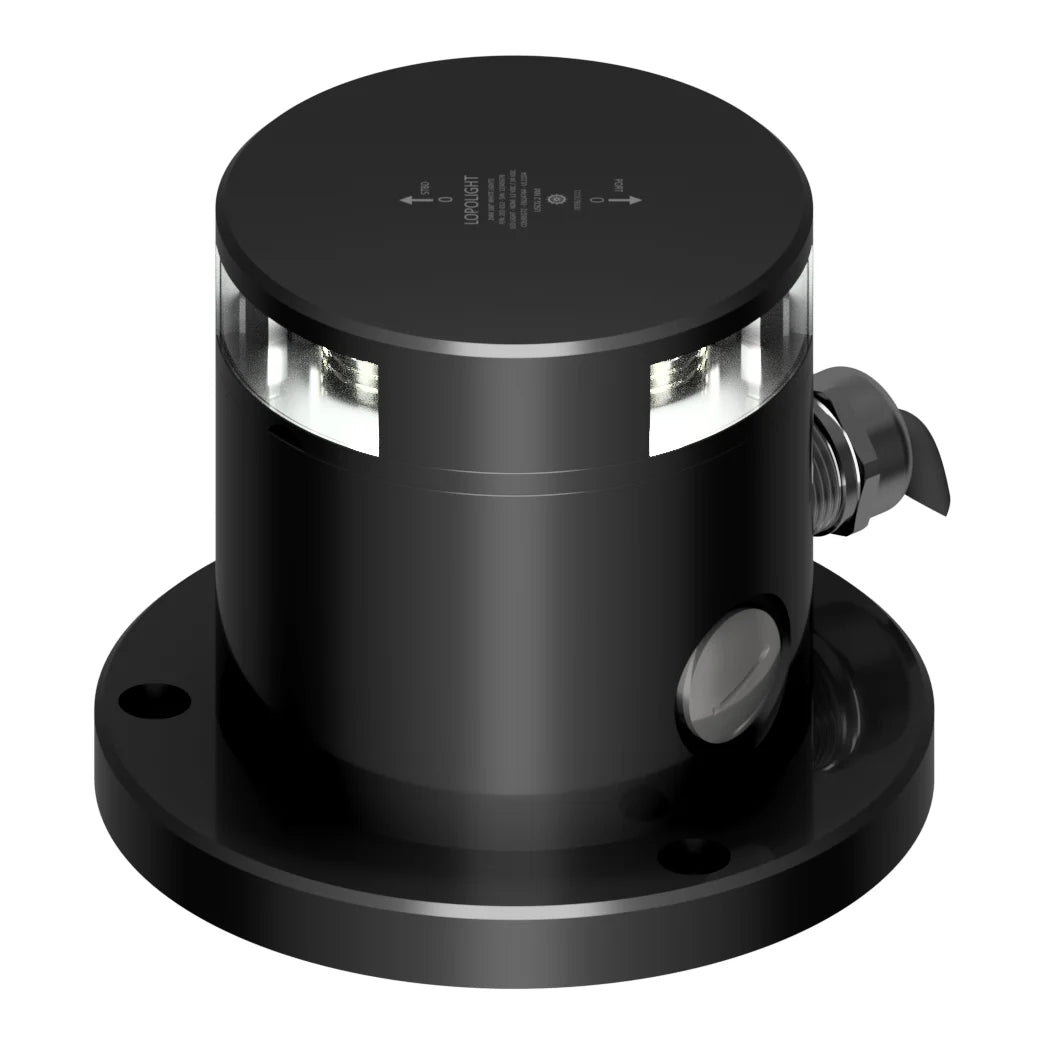

The fixture measures 3.6 in in diameter by 2.9 in high and uses a black hard coat anodized aluminum housing with a PMMA lens and A4 stainless steel screws. It mounts horizontally on a POM base and uses a side-entry plug connection.

Key features

• 180° white navigation light with 2nm visibility and intensity greater than 5.4cd

• 10-32VDC operating range for common 12V and 24V DC marine electrical systems

• Current consumption of 167mA at 12VDC and 110mA at 24VDC

• IP68-rated horizontal mounting configuration on a POM base

• 3.6 in diameter by 2.9 in high overall dimensions

• Black 50µ hard coat anodized aluminum housing with PMMA lens and A4 stainless steel screws

• Plug connector with side cable direction and cable gland for 7-13mm cable diameter

• Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, and LR requirements

Installation and setup

The light is configured for horizontal mounting and routes the electrical cable from the side. The cable gland accommodates cable diameters from 7 to 13mm, or approximately 9/32 to 1/2 in.

Compatibility and fit

This navigation light is specified for vessels under 12m, from 12-20m, and from 20-50m. Its 10-32VDC input range supports integration with both 12V and 24V DC vessel electrical systems.

What's included

• HDPE base plate
