Newmar Power - Battery Charger

Advanced Charging Solutions for Marine Applications

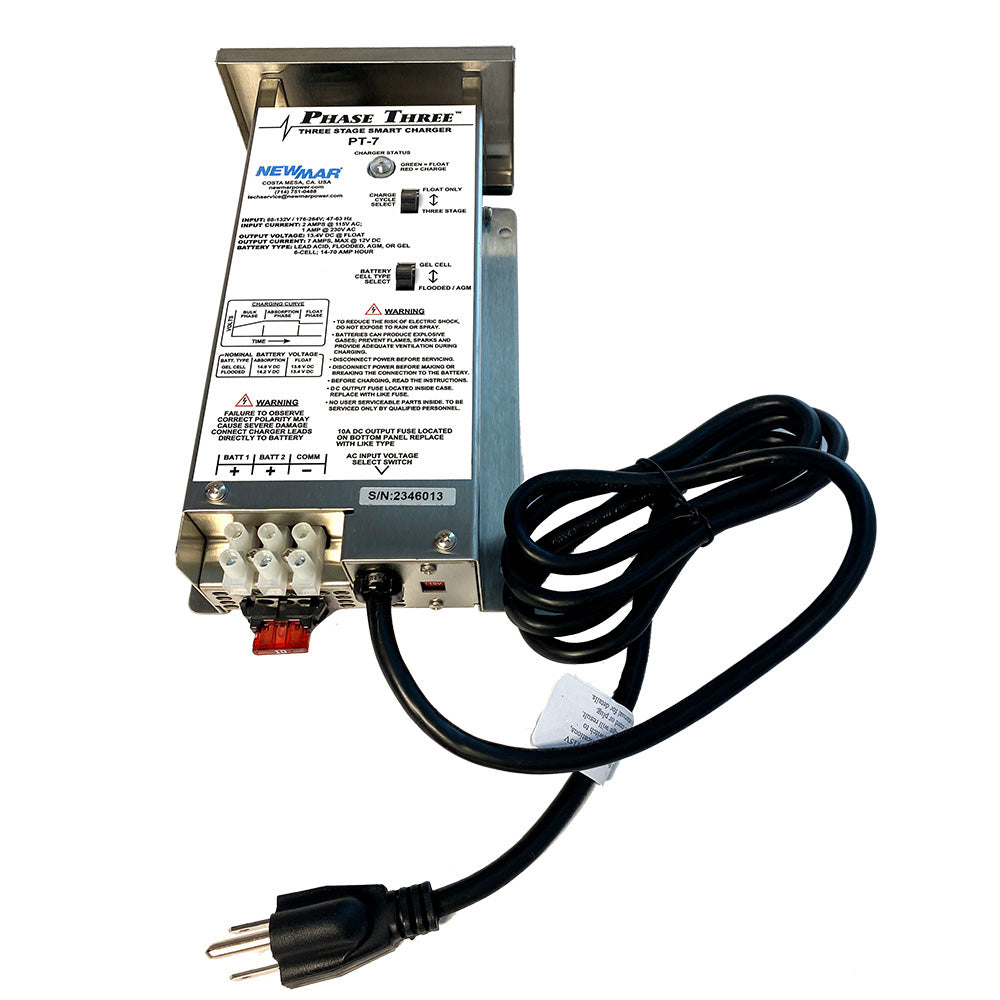

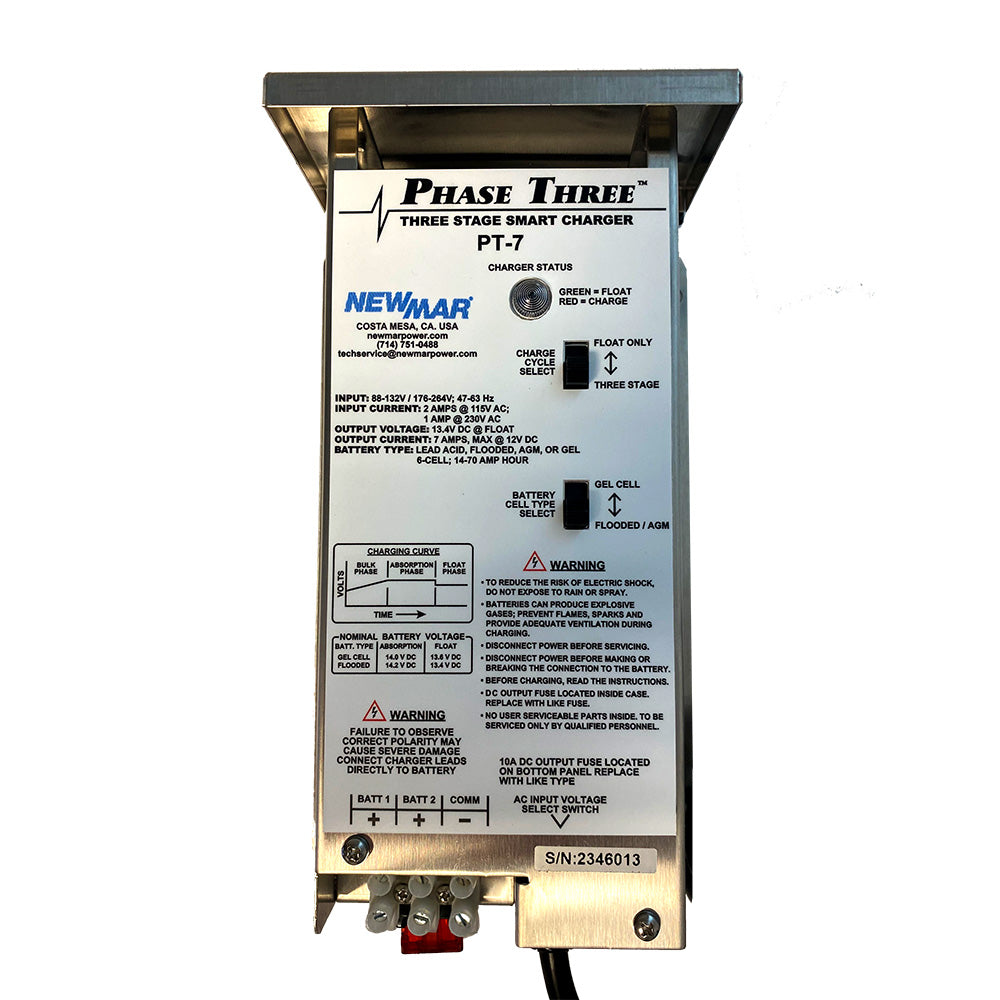

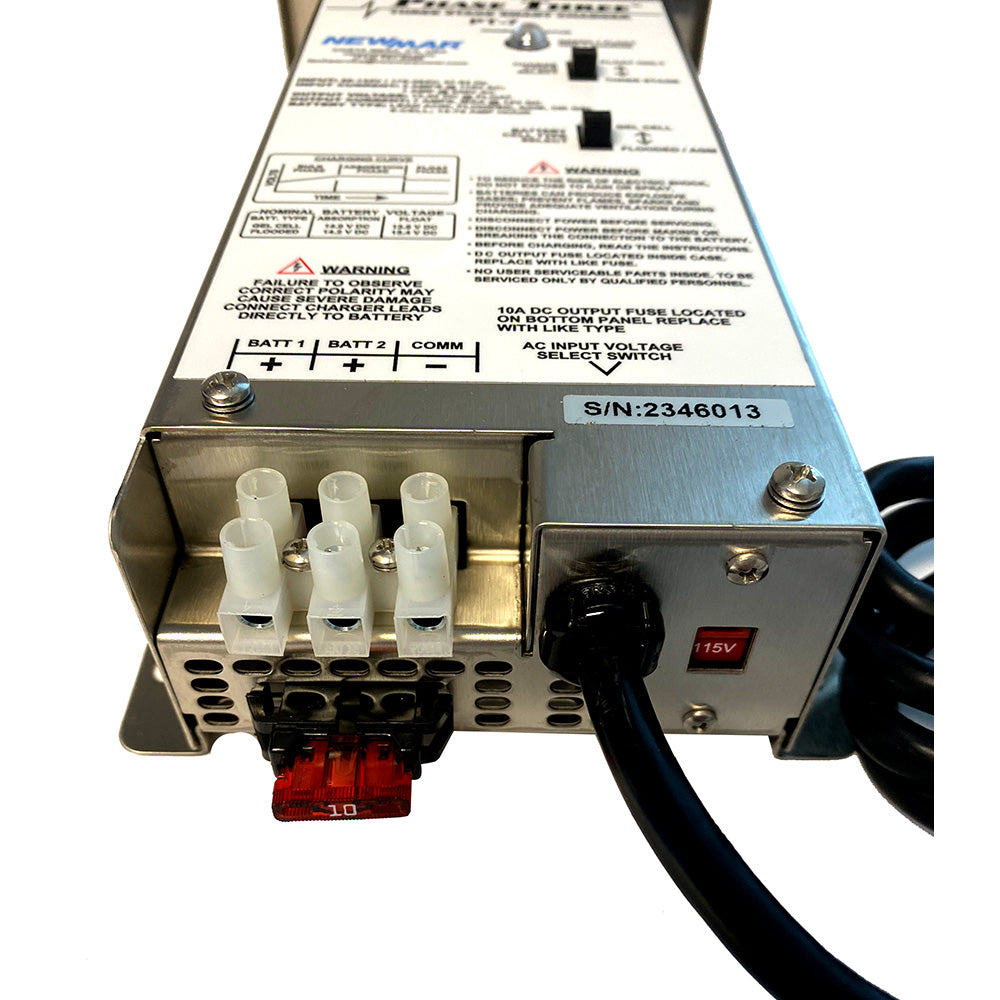

The Newmar PT-7 Battery Charger is an essential tool for maintaining and optimizing the performance of your marine batteries. Designed with "Smart" charging technology, this charger ensures efficient and safe power management for a variety of marine vessels, including workboats, military ships, commercial vessels, and recreational craft. Experience the benefits of a well-maintained battery system that enhances your vessel's reliability and longevity.

Intelligent Charging for Marine Batteries

Newmar's PT-7 Battery Charger employs sophisticated technology to deliver a precise and efficient charging process. Here’s what makes it indispensable for marine use:

• Smart Charging Technology: Offers a three-stage charging process (bulk, absorption, and float) for quick recovery and optimal battery conditioning.
• Versatile Battery Compatibility: A selector switch allows you to adjust the output voltage to match gel-cell, flooded lead-acid, or AGM battery types.
• Temperature Compensation: Optional sensor adjusts the output voltage based on ambient temperature changes, ensuring ideal charging conditions.
• Durable Construction: Housed in a rugged stainless-steel case with a white powder coat finish, and internal circuitry coated with polyurethane for maximum corrosion resistance.
• Multiple Output Banks: Provides isolated output banks with an ammeter to indicate total output current, except for the PT-7 model.

Key Features and Advantages

• Smart Circuitry: Three-stage charging enhances battery life and performance.
• Battery Type Selector: Switch between gel-cell, flooded lead-acid, and AGM battery types.
• Rugged Build: Stainless-steel case with a durable powder coat finish.
• Current Limiting: Prevents damage from overloading.
• Clean Output: Well-regulated output can power loads directly without a battery in line.
• Built to Last: Marinized internal circuitry and a rugged exterior ensure long-lasting performance.

Technical Specifications

• Input VAC (50-60 Hz.): 88-132 or 176-264
• Input Amps @ Full Load: @ 115 VAC 2, @ 230 VAC 1
• P.F. Rating: >.65
• Max Output Amps: 7
• Output Banks: 2
• Battery Capacity (Amp-Hours): 14-70
• Operating Temp. Rating: -10°C to +45°C
• Case Size (H x W x D): 10.5 x 5.0 x 2.8 inches (26.7 x 12.7 x 7.1 cm)
• Weight: 3.2 lbs (1.5 kg)

Compliance and Safety

• Compliance: USCG CFR 183.410 (Ignition protected), CE Mark, ABS (SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, HSNC 2007 4-8-3/5.13)
• Protection Features: Current limiting, thermal protection, forced air cooling, drip shield

Superior Charging Performance: Nominal Output Voltages

• Gel-Cell: 14.0 VDC Charge @ 50% load, 13.6 VDC Float @ .5 amp load
• Flooded/AGM: 14.2 VDC Charge @ 50% load, 13.4 VDC Float @ .5 amp load

Customizable Power Solutions: Variations List

Choose the Newmar Battery Charger variant that best fits your marine power needs:

• PT-7 Amperage 7A

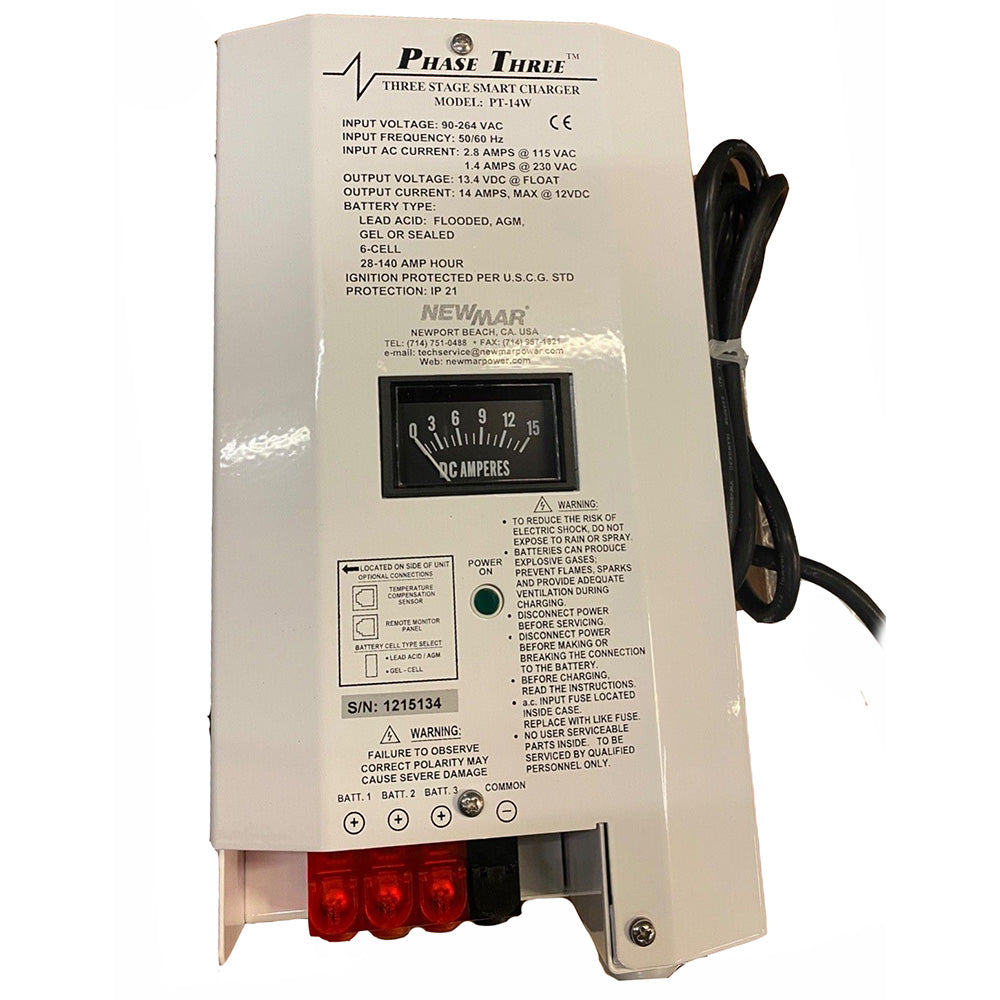

• PT-14W Amperage 14A
• PT-24-13W Amperage 13A

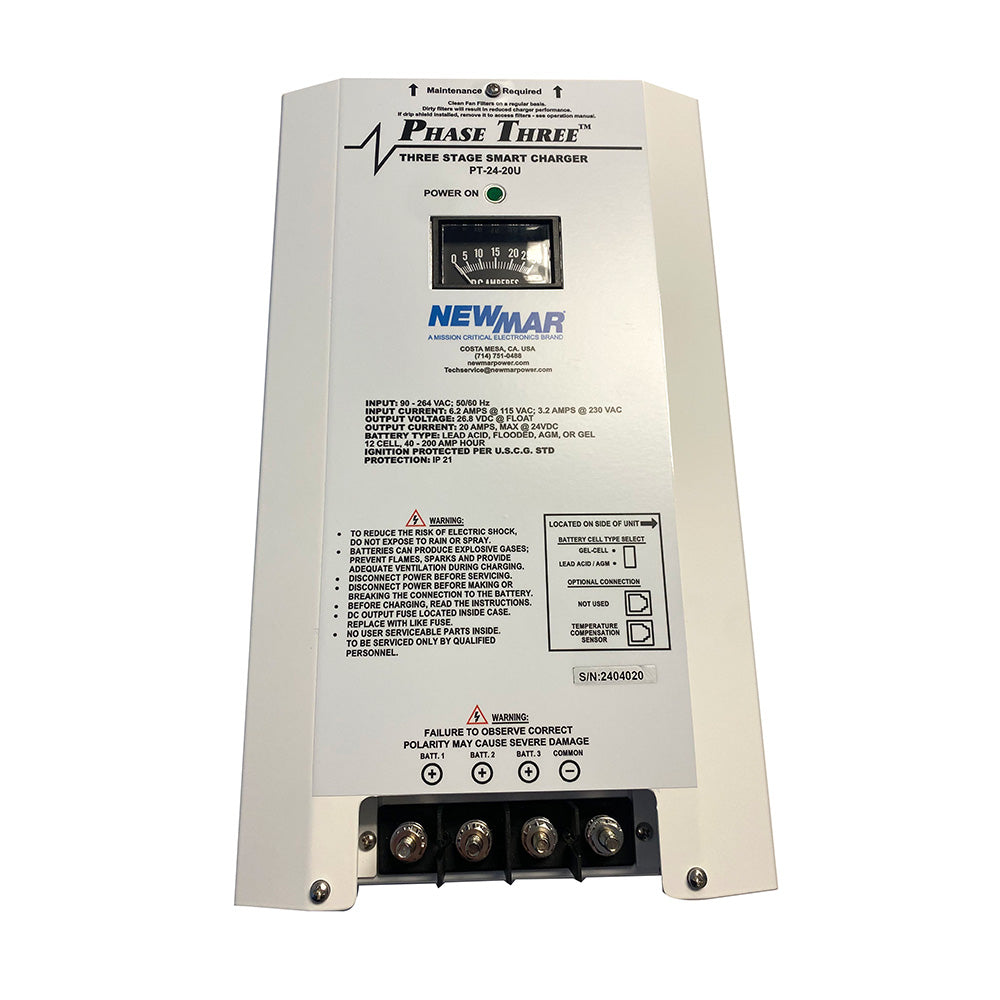

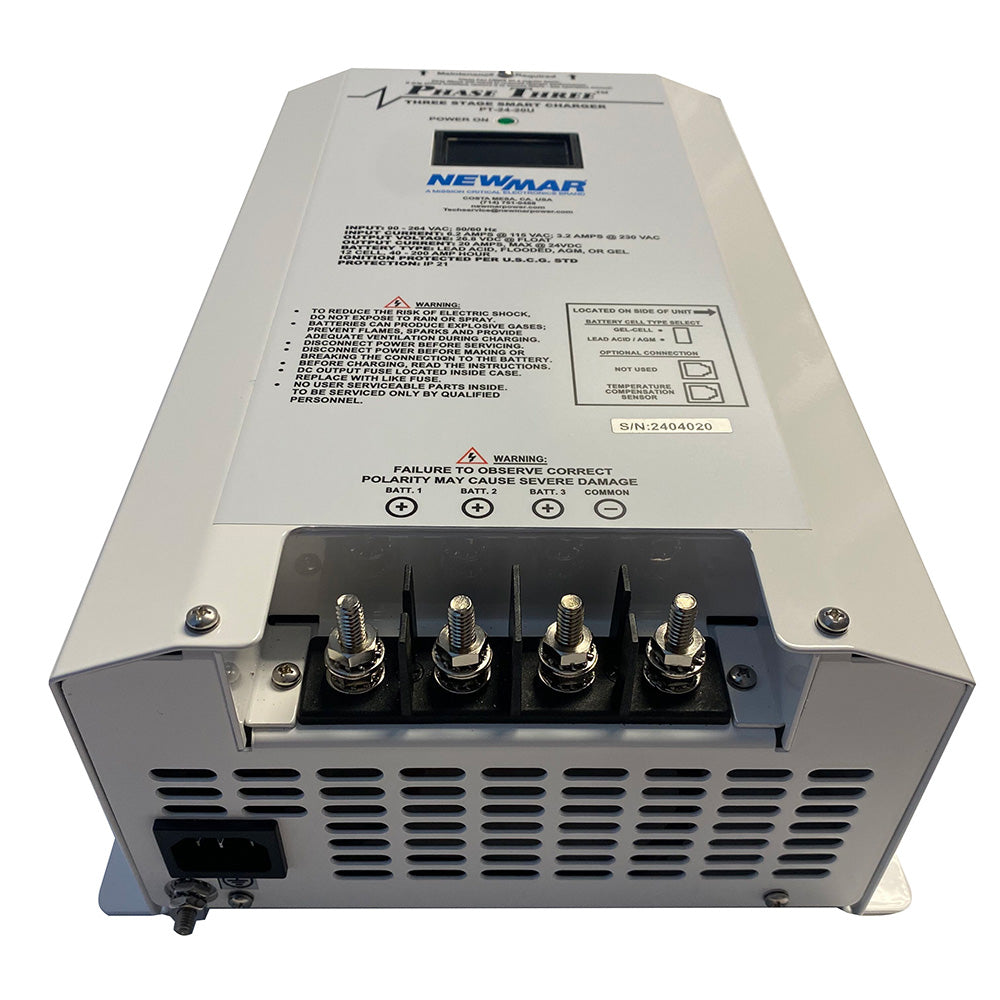

• PT-24-20U Amperage 20A

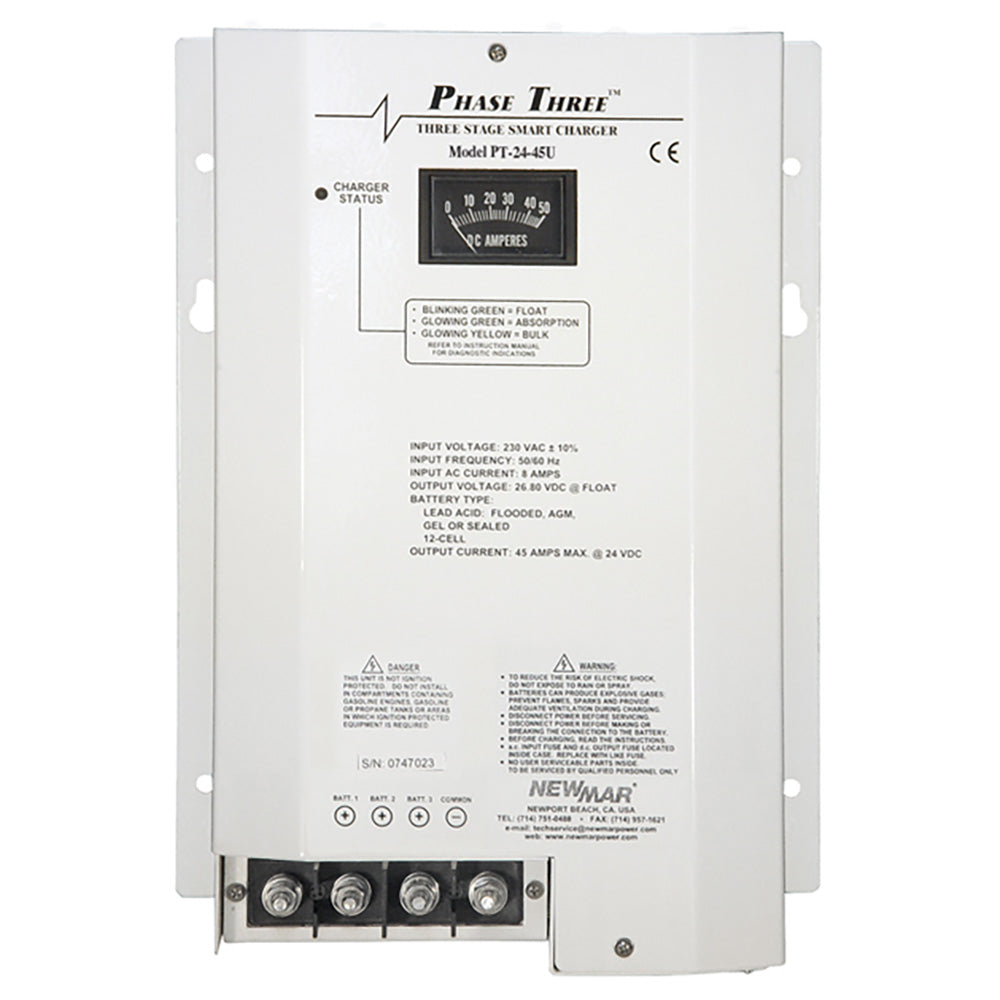

• PT-24-45U Amperage 45A
• PT-24-8W Amperage 8A

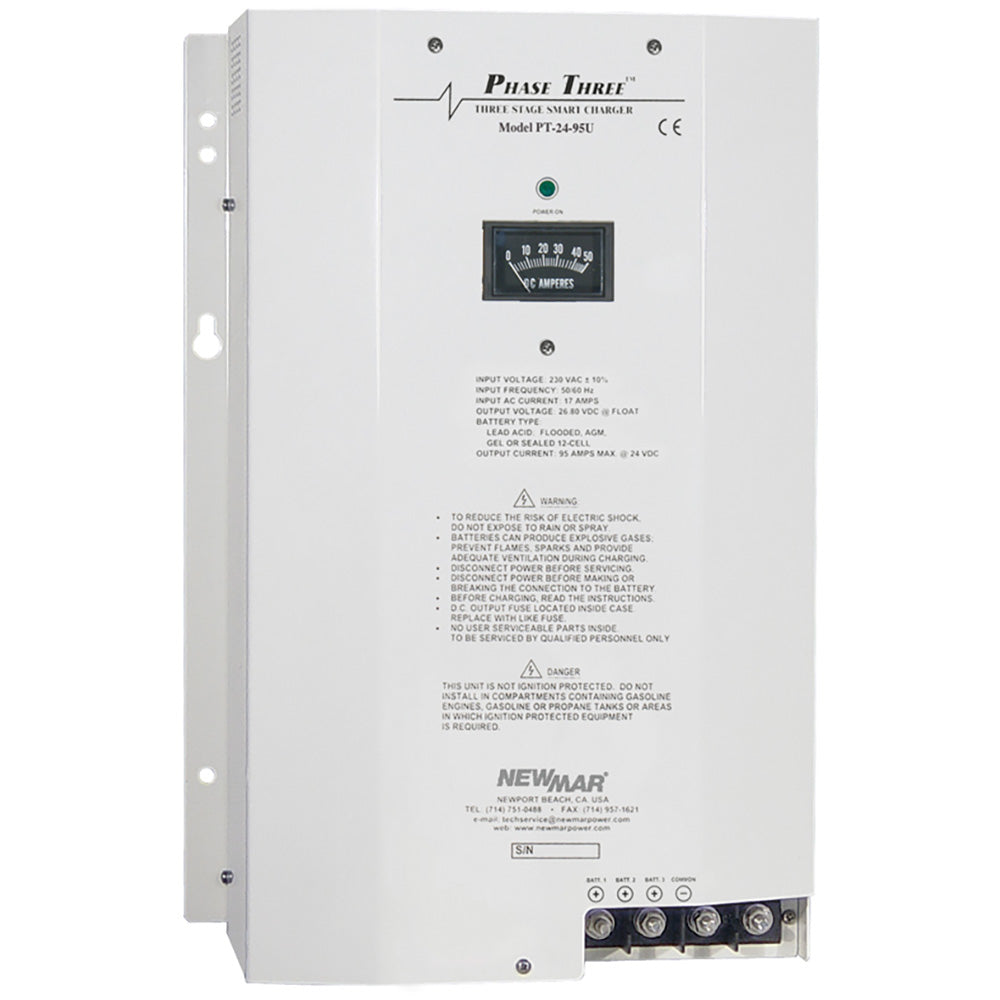

• PT-24-95U Amperage 95A

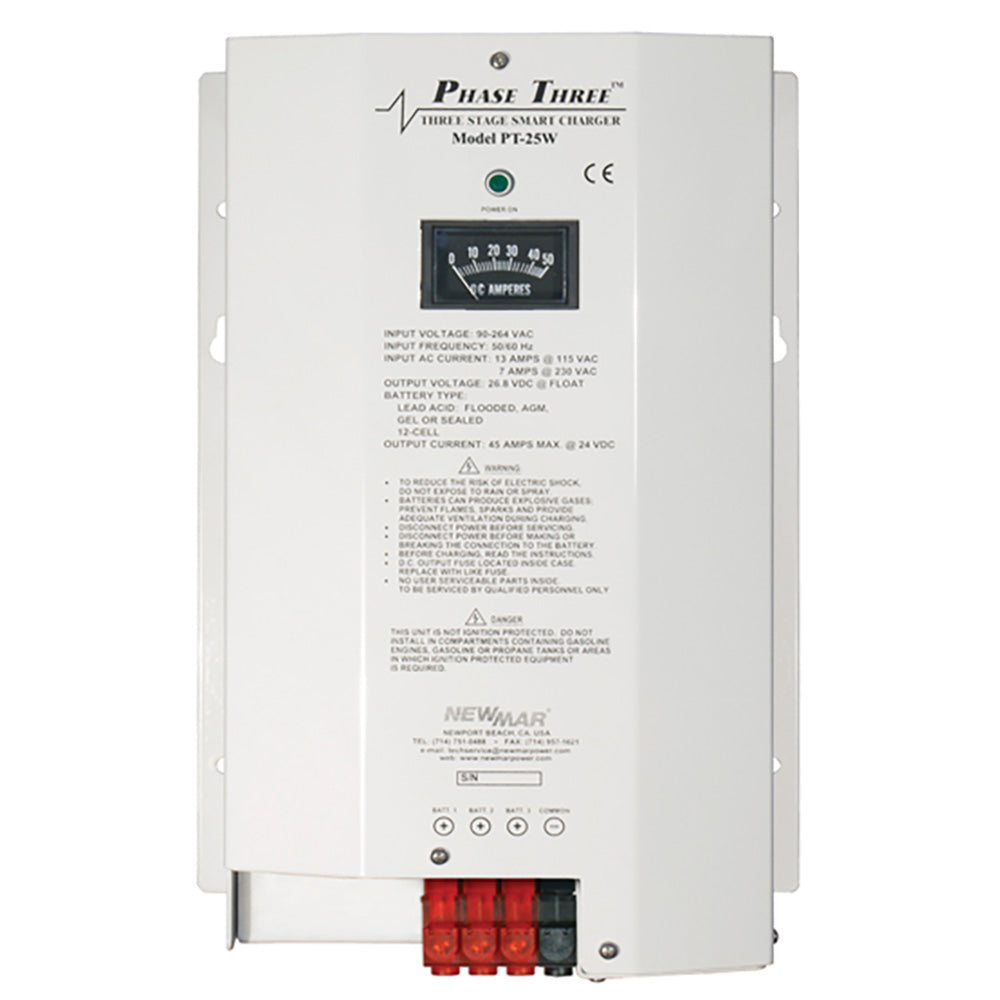

• PT-25W Amperage 25A

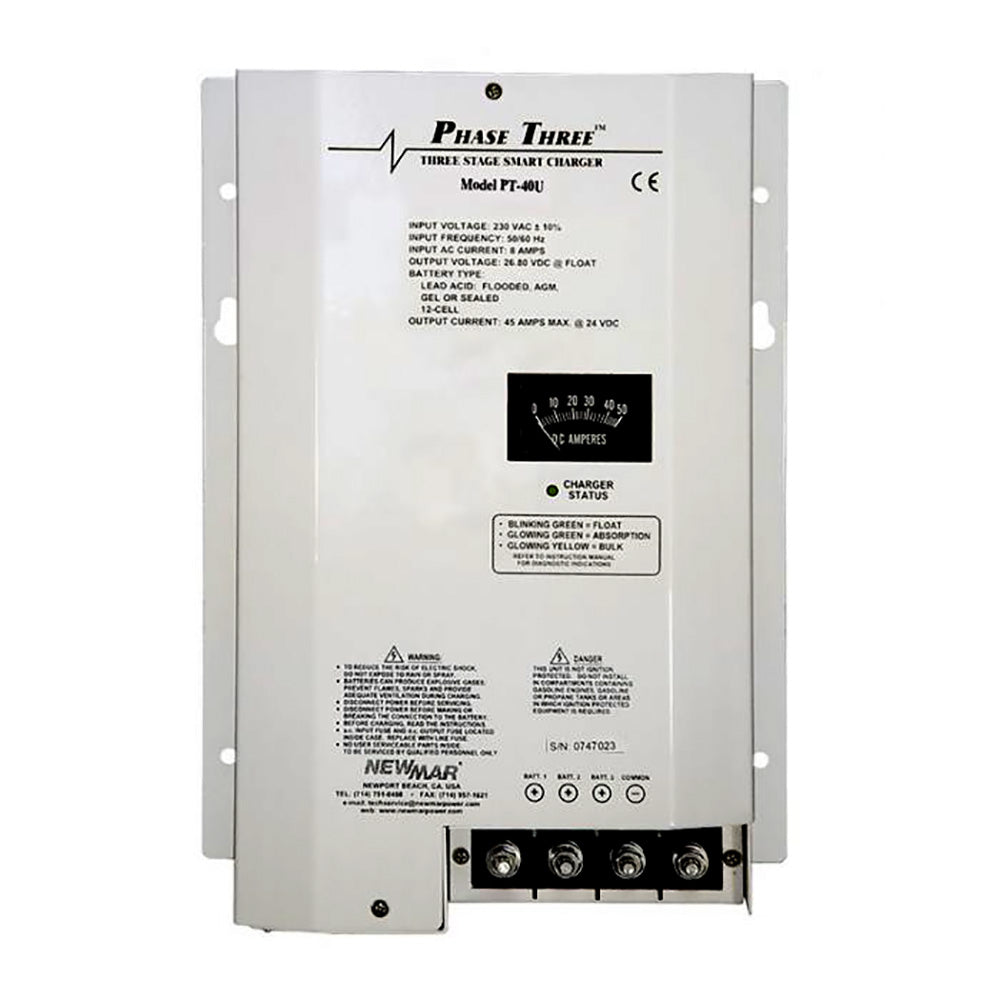

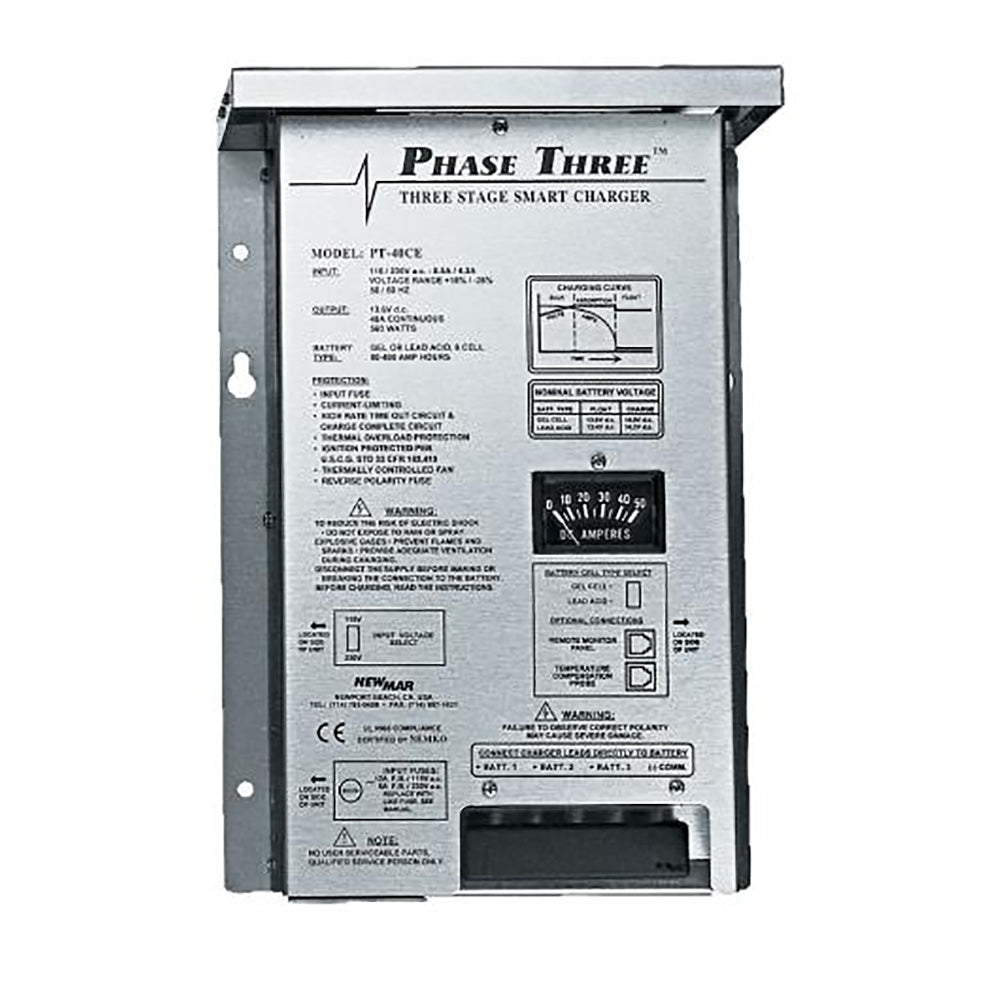

• PT-40U Amperage 40A

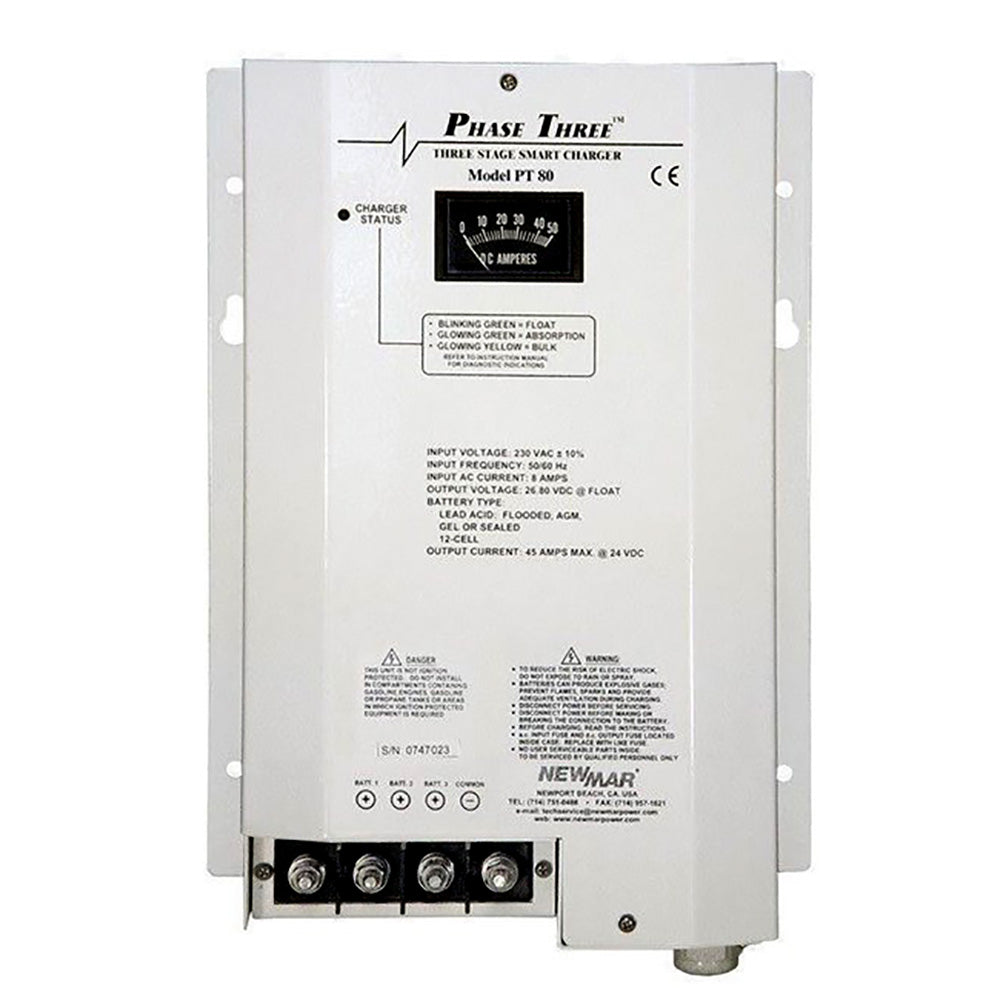

• PT-80 Amperage 80A

Conclusion

Enhance your marine battery management with the Newmar PT-7 Battery Charger. Engineered for efficiency and reliability, this charger ensures your batteries are always in top condition, ready for any marine adventure. Select the model that suits your requirements and enjoy the peace of mind that comes with a well-maintained battery system. With Newmar, you're guaranteed superior performance and durability for all your marine power needs.
