Vimar Plana 1M Blank Module, Built-In, Halogen-Free Thermoplastic

Overview

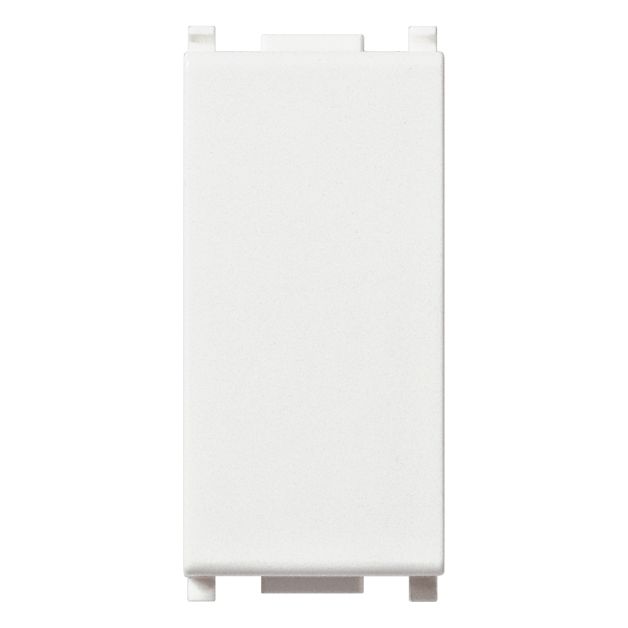

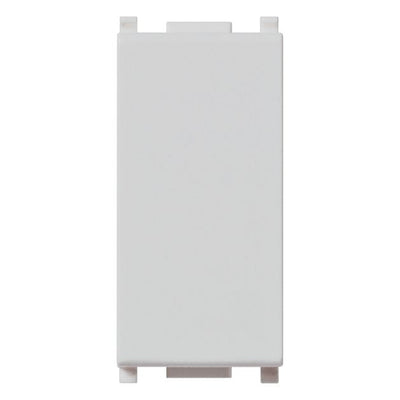

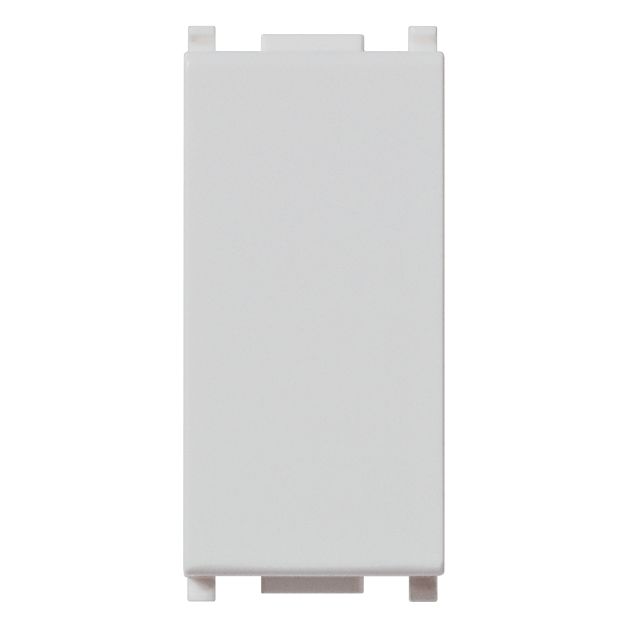

The Vimar Plana Series is a range of interchangeable 1M blank modules used to close an unused position in a compatible modular plate or support frame. Each module measures 22.3 x 49.0 x 20.5 mm, mounts flush, and fixes with claws, so it works as a finishing piece when a switch point, outlet position, or future control location is not currently in use.

On board, this part fits best in cabin walls, service spaces, or control panels that already use Vimar Plana modular hardware. It is a non-powered component with nominal voltage 0 V, so it does not connect to the vessel's 12V or 24V supply. Its role is to close the opening, keep the faceplate tidy, and leave the layout ready for later changes.

The body is thermoplastic and halogen-free, with a glossy visible face across the range. This family is available in white, silver, and white with antibacterial treatment, which makes it easier to match the finish already installed on the boat.

Key features

• 1M blank module format for unused openings in Vimar Plana modular assemblies

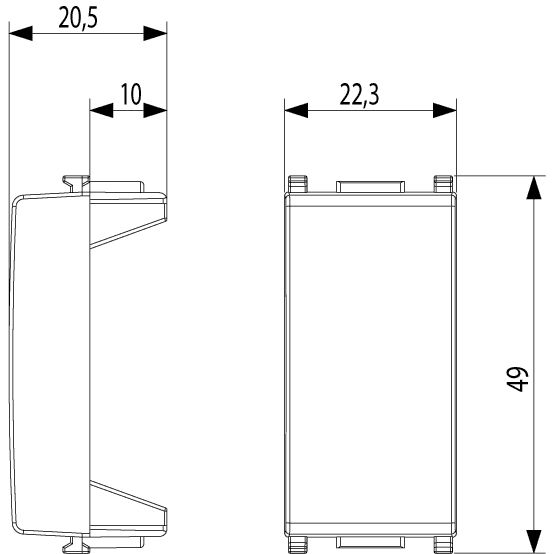

• 22.3 x 49.0 x 20.5 mm body size for checking fit in existing plates and supports
• Flush-mounted installation with claw fastening
• Thermoplastic construction that is halogen-free
• Glossy face in white, silver, or white with antibacterial treatment depending on variant
• Nominal voltage 0 V, confirming this is a cover component rather than a live control device
• Information surface present, which can help identify reserved positions on a panel

Variants

This product is offered in three finish configurations within the same 1M Plana format.

The varying point across these versions is the visible color and surface treatment. The 1M layout, 22.3 x 49.0 x 20.5 mm dimensions, flush-mounted installation, claw fastening, glossy surface, thermoplastic body, and halogen-free construction stay the same.

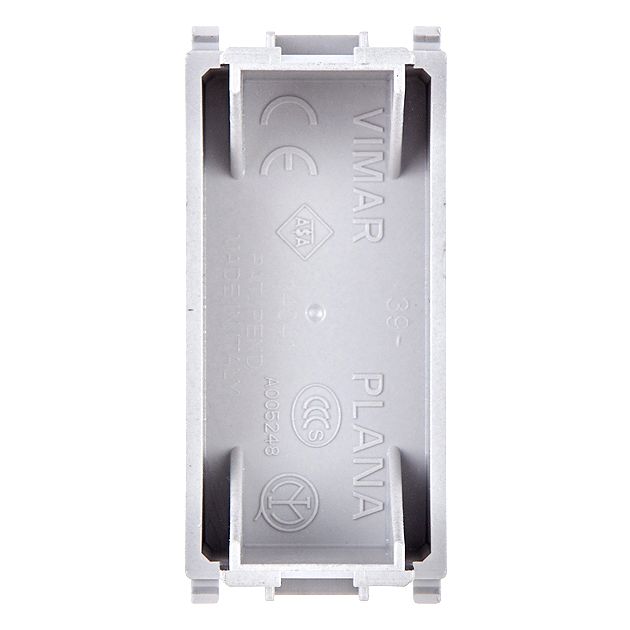

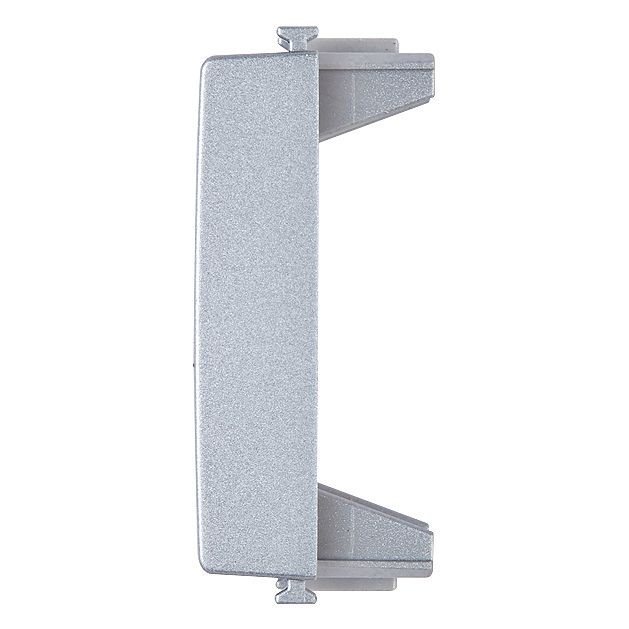

• VM14041.SL: Color Silver. This version has a silver face with a glossy lacquered finish for installations that already use silver Plana trim.

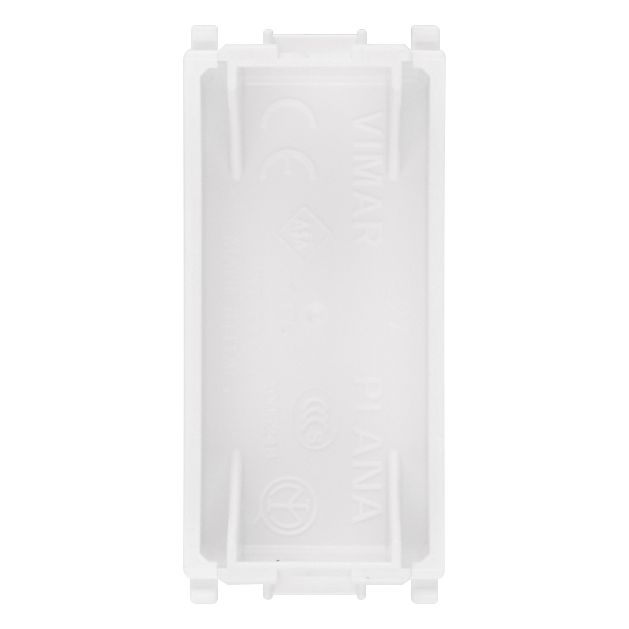

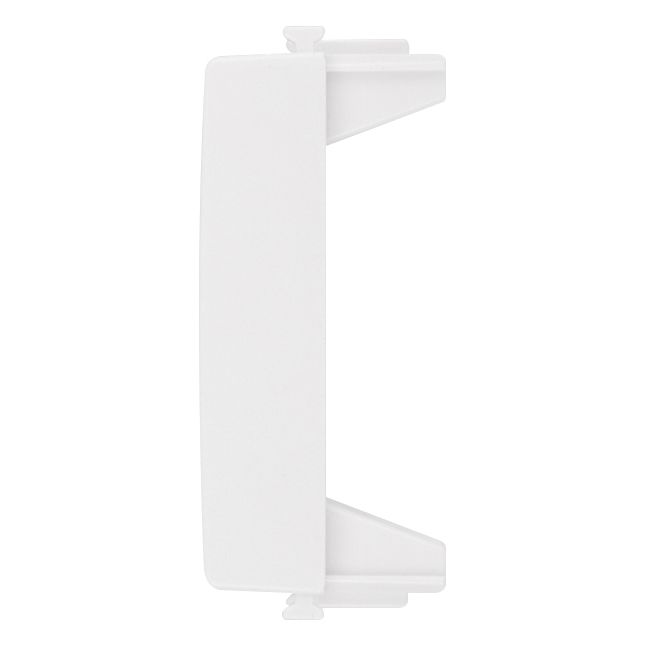

• VM14041: Color White. This is the standard white version with a glossy untreated surface for a uniform look on white Plana plates.
• VM14041.AB: Color White/Antibacterial. This version keeps the white appearance and adds antibacterial treatment for panels in shared interior spaces.

Compatibility and fit

This module belongs to the Vimar Plana range, so fit should be checked against Plana 1M supports and cover plates rather than treated as a universal blank. That matters on a boat where previous refits may have mixed more than one switch series in the same cabin or control area.

Because it uses built-in mounting and claw fastening, it suits flush-mounted assemblies where the support and opening are already in place. The compact depth helps when working in shallow wall cavities or panel spaces where room behind the faceplate is limited.

Installation and use on board

This part is commonly fitted during a refit, after removing a device, or when leaving space for a later upgrade. It closes the opening neatly and keeps the front of the installation finished instead of leaving a visible gap in the plate.

For marine use, it makes the most sense anywhere the vessel already uses Vimar Plana modules inside accommodation or protected control areas. It is also a practical spare for tidying an old opening, reserving a future circuit position, or keeping a multi-gang panel visually consistent after changes to the electrical layout.
