Lopolight Blue Steering Light, 60°, 20-32VDC, RPM Dimming, De-Ice

Overview

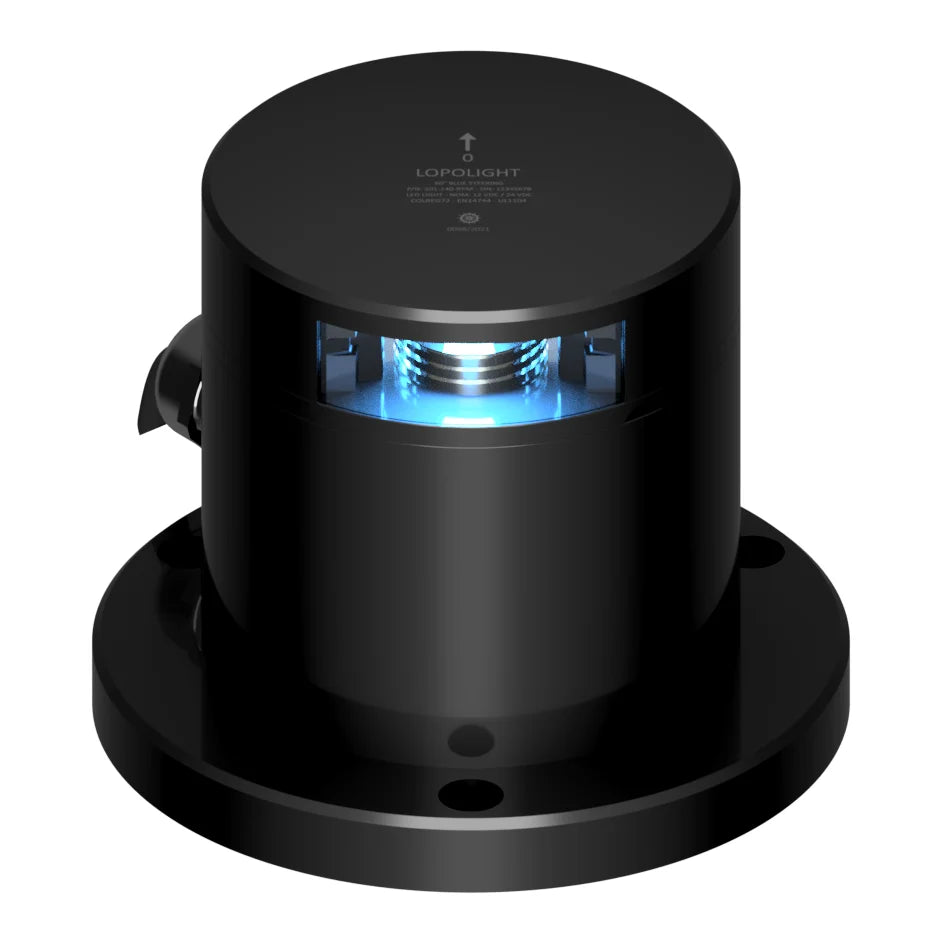

The Lopolight 301-140-RPM-PRO-I is a blue LED steering light with a 60° light sector, RPM-based dimming capability, and integrated standby de-icing for marine installations. Operating on 20-32V DC, it delivers a 2-nautical-mile visibility range with luminous intensity exceeding 5.4 candela. Its Ice-Class configuration supports installations exposed to low temperatures and icing conditions.

The fixture features an IP68-rated enclosure with black anodized aluminum construction, a PMMA lens, and A4 stainless steel screws. It mounts horizontally on a POM base with a side-facing cable connection and an included HDPE base plate. Dimming capability is intended for Navy and search-and-rescue applications, with Lopolight NLC control compatibility.

Key features

• 60° blue LED steering light with 2-nautical-mile visibility and luminous intensity greater than 5.4 cd.

• 20-32V DC operating voltage for compatible marine electrical systems.

• RPM-based dimming capability with Lopolight NLC control for Navy and SAR applications.

• Built-in standby de-icing function for Ice-Class installations.

• IP68 ingress protection and IEC 60945 approval.

• Black anodized aluminum housing with 50-micron anodizing, PMMA lens, and A4 stainless steel screws.

• Horizontal mounting on a 400-037 POM base with side cable orientation and plug connector.

• Operating temperature range of -25°C to +55°C.

Installation and system integration

The light uses a horizontal mounting arrangement with a POM base and HDPE base plate. Its side-oriented cable connection and plug connector should be considered when planning mounting clearance and cable routing. The 20-32V DC operating range and Lopolight NLC dimming requirements should be checked against the vessel's electrical and control systems.

Marine applications and compliance

This configuration is intended for specialized blue steering-light applications aboard Navy and search-and-rescue vessels. Its integrated de-icing function and specified operating temperature range support use in cold marine environments. The blue steering-light function is not individually defined under COLREGs and does not carry individual COLREG certification, although the fixture is approved to IEC 60945.

What's included

• 1 Lopolight blue steering light with integrated de-icing

• Installation guide
