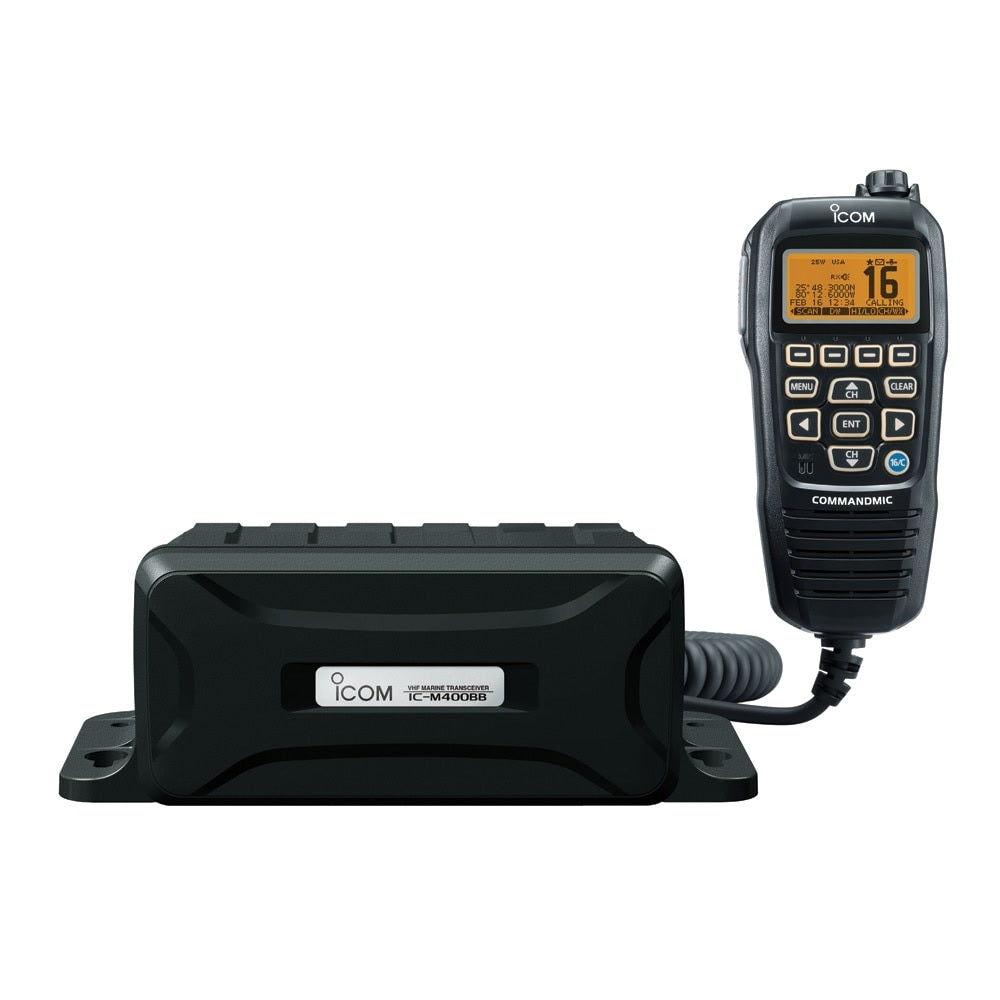

Icom M400BB Black Box VHF With HM195 Black M400BB

SKU: APL584358 Part number: M400BB Barcode: 731797036049
Regular price $42995

Description

Black Box Transceiver - Icom Quality. Small Footprint.

Space-saving, two-piece configuration

The IC-M400BB consists of a two-piece, black box configuration. All function control including DSC operation, can be made from the COMMANDMICIV™ , HM-195B/SW, and the RF unit, IC-M400BB, can be installed in an out-of-sight place.

New intuitive user interface

The new menu system is shared with Icom's latest models. The bottom line of the dot-matrix display shows the software key functions which can be toggled with the left and right buttons.

Active noise cancelling

The built-in bidirectional active noise cancelling reduces background noise to up to 90% and improves both your transmitted voice and incoming call. Hear and be heard more clearly.

10W Loud Audio, Public Address and Foghorn

The IC-M400BB has a built-in 10W amplifier that increases the audio output from an additional external speaker. The public address function allows you to make an announcement from the microphone like a loud speaker, and the foghorn can also be emitted from the external speaker.

Built-in Class D DSC

The built-in DSC watch function monitors Ch. 70 (DSC channel) activity, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls.

Common NMEA Interface

When connected to an external GPS receiver, current position and time are shown on the COMMANDMIC™ display. When receiving DSC information from another vessel, the radio can transfer it to a navigational device via NMEA 0183 connectivity.

AIS Target Call with MA-500TR

When connected to the optional MA-500TR Class B AIS transponder, the AIS target call function allows you to set up an individual DSC call from the MA-500TR.

Additional features include
  • MarineCommander™ compatible
  • AquaQuake™ water draining function
  • IPX7 submersible protection both for IC-M400BB and HM-195B/SW (1m depth for 30 minutes)
  • Dual/tri-watch function for monitoring Ch.16 and/or call channel
  • Priority and normal scan
Specifications
General
Frequency Range
Tx
Rx
Ch. 70

156.025-157.425MHz
156.050-163.275MHz
156.525MHz
Usable channel groups INT, USA, CAN and WX channels
Type of emission 16K0G3E (FM), 16K0G2B (DSC)
Power supply requirement 13.8V DC nominal
(11.7-15.9V DC)
Current drain (at 7.4V DC)
Tx (at 25W output)
Rx (Max. audio)


5.5A Max.
3.5A Max.

Operating temperature range -20°C to +60°C; -4°F to +140°F
Antenna Impedance 50O (SO-239)
Dimensions (W H D)
IC-M400BB
HM-195B/SW

216 79 125mm; 8.5 3.11 4.92 in
67.5 144.5 37mm; 2.66 5.69 1.46 in
Weight (approx.)
IC-M400BB
HM-195B/SW

830g; 1.83 lb
400g; 14.1 oz
NMEA in/out formats RMC, GGA, GNS, GLL, DSC, DSE
Transmitter
Output power (Hi/Low) 25W, 1W (High, low)
Max. frequency deviation ± 5.0 kHz
Frequency tolerance ±10ppm
Spurious emissions Less than -70dBc (at 25W)
Receiver
Sensitivity
Main
Ch. 70


0.22µV typical (at 12dB SINAD)
-5dBµ emf typ. (1% BER)
Squelch sensitivity

Less than 0.32µV
Adjacent Channel Selectivity
Main
Ch. 70


More than 70dB
More than 73dBµ emf (1% BER)
Spurious response
Main
Ch. 70


More than 70dB
More than 73dBµ emf (1% BER)
Intermodulation
Main
Ch. 70


More than 70dB
More than 68dBµ emf (1% BER)
Hum and noise ratio More than 40dB
Audio output power


Internal speaker
External speaker




More than 2W (HM-195B/SW)
More than 10W (RX Speaker)

Measurements made in accordance with TIA/EIA 603 and IEC 62238 (Ch. 70 receiver specifications).

Applicable IP Rating

Ingress Protection Standard (IC-M400BB and HM-195B/SW)
Water IPX7 (Waterproof protection
