Vimar IDEA 6-Module Mounting Frame, For 6/7-Module Boxes, 60 x 172mm, With Screws, Grey Thermoplastic

Overview

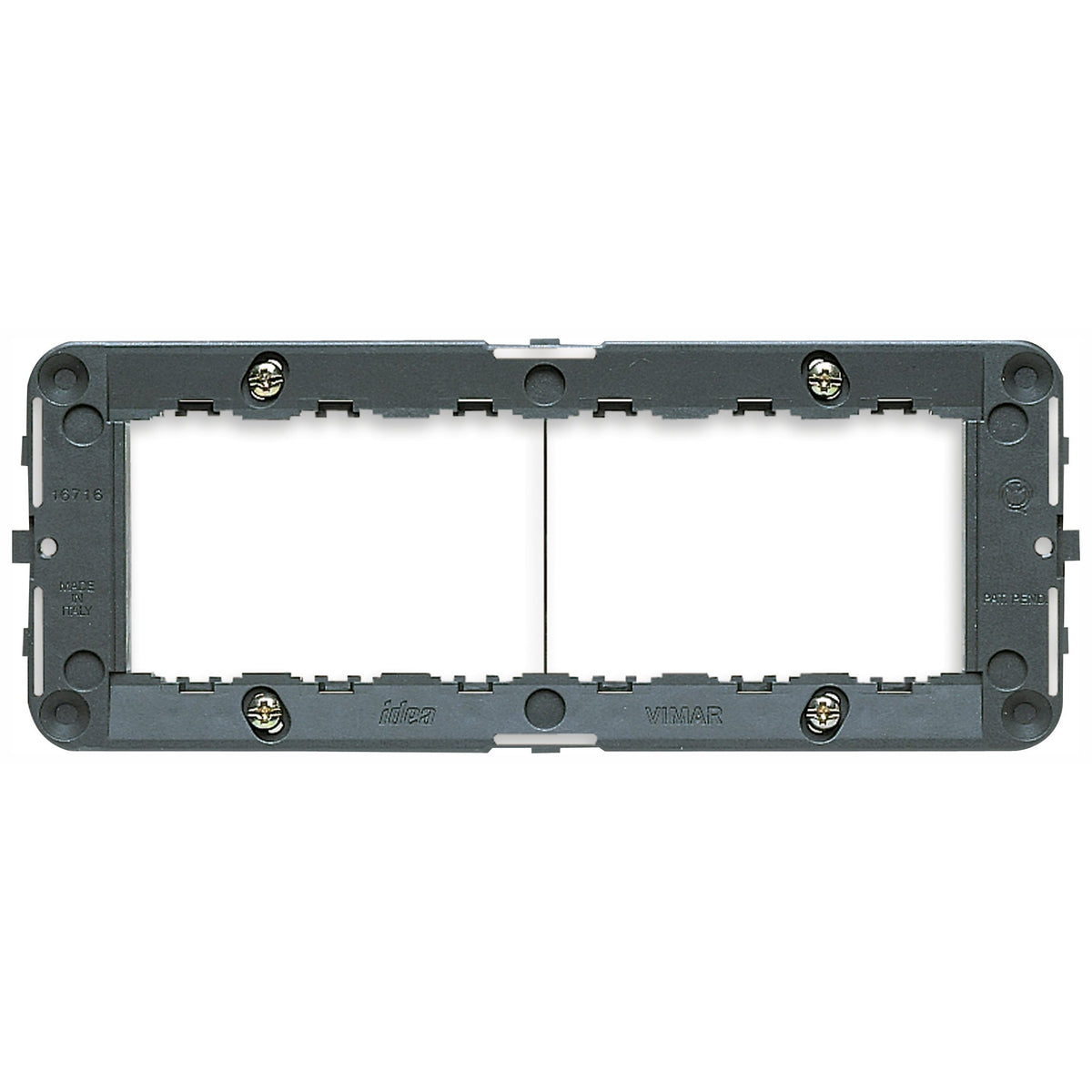

The Vimar VM16716 is a 6-module flush-mount mounting frame with fixing screws for 6/7-module rectangular mounting boxes, made from grey thermoplastic.

It is the support that holds Vimar Idea modular devices in a straight line behind a matching 6-module cover plate, so switches and other modules stay aligned and do not loosen up with vibration.

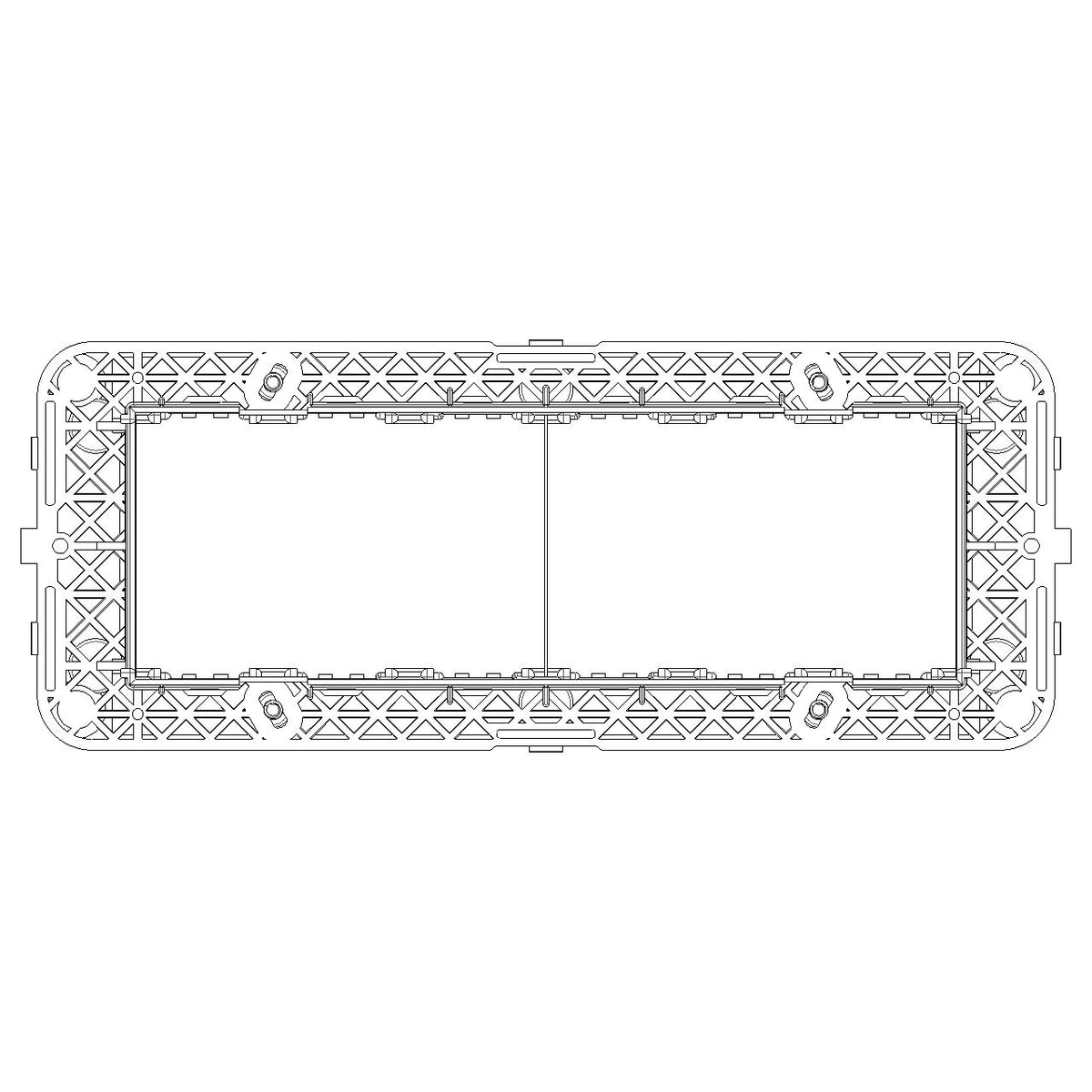

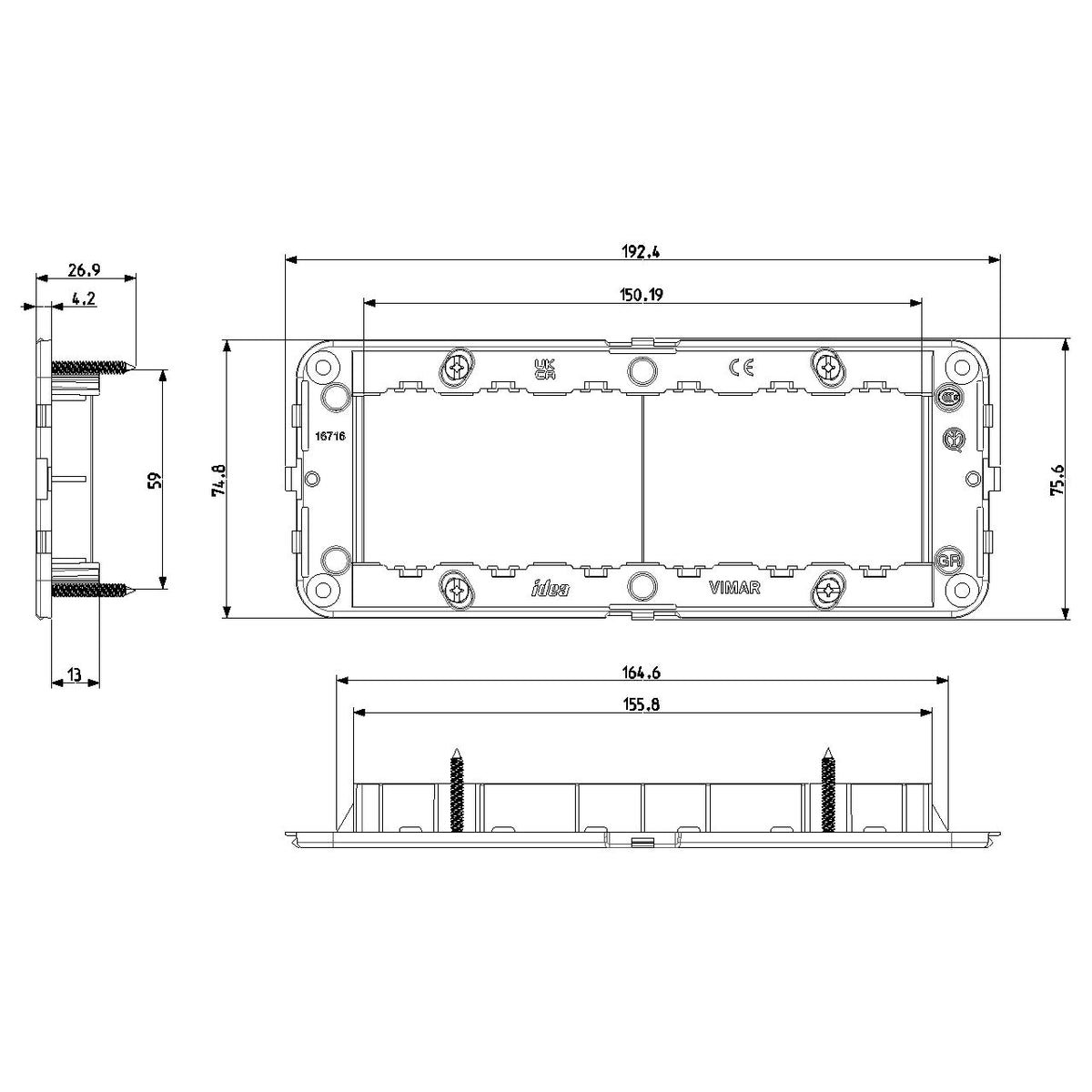

The frame accepts one row of six modules and can be installed horizontally or vertically. Face size is 60 x 172 mm, and the modules mount from the back side of the frame.

Key features

• 6-module mounting frame for Vimar Idea modular devices behind a matching 6-module cover plate
• Fits 6/7-module rectangular flush-mount boxes; commonly paired with VMV71306, VMV71306.AU, and VM71616 boxes
• Screw mounting to the box with fixing screws included
• Back-side module mounting for clean front alignment
• Installs horizontally or vertically while keeping a single row of six modules
• Frame only (no built-in installation box)
• Not intended for round junction boxes, floor boxes, wall duct mounting, or DIN-rail mounting

Compatibility and fit

This frame is part of the Vimar Idea system and is used with 6-module Idea cover plates (Round and Square styles). It is sized for rectangular flush-mount boxes that accept 6 or 7 modules, so confirm your box type and spacing before cutting a new opening in a panel.

For replacements, match the module count and the box code you already have on board. If the cutout forces a vertical orientation, the frame still carries one row of six modules.

Installation and setup

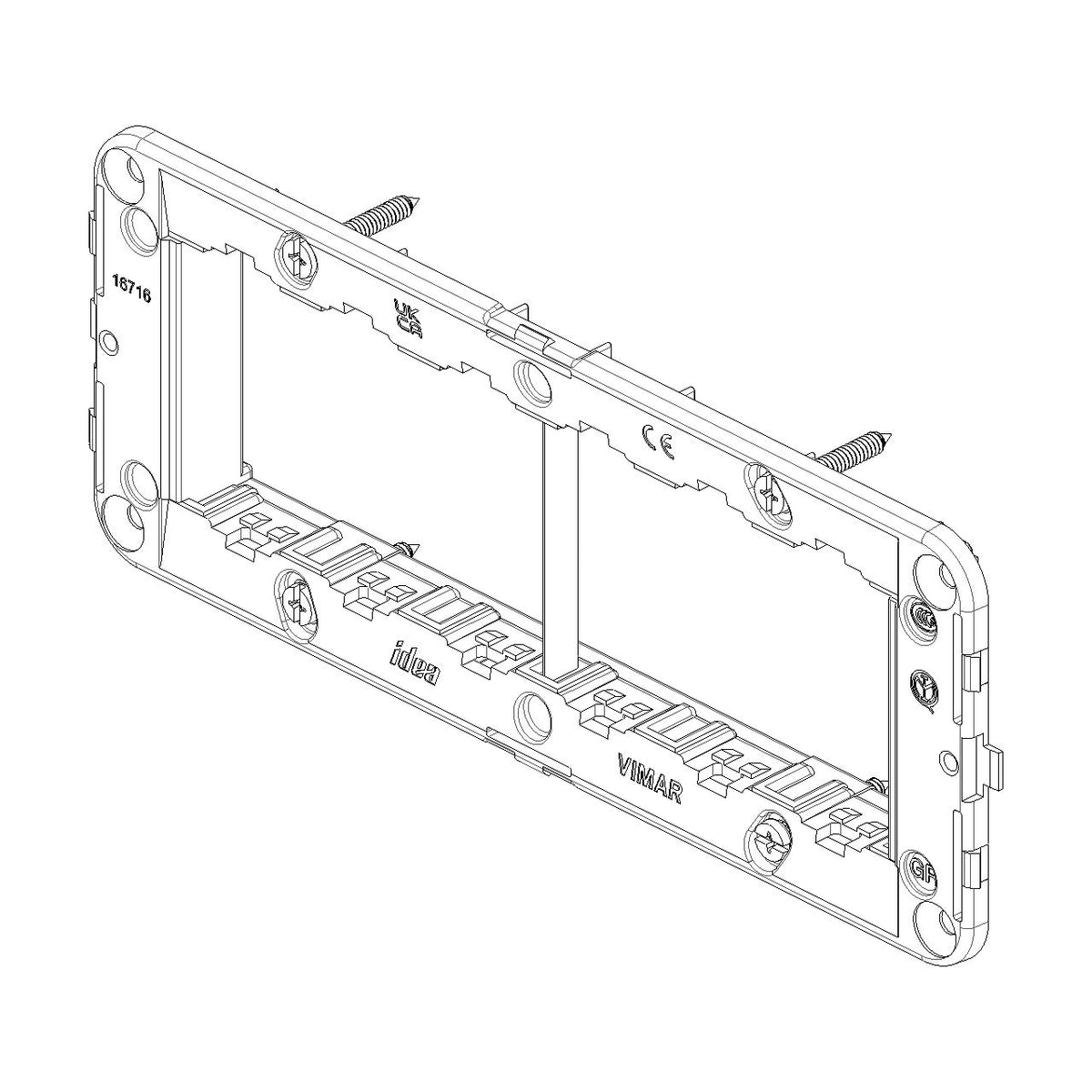

Fix the frame to the flush-mount box using the supplied screws, then mount the modules from the back side of the frame and finish with the cover plate. Leave enough wire slack inside the box so a module can be pulled forward later for service without tugging on terminals.

On fiberglass or thin bulkheads, make sure the box is seated on a flat surface before tightening the screws. That keeps the cover plate sitting flush and helps prevent squeaks or movement underway.

Use cases on board

This frame is commonly used to build clean, modular switch and outlet stations at the helm, nav station, or cabin entry, where you want a consistent layout across lighting, pumps, and accessory controls.

It is a good match for refits where an older switch cluster is being replaced with an Idea layout that can be expanded or reconfigured later by swapping individual modules.

Materials and care

The body is thermoplastic. Keep it behind the cover plate and avoid harsh solvents during cleaning. A damp cloth wipe is usually enough for routine care in cabins and protected areas.

What's included

• 6-module mounting frame (grey)
• Fixing screws
