Lopolight PRO Double All-Round Navigation Light, 3nm, ATEX, Ice-Class

Overview

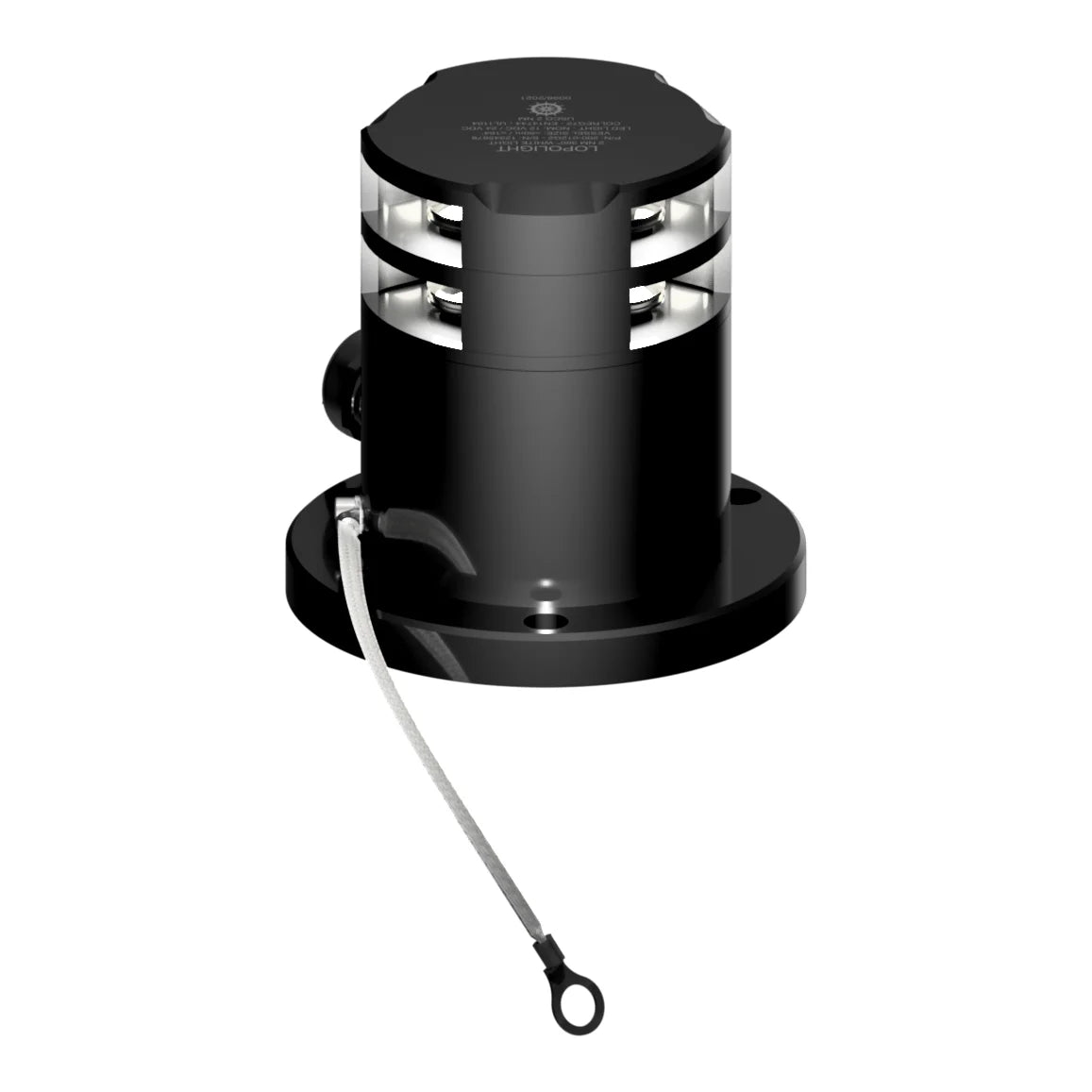

The Lopolight 301-112ST-PRO-I-EX is a double 360° white LED navigation light with a 3 nautical mile visibility range for vessels over 50 meters. Part of the PRO Series, it combines ATEX and IECEx certification for hazardous Zone 1 and Zone 2 environments with an integrated ice-class defroster for installations exposed to freezing conditions.

Operating on 10-32V DC with a 4W power draw, the fixture features an IP68-rated enclosure, a black hard-coat anodized aluminum housing, and a PMMA lens. Its double-light configuration, horizontal mounting arrangement, and all-round white light output support navigation and signaling requirements on large commercial vessels.

Key features

• Double 360° white LED navigation light with a 3 nautical mile visibility range and luminous intensity greater than 15 candela.

• Certified for hazardous Zone 1 and Zone 2 environments, with ATEX and IECEx approvals.

• Integrated ice-class defroster for operation in freezing marine conditions.

• 10-32V DC operating range with 4W power consumption, compatible with nominal 12V and 24V DC electrical systems.

• IP68-rated construction with a black hard-coat anodized aluminum housing, PMMA lens, and A4 stainless steel screws.

• Horizontal mounting configuration with side cable routing and plug connector.

• Compact fixture dimensions of approximately 3.6 inches in diameter and 4.9 inches in height.

• Approved to COLREG 72 and applicable marine navigation light standards, including EN 14744 and IEC 60945.

Installation and electrical integration

The fixture mounts horizontally on a 400-037 EX/MIL aluminum base and incorporates an HDPE base plate. Side-directed cable routing and a plug connection accommodate installation into the vessel's navigation lighting circuit. The operating temperature range is -25°C to 55°C, and electrical installation must preserve the required explosion-protection and enclosure integrity for the designated hazardous area.

Use on board

This double all-round white navigation light is intended for commercial vessels over 50 meters requiring a 3nm visibility rating, hazardous-area certification, and integrated de-icing capability. Its combination of 360° coverage, explosion-protected construction, and ice-class features addresses navigation lighting installations where both hazardous atmospheres and freezing conditions must be considered.

What's included

• 1 Lopolight double 360° white navigation light with integrated ice-class defroster.

• Installation guide.
