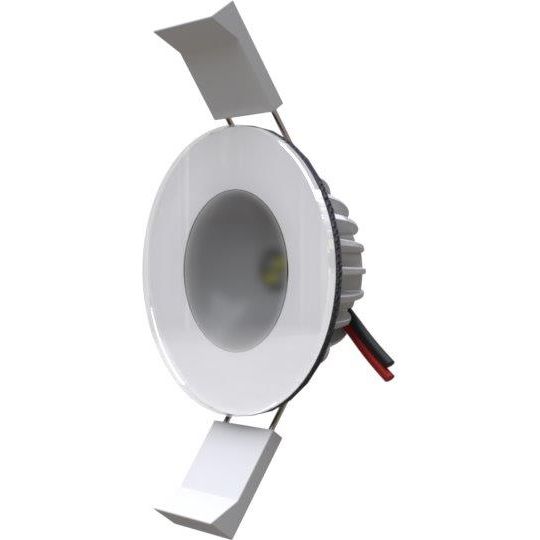

Lumishore - ECLIPSE Downlight DL55 - White/RGB

Exceptional Lighting for Marine Overhead Areas

The Lumishore ECLIPSE DL55 Downlights are designed to enhance your onboard lighting with outstanding performance and versatility. These lights are suitable for both indoor and outdoor overhead applications, delivering high-quality illumination for various marine environments. Built with an IP67 water-sealed design, the DL55 Downlights ensure durability and reliability in demanding conditions. Their ultra-slim 21mm (0.83”) depth allows for discreet and easy installation, making them an ideal lighting solution for modern vessels.

Choose from a range of vibrant colors, including White + RGB, dual-color blue and white, or single-color options. The lights are available in sleek white or black finishes, enabling you to seamlessly match your boat’s aesthetics. With simple 2-wire installation and optional control via an on/off switch or ECLIPSE Command Center, these downlights offer convenience and versatility for marine use.

Advanced Technical Specifications

• LED Type: 1 x 3W Red LEDs, 1 x 3W Blue LEDs, 1 x 3W Green LEDs, or 1 x 3W White LEDs
• Supply Voltage Range: 12V DC Only (10 - 15V DC)
• Max Current Draw: 0.4A (12V DC)
• Ingress Protection Rating: IP67 (Fully Water-Sealed)
• Electrical Installation: Simple 2-Wire Connection
• Control Options: On/Off Switch or ECLIPSE Command Center

Compact and Low-Profile Dimensions

• Front Diameter (Bezel): 64.0mm (2.519”)
• Profile When Installed: 3.00mm (0.118”)
• Hole Diameter for Fitting: 50.8mm (2.0”)
• Shallow Depth: 21mm (0.83”) for easy installation

Premium Finishes for Marine Style

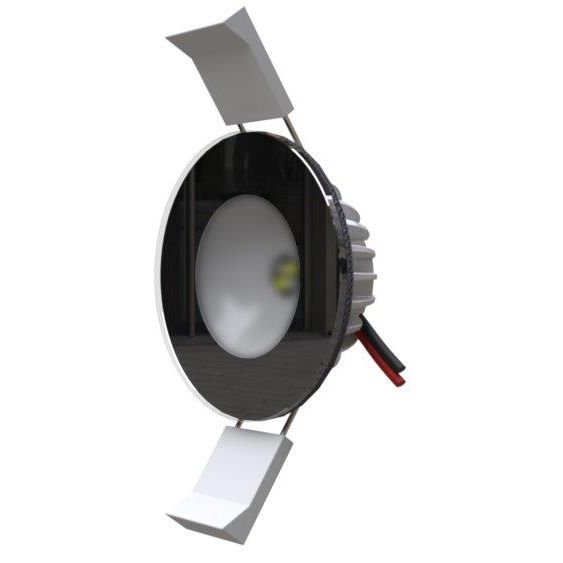

• Trim Ring (Bezel) Material: White or Black
• Finish Options: Choose between sleek white or bold black finishes to complement your boat’s design.

Key Highlights

• High-performance LED lighting with color versatility (White + RGB, dual-color blue and white, or single-color options)
• Compact and discreet design for overhead lighting
• Fully water-sealed and IP67 rated for reliable marine use
• Easy installation with 2-wire connection and stainless steel spring clips
• Multiple control options for convenience and adaptability

Variants List

• LM600570: White Finish
• LM600571: Black Finish
