Lopolight 4CD Aluminum Mounting Base, 4 Cable Entries, M16

Overview

The Lopolight 4CD Aluminum Mounting Base is a mounting accessory for marine navigation light installations, featuring four bottom cable entries for organized cable routing. Its M16 cable gland configuration accommodates cable diameters from 4 to 11 mm, allowing cables to enter through the underside of the base.

The base is available in silver, black, and white finishes to suit different installation appearances. The silver and black versions feature anodized aluminum construction, while the white version has a ceramic-coated finish.

Key features

• 4CD mounting base for marine navigation light installations.

• Aluminum construction with finish options to suit different mounting surfaces and vessel appearances.

• Four bottom cable entries for routing wiring beneath the base.

• M16 cable gland configuration supports cable diameters from 4 to 11 mm.

• Horizontal mounting configuration.

• Silver and black versions measure 92.5 mm in diameter and 48.5 mm in height.

• Silver and black versions have an IP68 rating.

Variants

The 4CD aluminum mounting base is available in three finish configurations, each retaining the four bottom cable entries and M16 cable gland arrangement.

The differences concern the exterior finish and coating. Silver and black versions have a 25-micron anodized finish, while the white version features a ceramic coating.

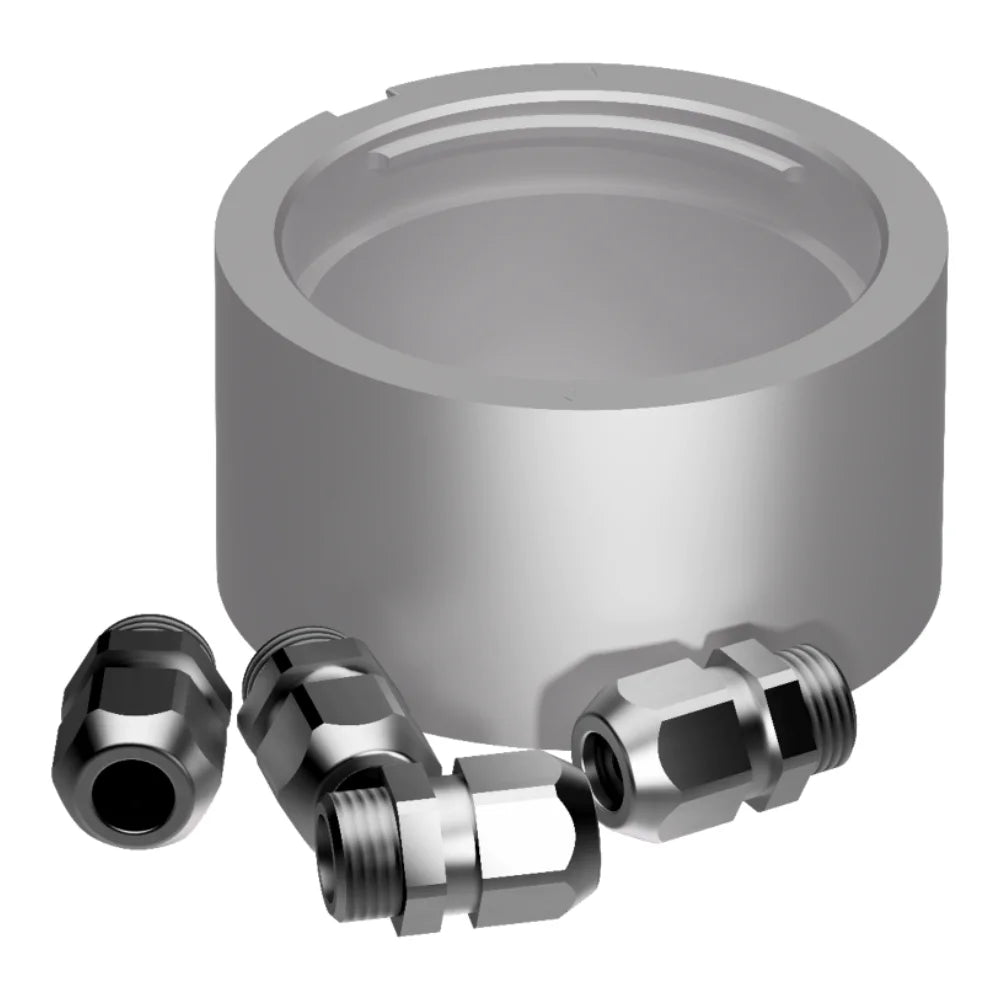

• 400-035, Silver: Silver anodized aluminum finish with a 25-micron coating.

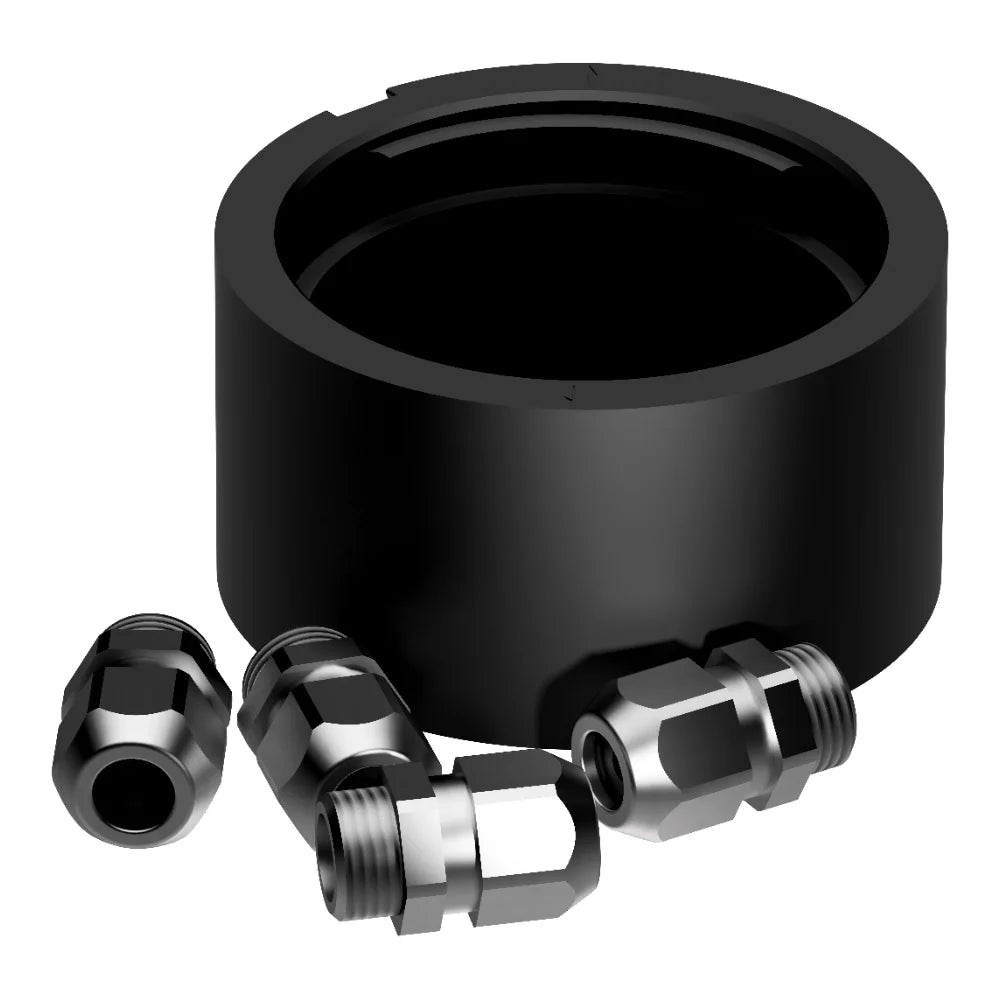

• 400-035-B, Black: Black anodized aluminum finish with a 25-micron coating.

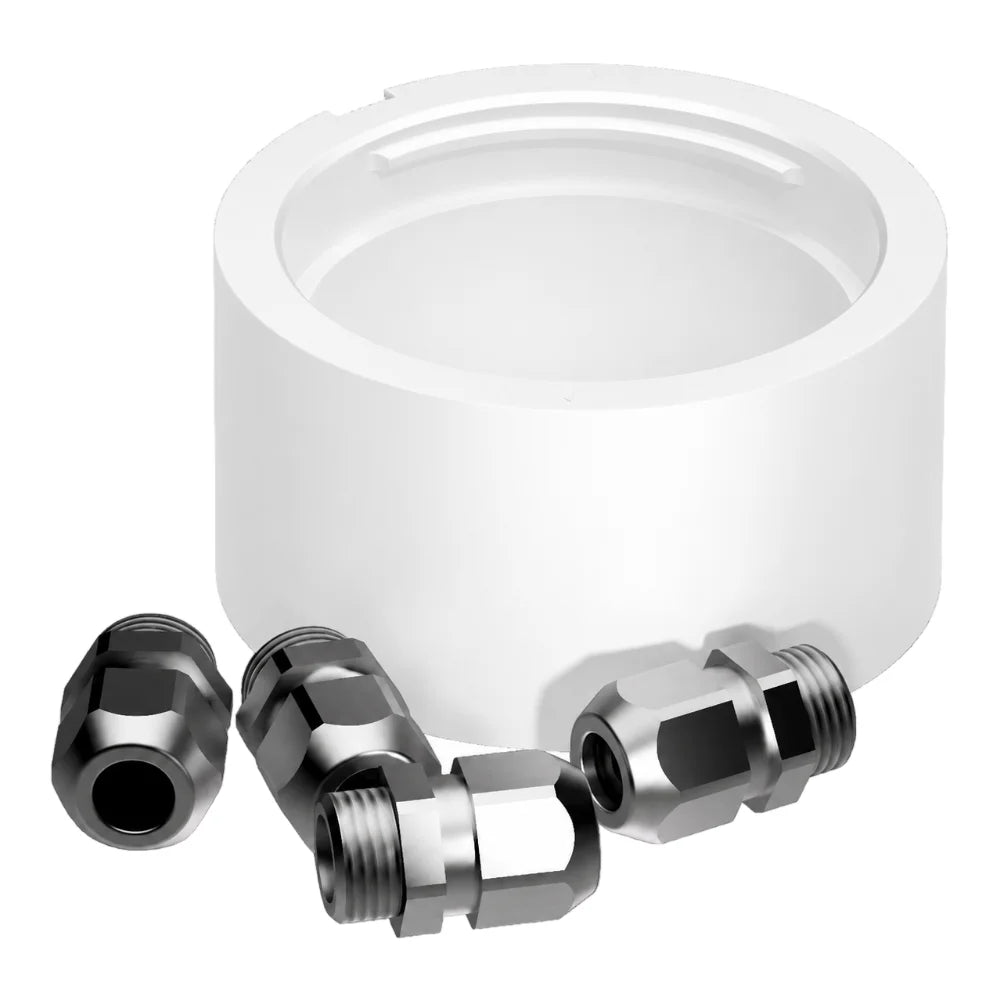

• 400-035-WH, White: White ceramic-coated finish for a different exterior appearance.

Installation and cable routing

The four bottom cable entries allow wiring to be routed through the underside of the mounting base rather than around its exterior. The M16 cable gland arrangement accommodates cable diameters between 4 and 11 mm, making cable diameter an important consideration when planning the installation.

The base is intended for horizontal mounting in a marine navigation light installation. Confirm the mating navigation light configuration and available mounting space before installation.
