Garmin echoMAP Flush Mount Kit, For 73dv/7Xsv, Mounting Template

Overview

The Garmin 010-12233-01 is a flush mount kit that lets you install a compatible echoMAP 73dv or 7Xsv Series display directly into a flat helm panel for a clean, built-in look.

This style of install keeps the unit’s front face close to the dash surface and reduces the footprint compared with a bracket mount, which can help in tighter helms and on boats where you want fewer snag points around the wheel, throttles, and switches.

Key features

• Made for echoMAP 73dv and echoMAP 7Xsv Series displays, with a cutout sized for that family.
• Flush-mount format for helm panels, electronics pods, and nav stations where a built-in fit matters.
• Template included to mark the cutout and mounting points before you drill and cut.
• Mounting hardware included to secure the display into the panel after the opening is cut.

What’s included

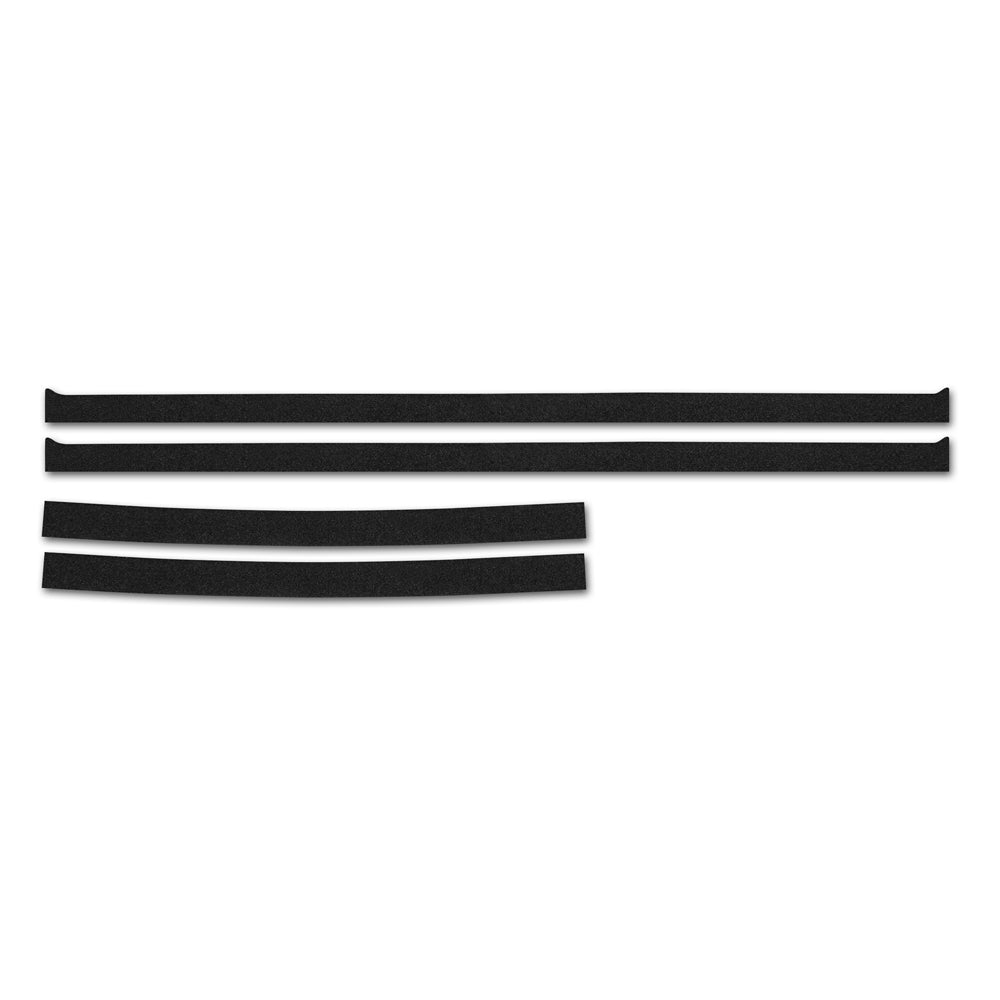

• Flush mount hardware
• Installation instructions
• Cutout template

Installation and fit

Plan the location before cutting. Confirm there is room behind the panel for the unit body, cable connections, and a gentle bend radius on the wiring so plugs are not forced sideways.

Use the template to lay out the opening, then dry-fit as you go. After mounting, check that you can still reach any controls, memory card doors, and connectors you may need to access for updates or troubleshooting.

Compatibility and on-board use

This kit is meant for the echoMAP 73dv and echoMAP 7Xsv Series form factor and is not a universal flush mount solution. Match the model family of your display before committing to the cutout.

It’s a solid match for center consoles, walkarounds, and sailboat nav stations where the display is used often and you want it seated into the dash rather than sitting proud on a bracket.
