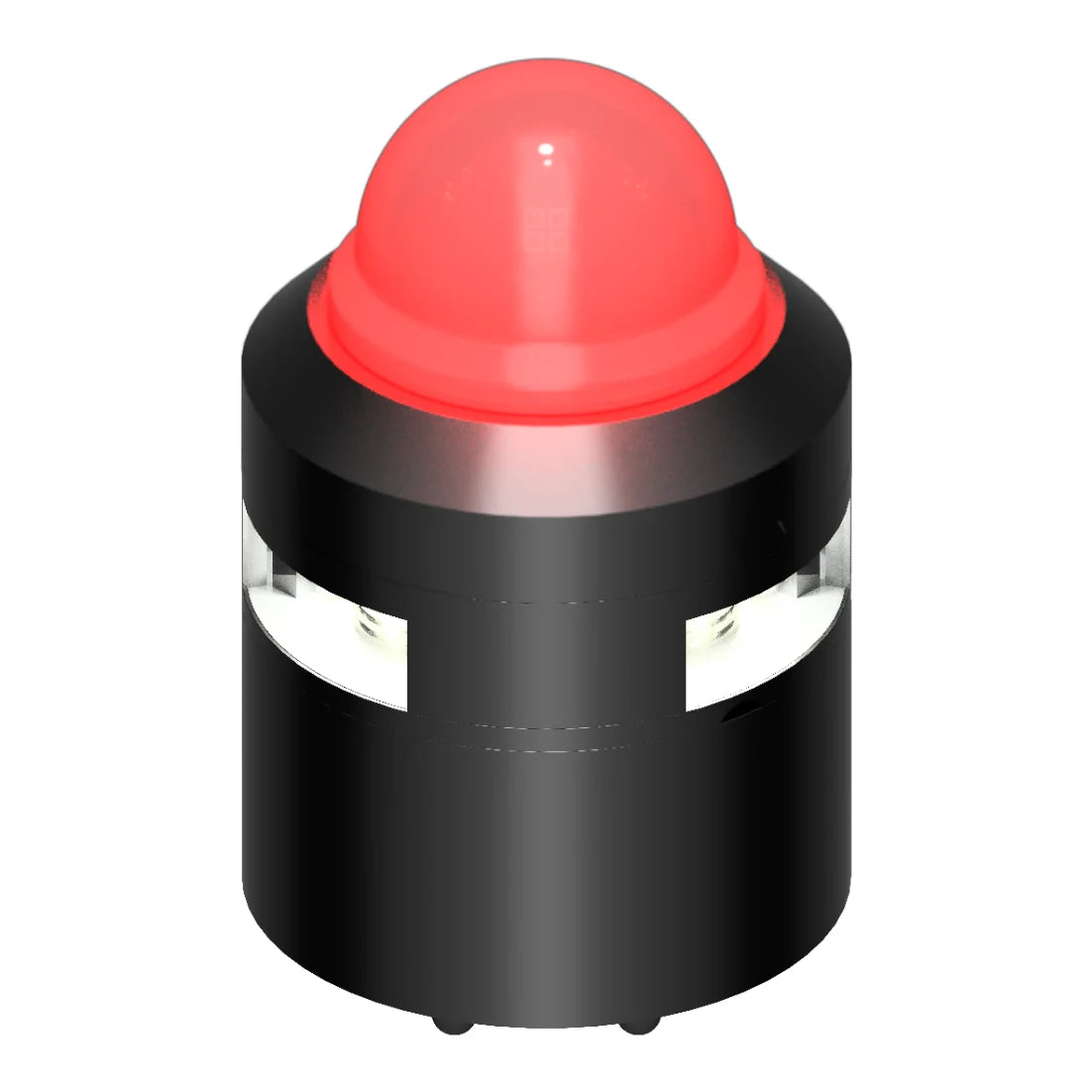

Lopolight Red Obstruction and 360° White Anchor Light with Strobe, 20-32VDC

Overview

The Lopolight 301-411+200-012G2S-B is a combined LED marine signaling light featuring a hemispherical red obstruction light with 3 nautical miles of visibility and a 360° white anchor light with 2 nautical miles of visibility and a strobe function. Both lighting functions are integrated into a single assembly for installations requiring red obstruction signaling and all-round white illumination.

Operating on 20-32VDC with a rated power draw of 2.7W, the assembly features an IP68 rating and a black-anodized aluminum housing with a PMMA lens. Its horizontal mounting configuration and compact integrated construction accommodate marine installations where multiple signaling functions are required at one mounting location.

Key features

• Hemispherical red obstruction light with 3nm visibility and luminous intensity exceeding 15cd.

• 360° white anchor light with 2nm visibility and integrated strobe function.

• 20-32VDC operating voltage with 2.7W power consumption.

• IP68 protection rating for water and dust ingress resistance.

• Black-anodized aluminum construction with 25µ anodizing, PMMA lens, and A4 stainless steel screws.

• DNV certification and compliance with IEC 60945.

• Overall dimensions of approximately 3.6 inches in diameter and 5.4 inches in height.

• Operating temperature range of -25°C to 55°C.

Installation and electrical connection

The assembly is configured for horizontal mounting on an aluminum base identified as 400-034 (CS/CD). M20 and M16 cable glands accommodate cable diameters from 4.5mm to 13mm, while the electrical connection uses a plug connector. The specified minimum feed wire gauge is 0.5mm² (AWG22).

For integration into a 24VDC marine electrical system, the light draws approximately 111mA at 24VDC. Its combined obstruction, anchor, and strobe functions make it suitable for vessel installations requiring these specific signaling configurations within a single fixture.
