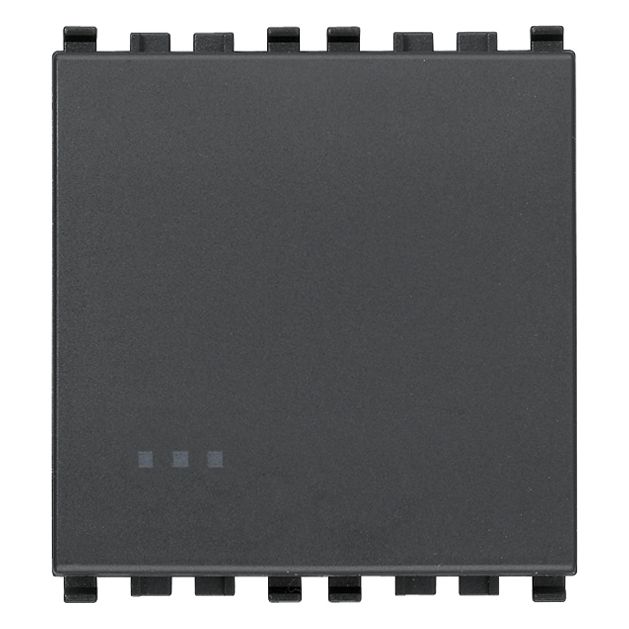

Vimar Eikon 1P 10AX 2-Way Screwless Switch, 250V, IP40, Flush-Mounted, Push-In Clamp

Overview

The Vimar EIKON series is a family of 1P 10AX 250 V 2-way screwless switches for flush-mounted control points where clean panel lines matter and space behind the panel is limited. The range uses screwless push-in clamp terminals, accepts an exchangeable LED for control or orientation lighting, and keeps the same 10AX switching rating with an IP40 front across the family.

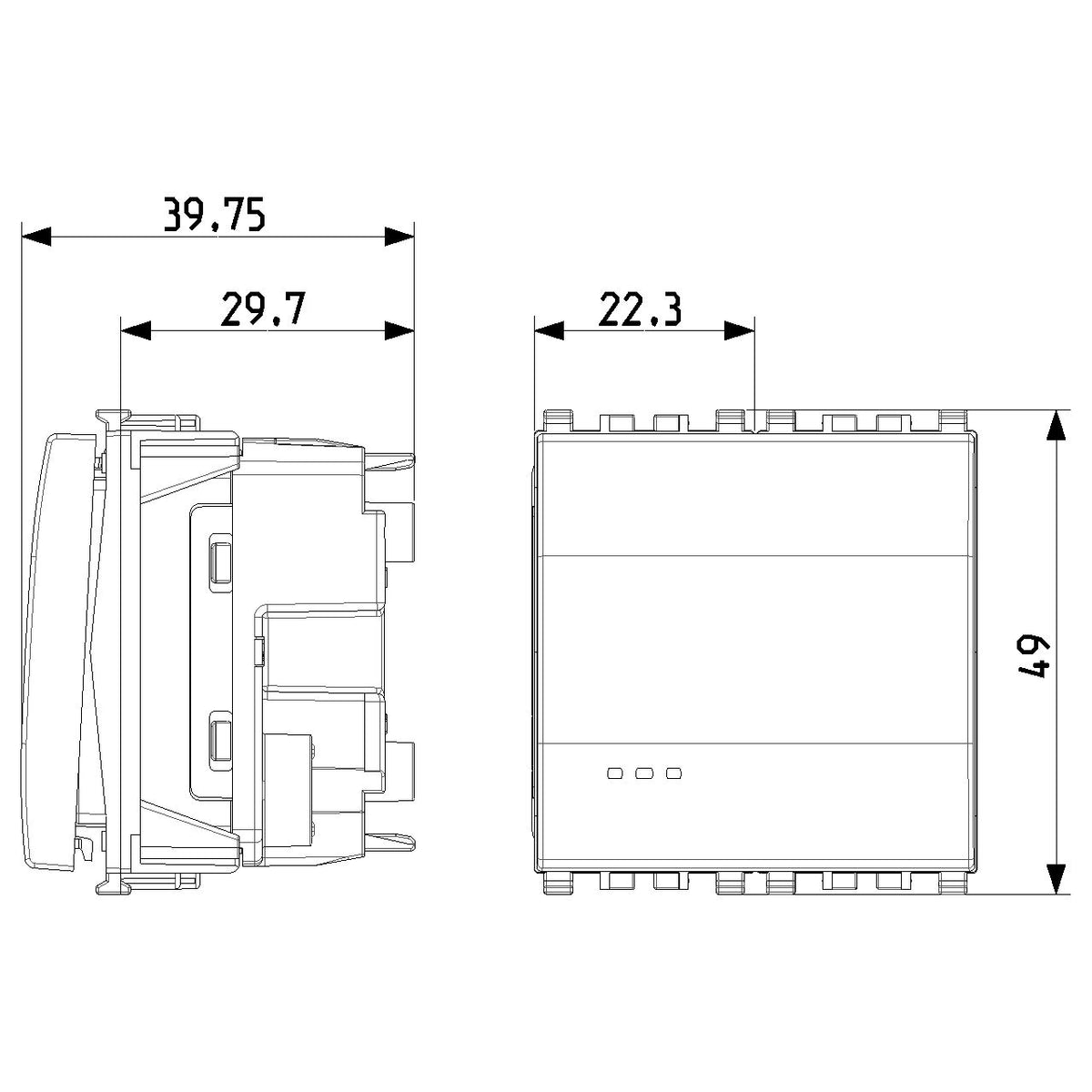

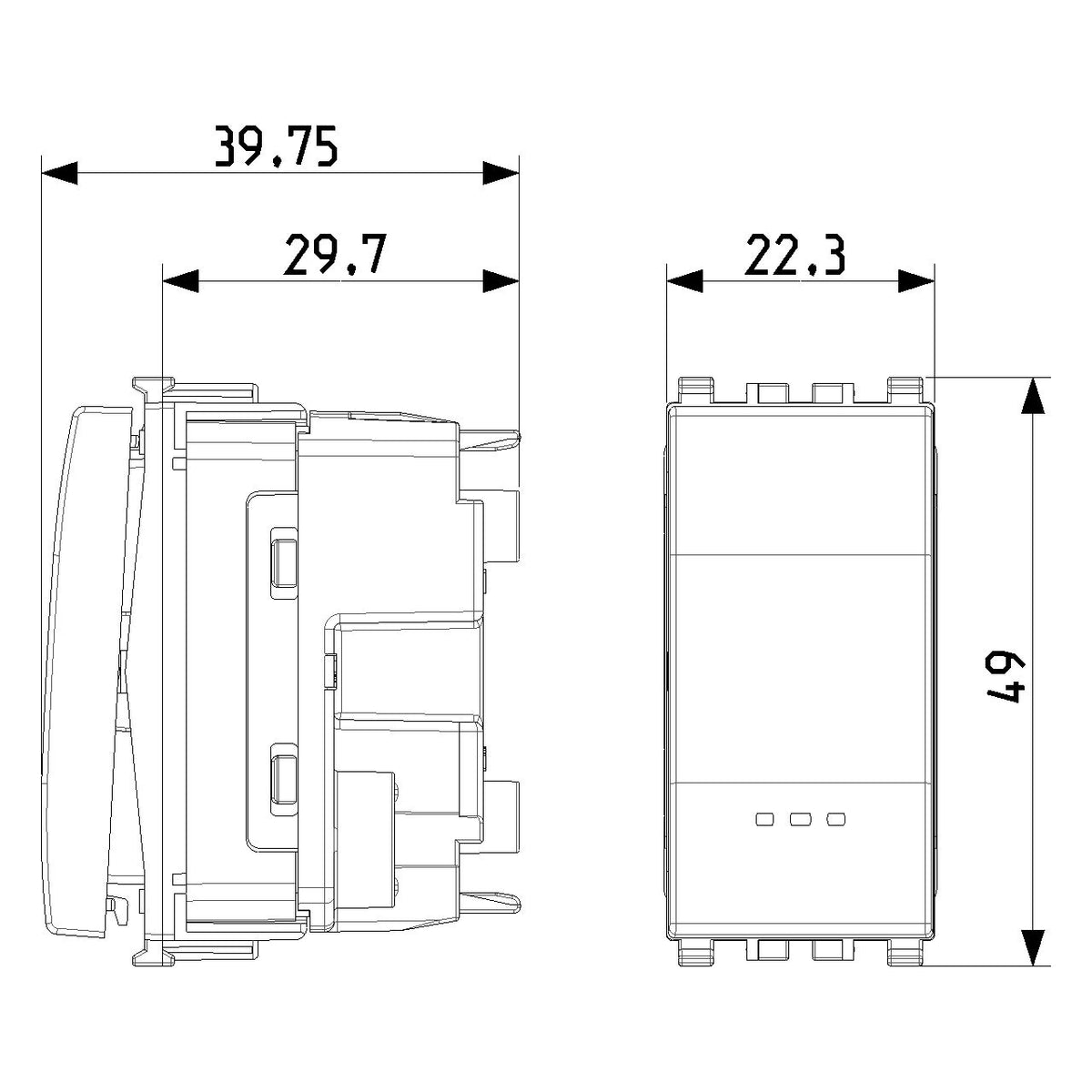

For boat interiors, this type of switch fits protected locations such as cabins, saloons, passageways, and other enclosed spaces rather than exposed decks or washdown areas. The body is halogen-free thermoplastic, the button is replaceable, and the built-in depth is 26.9 mm, which helps when fitting switch positions into furniture panels or interior bulkheads.

Key features

• 1P 10AX, 250 V 2-way switching for circuits controlled from two locations

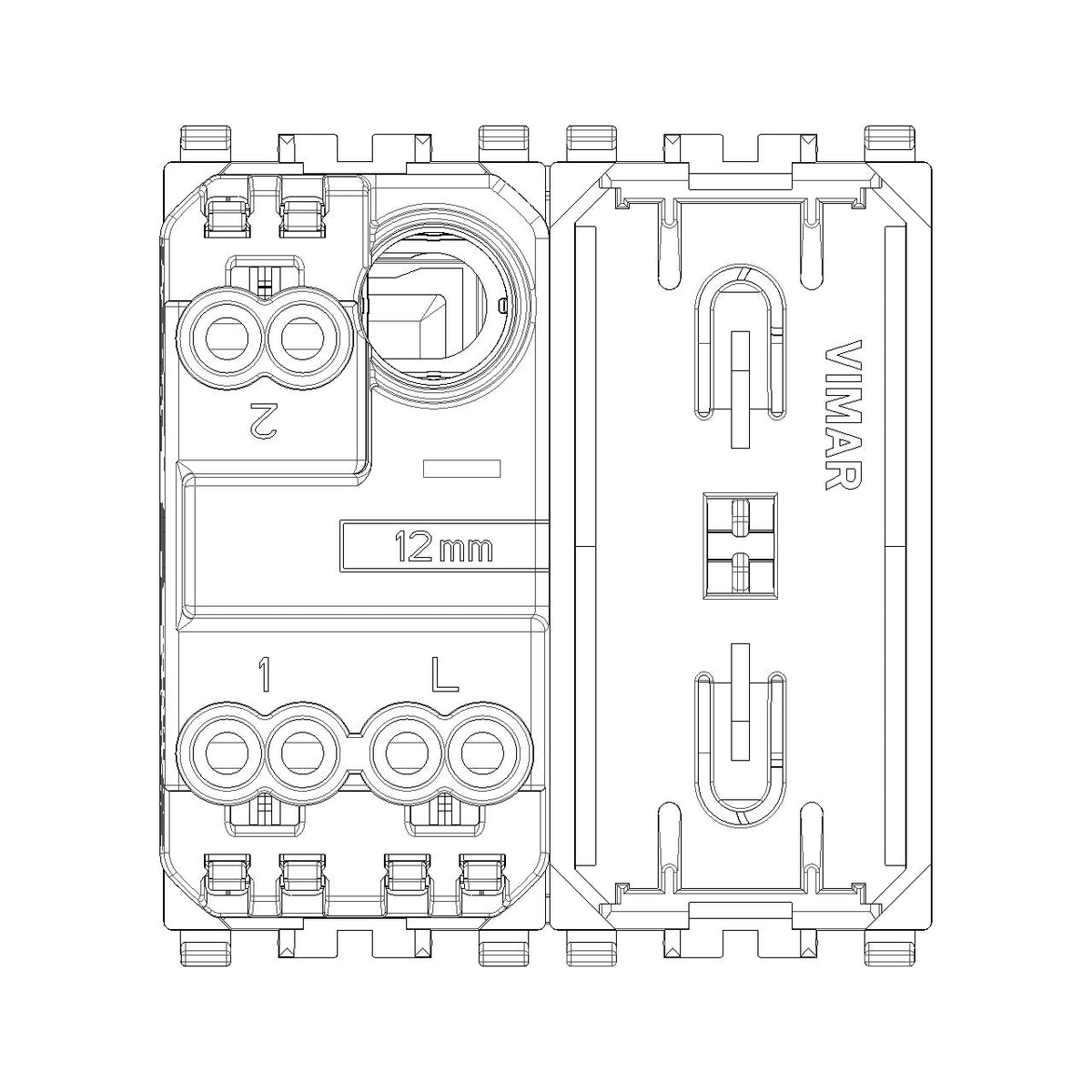

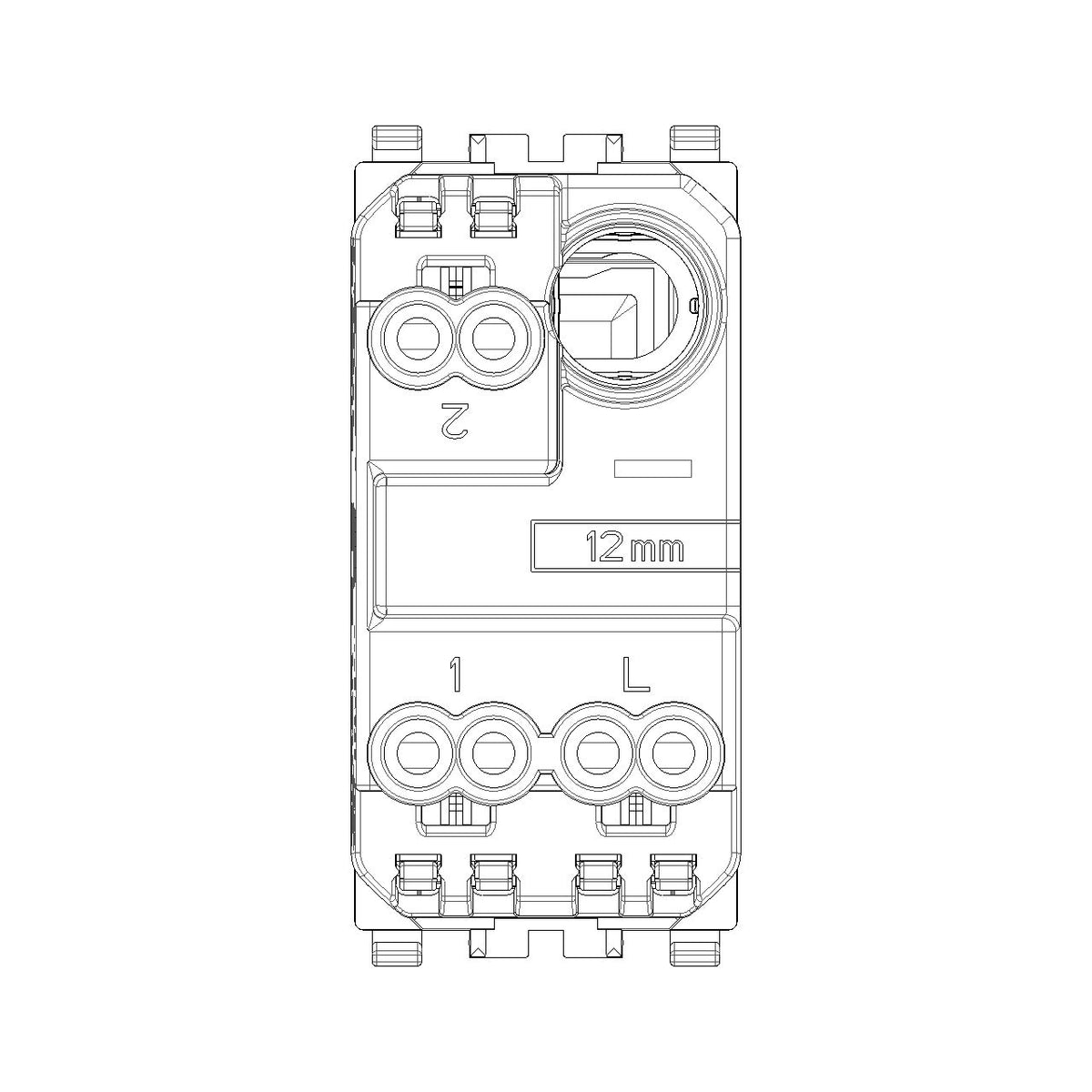

• Screwless push-in clamp terminals for faster wiring in flush-mounted panels
• Optional exchangeable LED for control and orientation lighting
• IP40 front for protected interior installations
• Halogen-free thermoplastic body with matt finish and replaceable button
• Available in 1 Module and 2 Modules formats with Grey, Silver, and White finishes

Variants

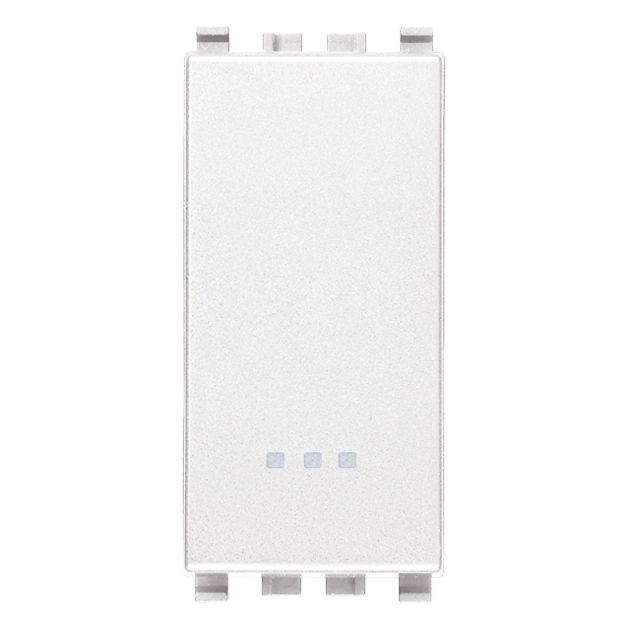

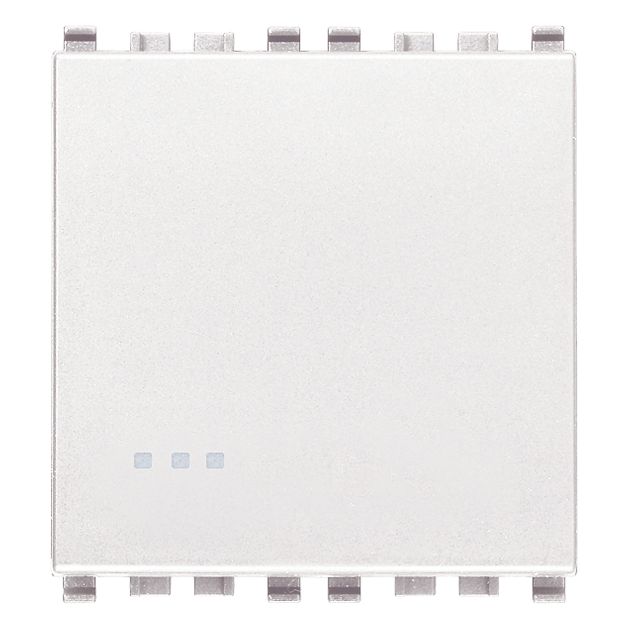

This range varies by two visible details: color and module width. The available colors are Grey, Silver, and White, and each color is offered in either a 1 Module or 2 Modules format to match the cutout layout and the look of the surrounding switch panel.

Across the range, the core switching function stays the same: 1P 10AX 250 V 2-way operation, flush mounting, screwless terminals, optional LED lighting, replaceable button, and IP40 protection. The silver versions use a lacquered surface finish, while the grey and white versions use untreated matt surfaces.

Installation and fit

This switch is used where a lighting or other 250 V control circuit needs switching from two positions, such as a cabin light controlled at the entry and again near a berth. Check the chosen module width against the panel layout before ordering, and keep this range for protected interior mounting points where spray and direct washdown are not part of normal use.

Use on board

It is a good match for refits and new interiors that use modular flush-mounted electrical accessories instead of exposed utility switches. On board, that usually means accommodation spaces, interior companionway areas, and other enclosed control points where appearance matters along with straightforward service access.
