Hella Marine NaviLED 360 PRO All-Round Navigation Light, 2NM, 12-24V, IP67, Wheelmark

Overview

The Hella Marine NaviLED 360 PRO is an all-round 360 degree LED navigation lamp with a 2 nautical mile minimum visible distance for 12-24V DC systems. It draws 1.5W, carries an IP67 rating, and comes pre-wired with 1.4 m of tinned marine cable for straightforward installation.

The housing is made from plastic that resists corrosion, UV exposure, and impacts, paired with a Grilamid® lens. Built-in voltage protection helps in real-world boat wiring, with spike protection to +500 volts and reverse polarity protection to -500 volts. The lamp is approved to recognized marine navigation standards, including IMO COLREG 72 and Wheelmark (MED).

Key features

• 2 nautical mile minimum visible distance with an all-round 360 degree light pattern
• Multivolt™ 12-24V DC input for common 12V and 24V onboard systems
• IP67 completely sealed construction for exposed mounting and washdowns
• 1.5W power consumption to keep current draw low on nav-light circuits
• Pre-wired with 1.4 m tinned marine cable for corrosion-resistant connections
• Spike protected to +500 volts and reverse polarity protected to -500 volts
• Plastic housing that resists corrosion, UV exposure, and impacts, with a Grilamid® lens
• Electronics suppress electrical noise to help avoid interference with onboard radios and electronics

Variants

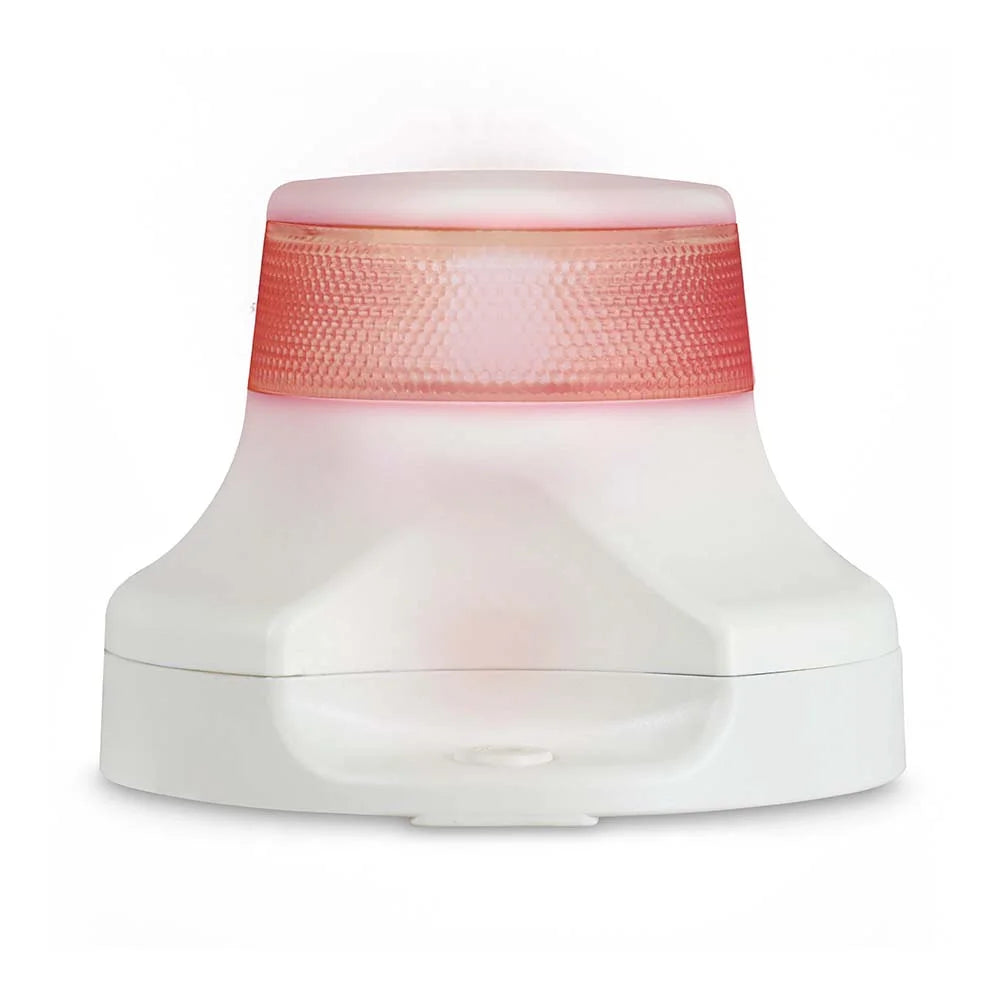

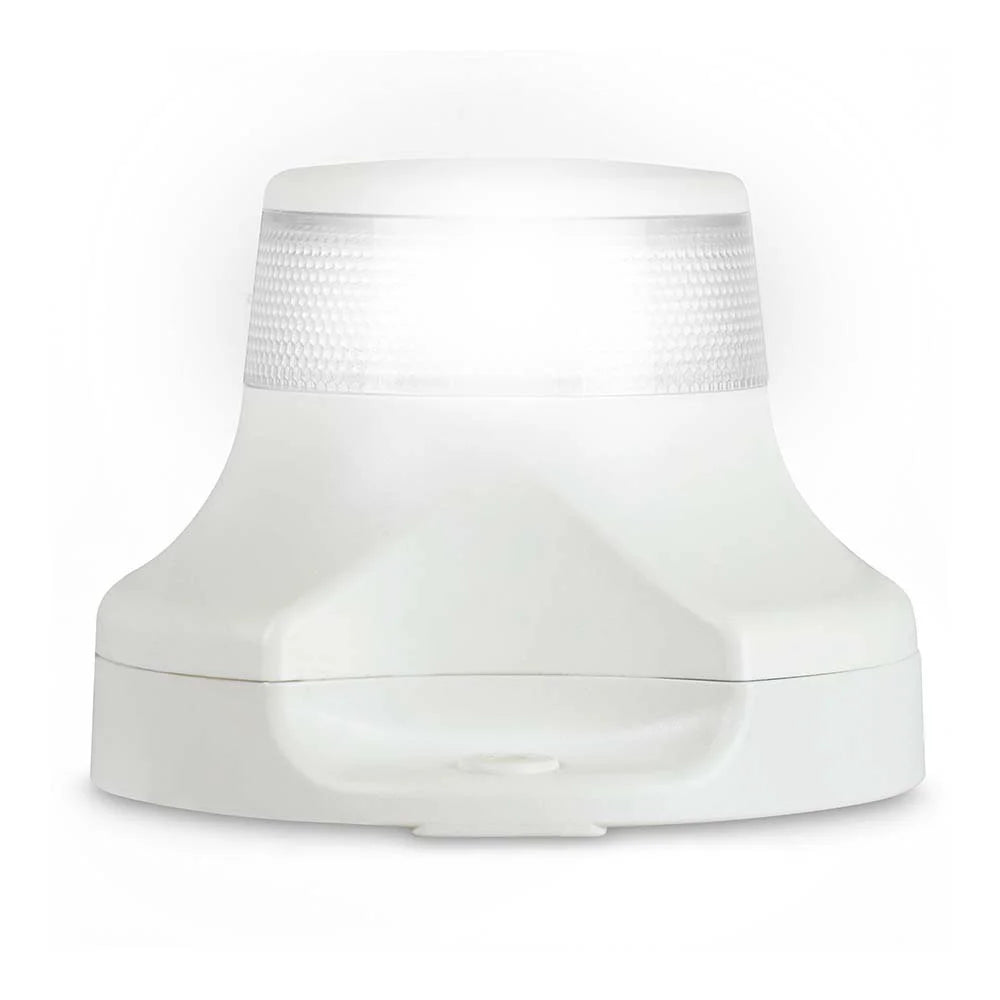

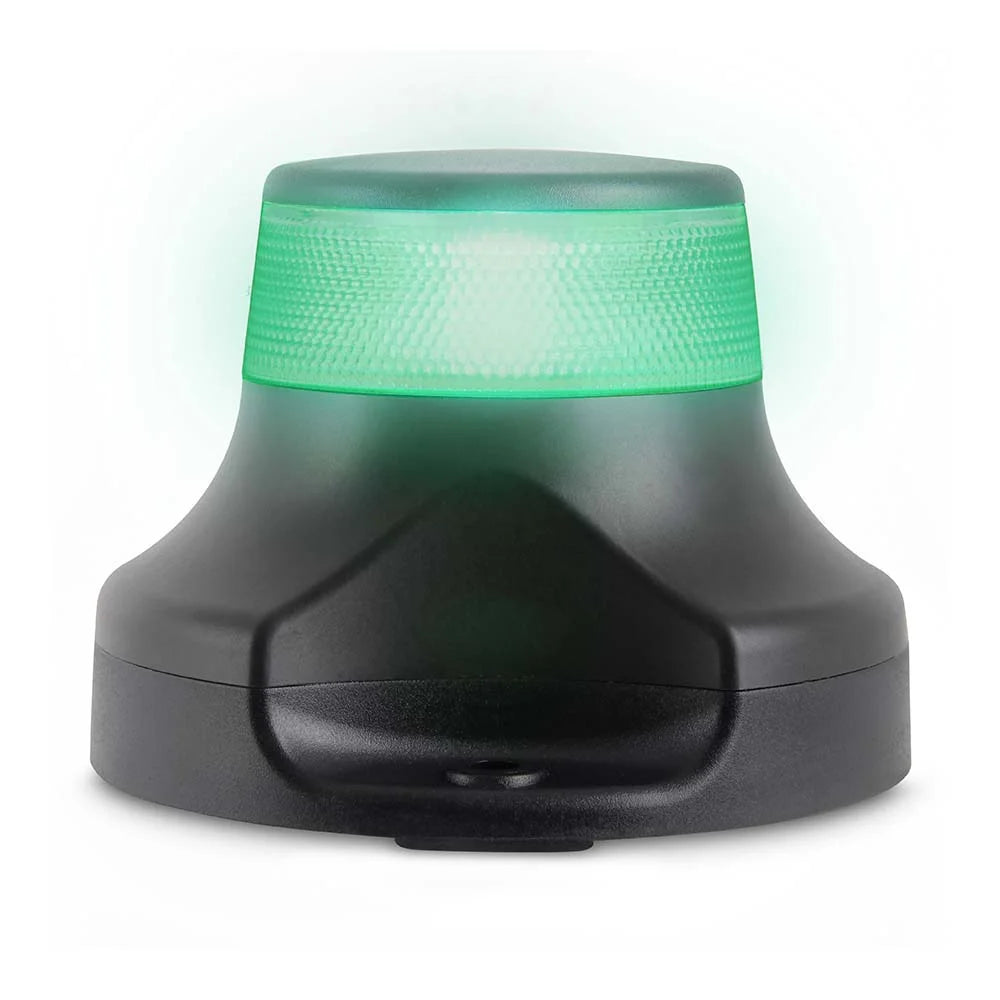

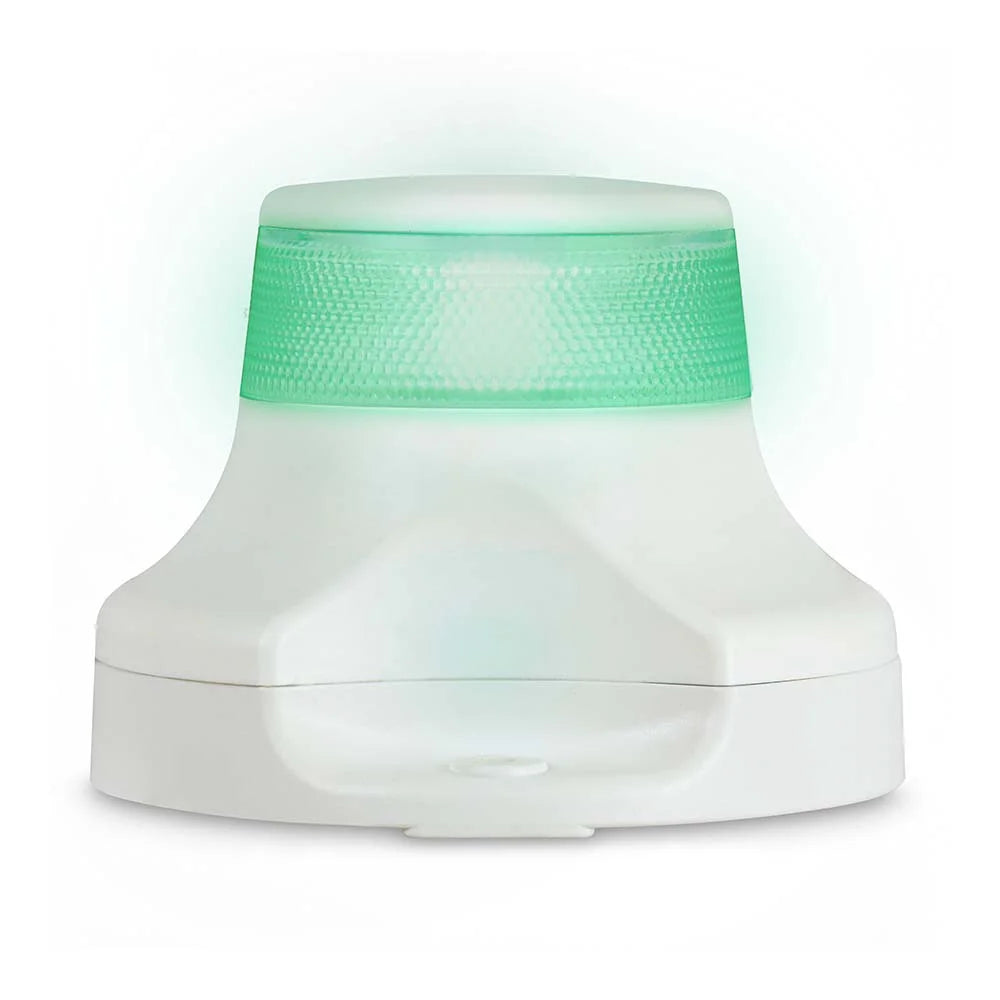

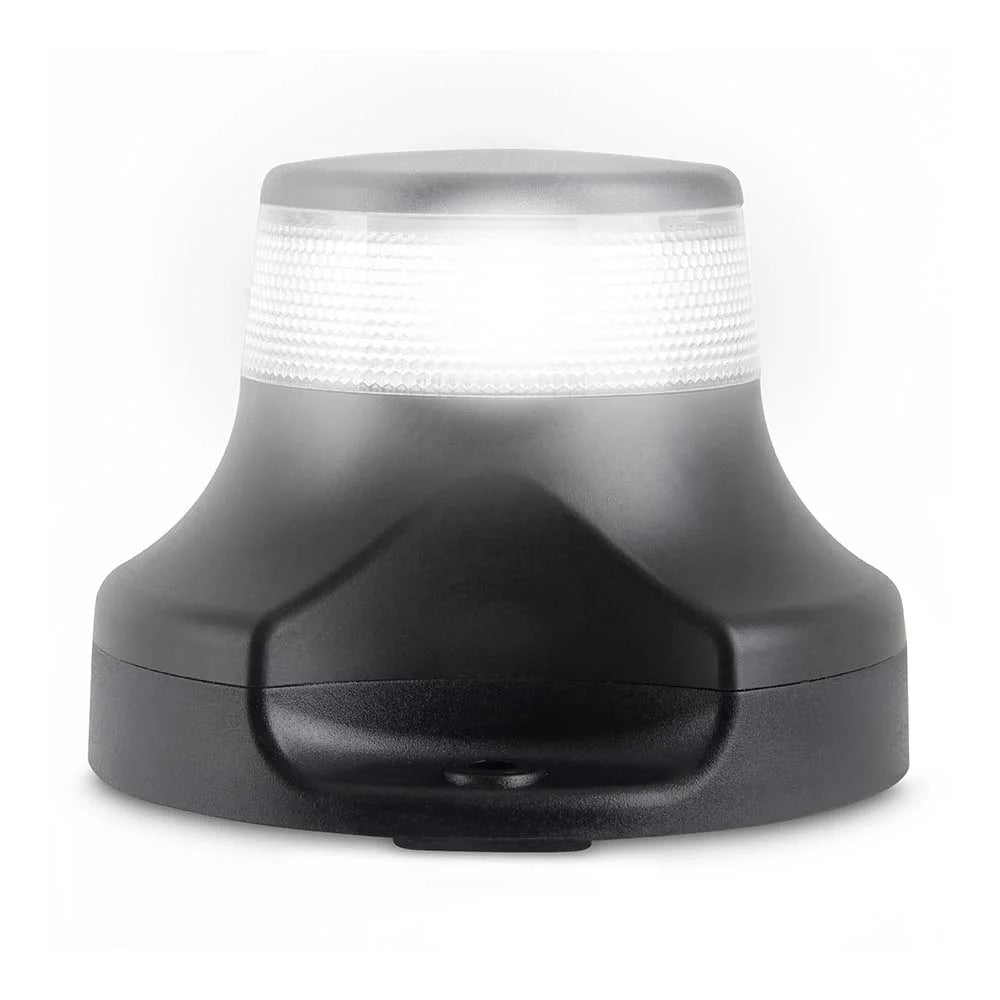

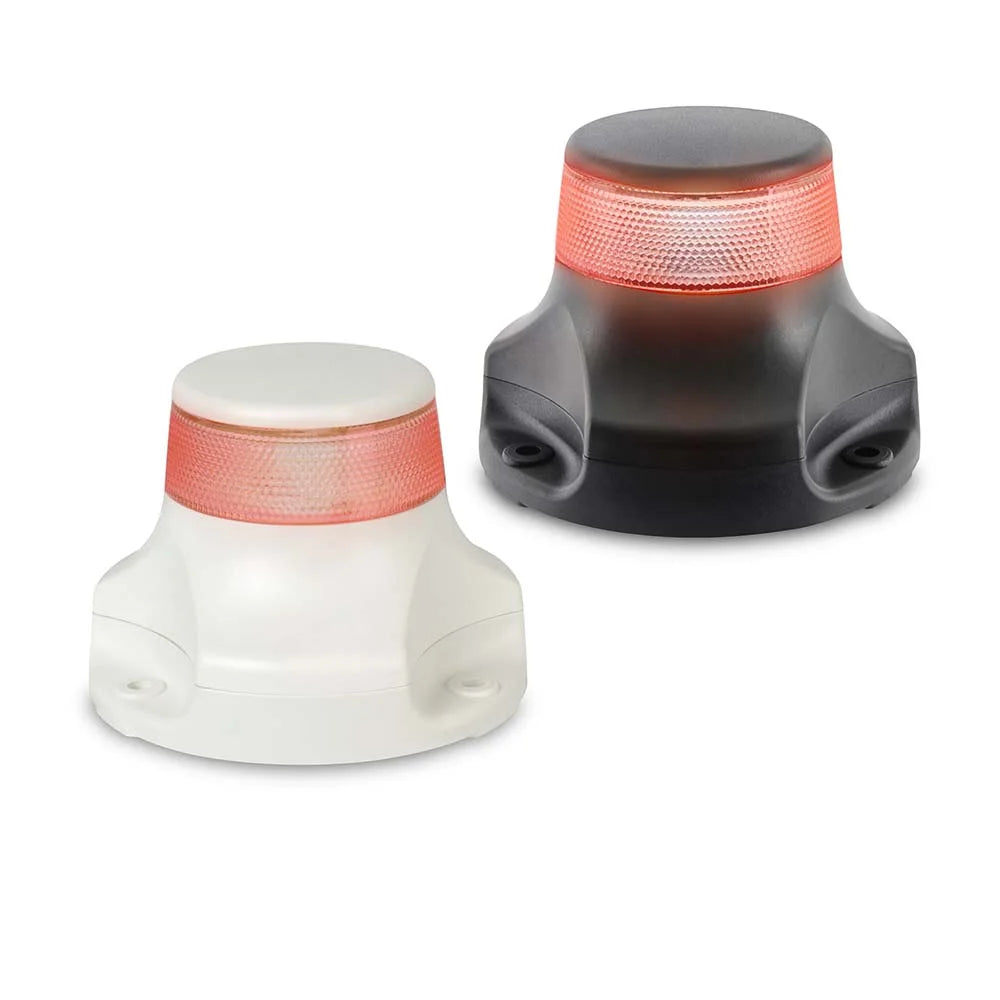

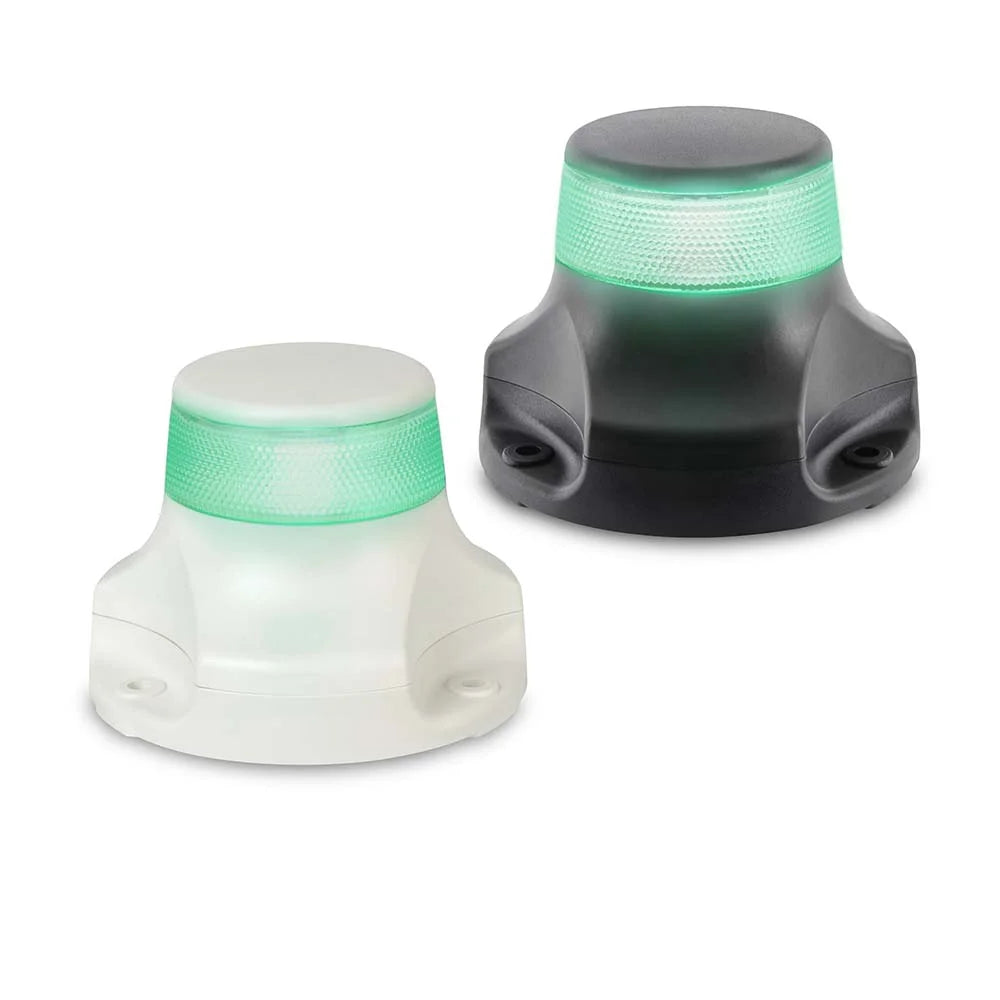

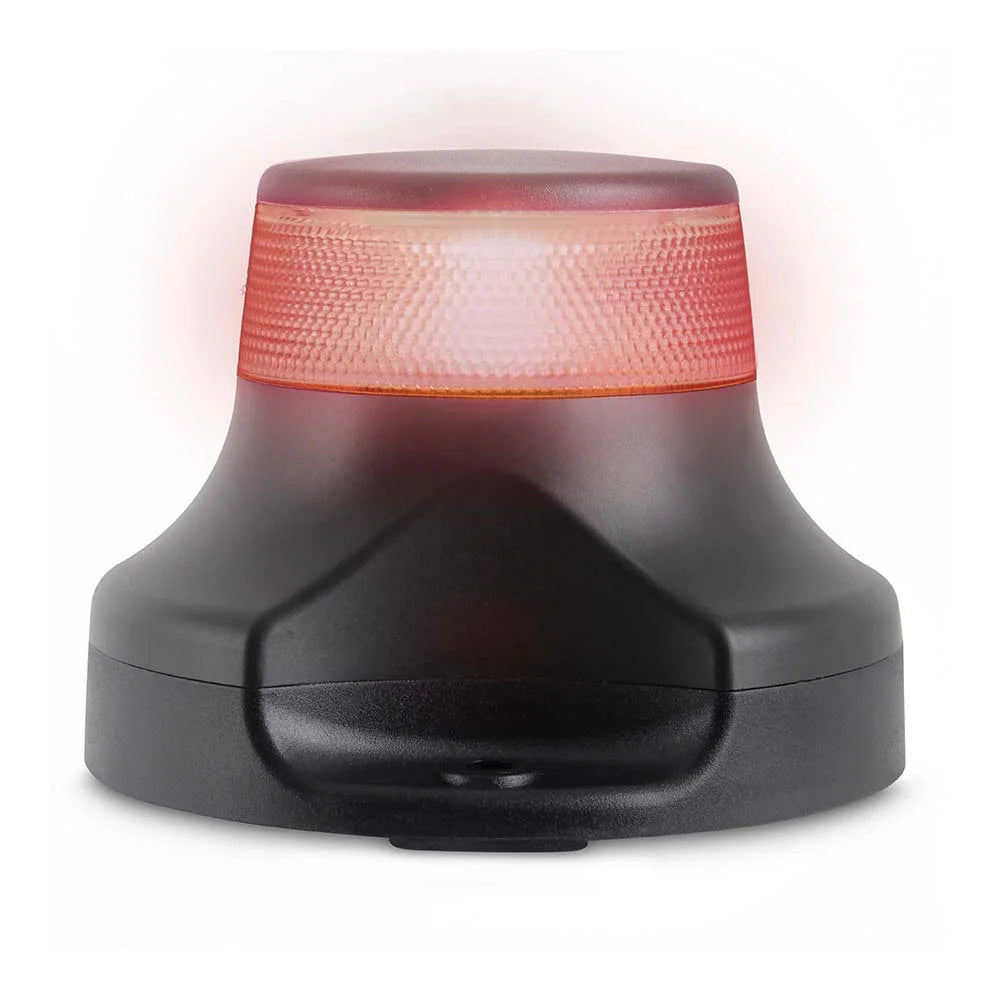

This lamp is offered with two housing colors and multiple lens colors to match different navigation or signal-light requirements.

Across the range, the changes are cosmetic and light color related: housing is available in black or white, and lens color is available in green, red, or white. The core specifications remain the same, including surface-mount installation, IP67 sealing, Multivolt™ 12-24V DC operation, and 1.5W power draw.

Installation and setup

Mount the lamp on a flat surface where it has a clear 360 degree view with no shadows from antennas, rails, or hardtop overhangs. Plan the cable route before drilling, seal any deck or hardtop penetrations properly, and keep connections in a dry area when possible.

Electrical and system integration

Connect to a switched 12V or 24V DC navigation-light circuit using marine-grade, tinned conductors and sealed terminals. Even with built-in spike and reverse-polarity protection, good wiring practice still matters on boats, especially around engines, windlass circuits, and other high-load equipment.

Materials and sealing

The IP67 rating and fully sealed build make it a good fit for mounting spots that see spray, rain, and routine washdowns. The plastic housing and Grilamid® lens are chosen for long-term exposure to sun, salt air, and vibration.

Use on board

On cruising sailboats and powerboats, this style of all-round light is commonly mounted on a mast, hardtop, or cabin top where it can be seen from every direction. The red and green lens options are also used on workboats and commercial vessels when an all-round colored light is part of the required light configuration.

Maintenance and care

Rinse salt off the lens and housing during routine washdowns, and check that the mounting fasteners stay tight after hard runs in chop. If the lens needs cleaning, use mild soap and water and avoid harsh solvents that can haze plastics over time.
