Vimar Eikon MINI-COM Panduit Adaptor, 22.3 x 49 x 20.5 mm, Label Space

Overview

The Vimar Eikon 20340 is a transition adapter that lets you mount a Panduit MINI-COM connector module in a Vimar Eikon device position, so the termination looks like a proper wall or panel outlet instead of a loose module. The body measures 22.30 mm wide, 49.00 mm high, and 20.50 mm deep, which helps when you are working behind helm panels or bulkheads where space is tight.

It includes a label space so you can mark what the drop is used for in a nav station, comms locker, or service area. There is no hinged lid, so it is best installed where the connector face stays sheltered from spray and routine washdowns.

Key features

• Transition adapter for Panduit MINI-COM connector modules in a Vimar Eikon device position.

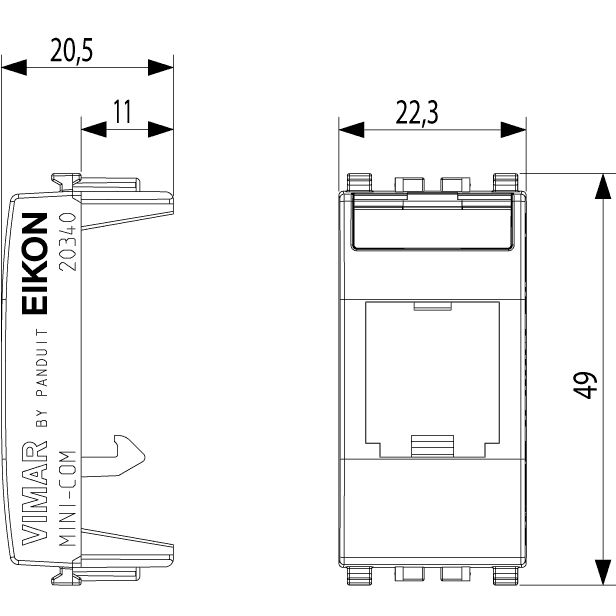

• Device size: 22.30 mm (W) x 49.00 mm (H) x 20.50 mm (D) for installations with limited depth behind the panel.
• Built-in label space for clear identification of outlets and onboard runs.
• No hinged lid, which suits protected interior mounting areas or enclosed panels.
• Colour options matched to common finishes: grey (RAL 7024), white (RAL 9016), and silver (RAL 9022).

Variants

This adapter is offered in multiple colour options to match different Eikon plate finishes.

Colour is the only change between versions; all share the same 22.30 x 49.00 x 20.50 mm body size, include a label space, and do not include a hinged lid.

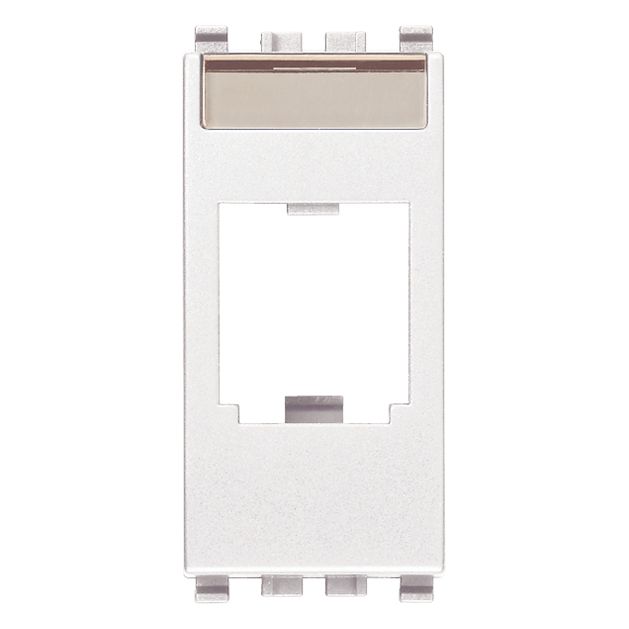

• VM20340.C.B: Color White (RAL 9016). Fits clean white plates and keeps the outlet face low-key in cabins and service spaces.

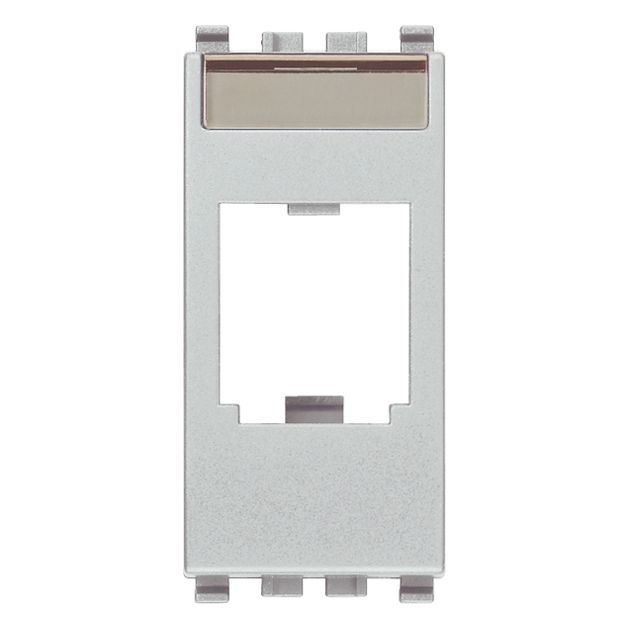

• VM20340.C.N: Color Silver (RAL 9022). Matches silver-toned trims often used on modern helms and navigation stations.

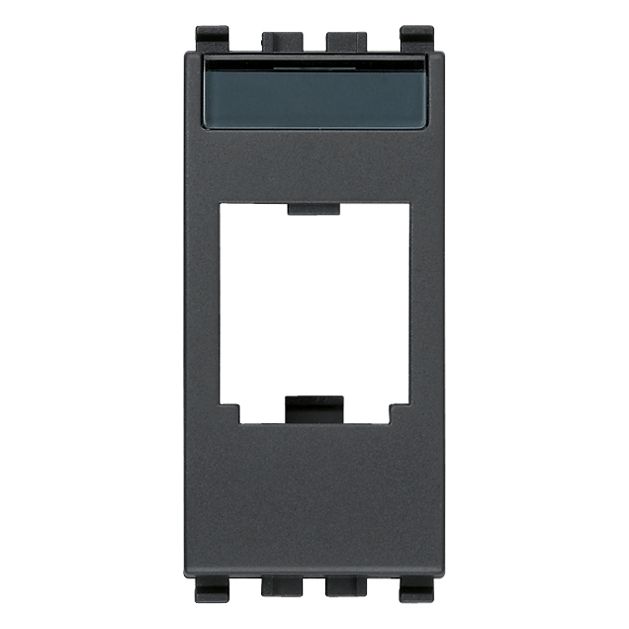

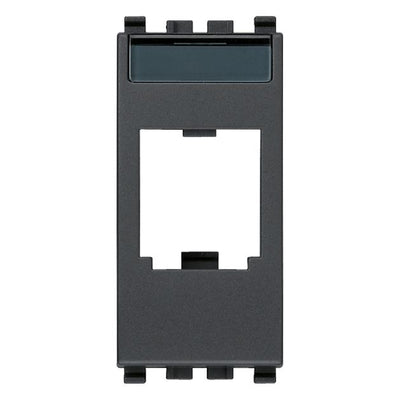

• VM20340.C: Color Grey (RAL 7024). Pairs with darker Eikon frames and works well where you want the outlet to visually blend into an instrument panel.

Compatibility and fit

This is an adapter only; the actual connector interface depends on the Panduit MINI-COM module that clips into it. Confirm your installation uses the Vimar Eikon format and that the MINI-COM module you plan to terminate is compatible with your cabling and onboard system layout.

Installation and setup

Install the adapter in the Eikon support behind the plate, then seat the MINI-COM module into the opening. Route the cable with enough slack to avoid strain when the plate is removed for service, and use the label space to mark the outlet location or circuit so troubleshooting later is straightforward.

Use cases on board

It is a good match for boats adding structured wiring to a nav station, saloon equipment area, or communications locker and wanting the outlet to match existing Eikon switching gear. It also fits refits where an existing Eikon position is being repurposed from traditional switching devices into a data or signal termination point.
