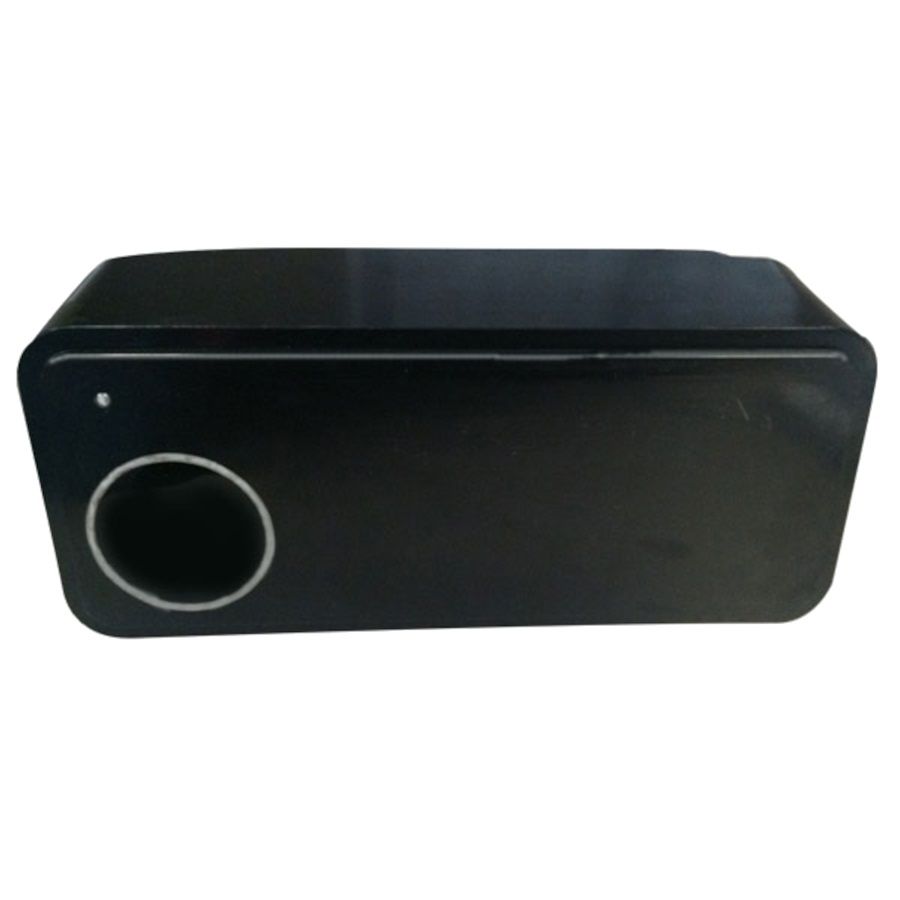

Airmar - CM599C-LHW 3kW CHIRP Transducer - Pocket/Keel Mount

Advanced CHIRP Technology for Superior Marine Performance

The Airmar CM599C-LHW is a high-power CHIRP-ready transducer designed to provide unparalleled underwater imaging and fish detection. With a power rating of up to 3 kW, this transducer delivers exceptional deep and shallow-water performance, making it a top choice for serious anglers and marine professionals. Whether you are navigating deep-sea environments or fishing in coastal waters, the CM599C-LHW ensures superior target separation, greater coverage, and crisp bottom details.

Exceptional Deep-Water and Shallow-Water Performance

This transducer features a low-frequency band operating from 28 to 60 kHz, allowing for maximum depth penetration up to 3,048 meters (10,000 feet). The high-frequency band operates from 150 to 250 kHz, providing detailed images and improved fish-target separation at depths up to 152 meters (500 feet). The high-wide beam ensures broader coverage, making it easier to locate schools of fish and underwater structures.

High-Wide Beam for Maximum Coverage

Unlike traditional high-frequency transducers with a narrow beam, the CM599C-LHW features a constant 25° beamwidth across all high frequencies. This provides twice the coverage of conventional transducers, making it ideal for detecting fish in the upper-water column and enhancing the visibility of bottom structures.

Durable Construction and Versatile Mounting Options

Designed for durability, the CM599C-LHW features a robust resin housing with a curved-edge design, allowing for secure wet-box installations. Its mounting versatility includes pocket/keel mount, cavity, or tank installations, catering to various vessel types and marine applications.

Technical Specifications

• Power Output: 2-3 kW
• Frequency Bands: Low-High Wide CHIRP
• Low Frequency: 28-60 kHz, Beamwidth: 11° x 23° - 5° x 9°
• High Frequency: 150-250 kHz, Beamwidth: 25° (constant)
• Maximum Depth:Low frequency: 3,048 meters (10,000 feet)
• High-wide frequency: 152 meters (500 feet)
• Functions: Depth and temperature measurement
• Cable Length: 15 meters (49 feet)
• Connector Type: Bare wire
• Mounting Style: Pocket/Keel, Cavity, Tank

Highlights

• High-power 3 kW CHIRP-ready transducer for exceptional deep-water and shallow-water performance
• Covers popular fishing frequencies of 50 and 200 kHz, along with an extensive bandwidth of 132 kHz
• High-wide beam provides broader coverage for enhanced fish detection
• Designed for custom mounting in a pocket, keel, cavity, or welded tank
• Patented Xducer ID® technology for seamless integration with compatible systems

With its superior CHIRP technology, enhanced beam coverage, and robust construction, the Airmar CM599C-LHW is an outstanding choice for serious offshore fishing and deep-water navigation.
