Lopolight PRO Double Red Signal Light, 3nm, 360°, ATEX Zone 1 and 2, Ice Class

Overview

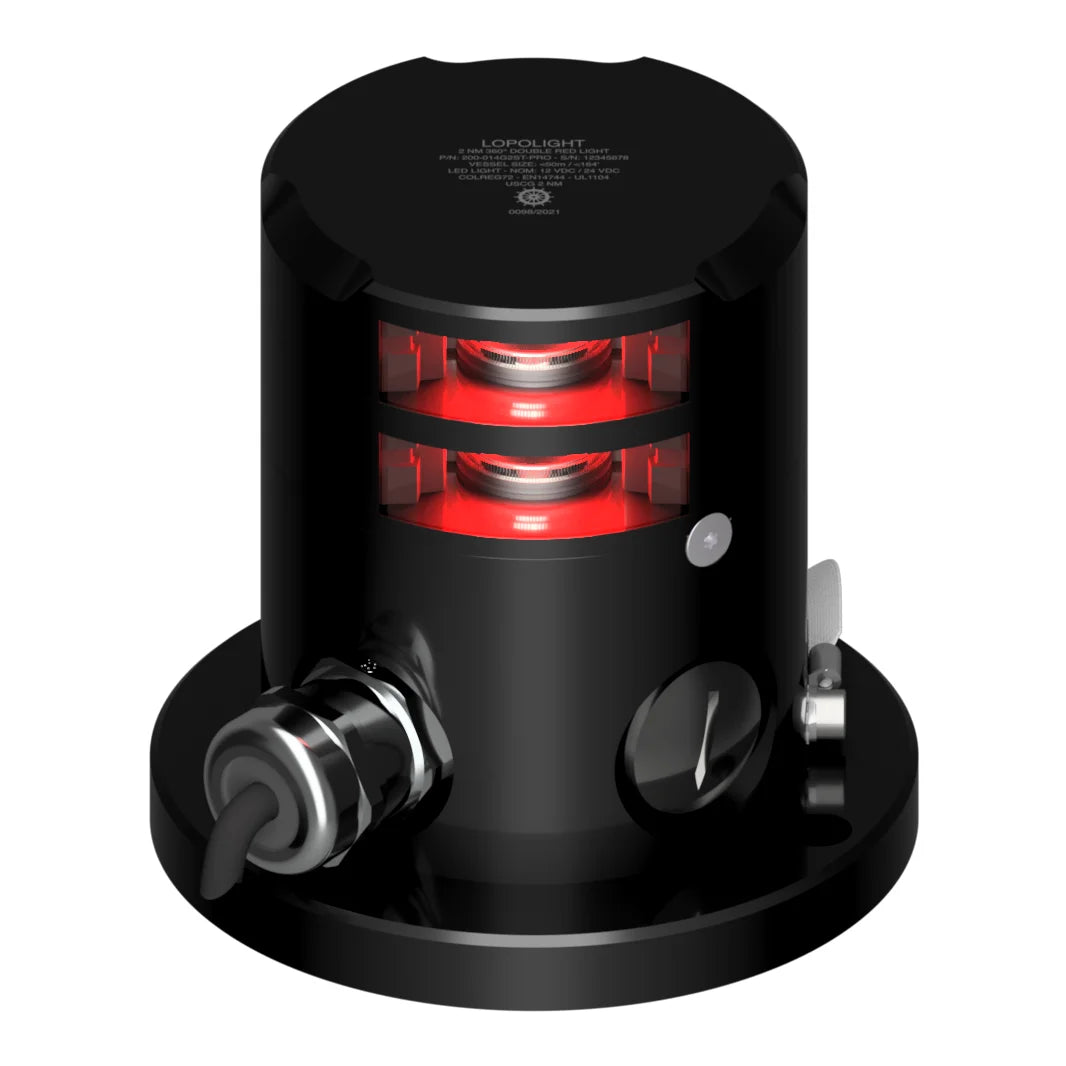

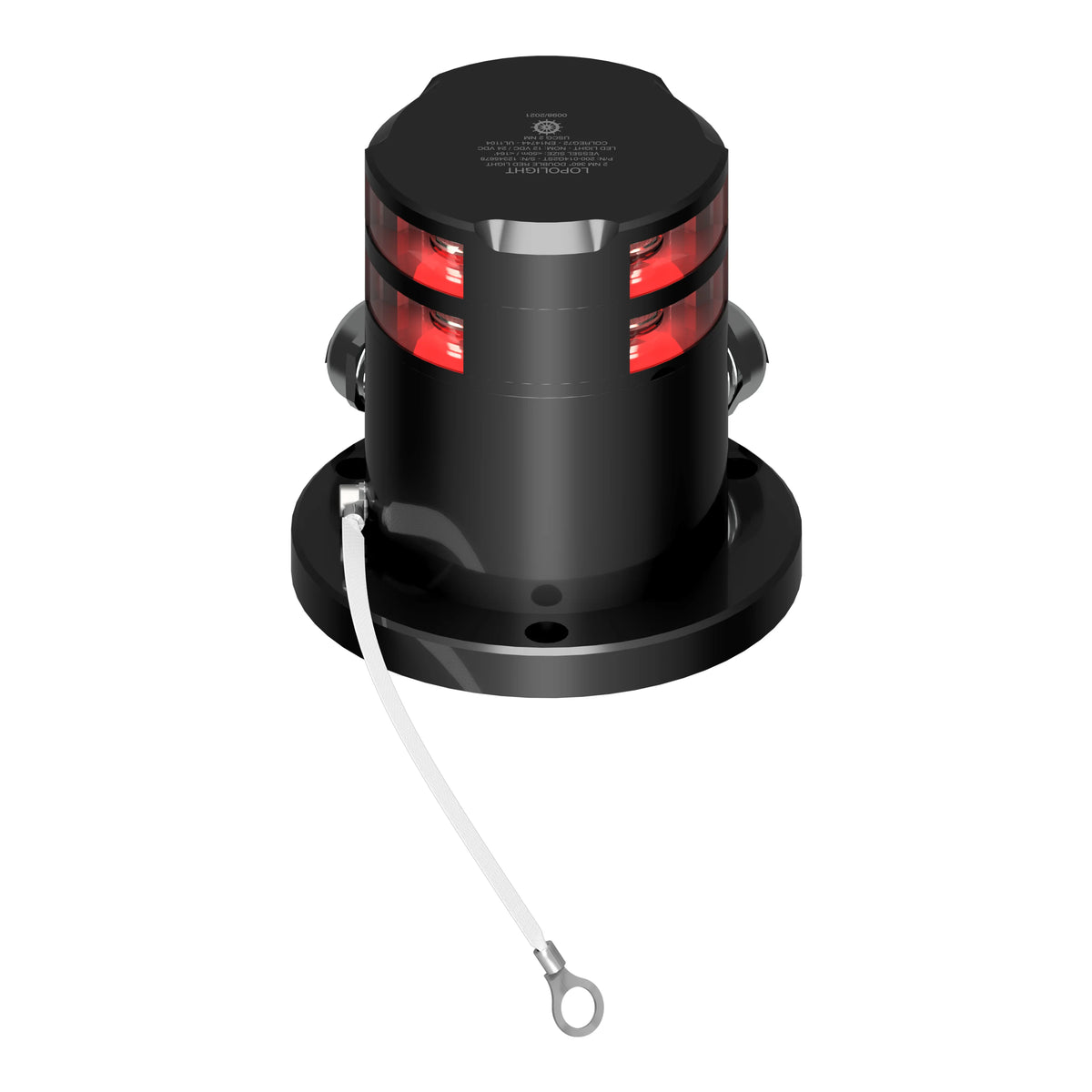

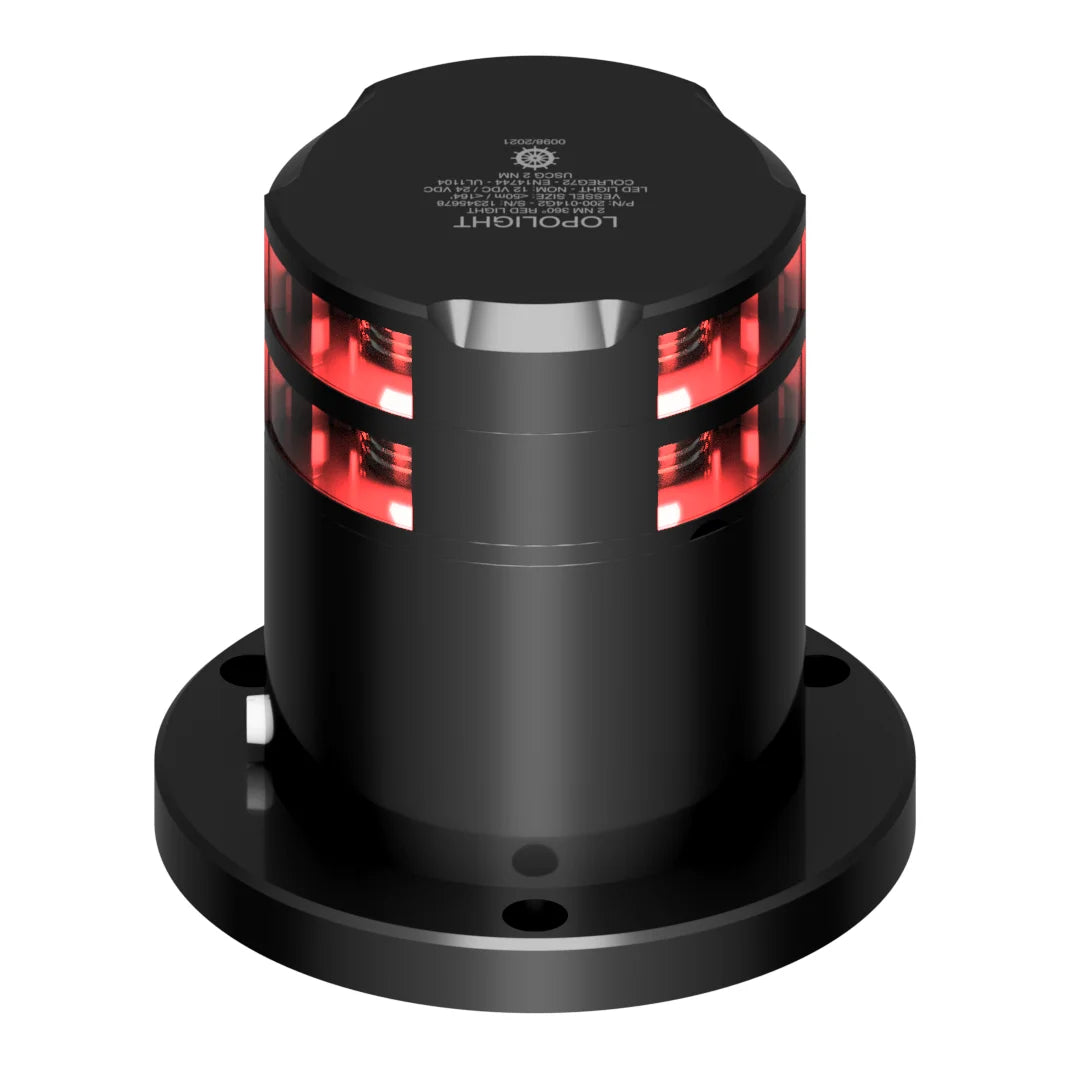

The Lopolight 301-114ST-PRO-I-EX is a double 360° red LED navigation signal light with a 3 nautical mile visibility range, configured for vessels over 50 meters. Certified for use in ATEX and IECEx Zone 1 hazardous areas and suitable for Ex Zone 2 applications, it operates on 10-32V DC and incorporates a built-in ice-class defroster for installations exposed to freezing conditions.

The fixture features a black hard-coat anodized aluminum housing, a PMMA lens, and an IP68 protection rating. Its double-light configuration is paired with horizontal mounting on a 400-037 EX/MIL aluminum base, with a side cable exit for electrical routing.

Key features

• Double 360° red LED signal light with 3nm visibility and luminous intensity exceeding 15 cd.

• ATEX and IECEx Zone 1 certification for hazardous-area installations, including Ex Zone 2 applications.

• Integrated ice-class defroster for operation in freezing marine environments.

• 10-32V DC operating range with 4W power consumption.

• IP68 protection against dust and water ingress.

• Black hard-coat anodized aluminum housing with 50µm coating, PMMA lens, and A4 stainless steel screws.

• Horizontal mounting configuration with side cable routing and plug connector.

• Fixture dimensions of 92.5mm diameter x 125.5mm height (3.6 x 4.9 inches).

• Operating temperature range from -25°C to 55°C (-13°F to 131°F).

Installation and electrical integration

The light is configured for horizontal installation on a 400-037 EX/MIL aluminum mounting base. Its side-directed cable connection accommodates the specified mounting arrangement, while the included HDPE base plate, cable glands, and ground strap support installation in the intended hazardous-area environment.

The 10-32V DC operating range accommodates compatible 12V and 24V vessel electrical systems. Current consumption is approximately 340mA at 12V DC and 190mA at 24V DC. The fixture uses a plug connector and requires a minimum feed wire size of 0.5mm² (AWG 22).

Marine applications and compliance

This double red signal light is intended for navigation-light installations on vessels over 50 meters where 360° red signaling, hazardous-area certification, and ice-class functionality are required. Its built-in de-icing capability addresses installations subject to freezing conditions, while the Ex-rated construction supports use in designated explosive-gas environments.

The light carries approvals and certifications associated with COLREG 72, EN 14744, IEC 60945, IACS E10, USCG, MED, ATEX 2014/34/EU, IEC 60079-0/7/18, and UK Ex requirements. Its explosion-protection classification includes Ex mb eb IIB T5 Gb.

What's included

• 1 Lopolight double red navigation signal light

• Installation guide

• HDPE base plate

• Cable glands

• Ground strap
