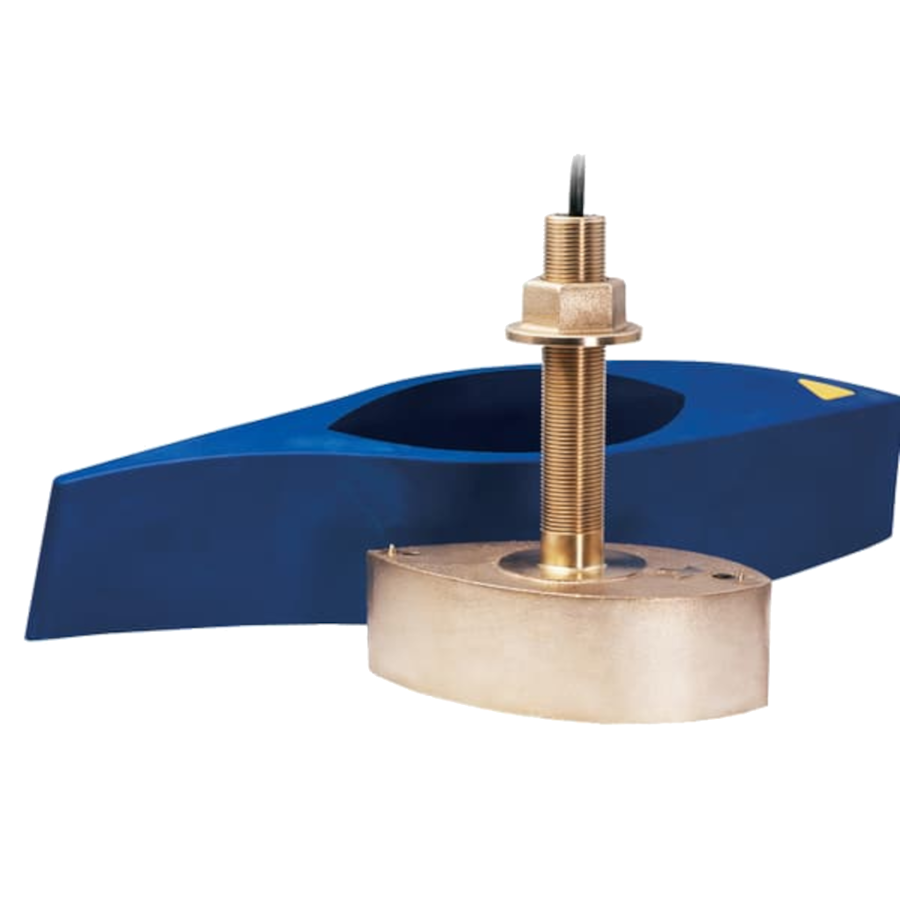

Airmar - B265C-LH Bronze TH Low/High CHIRP Transducer

High-Performance CHIRP Transducer for Deep-Water Precision

The Airmar B265C-LH Bronze TH Low/High CHIRP Transducer is a top-tier choice for serious anglers and mariners who demand precise depth readings and exceptional fish-target separation. Designed for deep-water performance, this transducer utilizes CHIRP technology to cover a wide frequency range, enhancing target clarity and bottom discrimination. Its dual-frequency operation (low and high) enables it to detect a variety of fish species with unmatched precision, making it a powerful tool for both commercial and recreational fishing applications.

Equipped with a seven-element low-frequency array and a high-frequency ceramic, the B265C-LH ensures detailed imaging at all depths. The included High-Performance Fairing enhances broadband performance, allowing for reliable readings even at speeds exceeding 30 knots (34 MPH).

Advanced CHIRP Technology for Unmatched Detection

• Low-frequency range (42-65 kHz): Ideal for deep-water performance, penetrating up to 914 meters (3000 feet) with a wide beam for expansive coverage.
• High-frequency range (130-210 kHz): Provides superior resolution and detailed fish separation at depths of up to 304 meters (1000 feet) with a narrow, focused beam—perfect for structure fishing.
• 103 kHz of total bandwidth: Covers popular fishing frequencies (50 kHz, 200 kHz, and more), optimizing target detection.

Durable Bronze Housing with Optimized Mounting

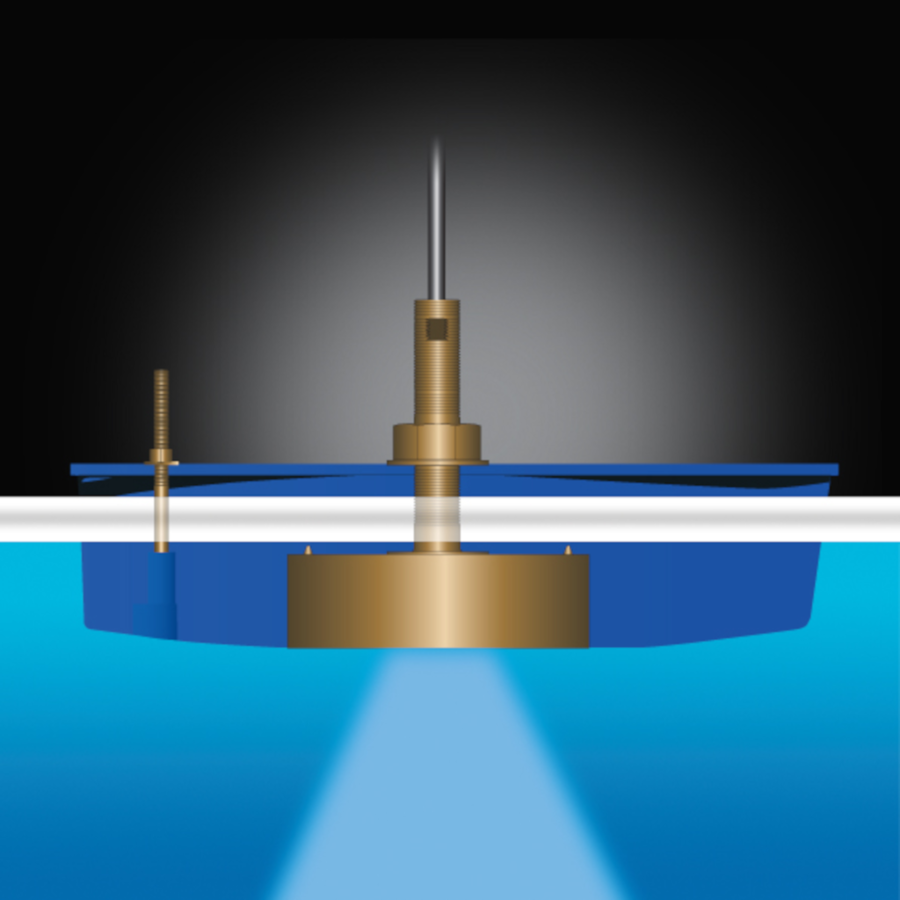

The B265C-LH features a rugged bronze housing, making it ideal for thru-hull installations on fiberglass or wood hulls. Its thru-hull mounting with a fairing block ensures stability and efficiency, minimizing turbulence at higher speeds. Designed to accommodate deadrise angles up to 20 degrees, this transducer provides versatility across various vessel types.

Technical Specifications

• Power Rating: 1 kW
• Frequency Bands: Low-High CHIRP
• Beamwidth:Low frequency: 25° to 16°
• High frequency: 10° to 6°
• Maximum Depth:Low frequency: 914 m (3000')
• High frequency: 304 m (1000')
• Cable Length: 9 m (30')
• Mounting Style: Thru-Hull with Fairing
• Transducer Functions: Depth, Temperature
• Usable Shaft Length: 121 mm (4.75")
• Max Deadrise: Up to 20° with fairing

Key Features and Benefits

• Dual CHIRP Frequency – Provides both deep and high-resolution shallow-water scanning.
• Wide Bandwidth Coverage – Covers multiple fishing frequencies, enhancing species detection.
• Bronze Thru-Hull Housing – Ideal for fiberglass and wooden boats.
• High-Performance Fairing – Optimizes performance at speeds over 30 knots.
• Patented Xducer ID® Technology – Ensures seamless integration with CHIRP-compatible fish finders.

Product Variations

The Airmar B265C-LH is available in multiple connector variations, allowing compatibility with various marine electronics:

• B265C-LH-MM – Connector: Airmar 12-Pin
• B265C-LH-0 – Connector: Bare Wire
• B265C-LH-12F – Connector: Furuno 12-Pin
• B265C-LH-12G – Connector: Garmin 12-Pin
• B265C-LH-BL2 – Connector: Lowrance 7-Pin
• B265C-LH-11R – Connector: Raymarine 11-Pin
• B265C-LH-9N2 – Connector: Simrad 9-Pin

This high-performance CHIRP transducer is engineered to maximize sonar capabilities, ensuring precision and reliability in deep and shallow waters alike. Whether targeting game fish or mapping the ocean floor, the Airmar B265C-LH is an essential tool for professional and recreational anglers.
