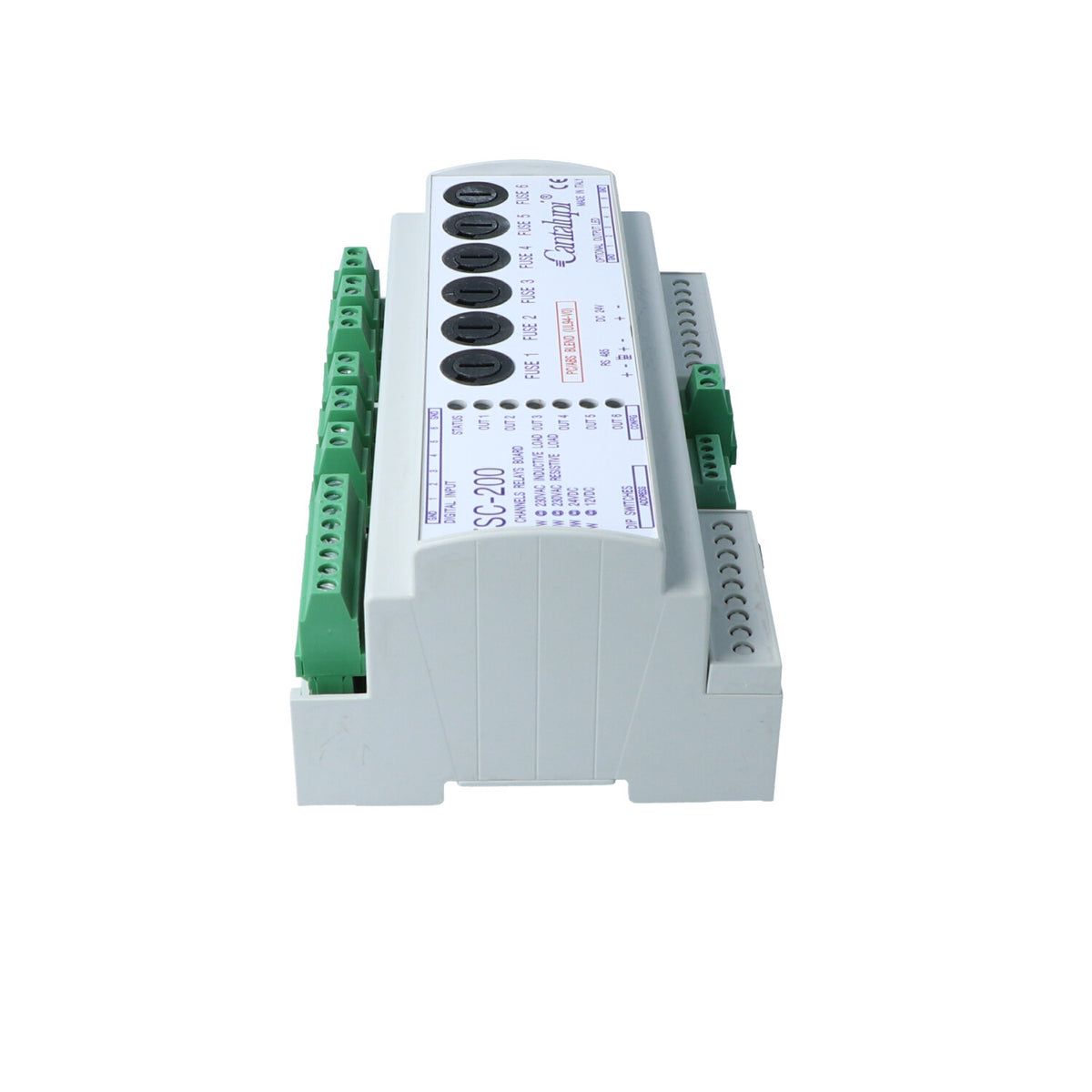

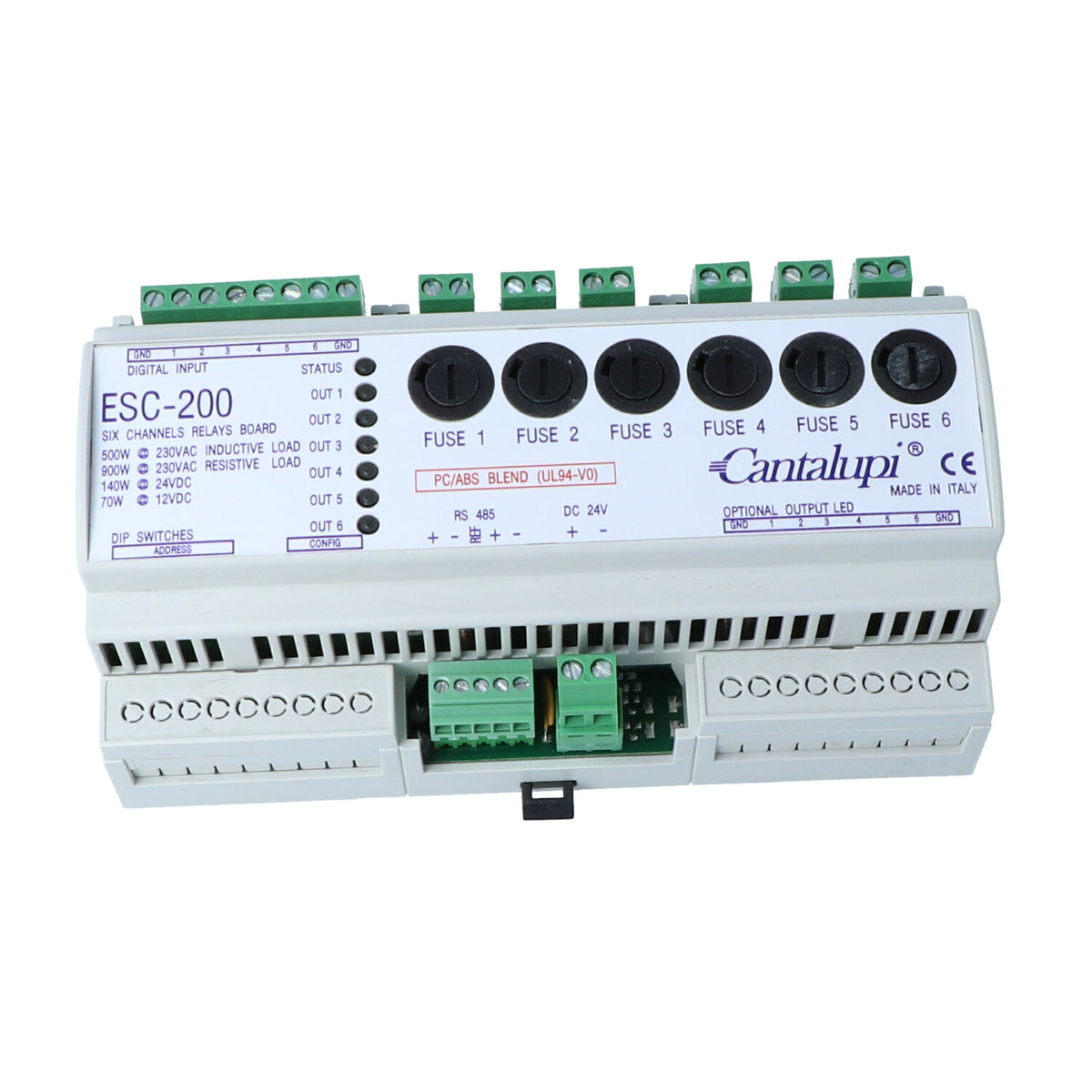

CANTALUPI Relay Management Module (A0-ESC20-00000-00-00-CH40)

Relay Management Module – Ultimate Control for High Power Loads

The Relay Management Module is a sophisticated device engineered to control high-power resistive and inductive loads with ease, offering seamless operation in both AC and DC applications. Designed for demanding marine environments, this module ensures the highest performance while allowing for efficient load management in various systems. With the ability to handle large power requirements, this module provides precise control and enhanced safety features, making it the ideal solution for managing power on boats, docks, and other marine systems.

Flexible and User-Friendly Control System

Equipped with six single channels, the Relay Management Module allows for independent control of each channel via six convenient local push buttons. This setup provides flexibility, allowing users to manage multiple channels simultaneously or individually based on their needs. Each output is capable of handling a maximum power of 140W at 224VDC or 900W at 230VAC, ensuring the system can meet diverse power needs across different types of marine equipment.

Advanced Protection with Self-Restoring Fuses

Safety is a top priority with the Relay Management Module, which is protected by self-restoring fuses. This feature automatically protects the system from overcurrent or short circuit conditions, preventing any damage to the module or connected equipment. Once the issue is resolved, the fuses will automatically restore the circuit to its normal state, ensuring continuous operation without the need for manual intervention.

LED Compatibility for Energy-Efficient Lighting

The module is designed to drive LED lights, with the capability to support loads up to 50mA. This feature is perfect for integrating energy-efficient LED lighting into your marine system while maintaining a powerful and reliable source of illumination. By providing seamless control for LED setups, the module not only helps reduce energy consumption but also offers long-lasting and high-quality lighting performance.

Compact and Space-Saving Design

The Relay Management Module comes with a compact design that makes it easy to install in various marine environments without taking up unnecessary space. Its small dimensions allow it to fit seamlessly into existing systems, making it a practical solution for tight spaces. Despite its compact size, the module offers exceptional performance and power handling capabilities, ensuring that it can manage high power loads without compromising on reliability or safety.

Main Highlights

• Six independent single channels with local push button control
• Maximum power of 140W at 224VDC or 900W at 230VAC per output
• Self-restoring fuse protection for enhanced safety and reliability
• LED compatibility with support for loads up to 50mA
• Designed for both AC and DC applications in marine environments
• Compact design for easy installation and space optimization
