Lopolight White LED Navigation Light, 180°, 2nm, 10-32VDC

Overview

This Lopolight white LED navigation light is a single-light fixture with a 180° illumination arc, a 2 nautical mile visibility range, and a 10-32VDC operating range. It features an IP68-rated aluminum base and a plug connector for integration into a vessel's navigation lighting system.

The fixture measures 92.5 mm (3.6 in) in diameter and 74.5 mm (2.9 in) in height. Its construction includes an anodized aluminum housing, a PMMA lens, and A4 stainless steel screws. Both finish options use a horizontal mounting configuration with downward cable routing through M16 glands.

Key features

• Single white LED navigation light with 180° coverage and 2nm visibility.

• Operates on 10-32VDC electrical systems.

• IP68 protection rating with an aluminum base.

• Light intensity greater than 5.4 cd.

• Current consumption of 167 mA at 12VDC and 110 mA at 24VDC.

• Plug connector and cable-down M16 gland arrangement.

• PMMA lens, anodized aluminum housing, and A4 stainless steel screws.

• Approvals and standards include COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, MED, DNV, and LR.

Variants

This navigation light is available in two anodized aluminum housing finishes: silver and black.

Both configurations share the same 180° white light output, 2nm visibility, 10-32VDC operating range, IP68 rating, dimensions, and horizontal mounting arrangement with a plug connector and aluminum base.

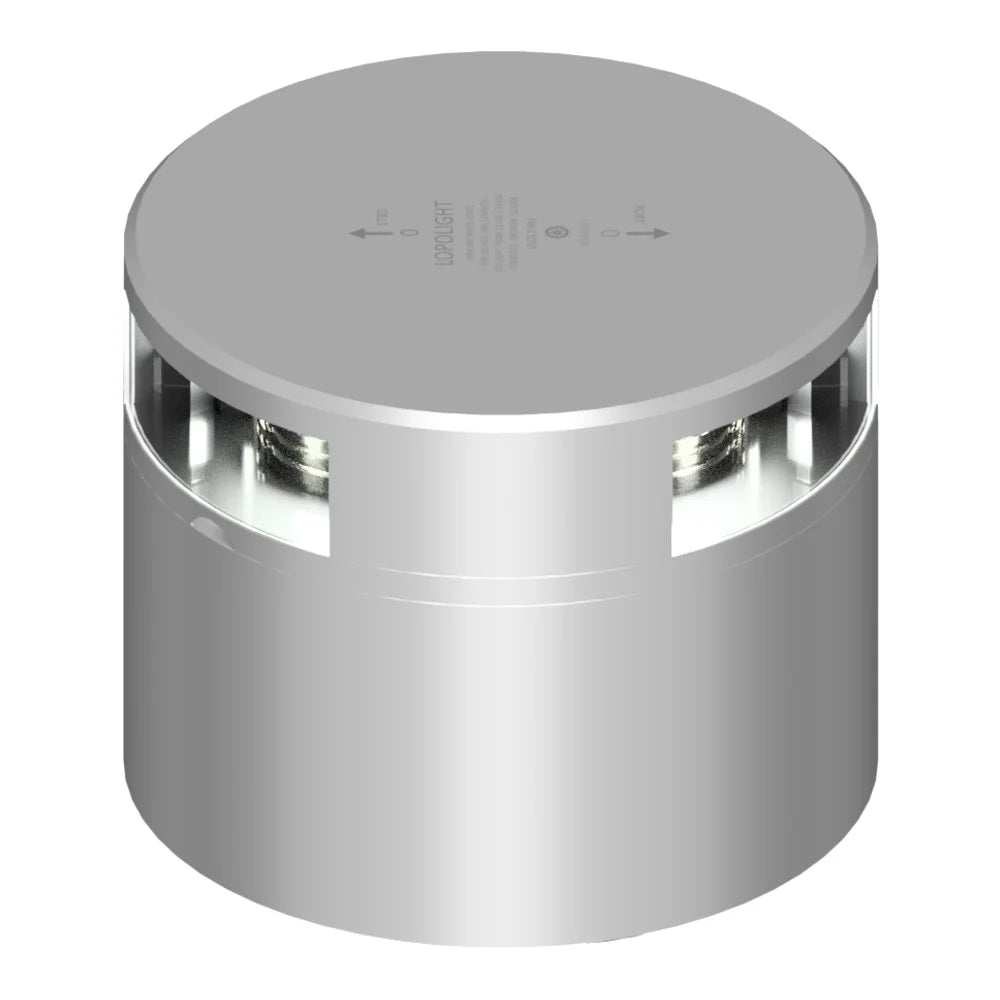

• 201-012-180-CD: Finish Silver. Features a silver-anodized aluminum housing.

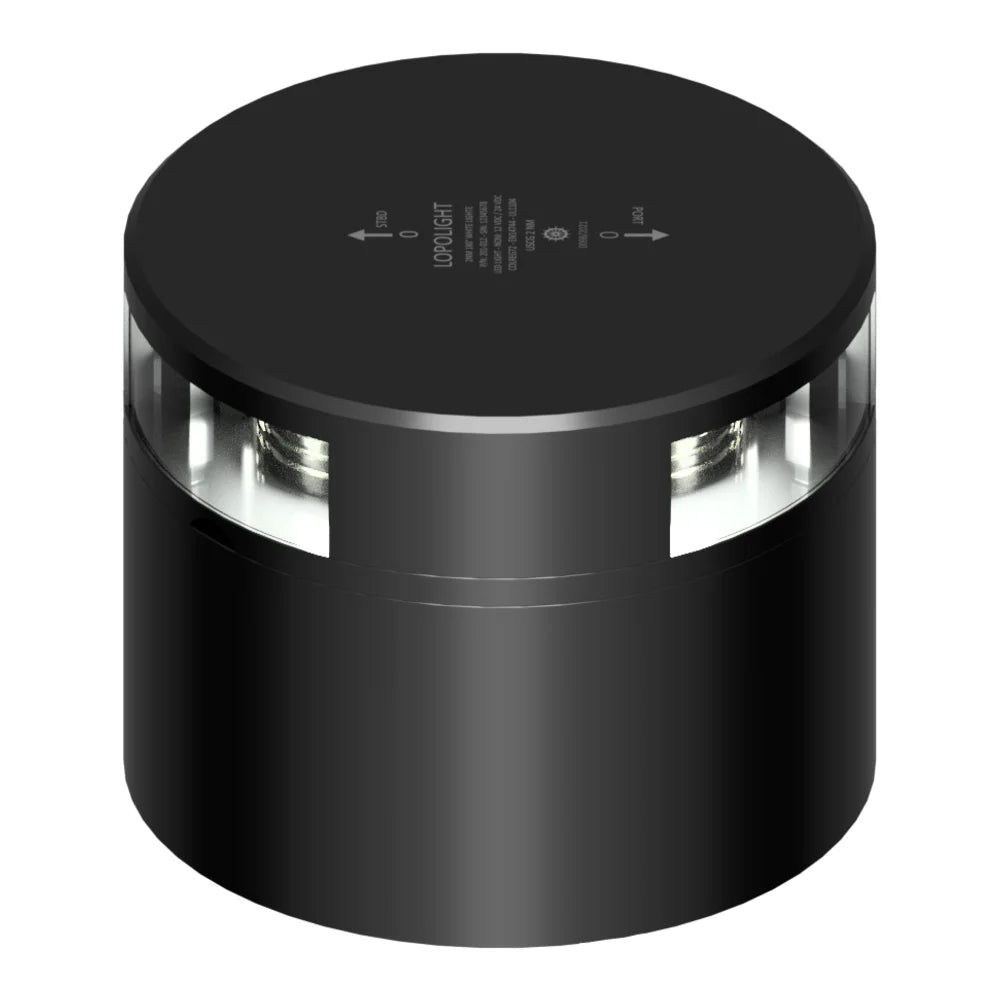

• 201-012-B-180-CD: Finish Black. Features a black-anodized aluminum housing.

Installation and setup

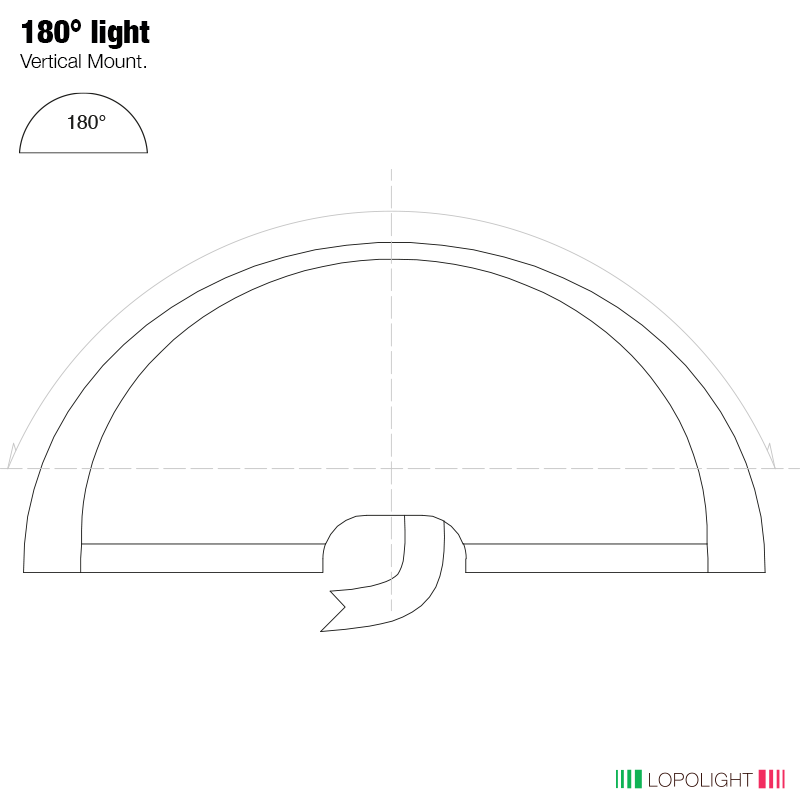

The fixture is configured for horizontal mounting with downward cable routing through M16 glands. Its plug connector provides the electrical connection, while the 92.5 mm diameter and 74.5 mm height are relevant when planning mounting clearance. The 180° light coverage should be considered when determining the appropriate navigation light position and arrangement on board.

What's included

• 1 navigation light.
