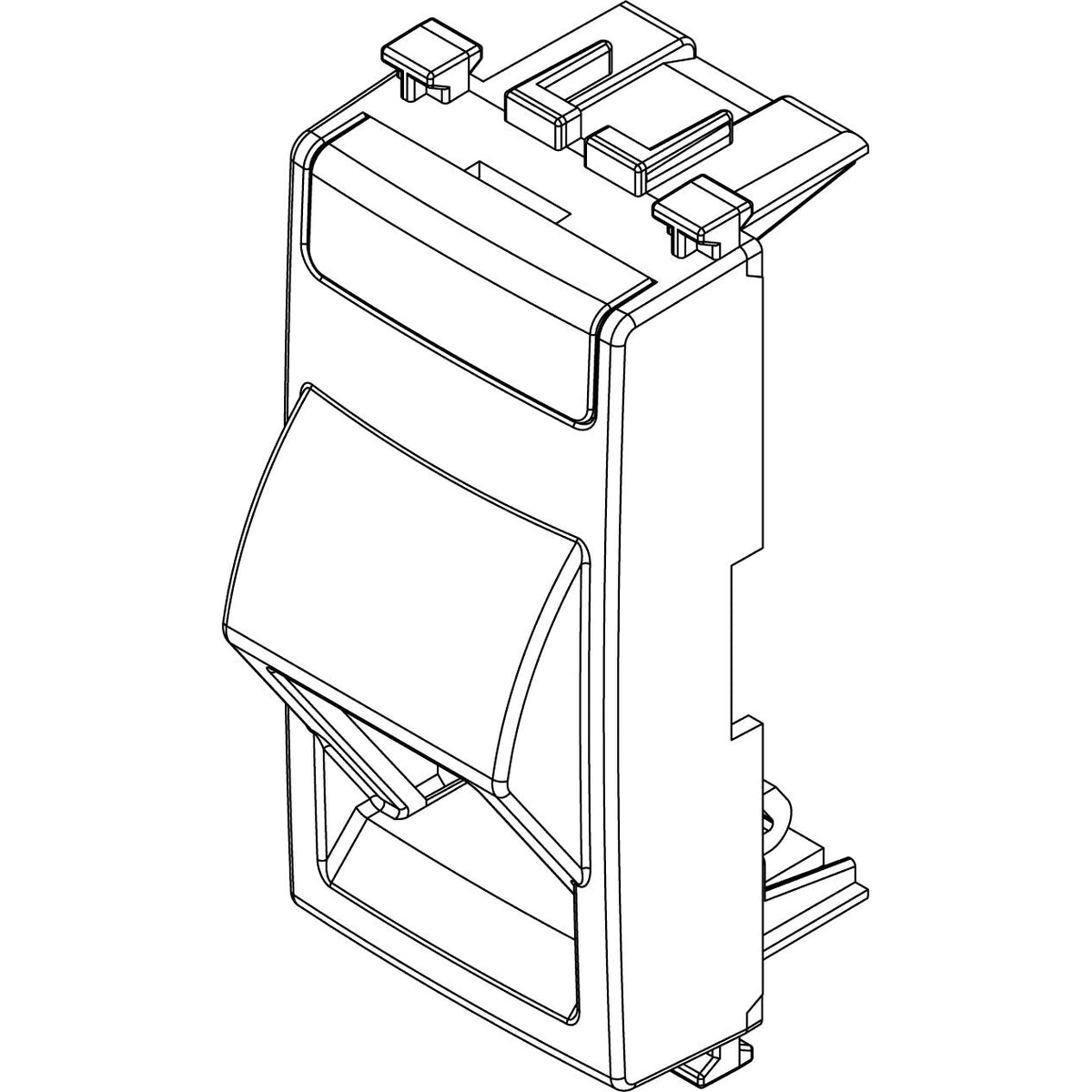

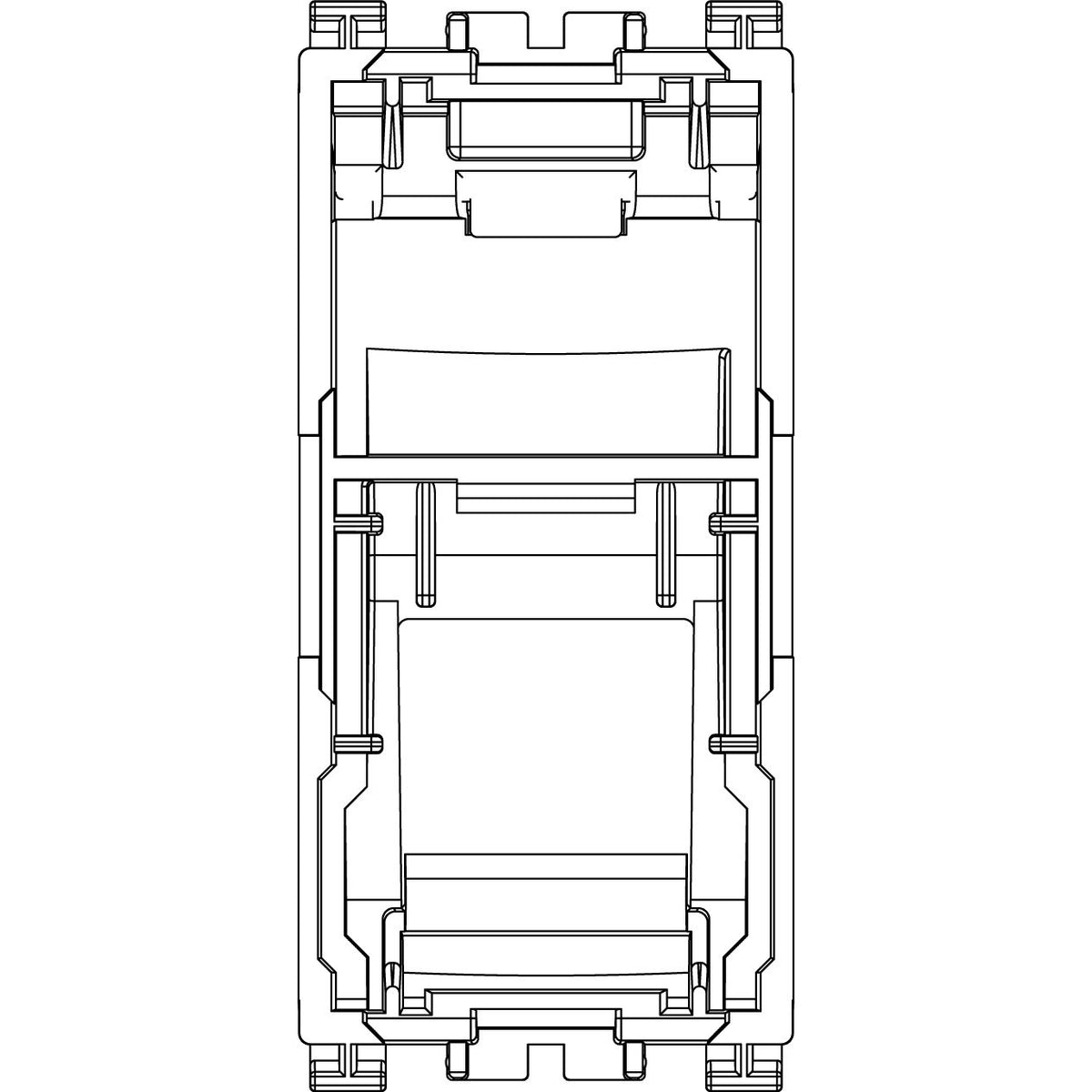

Vimar ARKÉ RJ45 Slanting Keystone Adaptor, 1 Module, Label Space

Overview

The Vimar ARKÉ Series is a 1 module RJ45 slanting keystone adaptor range for structured wiring points that use RJ45 Keystone connectors. Each version keeps the same 22.30 x 49.00 x 25.40 mm format, includes a label space on the front, and is built without a hinged lid.

On a boat, this adaptor gives a network outlet a clean finish in places such as a nav station, cabin panel, helm console, or other protected interior control area where an RJ45 Keystone connection needs to sit neatly within an ARKÉ modular plate. The slanted face helps the connector sit at an easier angle where panel depth and cable bend radius matter.

It suits installations that need a tidy Ethernet termination point for onboard routers, displays, media equipment, CCTV networks, or general structured cabling, as long as the rest of the installation uses the ARKÉ 1 module format.

Key features

• Accepts an RJ45 Keystone connector in a Vimar ARKÉ 1 module position
• Slanting adaptor format helps present the port at a more accessible angle in tight panel spaces
• Front label space helps identify network runs, equipment zones, or service points
• No hinged lid, which keeps the port open for quick access

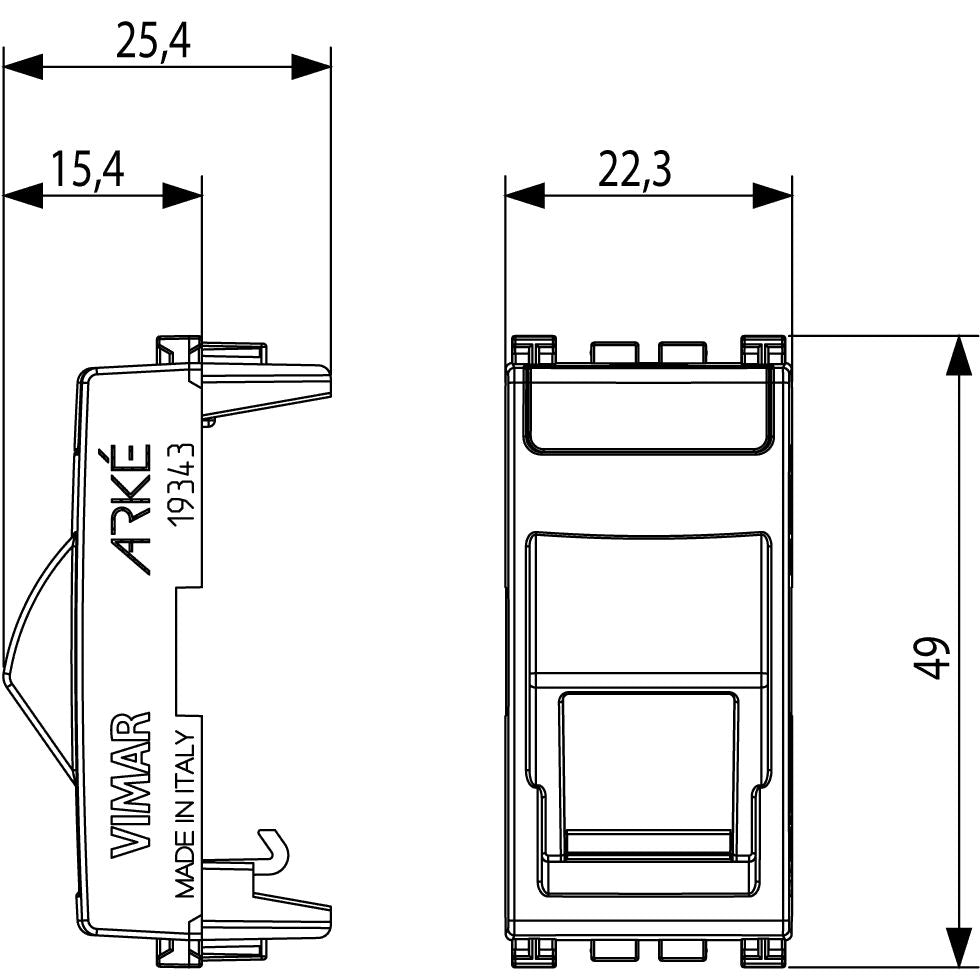

• Published device size is 22.30 mm wide, 49.00 mm high, and 25.40 mm deep
• Available in Grey RAL 7015, Metal RAL 9007, and White RAL 9016

Variants

This product is offered in three colour configurations.

The difference between variants is the finish colour. The adaptor type, front label space, no-lid face, and published dimensions remain the same across the listed options.

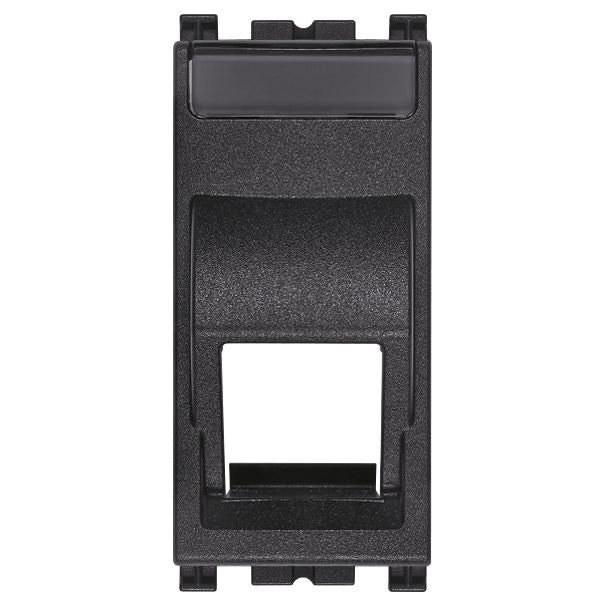

• VM19343.K: Grey, RAL 7015. This is a darker neutral finish that blends in well with darker switch plates and interior panels.

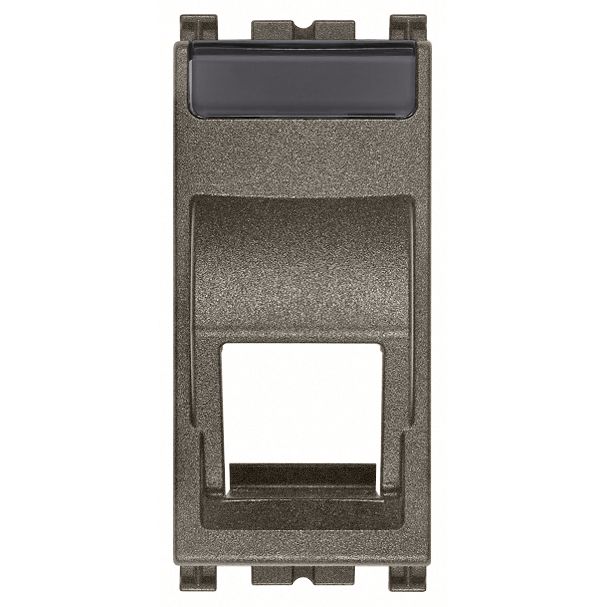

• VM19343.K.M: Metal, RAL 9007. This keeps the same adaptor layout with a metallic look that works neatly with brushed or darker trim.

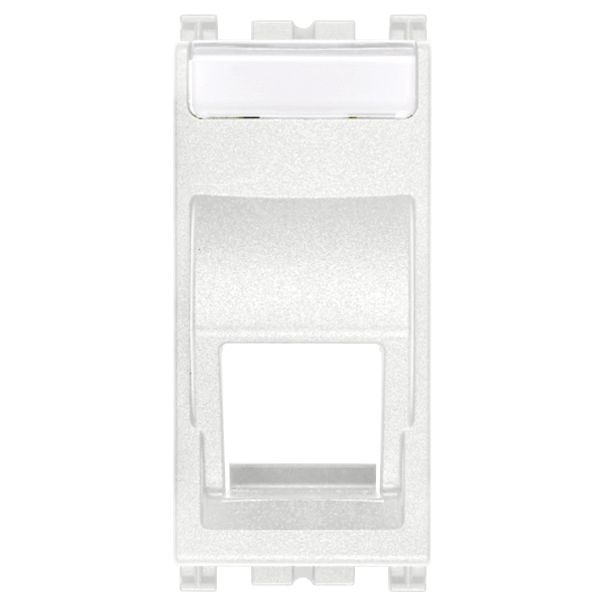

• VM19343.K.B: White, RAL 9016. This gives the outlet a lighter face for white plates and bright interior spaces.

Compatibility and fit

This adaptor is meant for RJ45 Keystone connectors and ARKÉ 1 module cover plate layouts. Before ordering, check that the vessel is using the ARKÉ format rather than another Vimar series, and confirm there is enough room behind the panel for the 25.40 mm device depth and cable routing.

Because the front has no hinged cover, it makes the most sense in dry interior locations or inside protected electrical and electronics panels where the port stays easy to reach and easy to identify.
