Vimar Idea SICURY Chinese Standard Socket Outlet, 2P+E, 16A 250V, 2 Modules, IP20

Overview

The Vimar Idea SICURY Chinese socket outlet is a 2P+E receptacle rated 16 A at 250 V~ in a 2-module format for Vimar Idea installations.

It uses screw terminals and a SICURY shutter system that helps reduce accidental contact with live parts. The front includes a small label area for circuit identification.

With IP20 protection and a halogen-free thermoplastic body, it suits interior areas that stay dry, such as the cabin, saloon, or nav station. Overall size is about 24.8 mm wide, 50.1 mm high, and 37.5 mm deep.

Key features

• Chinese standard 2P+E outlet pattern for matching plug type
• 16 A, 250 V~ rating with protective earth connection
• 2-module device footprint for Vimar Idea frames and cover plates
• SICURY shuttered contacts for added finger protection
• Screw-terminal wiring for fixed onboard cabling
• IP20 protection for dry interior installations
• Halogen-free thermoplastic construction with a front label area
• No integrated USB power supply

Variants

This outlet is offered in two colour options to match different interior finishes and trim.

Both versions share the same Chinese-standard 2P+E layout, 16 A at 250 V~ rating, and 2-module footprint. The visible difference is the face colour.

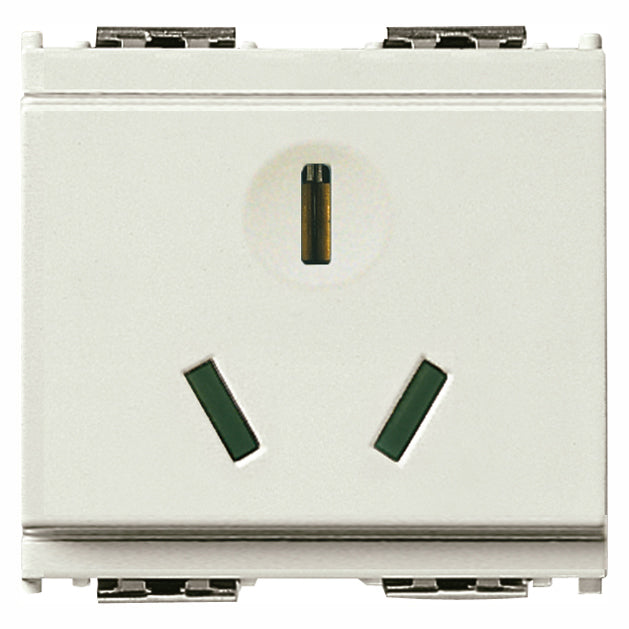

• VM16254.B: Color Ivory. A lighter face colour that blends well with light trim and stays easy to spot in low light.

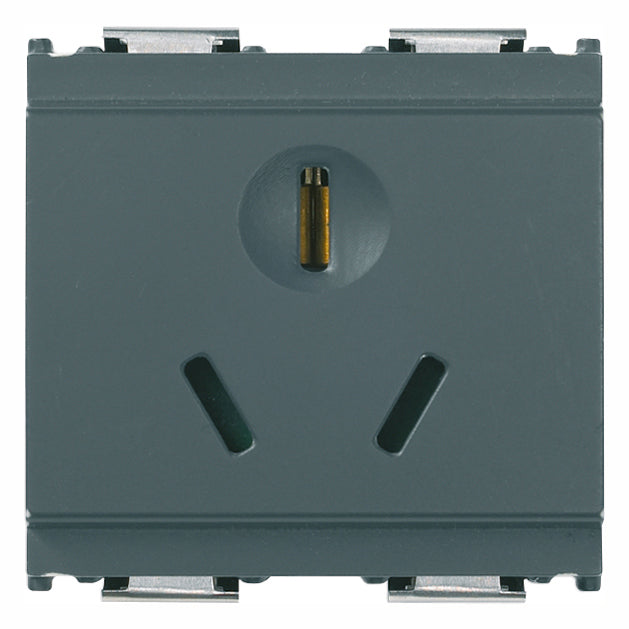

• VM16254: Color Gray. A darker face colour that pairs naturally with grey trim and helps hide everyday marks.

Compatibility and fit

This outlet uses the Vimar Idea 2-module format. It clips into an Idea mounting frame and finishes behind a matching cover plate, which makes it a straightforward replacement where the Idea modular system is already installed.

The receptacle follows the Chinese standard. Before ordering, compare your plug blade and earth-pin shape to the outlet face if you carry appliances from multiple regions.

Installation and setup

Mount it as a flush device in a suitable wall box or panel location, then snap it into the frame and fit the cover plate. Allow enough depth behind the panel for the rear body and for the conductors to bend without strain.

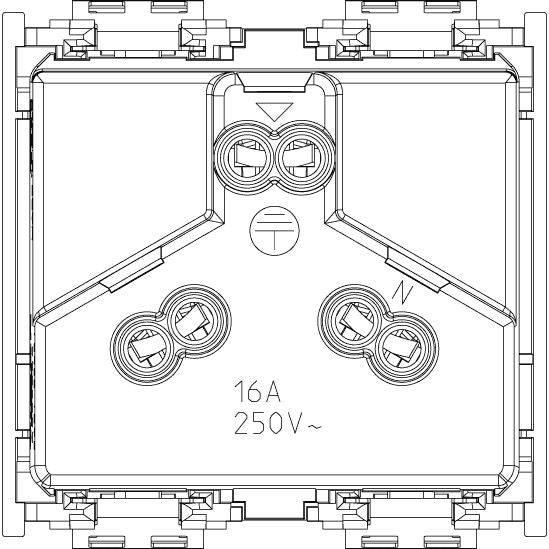

Terminate the conductors on the screw terminals and recheck terminal tightness after initial use, since vibration and thermal cycling can loosen new terminations.

Electrical and system integration

This is a mains-voltage AC outlet rated up to 16 A at 250 V~. Use it only on a properly protected branch circuit with the correct breaker upstream and a continuous protective earth conductor back to your AC grounding system.

Isolate shore power or inverter output before servicing. IP20 indicates an installation area that stays dry and protected from spray, not cockpits, wet lockers, or locations that see washdowns.

Maintenance and care

Wipe the face with a lightly damp cloth and avoid solvents that can mark plastics. If you notice discoloration from heat, looseness, or intermittent contact, disconnect power and inspect the terminations.

Use on board

This outlet suits boats that need a Chinese-standard receptacle in interior spaces, including refits replacing an existing Idea 2-module outlet. It also fits yachts that carry region-specific appliances or travel where this plug type is common.
