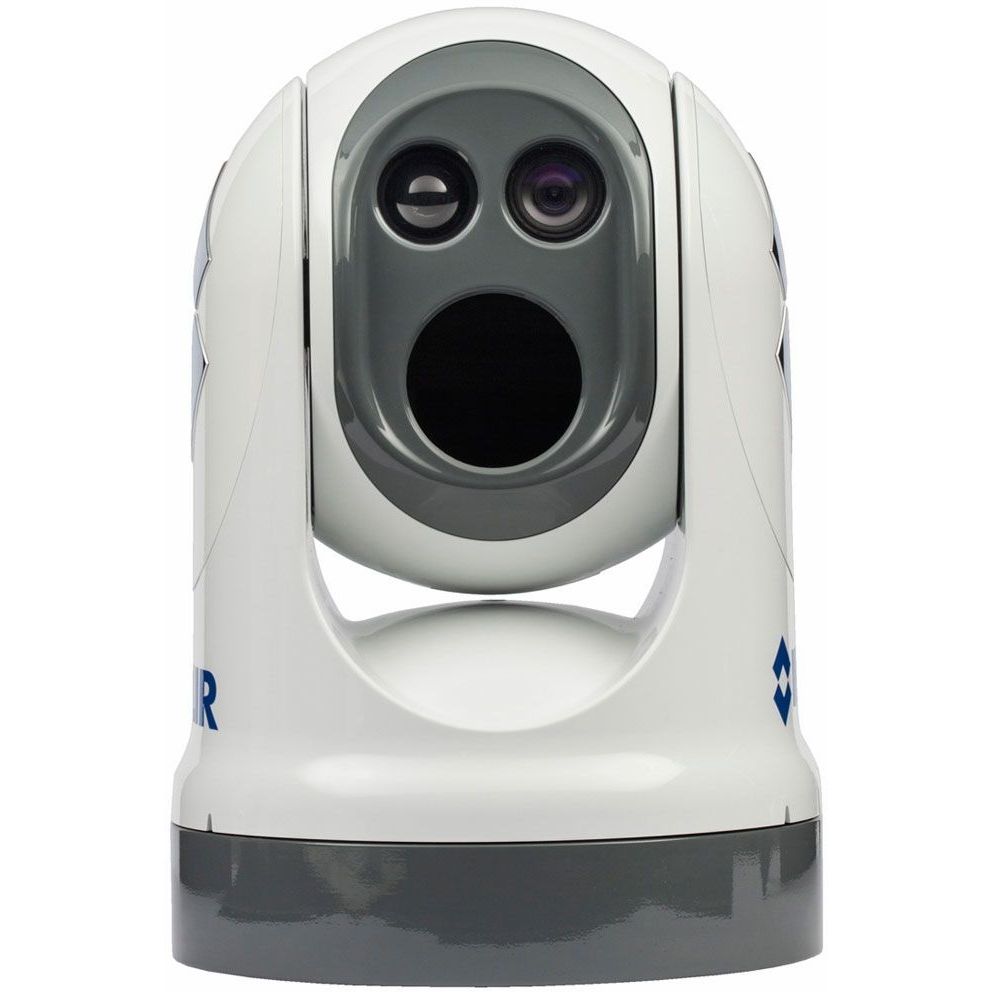

FLIR Systems - M400 30Hz Multi-Sensor Thermal/Visible Camera - With JCU2

Advanced Marine Surveillance and Navigation

The FLIR Systems M400 is a high-performance multi-sensor thermal camera designed for marine applications, providing exceptional target identification in both short and long-range conditions. Engineered for demanding environments, this camera features a 640x480 thermal sensor, HD low-light color camera, and an integrated LED spotlight to enhance visibility in total darkness. The M400’s gyro-stabilized pan-and-tilt design ensures steady viewing, even in rough sea conditions, making it an indispensable tool for enhanced navigation and situational awareness.

High-Precision Thermal and Optical Imaging

Equipped with FLIR’s Digital Detail Enhancement (DDE) technology, the M400 delivers sharp, high-contrast thermal images, even in extreme temperature variations. Its continuous optical thermal zoom lens (1x to 4x) allows users to detect vessels, obstacles, and other potential hazards at extended distances. Additionally, the integrated HD color camera with a 30x optical zoom provides detailed daytime and low-light imaging, ensuring superior situational awareness.

Gyro-Stabilized Performance for Harsh Marine Conditions

Designed to withstand demanding marine conditions, the M400 is housed in a rugged, waterproof gimbal enclosure with 360° continuous pan and ±90° tilt capabilities. Its active gyrostabilization ensures smooth and steady imaging, even in turbulent waters.

Integrated LED Spotlight for Enhanced Visibility

A built-in high-intensity LED spotlight with a 5° divergence angle and 580-lumen output provides additional illumination for enhanced target identification and improved nighttime navigation.

Seamless Integration with Marine Navigation Systems

The M400 supports multiple integration options, including IP control via FLIR’s Joystick Control Unit (JCU2), PC, and web browser interfaces. It is compatible with leading multifunction navigation displays through the Nexus SDK and FLIR Sensors Manager. Additional support for RS-485/422 serial control (Pelco D) and NMEA 0183 serial communication enables radar tracking and seamless system interoperability.

Camera and Imaging

• Thermal Sensor: 640x480 VOx Microbolometer
• Thermal Zoom: Continuous optical zoom (1x to 4x)
• Field of View (Thermal): 18° to 6° horizontal, 1.5° HFOV with e-zoom
• Focal Length (Thermal): 35mm (wide) to 105mm (narrow)
• HD Color Camera: 1080/30p resolution
• Daylight Zoom: 30x optical zoom
• Field of View (Daylight): 64° to 2.3° optical HFOV / 0.2° NFOV e-zoom
• Focal Length (Daylight): 129mm to 4.3mm

Mechanical and Environmental

• Pan & Tilt Coverage: 360° continuous pan, ±90° tilt
• Camera Head Size: 15.18" x 18.68" (Swept Volume Cylinder: 15.5" x 22")
• Operating Temperature Range: -20°C to 55°C
• Storage Temperature Range: -50°C to 80°C
• Automatic Window Defrost: Standard

Communications and Connectivity

• Video Output:Dual independent H.264 network video streams
• HD-SDI lossless digital video interface
• High-definition serial data interface (broadcast-quality video)
• Switchable composite analog video output (NTSC or PAL)
• Integration Options:IP control via FLIR Joystick, PC, and web browser
• Nexus SDK for multifunction display integration
• RS-485/422 serial control (Pelco D)
• NMEA 0183 serial communications for radar tracking

Power Requirements

• Power Consumption: <50W nominal, 130W peak, 270W with heaters
• Power Input: 24V DC

LED Spotlight

• Type: High-intensity LED
• Beam Divergence Angle: 5°
• Light Output: 580 lumens

Highlights

• High-resolution 640x480 thermal imaging for precise target detection
• Continuous optical thermal zoom (1x to 4x) for long-range observation
• HD color low-light camera with 30x optical zoom for superior clarity
• Gyro-stabilized gimbal for steady imaging in rough sea conditions
• Rugged, waterproof design built for marine environments
• 360° pan and ±90° tilt for comprehensive coverage
• Seamless integration with leading marine navigation systems

What’s in the Box

• FLIR Systems M400 Camera
• JCU2 Joystick Control Unit
• Ethernet Switch with PoE
