Imtra A155 PowerLED Downlight, 10-40VDC, IP65, Polished Stainless Steel, Warm White Light

Overview

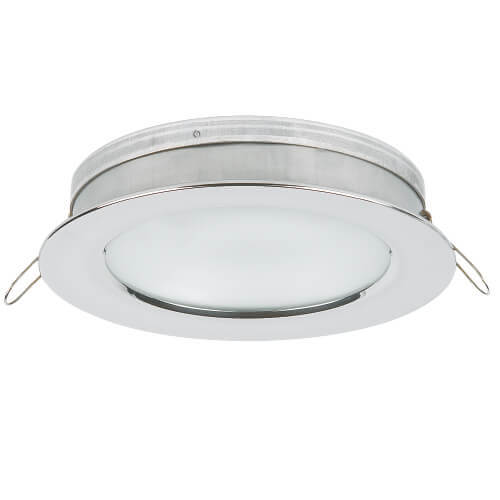

The Imtra A155 PowerLED is a recessed LED downlight for marine lighting applications, featuring a low-profile polished stainless steel bezel and warm white illumination. Operating on 10-40VDC with 4.7W power consumption, it produces 216 lumens through a wide 95-degree beam, providing evenly distributed light without distracting hot spots.

The fixture incorporates integrated driver electronics and a two-wire power connection, eliminating the need for a separate remote driver. Its IP65 rating protects against frontal water exposure, while spring-loaded mounting clips secure the fixture without visible mounting screws.

Key features

• 10-40VDC input voltage with 4.7W power consumption.

• Warm white LED output rated at 216 lumens with a 95-degree beam angle.

• IP65 ingress protection against frontal water exposure.

• Polished stainless steel bezel with a low-profile, round design.

• 155mm (6.10 in) outside trim diameter with a 136mm (5.36 in) mounting cutout.

• Integrated LED driver with two-wire power and PWM dimming support.

• Spring-loaded mounting clips for recessed installation without screws.

• Rated LED lifetime of 50,000 hours to 70% of initial light output.

Installation and setup

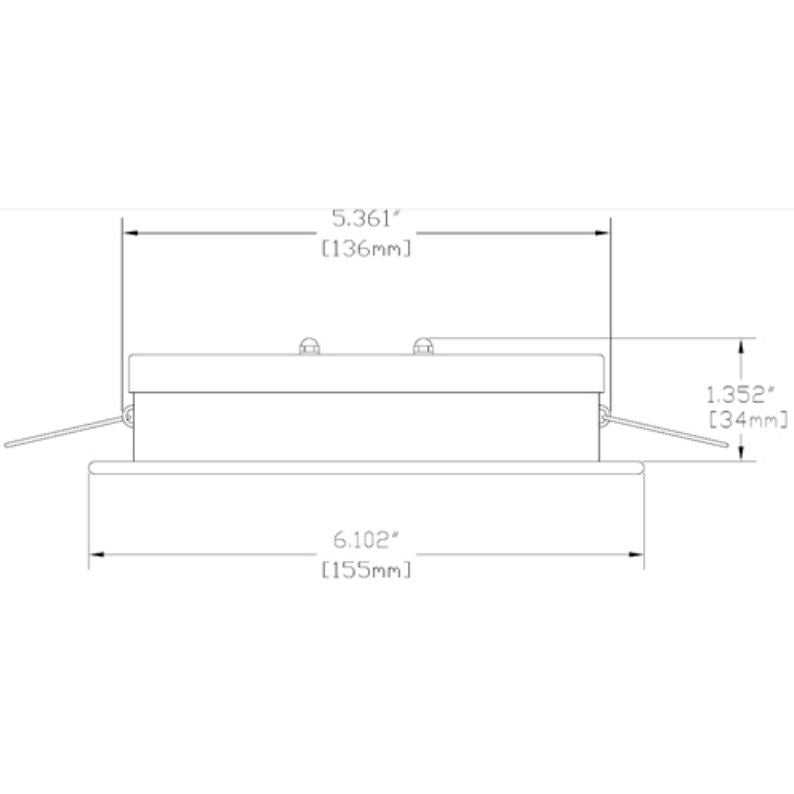

The A155 installs into a circular 136mm (5.36 in) cutout and has an actual recessed depth of 35mm (1.35 in). A minimum installation depth of 47mm (1.85 in) is recommended, including clearance for ventilation. The mounting springs hold the fixture against the installation surface without additional fastening screws.

The fixture must be installed where its rear housing is protected from water exposure, as the IP65 rating applies only to the front. Maintain approximately 13mm (0.5 in) of free space above the housing to support heat dissipation.

Electrical connection and dimming

The integrated electronics allow direct connection to a compatible DC power supply, with the red wire connected to positive voltage and the black wire to negative or ground. Full dimming functionality is available when paired with a compatible Imtra PowerLED PWM dimmer, allowing brightness adjustment through the existing two-wire connection.

This configuration supports recessed overhead lighting installations on vessels operating within the specified DC voltage range, including applications where controlled warm white illumination and a flush-mounted appearance are required.
