Vimar Supernova SPA11 Italian Standard Flat Plug, 2P+E, 10A, 250V, 90 Degree Cable Entry, IP20, Screwed Terminal

Overview

The Vimar Supernova series is a portable plug range, and this listing covers the Italian SPA11 2P+E flat-plug version rated at 10A and 250V AC with a 90 degree cable entry. It is intended for AC mains circuits that use the Italian plug pattern, not 12V or 24V DC systems.

This format works well where the cable needs to turn immediately instead of projecting straight out from the outlet. On board, that can help in cabins, galleys, lockers, or service spaces where furniture, liners, or nearby equipment leave little clearance behind the plug.

The body is thermoplastic, the wiring is handled through screwed terminals, and the protection rating is IP20. That makes it a better fit for dry, protected interior spaces rather than exposed deck locations or any area that sees spray and washdowns as part of normal use.

Key features

• Italian SPA11 flat-plug format with 2P+E contacts for 10A / 250V AC connections
• 90 degree cable entry helps keep the cord close to the outlet in tight spaces
• Screwed terminal connection for serviceable field wiring
• Thermoplastic housing with IP20 protection for protected interior use
• Available in black or white to better match the surrounding installation

Variants

This product is offered in two finish options.

The confirmed difference between the variants is color. The electrical format remains the same across both versions, including the 2P+E layout, 10A / 250V AC rating, 90 degree cable entry, thermoplastic body, IP20 protection, and screwed terminal connection.

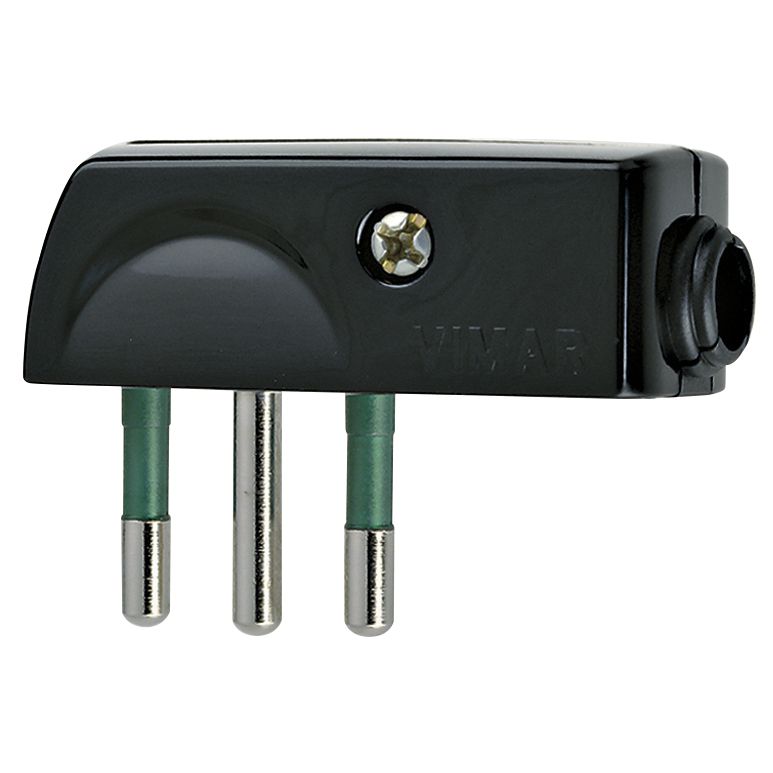

• VM00206: Color Black. A dark finish that stays less visible on black cable runs, darker panels, or equipment housings.

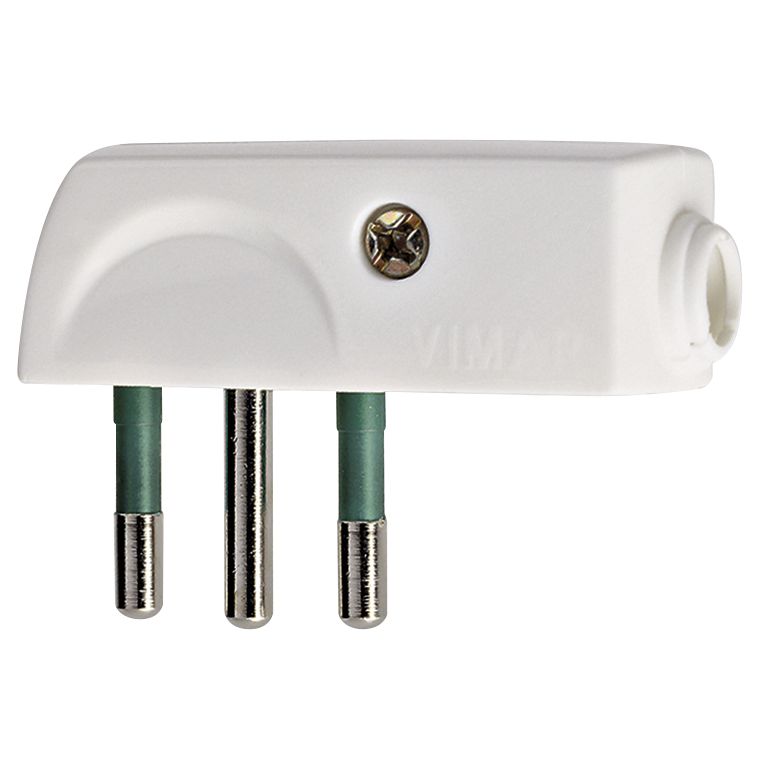

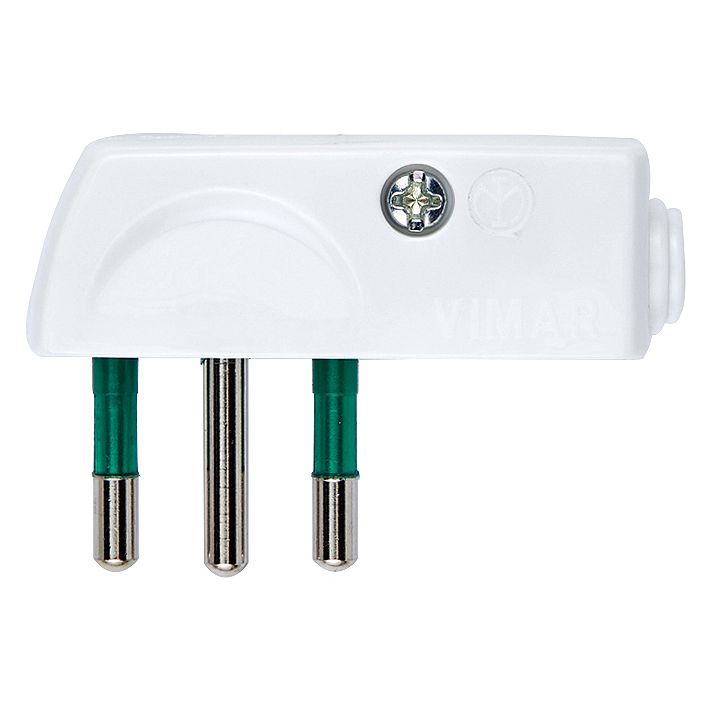

• VM00206.B: Color White. A light finish that blends more cleanly with white outlets and lighter interior surfaces.

Compatibility and fit

Check the receiving outlet pattern before ordering. This plug is for Italian SPA11 style connections with earth, so it should be matched to the correct socket format and an AC circuit within its 10A / 250V rating.

It suits boats and yachts that use Italian-style onboard AC fittings in protected interior areas and need a low-profile cord exit. It is less suitable for exterior connection points or places where water exposure is part of normal use.

Installation and use on board

The 90 degree entry helps keep the cable run tidy where a straight plug would push into trim, locker doors, or portable equipment. The screwed terminals also make sense when the plug needs to be wired or reterminated during service.
