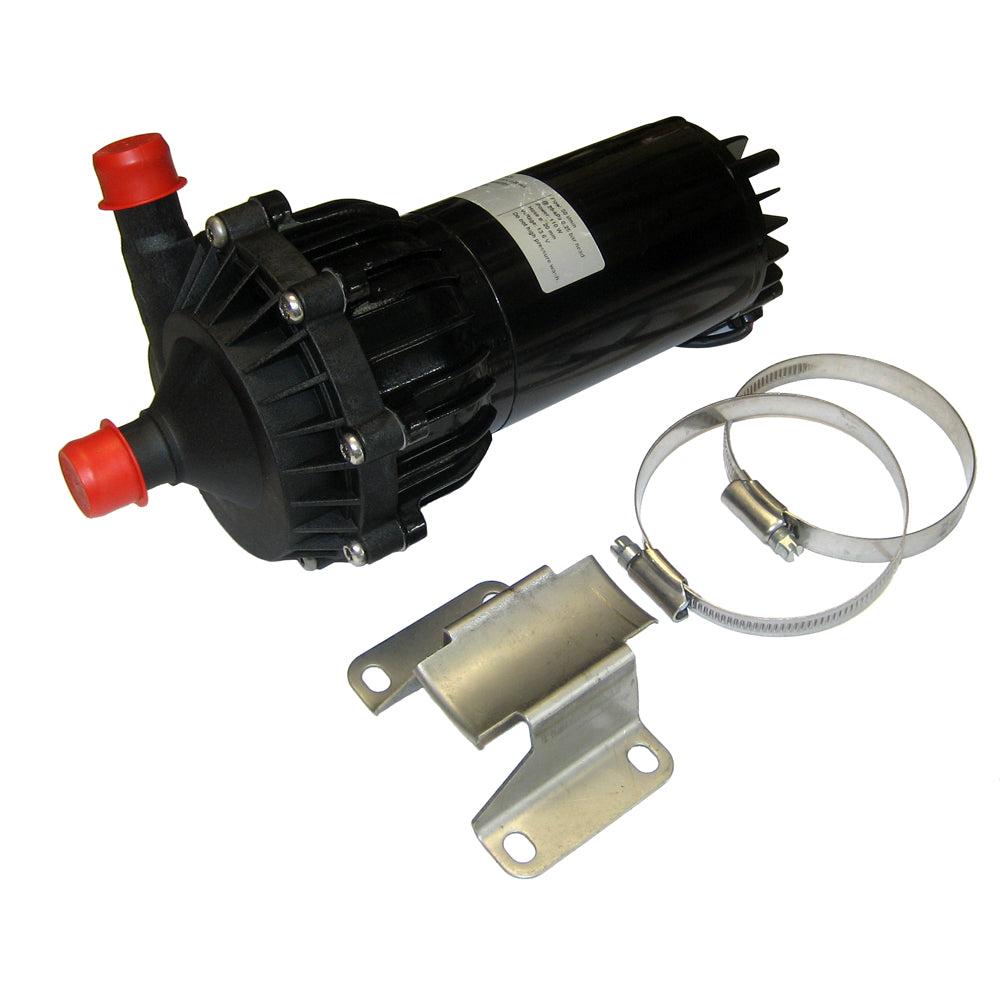

Johnson Pump - CM90 Circulation Pump - 12V

High Flow Rates with Minimal Energy Consumption

Introducing the Johnson Pump CM90 Circulation Pump, a revolutionary solution designed for marine and navy use, offering unparalleled performance and efficiency. This compact magnetic-driven centrifugal pump combines high flow rates with remarkably low electric current consumption, making it an ideal choice for circulating fresh water, ethylene glycol, and saltwater. Built to withstand the harshest marine environments, the CM90 is perfect for ensuring reliable water circulation on any vessel.

Superior Design and Robust Construction

The Johnson Pump CM90 Circulation Pump is engineered with a glass-fiber reinforced PPA body, ensuring durability and longevity. With a capacity of 17.2 GPM, this pump delivers high flow rates while maintaining efficient energy use. It is suitable for various applications, including fresh water, ethylene glycol, and saltwater circulation. The pump’s motor boasts a service life of over 5,000 hours at nominal voltage and can handle more than 10,000 start/stops, ensuring long-term reliability.

Key Features:

• High Flow Rates: Capable of delivering 17.2 GPM, ensuring efficient water circulation.
• Energy Efficient: Designed to consume minimal electric current, making it cost-effective.
• Durable Construction: Glass-fiber reinforced PPA body provides exceptional durability.
• Versatile Use: Suitable for fresh water, ethylene glycol (up to 60%), and saltwater circulation.
• Long Motor Service Life: Over 5,000 hours of service life at nominal voltage, with 10,000 start/stops.
• Dry Running Capability: Can run dry for up to 30 minutes without damage.
• Easy Installation: Compact design with 3/4" ports for straightforward installation.

Technical Specifications

• System Pressure: -0.3 to 3.0 bar; stationary max. 4.0 bar
• Liquid Compatibility: Water/glycol mixture (max. 60% glycol), fresh and saltwater
• Motor Service Life: Over 5,000 hours at nominal voltage, 10,000 start/stops
• Dry Running: Up to 30 minutes
• Dimensions (L x W x H): 244 mm x 120 mm x 150 mm
• Weight: 6.6 lbs
• Capacity: 17.2 GPM
• Ports: 3/4"

Compact and Efficient Design

With its compact dimensions of 244 mm (L) x 120 mm (W) x 150 mm (H) and a weight of just 6.6 lbs, the CM90 Circulation Pump is designed for easy installation and operation in confined marine spaces. Its robust construction ensures it can handle the demanding conditions of marine environments, providing reliable performance every time.

Sleek and Durable Finishes

The CM90 Circulation Pump features a sleek, glass-fiber reinforced PPA body that is not only durable but also resistant to corrosion and wear. This ensures the pump maintains its performance and appearance even in the toughest conditions.

Product Variations

1. 17.2 GPM Version:

• Flow Rate: 17.2 GPM
• Ideal for standard circulation needs, providing reliable performance and efficiency.

1. 23.7 GPM Version:

• Flow Rate: 23.7 GPM
• Suitable for higher flow requirements, offering enhanced capacity for larger applications.

The Johnson Pump CM90 Circulation Pump is the ultimate choice for efficient and reliable water circulation in marine environments. Its advanced design, robust features, and versatile applications make it an essential addition to any vessel, ensuring optimal performance and longevity. Choose the CM90 for unmatched efficiency and peace of mind on the water.
