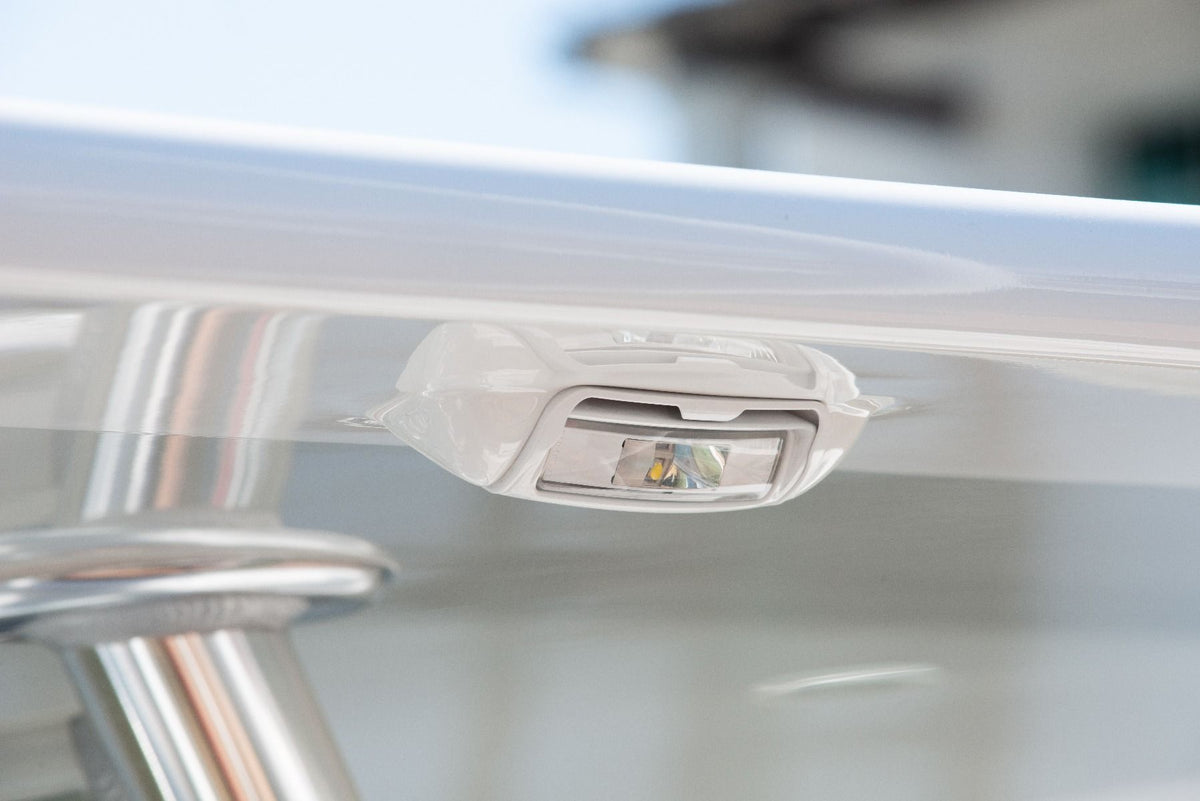

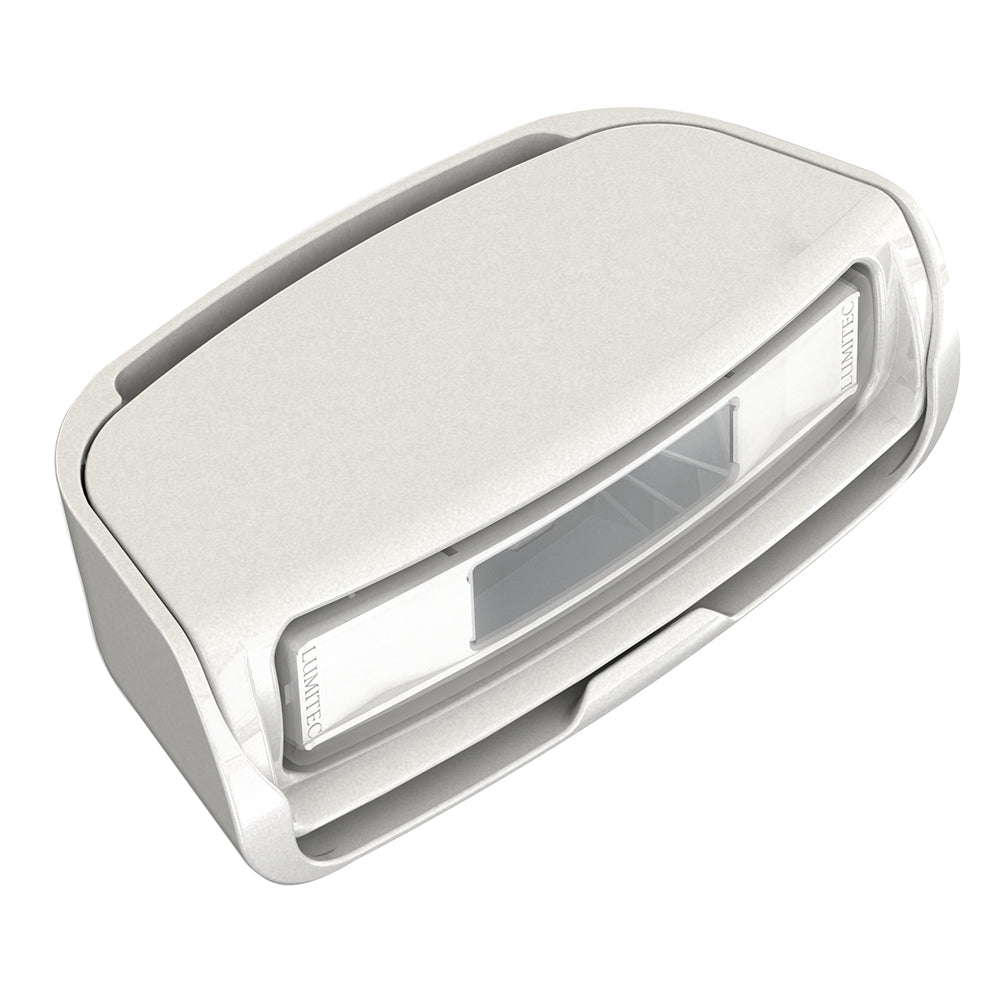

Lumitec Corsica Inset LED Flood Light, Spectrum Halo, 10-30VDC, 1200 lm, IP67, RGBW, 5000K

Overview

The Lumitec 101611 is an inset LED spreader and flood light with Spectrum Halo lighting, built to be sculpted into a hardtop, wheelhouse, or arch for a clean, integrated install. It runs on 10-30 VDC and puts out over 1,200 lumens, giving you working light for the cockpit, aft deck, and other spreader-style mounting locations where you want wide coverage without a bulky fixture.

Spectrum Halo adds a dimmable colored halo around the output, with full WRGB control and a 5000 CCT white channel for a natural-looking work light. TTP and PLI features let it be controlled from a normal on and off switch, and it also works with the Poco Digital Lighting Control System for more detailed lighting control. It carries a 3-year warranty and is made in the USA.

Key features

• Inset form factor that can be sculpted into hardtops, wheelhouses, and arches for a flush look
• Over 1,200 lumens for spreader and flood-style deck illumination

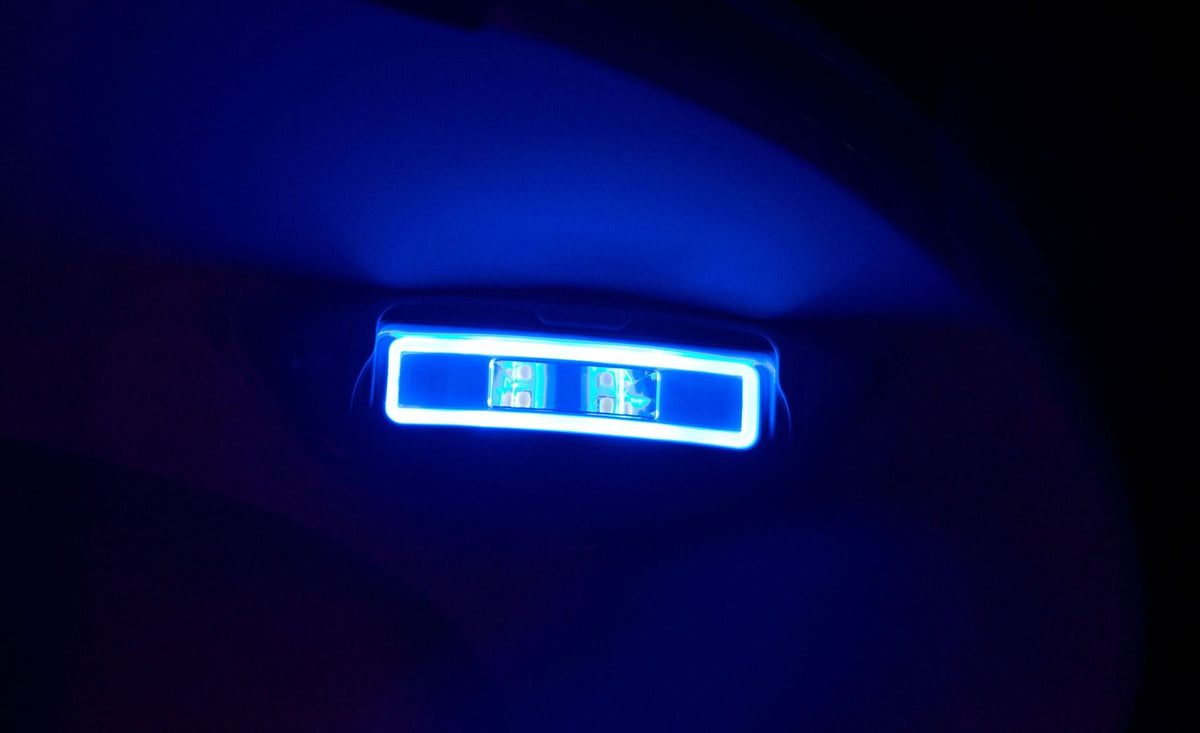

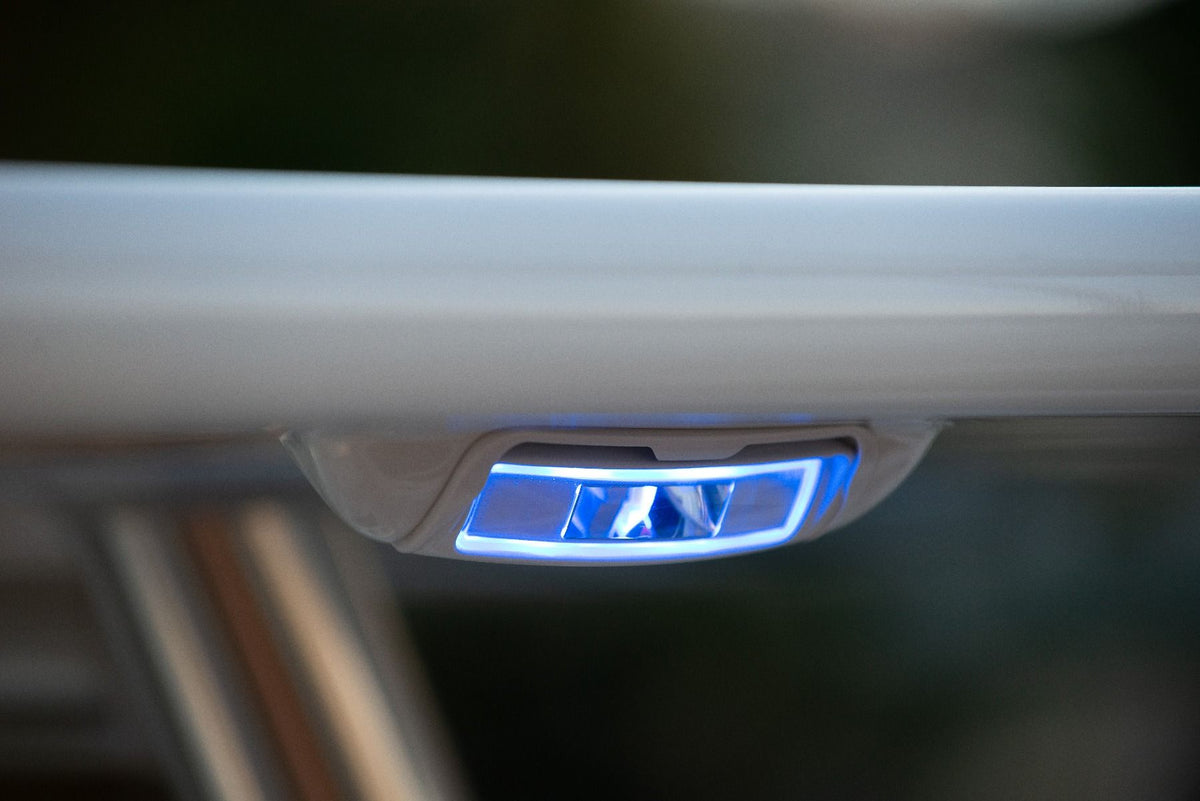

• Spectrum Halo lighting with a dimmable colored halo glow
• Full WRGB output with a 5000 CCT white channel
• 10-30 VDC input for common 12V and 24V boat systems
• Current draw: 1A at 12V and 0.5A at 24V
• TTP and PLI enabled for control from a standard on and off switch; compatible with Poco Digital Lighting Control System

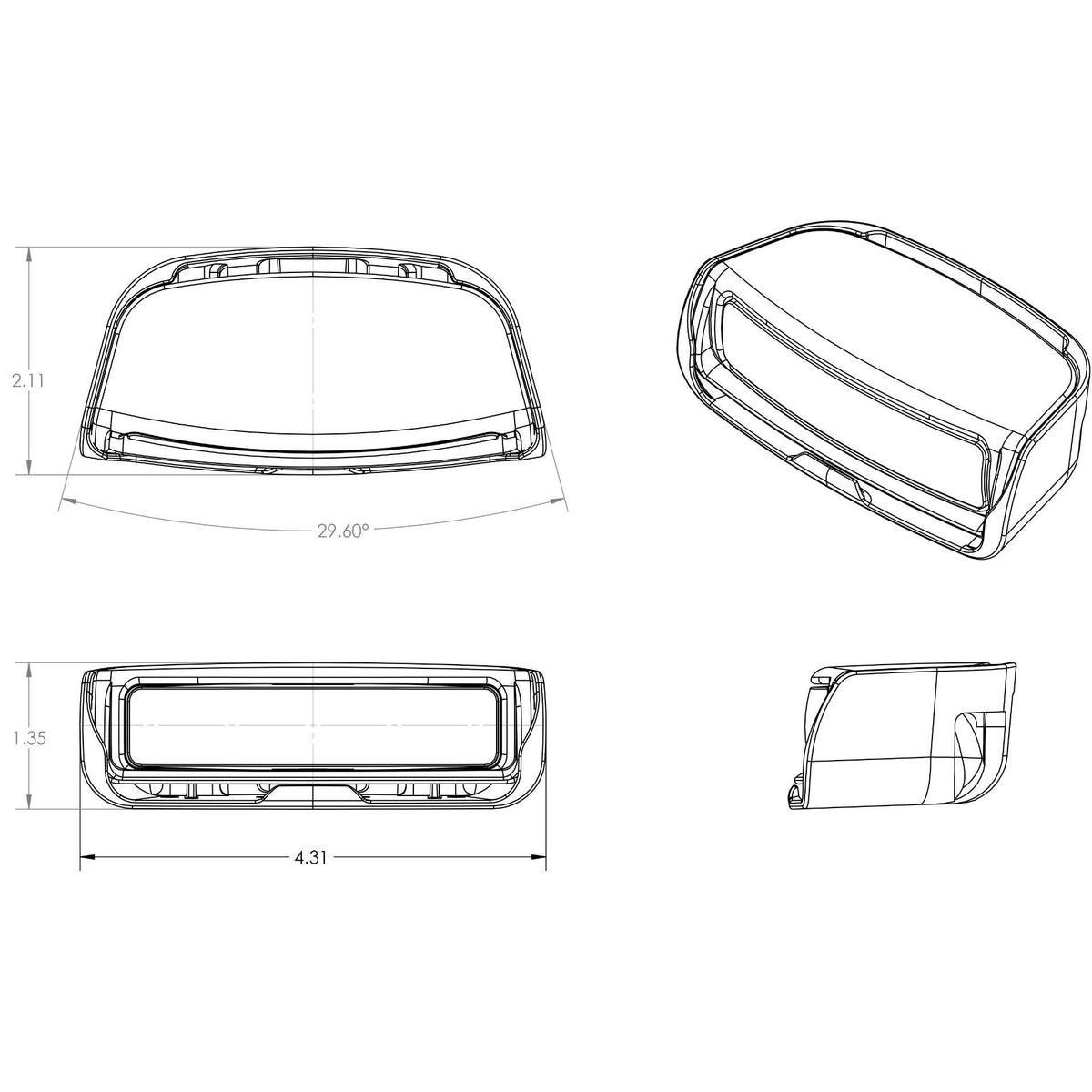

• Compact overall size: 5.76 in W x 2.8 in H x 4.1 in D

Installation and fit

This light is intended for a molded-in or sculpted installation where the housing sits recessed into the mounting surface. Plan for backside access so you can route the cable, support the fixture, and keep connections protected from spray.

Use the overall depth (4.1 in) as a reality check for tight hardtops and arches, and confirm you have room behind the mounting face before committing to the location. On open boats, choose a spot that avoids direct line-of-sight glare from the helm while still lighting the working area below.

Electrical and system integration

With a 10-30 VDC operating range, it fits both 12V and 24V DC systems without needing a converter. The current draw is modest for its output, but it is still worth planning the circuit so voltage drop stays under control on longer wire runs to hardtops and towers.

TTP and PLI control means the light can be operated using a standard switch, which is useful when you want simple helm control without adding extra panels. For installations that already use Lumitec digital lighting, Poco integration keeps lighting control consistent across zones and scenes.

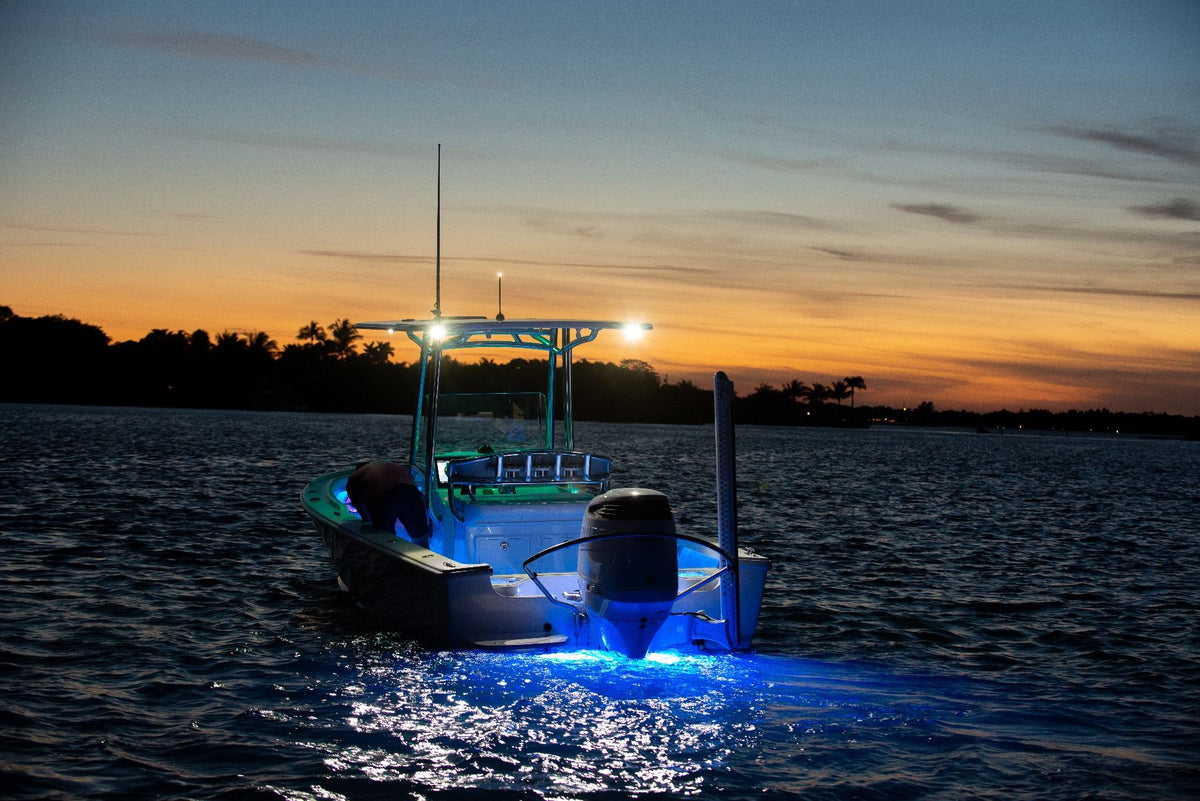

Use cases on board

This style of inset spreader light makes sense on boats where you want high-output working light but prefer the fixture to visually disappear into the hardtop or arch. It suits anglers setting up lines after dark, cruisers loading gear at the dock, and crews that want functional deck lighting with a controlled color accent at night.

Maintenance and care

Rinse the fixture after saltwater use and keep the lens area clean so output stays consistent. When wiring lives in a hardtop or arch, periodically check that connections remain dry and strain relief is intact, especially after heavy vibration or long offshore runs.
