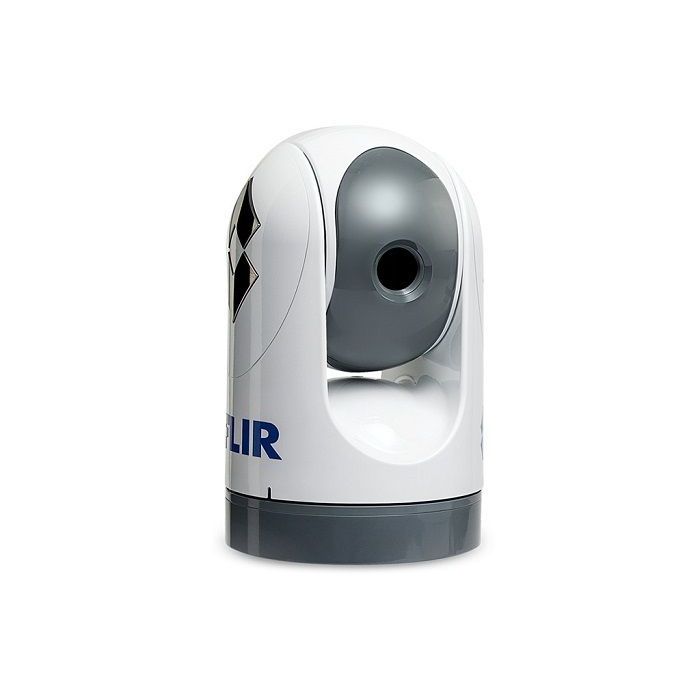

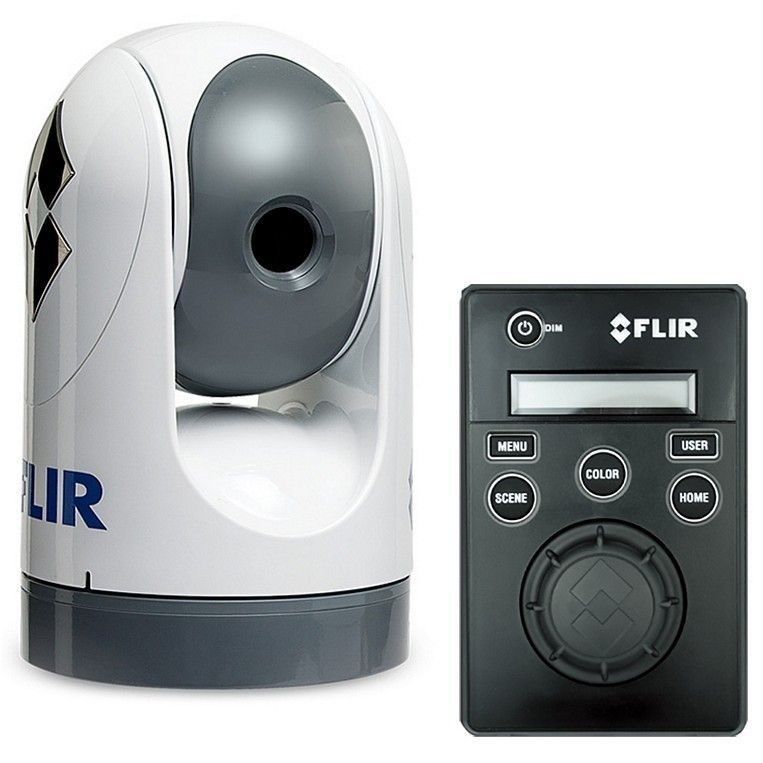

FLIR Systems - M324S 320x240 30Hz Thermal Camera - With JCU

Advanced Thermal Imaging for Marine Navigation

The FLIR Systems M-324S Thermal Camera delivers cutting-edge situational awareness for maritime navigation. Designed for use in harsh marine environments, this high-performance thermal imaging system enhances visibility, allowing boaters to detect other vessels, small craft, floating objects, and potential hazards in complete darkness, glare, dust, and light fog. Whether for professional or recreational marine applications, the M-324S provides unparalleled clarity and safety on the water.

With seamless integration into marine multifunction displays, this thermal camera enhances navigation by displaying crisp thermal imagery alongside charts and radar. Its 360° continuous pan and +/-90° tilt ensure full coverage, while advanced features such as gyro-stabilization and digital detail enhancement deliver a stable and high-resolution image.

High-Performance Thermal Imaging

The M-324S features a 320 x 240 VOx microbolometer thermal sensor with a 30Hz NTSC video refresh rate, ensuring smooth and detailed thermal imaging. The system utilizes FLIR’s proprietary digital detail enhancement to enhance image clarity, allowing mariners to see more details in low-visibility conditions.

Seamless Integration with Marine Electronics

This thermal camera integrates effortlessly with select multifunction displays from leading marine electronics brands, including Raymarine, Furuno, Garmin, and Simrad. The system supports composite video output for direct connection to marine monitors, making it adaptable for various vessel configurations.

Engineered for Extreme Marine Conditions

Built to withstand the toughest marine environments, the M-324S meets rigorous standards for durability and performance. It features an IPX6 water ingress rating, ensuring resilience against heavy seas and powerful water jets. Additionally, the system is protected against sand and dust ingress per MIL-STD-810E standards and operates reliably in extreme temperatures ranging from -13°F to +131°F (-25°C to +55°C). The included automatic window defrost ensures clear imaging in cold conditions.

Technical Specifications

• Thermal Sensor: 320 x 240 VOx Microbolometer
• Video Refresh Rate: 30Hz NTSC
• Field of View: 24° x 18°
• Focal Length: 19mm
• Focus: Fixed (12ft / 3.6m to infinity)
• Continuous E-Zoom: 2x
• Image Processing: FLIR Proprietary Digital Detail Enhancement

System Features

• Pan/Tilt Range: 360° Continuous Pan, +/-90° Tilt
• Video Output: Composite NTSC (F-type BNC with BNC-to-RCA adapter included)
• Power Requirements: 12-24V DC
• Power Consumption: 25W nominal, 50W max

Rugged Environmental Protection

• Operating Temperature: -13°F to +131°F (-25°C to +55°C)
• Storage Temperature: -40°F to +185°F (-40°C to +85°C)
• Water Ingress Protection: IPX6 (heavy seas, powerful jets of water)
• Shock Resistance: 15g vertical, 9g horizontal
• Vibration Resistance: IEC 60945; MIL-STD-810E
• Wind Resistance: Up to 100 knots (115.2 mph)
• Salt Mist Protection: IEC60945 Standard
• Automatic Window Defrost: Standard at Power-Up

Product Dimensions

• Weight: Approximately 9 lbs (4 kg)
• Size: 7” (177.8 mm) diameter, 11.2” (284.4 mm) height

Long-Range Detection Performance

• Person in the Water: Detects at up to 1,500 ft (457 m)
• Small Vessel Detection: Detects at up to 4,200 ft (1,280 m)

Highlights

• Enhanced situational awareness with high-resolution thermal imaging
• Seamless integration with marine multifunction displays
• 360° pan and +/-90° tilt for complete visibility
• Joystick and optional touchscreen control for precise adjustments
• Rugged, waterproof design built for harsh marine environments
• Gyro-stabilization for steady imagery in rough seas

What's Included

• FLIR M-324S Thermal Camera

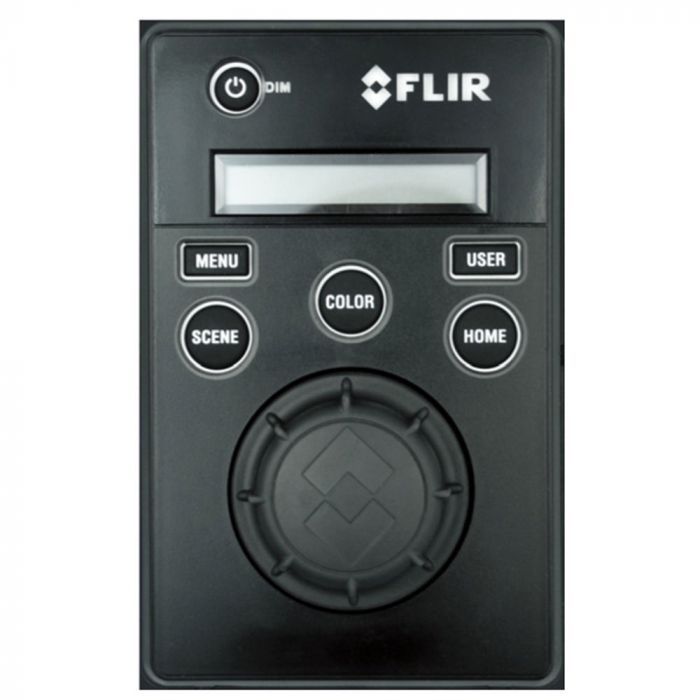

• Joystick Control Unit (JCU) with weather cover
• Weatherproof Ethernet coupler
• 25’ Ethernet cable
• Mounting hardware
• User guide
