Wichard - HR D Shackle

Maximize Marine Durability with Wichard HR D Shackle

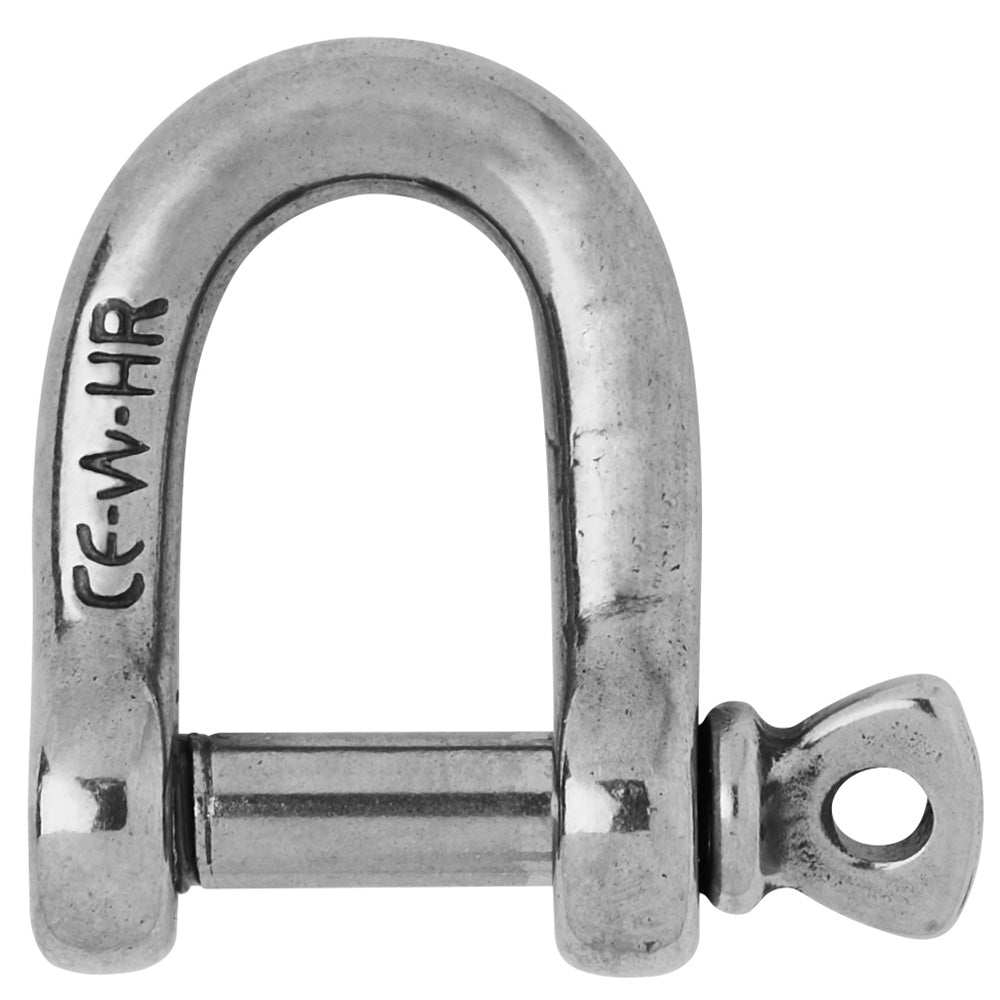

Introducing the Wichard HR D Shackle - Diameter 15/64", a pinnacle of strength and resilience in marine hardware. Forged from HR stainless steel grade (17.4 PH), this D shackle offers unparalleled working and breaking loads, making it significantly more resistant than its 316L stainless steel counterparts. Designed for high-load applications, its robust nature does not compromise on safety, evidenced by its CE marking and individual batch number for traceability.

• Fabricated from HR 17.4 PH stainless steel for superior resistance
• Up to 60% more durable than 316L stainless steel shackles
• Designed for industrial applications, including lifting
• Not recommended for mooring applications to ensure optimal performance
• Includes CE marking and batch number for safety and quality assurance

Technical Mastery for High Load Applications

With a working load of 2290 lb, WLL (Working Load Limit) of 1010 lb, and an astounding breaking load of 5070 lb, the Wichard HR D Shackle is crafted for tasks demanding high loads. Its dimensions are meticulously designed to ensure reliability and efficiency in attachment applications such as blocks and heads.

Precise Dimensions for Unmatched Performance

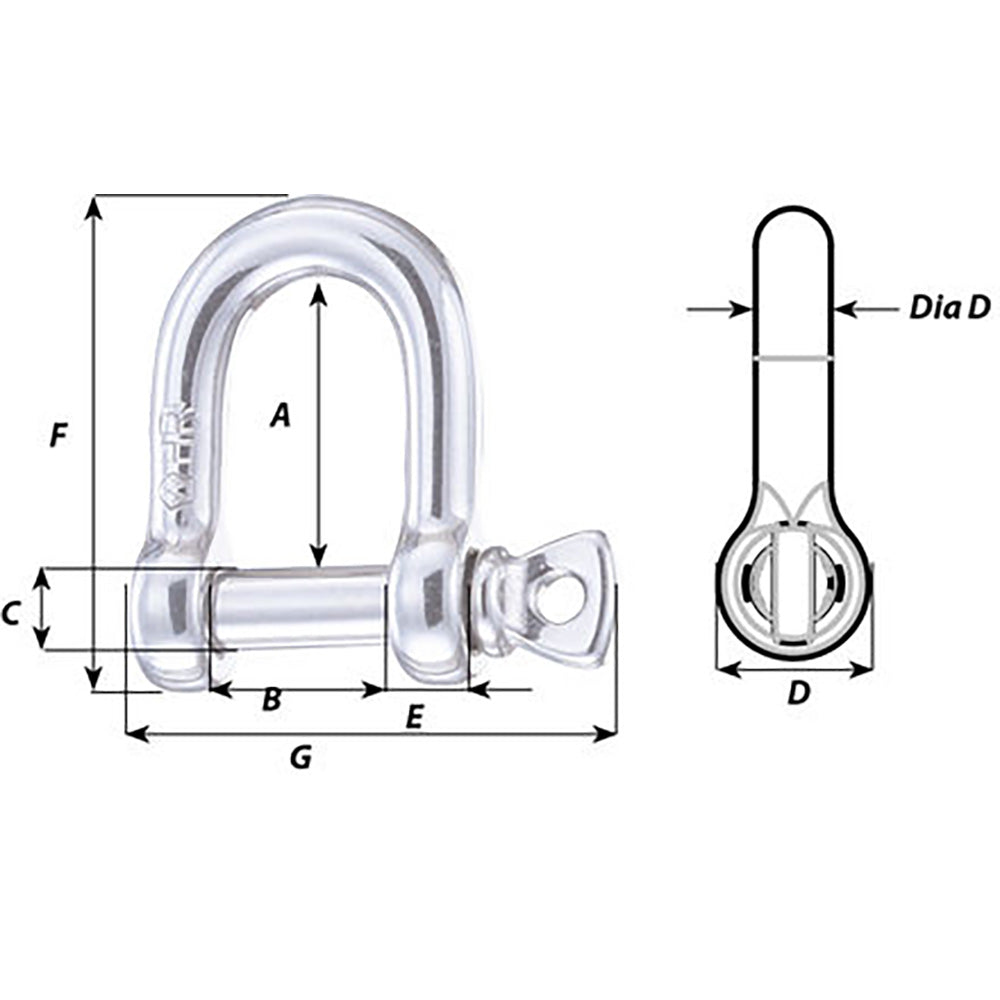

The HR D Shackle's dimensions are tailored for critical applications, with a diameter of 15/64" and weight of just 0.053 lb. It features precise measurements for various components (A, B, C, D, E, F, G) to accommodate a wide range of marine needs while ensuring ease of use and maximum safety.

Discover the Perfect Fit: Available Variants

Wichard's commitment to versatility and precision is evident in the available size variants of the HR D Shackle, ensuring there's a perfect match for every application:

• 11203 6mm: Ideal for light-duty applications where precision is key.
• 11204 8mm: Offers a balanced blend of strength and adaptability.
• 11205 10mm: For more demanding applications requiring robust support.
• 11206 12mm: Enhances load capacity for heavier tasks.
• 11207 14mm: Provides exceptional strength for industrial use.
• 11208 16mm: Maximizes durability and load-bearing capabilities.
• 11209 20mm: The ultimate choice for the highest loads and toughest conditions.

Choose your ideal Wichard HR D Shackle variant and experience unmatched strength and reliability in your marine operations.
