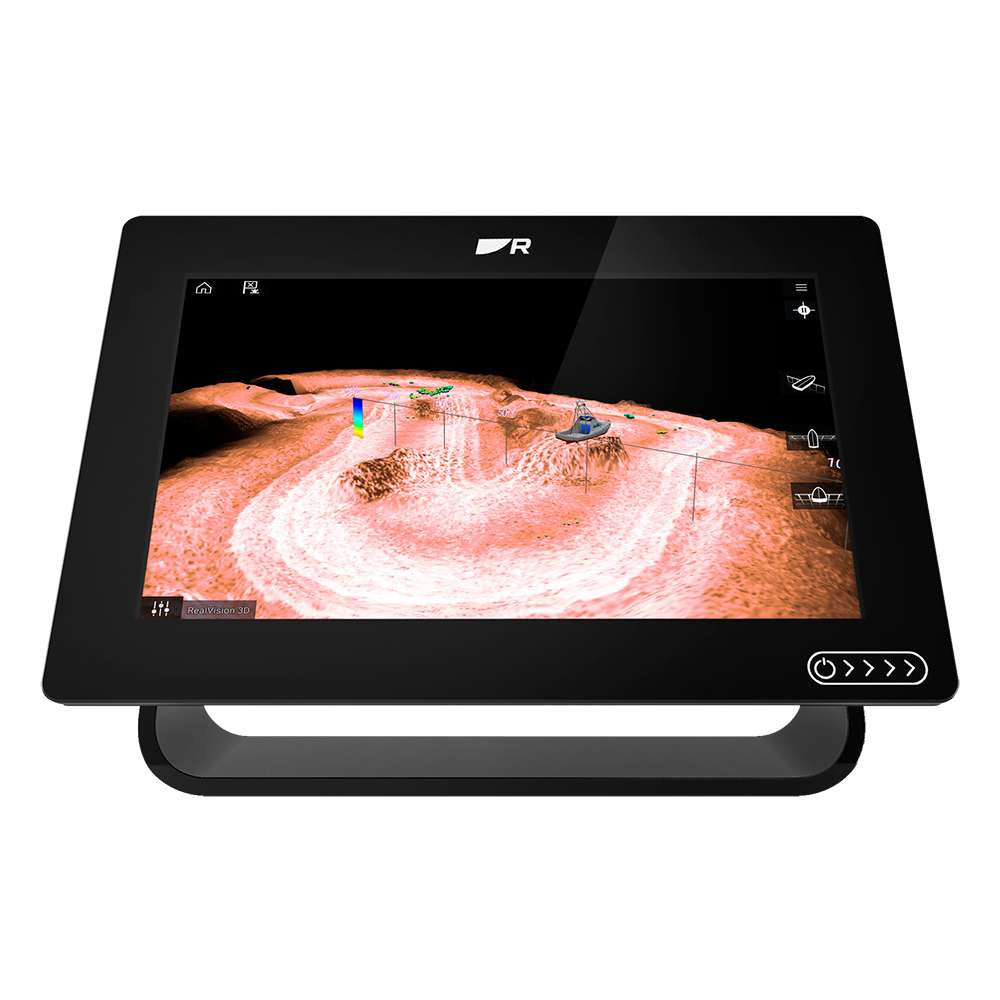

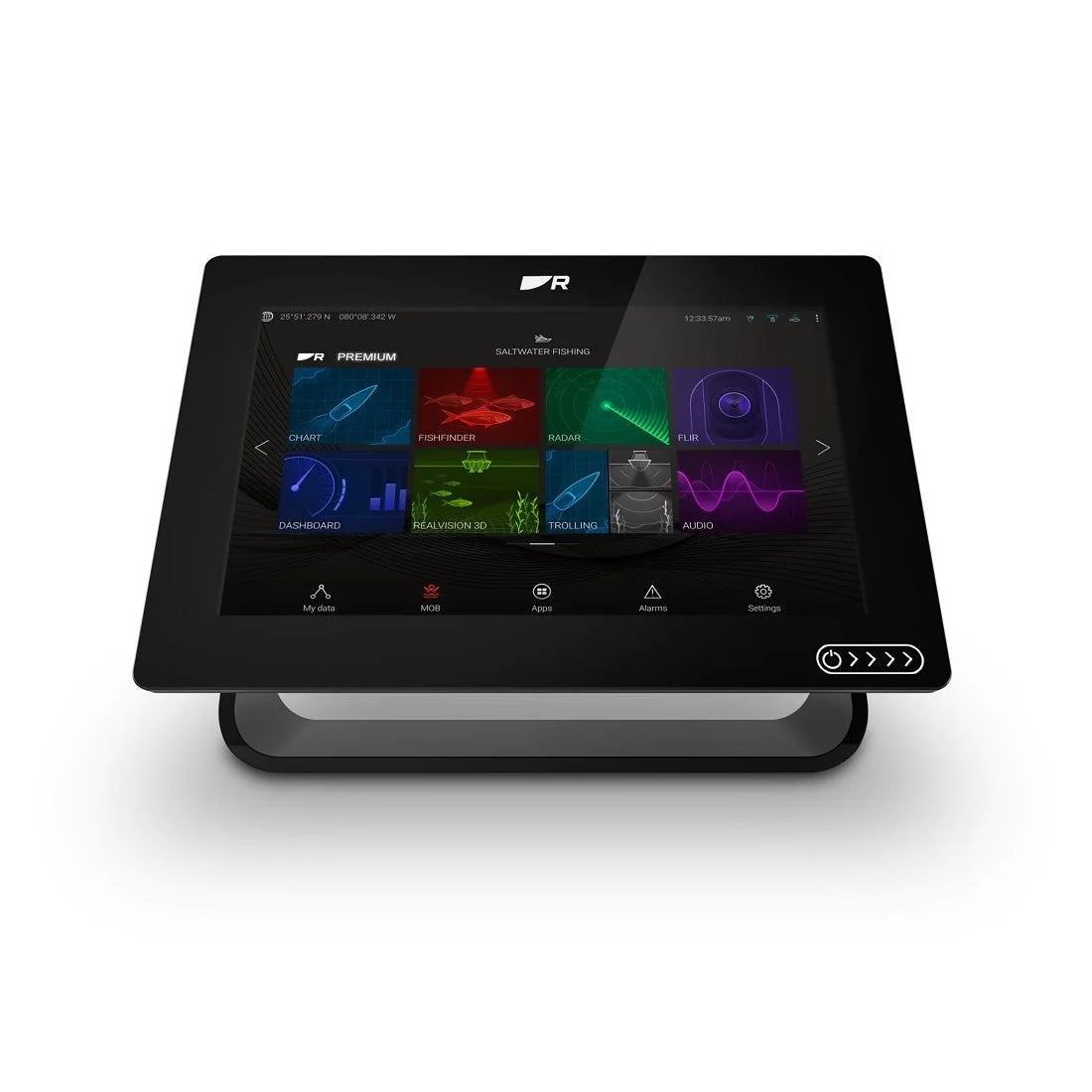

Raymarine Axiom+ 9 RV Chartplotter Fishfinder, RealVision 3D, RV100 Transom Mount Transducer, Navionics+ North America

Overview

The Raymarine E70637-03-NAG is a 9-inch multifunction display with built-in RealVision 3D sonar, an included RV-100 transom transducer, and North America chart coverage. It puts chartplotting and fishfinding in one helm unit, which keeps the install cleaner on boats that do not need a separate sonar module. The IPS touchscreen runs at 1280 x 720 with 1500 nits of brightness, so charts and sonar stay readable from different helm angles and in strong daylight.

Built-in sonar covers High CHIRP, DownVision, SideVision, and RealVision 3D. Published depth ranges reach 900 ft for CHIRP, 600 ft for DownVision, and 300 ft for SideVision and RealVision 3D. The internal GPS/GNSS receiver updates at 10 Hz, and the display is sealed to IPX6/IPX7 for exposed helms that deal with spray, washdowns, and changing weather.

This package fits boats that can use a transom-mount transducer and want one screen for coastal navigation, structure hunting, and everyday helm data. On a center console, bay boat, or small cruiser, the 9-inch size gives useful detail without taking over the dash.

Key features

• 9-inch IPS touchscreen with 1280 x 720 resolution, 1500 nits brightness, and 85 degree viewing angles
• Built-in 600 W sonar with High CHIRP, DownVision, SideVision, and RealVision 3D
• RV-100 transom transducer included for a complete chartplotter and fishfinder installation
• Internal 10 Hz GPS/GNSS receiver tracks GPS, GLONASS, and BeiDou for fast position updates
• Works on 12 V systems with an 8 to 16 V DC input range and a 7 A fuse rating
• RayNet Ethernet, NMEA 2000 through the included power cable, Wi-Fi, Bluetooth 4.0, and a microSDXC slot support expansion and data sharing
• HydroTough coated glass, IPX6/IPX7 sealing, and a -25 C to 55 C operating range suit open-boat use

Installation and setup

The display can be trunnion mounted or surface or flush mounted. Surface and flush dimensions for the 9-inch unit are 9.64 x 6.21 in, while trunnion dimensions are 10.43 x 7.39 in. Depth including cables is 7.01 in, so cable clearance behind the dash matters before you cut the panel.

The RV-100 is a transom-mount transducer, which makes this bundle a natural fit for many outboard and sterndrive boats. As with any transom sonar install, clean water flow at the transducer face matters, so placement should stay clear of strakes, steps, and prop wash where possible.

Electrical and system integration

Power input is 8 to 16 V DC with a nominal 12 V supply, so this unit belongs on a 12 V electronics bus or behind a proper voltage converter on 24 V boats. The box includes a power and NMEA 2000 cable with a built-in DeviceNet connector, plus a DeviceNet to SeaTalkng adapter cable for Raymarine network integration.

Once on the network, it can share data with other Axiom displays and connect into a wider helm built around radar, cameras, AIS, and NMEA 2000 instruments. Wi-Fi and Bluetooth also help when you want wireless device pairing and onboard updates.

What’s included

• Axiom+ 9 display
• RV-100 RealVision 3D transom transducer with associated fittings
• Trunnion bracket
• Two trunnion knobs
• Suncover
• Panel mount gasket
• M5 threaded studs and thumb nuts for rear mounting
• Power and NMEA 2000 cable
• DeviceNet to SeaTalkng adapter cable
• Documentation pack
