Newmar Power - Galvanic Isolator Fail Safe

Prevent Corrosion and Ensure Safety with Advanced Galvanic Protection

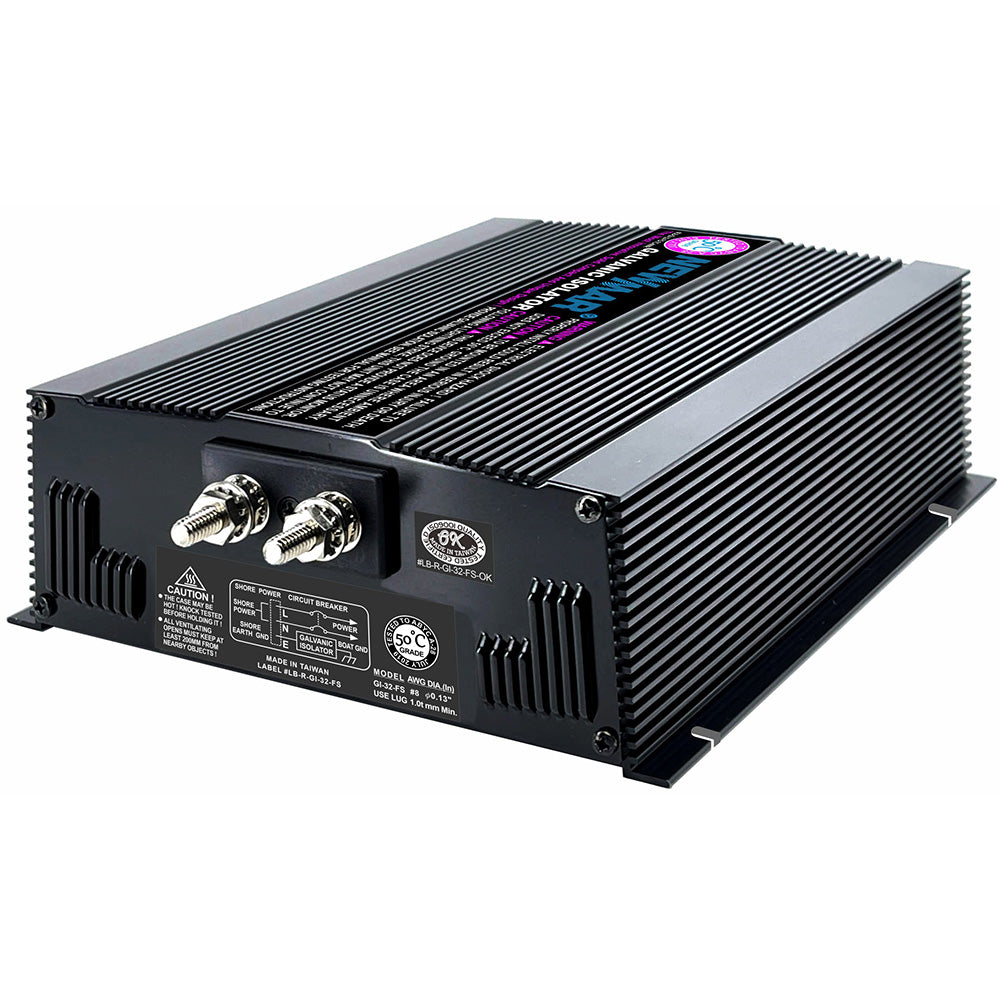

The Newmar GI-30-FS Galvanic Isolator is engineered to protect your vessel's vital metallic components from galvanic corrosion while maintaining the integrity of the AC safety ground. By blocking low-voltage currents that cause corrosive action, this isolator significantly reduces the wear on sacrificial anodes, saving you money on boat maintenance and zinc replacement. Designed to meet the latest ABYC A-28 2019 standards, this fail-safe galvanic isolator provides robust and reliable protection in the harsh marine environment.

Key Features and Benefits

The Newmar GI-30-FS Galvanic Isolator offers comprehensive protection and reliability, making it an essential addition to your marine safety equipment. Here’s a detailed look at its features:

• Corrosion Prevention: Effectively blocks low-voltage currents, reducing galvanic corrosion on metal components.
• Safety Assurance: Maintains a safe environment by ensuring the AC safety ground path is preserved.
• Fail-Safe Design: Features a 30A fail-safe mechanism to maintain ground connection even if the isolator fails.
• Certified Protection: Certified to the UL1500 standard for Ignition Protection, ensuring high safety standards.
• Temperature Resilience: Tested to withstand ambient temperatures up to 50°C.
• Secondary Safety Path: Includes a large capacitor providing a low-impedance path for AC current to the ground.

Simplified Overview: Key Specifications

• Shore Power Voltage: 115–230V
• Maximum Short Circuit: 5000 Amps
• Stray Current Protection: Up to 1.4 VDC
• Dimensions (LxWxH): 200 x 189 x 68.5 mm
• Amperage: 30A (available in 60A variant)

Robust and Compact Design

• Size: 200 x 189 x 68.5 mm
• Weight: Built for easy installation and integration into your marine electrical system.

Designed for Marine Excellence

The Newmar GI-30-FS Galvanic Isolator is crafted to provide exceptional corrosion protection and maintain the safety of your vessel's electrical system. Its advanced features and compliance with stringent safety standards make it a reliable choice for any marine application.

Product Variations: Tailored to Your Needs

Choose the Newmar Galvanic Isolator variant that best suits your specific requirements:

• GI-30-FS Amperage 30A: Standard model for most marine applications.

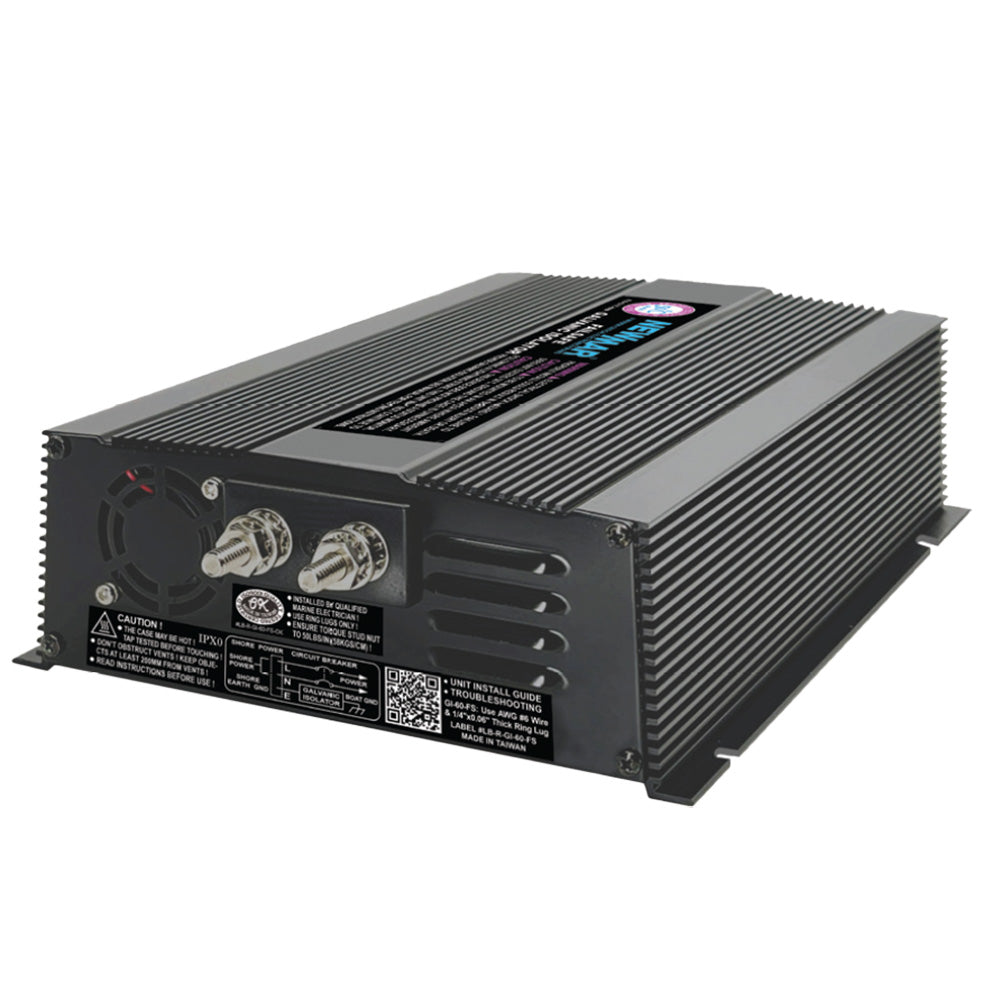

• GI-60-FS Amperage 60A: Higher capacity model for more demanding needs.

Conclusion

Safeguard your marine vessel against galvanic corrosion with the Newmar GI-30-FS Galvanic Isolator. Its robust design, advanced features, and fail-safe operation ensure both protection and safety for your boat's metallic components. Select the variant that meets your needs and enjoy the peace of mind that comes with superior galvanic protection. Trust Newmar for reliable and efficient solutions in the marine environment.
