Raymarine Trunnion Mounting Kit, For Axiom 9 and Axiom+ 9

Overview

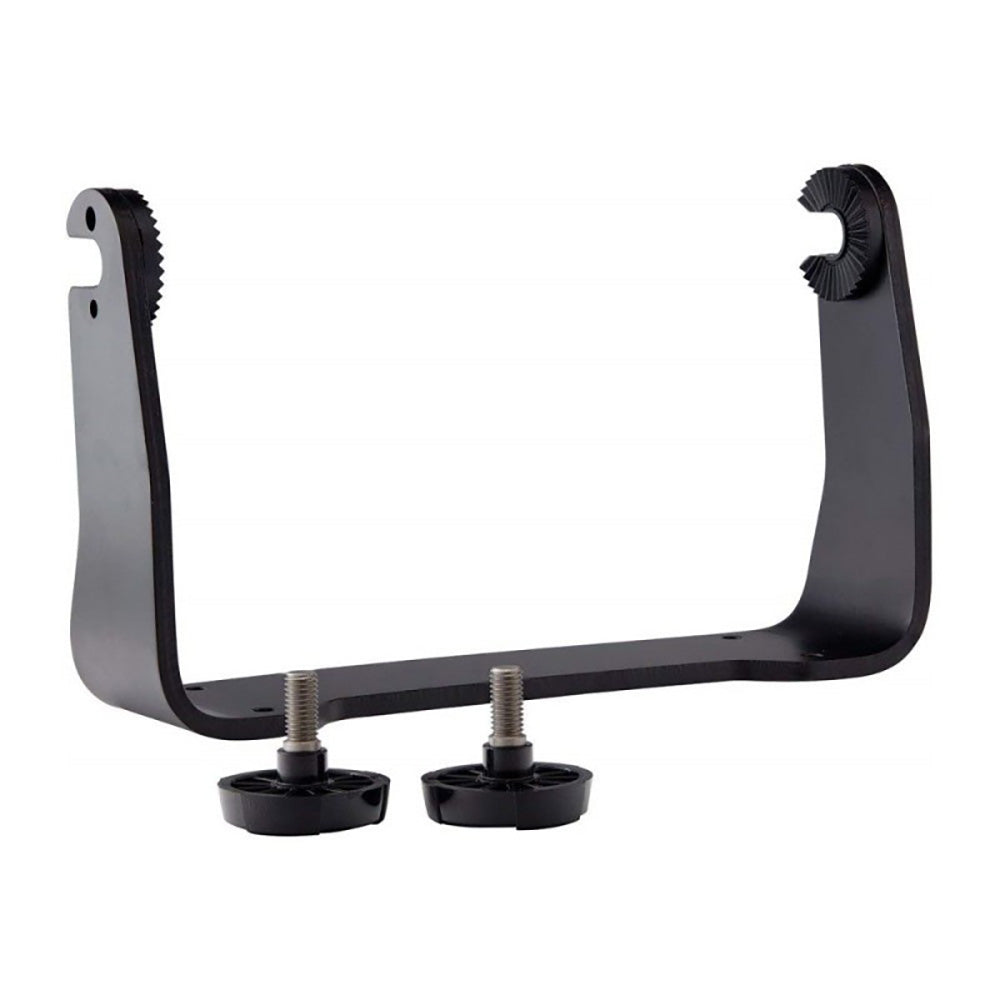

The Raymarine R70529 is a metal trunnion mounting kit for Raymarine Axiom and Axiom+ 9 displays. It gives the 9-inch display a fixed bracket mount for helm stations, consoles, dash tops, electronics boxes, and other locations where the unit needs to sit proud of the mounting surface rather than being flush mounted.

The kit includes the metal trunnion bracket and two knobs used to secure the display to the bracket. This style of mount is useful when the display angle needs to be adjusted for visibility from the helm, cockpit, or navigation station. The packaged size is 3 in H x 6 in W x 10 in L, with a listed package weight of 1.25 lb.

Key features

• Fits Raymarine Axiom 9 and Axiom+ 9 multifunction displays.
• Metal trunnion bracket supports a fixed surface-mount installation.
• Two included knobs secure the display to the bracket and allow angle adjustment at the helm.
• Works well for installations where rear access or flush mounting is not practical.
• Suitable for replacing a missing or damaged trunnion bracket on a compatible 9-inch Axiom display.

Installation and setup

This kit is intended for surface mounting the display on a structurally sound area of the boat. Before drilling, check the underside of the mounting location for wiring, hardware, liners, or any other obstruction, and confirm that the surface has enough strength to carry the display while underway.

Mounting screws should be selected for the material and thickness of the mounting surface. For Axiom 9 trunnion installations, the bracket mounting holes are 5.75 mm in diameter, so the fasteners and pilot holes should be matched carefully to the console, dash, or mounting panel.

Use cases on board

This mount is a practical fit for center consoles, pilothouses, sailboat cockpits, flybridges, and secondary helm stations where an Axiom or Axiom+ 9 display needs to remain visible and accessible. It is especially useful when the display may need to be tilted to reduce glare or to suit different helm positions.

What’s included

• 1 metal trunnion bracket
• 2 knobs
