Garmin Panoptix LiveScope Ice Fishing Bundle, ECHOMAP UHD 93sv, 9in Touchscreen, LakeVü g3 Maps, Built-In Flasher, IPX7

Overview

The Garmin 010-02342-15 is a portable ice-fishing fishfinder and GPS combo that pairs an ECHOMAP UHD 93sv 9 inch touchscreen display with Panoptix LiveScope live sonar. LiveScope gives you real-time views in Forward and Down modes with up to 200 ft of range, so you can watch fish and your jig movement without waiting on a scrolling history.

The display is rated IPX7 for wet conditions around the hole, slush, and spray, and it includes a built-in flasher view for classic hardwater presentation. Mapping is handled with preloaded LakeVü g3 maps with integrated Navionics data covering more than 18,000 lakes in the U.S., and the unit supports a microSD card (up to 32 GB) for additional mapping and data. Everything stores and travels in the included portable kit with a rechargeable battery and charger.

Key features

• ECHOMAP UHD 93sv 9 inch WVGA touchscreen display with an IPX7 water rating
• Panoptix LiveScope live sonar with Forward and Down views, showing movement in real time up to 200 ft
• Built-in flasher page for jig and fish tracking under the ice
• Preloaded LakeVü g3 maps with integrated Navionics data covering more than 18,000 U.S. lakes

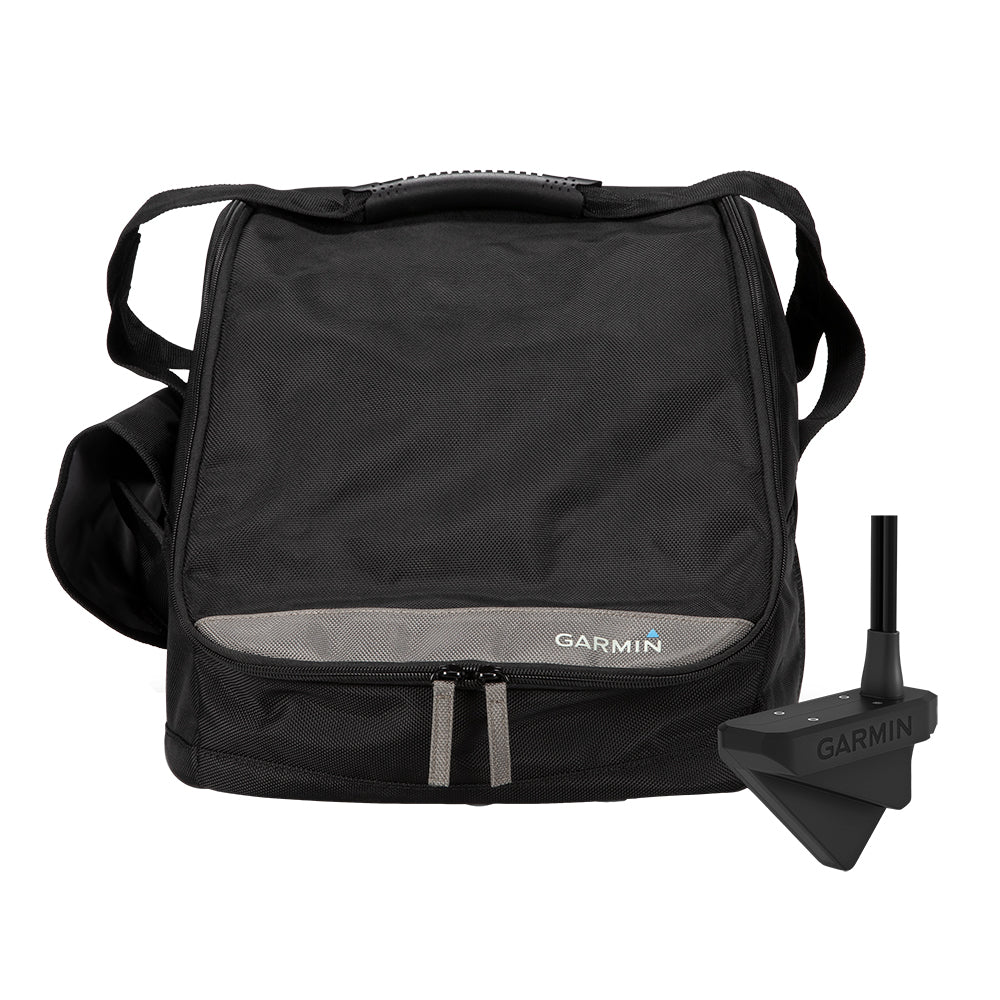

• Portable fishing kit with carry bag, rechargeable battery, and charger for moving spot to spot
• Accepts 1 microSD card (up to 32 GB) for maps and data management

What’s included

• ECHOMAP UHD 93sv chartplotter
• Panoptix LiveScope system
• Panoptix ice fishing mount
• Tilt/swivel mount
• Power cable
• Documentation

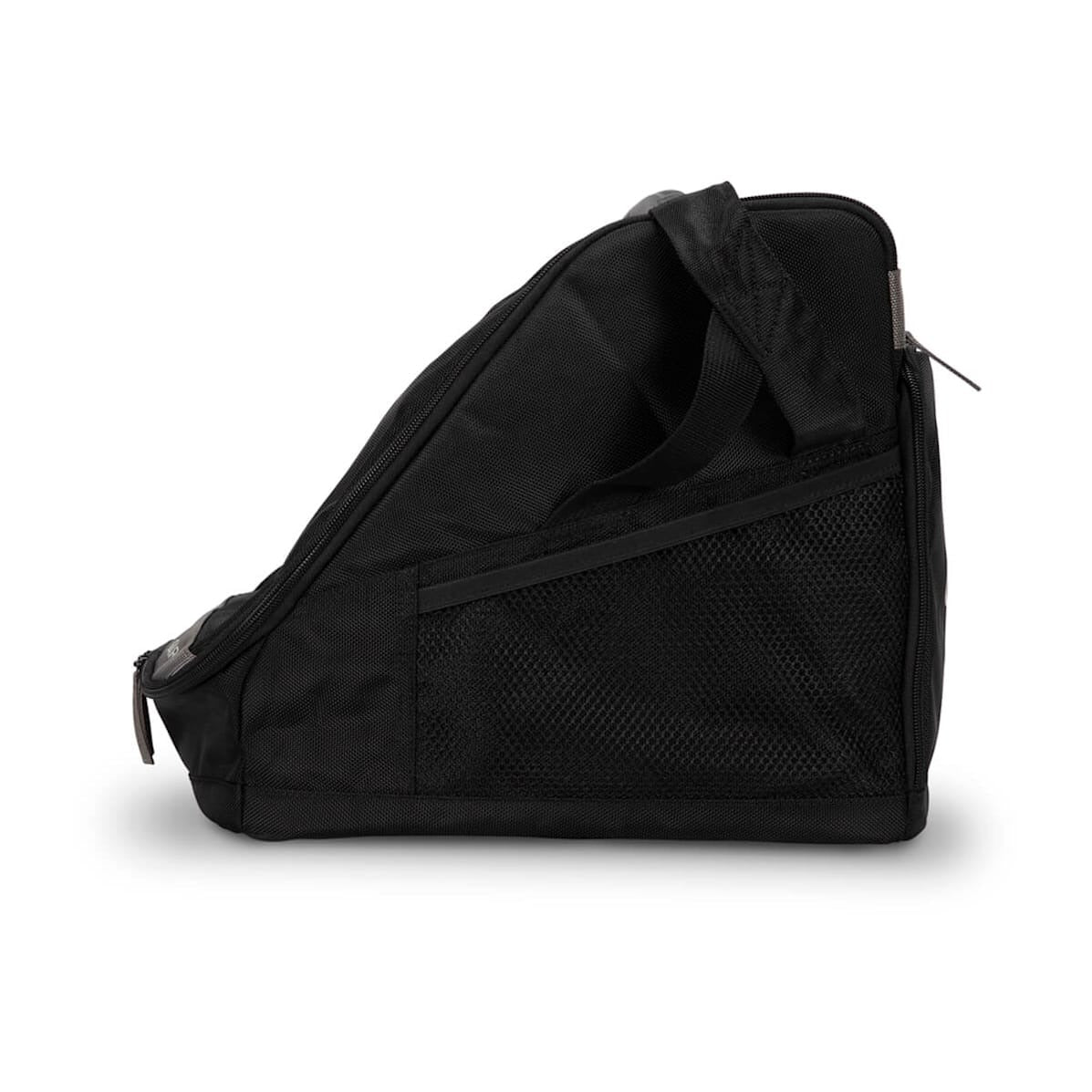

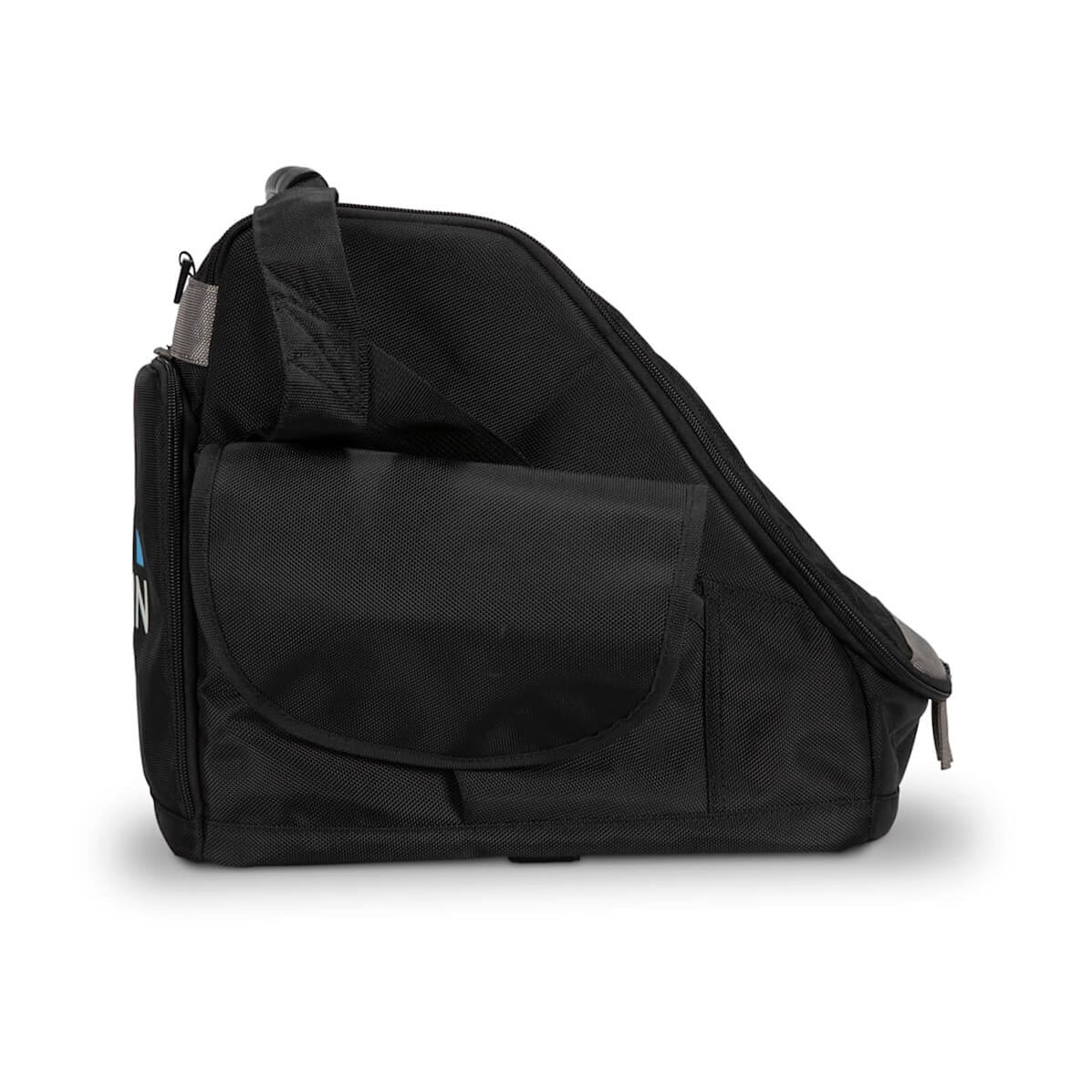

• Portable fishing kit bag with handle
• Rechargeable battery
• Battery charger

Installation and setup

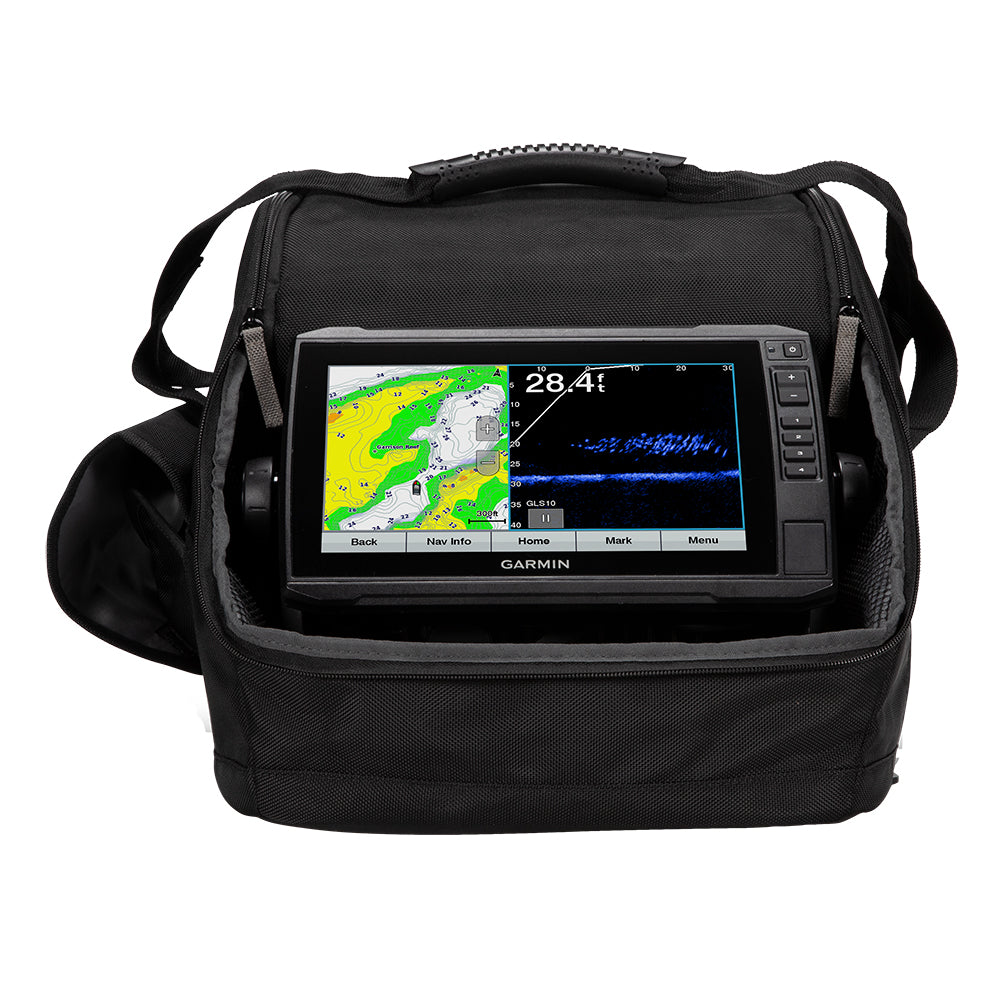

Set the display in the portable bag and secure it on the included tilt/swivel mount so you can adjust viewing angle while standing or seated. The LiveScope transducer mounts to the included ice pole mount, which helps you aim the beam where you are fishing and keeps the transducer stable as you move around the hole.

Keep cables routed so they do not rub on ice edges, and leave enough slack to rotate the pole without pulling on connectors. On the screen, switching between LiveScope Forward, LiveScope Down, and the flasher view is a quick way to match your presentation to the depth and how fish are reacting.

Compatibility and fit

This is a matched bundle built around the ECHOMAP UHD 93sv and the included Panoptix LiveScope system, with the mounts and portable power to run it as a self-contained setup. The chartplotter includes a Panoptix port for the live-sonar connection and provides one NMEA 0183 input port for basic serial data integration when you are using it in a fixed install.

If you plan to move the system between hardwater and a boat, the included pole mount is geared toward ice use, so you will want a secure mounting method appropriate for your open-water setup. The display’s IPX7 rating is helpful around washdowns and spray, but connectors and cables still benefit from careful strain relief and clean routing.

Maintenance and care

After each trip, wipe down the display, bag, and transducer to remove moisture and grit, and let everything dry before packing it away. If the kit sees brackish or saltwater conditions, rinse the transducer and exposed connectors with fresh water and dry them thoroughly to reduce corrosion and intermittent connections.

Keep the rechargeable battery topped up between trips and avoid storing the kit with tight cable bends. A quick check of connectors, mount fasteners, and pole alignment before you head out helps prevent issues once you are on the ice.
