Simrad Dash Mount Kit, For NSS12 evo3/evo3S, For Zeus3/Zeus3S 12

Overview

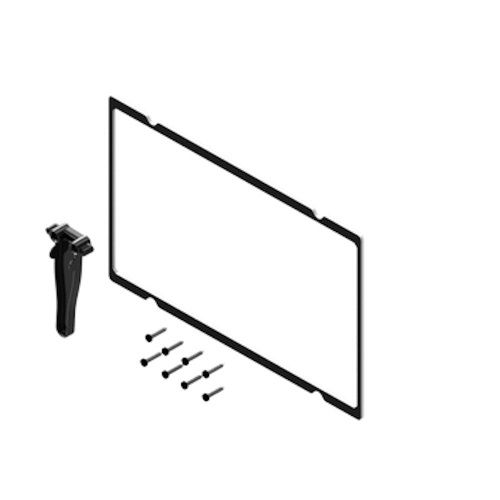

The Simrad 000-13755-001 is a dash mount kit for fitting a 12-inch Simrad NSS12 evo3 or NSS12 evo3S, and B&G Zeus3 12 or Zeus3S 12 multifunction display into a helm panel.

It is the hardware used when you want the display fixed into the console face instead of sitting on a gimbal bracket. That helps keep the screen close to the dash and leaves more room around the wheel, throttles, and switches.

Before cutting, confirm the exact display model and plan for rear clearance behind the panel so plugs and cable bends are not forced. This kit matches the 12-inch units listed above and is not interchangeable with other screen sizes.

Key features

• Dash/panel mounting kit sized for NSS12 evo3, NSS12 evo3S, Zeus3 12, and Zeus3S 12 displays
• Supports a flush dashboard install so the display sits tight to the console face
• Fixed mount approach reduces the movement you can get with bracket-mounted screens in chop
• Useful for new builds and refits where a dash cutout is preferred over a gimbal bracket
• Made for the 12-inch families noted above, so display size and generation need to match

Installation and setup

Plan the cutout carefully and dry-fit the display location before committing to holes. Leave enough room behind the dash for connectors, service loops, and access to tighten hardware without having to pull the whole console apart.

If your dash is cored or wood-backed, seal any exposed edges after cutting to keep moisture out. After the first few runs, re-check fasteners for settling, especially on boats that see regular pounding or vibration.

Compatibility and fit

This dash mount kit is intended for 12-inch Simrad NSS12 evo3 and NSS12 evo3S displays, and 12-inch B&G Zeus3 and Zeus3S displays. Similar-looking units from other series or sizes can use different cutouts and mounting hardware, so confirm the model on the bezel and match the kit accordingly.

Use on board

This is a good match for helms where the display needs to be tidy and out of the way, such as center consoles, sportfishers, and sailboat nav stations that keep gear close to hand. It also works well when you want a fixed screen position that does not swing or protrude into the cockpit.

Maintenance and checks

Periodically inspect mounting points and the dash surface for loosening, stress, or water intrusion. Keeping the back of the console dry and the cable runs supported will help the installation stay solid over time.
