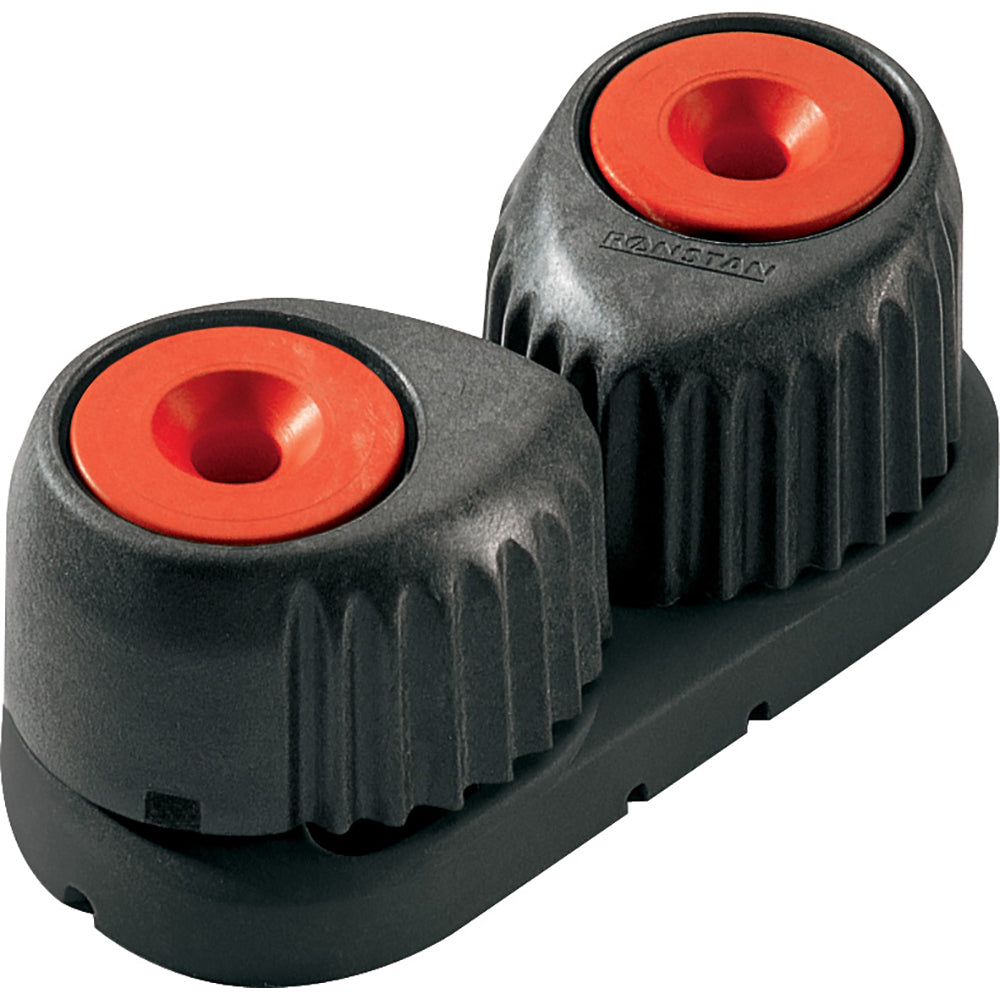

Ronstan Small Alloy Cam Cleat - Red, Black Base RF5500R

Small Alloy Cam Cleat - Red, Black Base

Features:

• Hot-forged and hard anodized cams for maximum wear and corrosion resistance
• Low effort line entry and exit due to unique teeth, line entry geometry and smooth finish
• Unique self-cleaning, self-lubricating slotted bearings ensure consistent high performance even when subjected to high static loads
• Superior resistance to sand and salt
• Multi-coil spring generates near constant torque Easy entry/release and secure cleating of even the smallest diameter lines
• Suitable for addition to swivel cleat bases for control lines and sheets
• Small cleat has aluminium cams and a composite base for maximum durability and light weight
• Medium cleat has an aluminium base and cams for maximum rigidity

Engineered for Performance
Intensive development efforts have produced this high performance range of cam cleats that provides unbeatable holding power while allowing easy cleating and releasing of control lines and sheets.

Alloy Cleats™
Aluminium cam models built for ultimate durability where high wear and high loads are encountered. Cams are hot-forged and hard anodized for maximum strength and corrosion resistance. Ronstan Alloy Cleat™ models are available in sizes small and medium. The medium cleat is built on an aluminium base for maximum rigidity whilst the small cleat has a composite base for an optimum blend of lightness and durability.

Slotted Bearings
Self lubricating, self-cleaning slotted bearings provide lower frictional resistance, quicker response times and superior resistance to sand and salt than ball bearings which can deform under load.

Multi-Coil Spring
The multi-coil spring recessed in the upper part of the cam generates near constant torque. This consistency ensures secure cleating of even the smallest lines with minimal abrasion or rope wear.

Unique Teeth and Entry Profiles
Low effort line entry and exit due to unique teeth and entry geometry.

Advanced Composite Base
Small cleat has a base produced from long fiber reinforced polymer to save weight while providing essential stiffness.

Customization
A comprehensive range of specialist cleat accessories allow customization of the cleat set-up to optimize performance by controlling inward lead, outward lead, cleating and uncleating angle and height.

Total Control
Swivel cleat bases further enhance the function of cleats providing articulation, and with some models setting of cleating angle and direction (up or down cleating) to allow control of lines and sheets from various positions on the boat.

Materials:

• Hard anodized aluminium cams
• Built on hard anodized aluminium base

Specifications:

• Rope: 3/32 - 5/16 in.
• Height: 3/4 in.
• Width: 1 in.
• Length: 1-7/8 in.
• Fastener: 5/32 in.
• Fastener Hole Centers: 1-1/16 in.
• M.W.L : 165 lbs.
• B.L : 330 lbs
• Weight: 0.9 oz.
