Lumishore EOS TIX404 Underwater LED Light Kit, 2 Lights, Blue/White Light, 12/24V, Hub, Command Center, Display

Overview

The Lumishore 010-04531-00 is a two-light thru-hull underwater LED lighting kit that pairs TIX404 fixtures with an EOS i-Connect hub, an EOS-LUX Command Center, and an EOS-LUX-SUPRA display for centralized control. Each light runs on 10.5 to 31 V DC for 12 V and 24 V systems, spreads light with a 110 degree beam, and produces up to 8,150 fixture lumens in white.

The lights sit nearly flush to the hull with an 88 mm face and an 8 mm housing profile, and the integrated driver allows servicing from inside the boat. Lighting modes include blue and white selection, plus brightness control and effect modes through the connected control system.

Key features

• Two dual-color thru-hull underwater LED lights (blue and white) with up to 8,150 fixture lumens in white per light and a 110 degree beam angle
• 10.5 to 31 V DC input supports 12 V and 24 V systems; max current draw is 6.4 A at 12 V and 3.2 A at 24 V per light
• IP68-rated light housing with a marine bronze body and borosilicate glass lens
• Low-profile installation with 88 mm face diameter, 8 mm housing profile, and 136 mm shaft length
• 57 mm (2.25 in) shaft hole cut-out; 3 m (9.8 ft) light cable length per fixture
• Integrated driver and internal LED array for in-hull service access and simplified wiring
• Supports control from the included EOS-LUX-SUPRA display; MFD control is supported when a bridge module is added (not included)

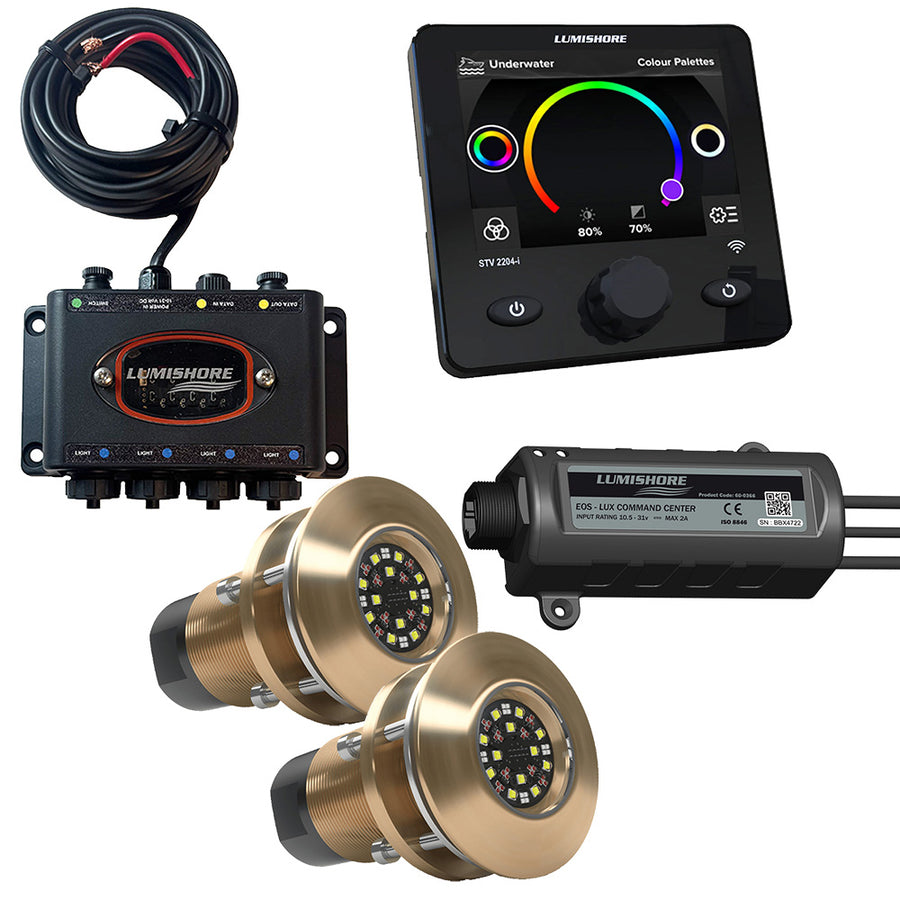

What’s included

• (2) TIX404 interchangeable thru-hull underwater LED lights
• EOS i-Connect hub kit with 1 m DMX cable
• EOS-LUX Command Center
• EOS-LUX-SUPRA display

Installation and setup

Plan for a thru-hull install with a 57 mm (2.25 in) shaft cut-out and enough inside-hull clearance for the 136 mm shaft length. The light face sits low on the outside of the hull, which helps when mounting near the transom or along the hull sides where spray and washdowns are common.

Typical placement is 150 to 250 mm (6 to 10 in) below the minimum loaded waterline, with lights spaced about 0.8 to 2 m (2.5 to 6.5 ft) apart for even coverage. The system should be protected with an appropriately sized fuse or breaker for the circuit, and power should be isolated before any wiring or hull work.

Control and system integration

The included EOS-LUX Command Center organizes the lights by zones and supports scene control so you can match lighting to different on-water situations. It also supports a trigger input for programmed lighting events and connects with plug-and-play cabling.

The EOS-LUX-SUPRA display adds a dedicated touchscreen with a rotary dial, which is handy when you are operating with wet or salty hands. Wi-Fi features are supported through the control hardware, and adding the appropriate bridge module enables compatible MFD control when you want lighting control on the helm display.

Materials and corrosion resistance

The light body is marine bronze with a borosilicate glass lens, and the housing carries an IP68 water ingress rating for continuous exposure below the waterline. A bonding connection is provided on the light, and isolation sleeves are available when installing into metal hulls.

Use on board

This kit fits boats that want blue or white underwater lighting with a dedicated display at the helm or in the cockpit. It is a practical match for cruisers, sport boats, and larger yachts that run at night, spend time on the hook, or want added transom illumination at the dock.

Maintenance and care

Keep the lens clean of growth to maintain beam spread and brightness, and check cable runs for chafe where they pass through bulkheads or near moving equipment. When hauling out, inspect the hull seal and bonding connection as part of normal underwater hardware checks.
