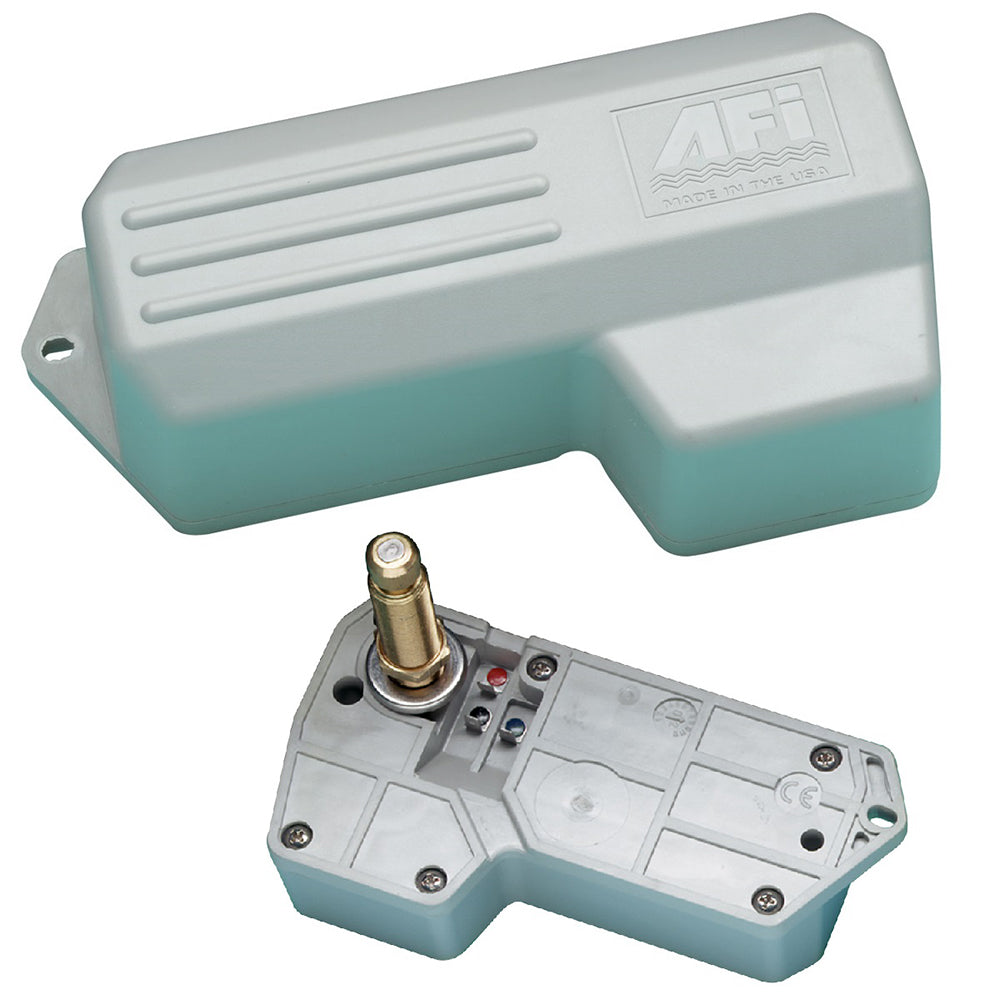

Marinco - 1000 Series Wiper Motor - 12V

Durable and Adjustable Marine Wiper Motor

The Marinco Wiper Motor 1000 Series is designed to deliver reliable performance in harsh marine environments. With a fully sealed waterproof housing made from UV stabilized, high-temperature, high-impact thermoplastic, this wiper motor ensures durability and long-lasting use. Ideal for powering 18" Deluxe arm and blade combinations at various sweep angles, the 1000 Series motor is an essential component for maintaining clear visibility in all weather conditions.

Robust Features for Optimal Performance

The 1000 Series Wiper Motor is packed with features that enhance its functionality and reliability. From its adjustable sweep settings to its heavy-duty motor and anti-rotation drive shaft, this wiper motor is built to meet the rigorous demands of marine applications.

• Adjustable Sweep Settings: Factory pre-set to 80 degrees or 110 degrees, adjustable to 50, 65, 80, or 110 degrees.
• Heavy-Duty Motor: 12-volt motor with anti-rotation drive shaft for robust performance.
• Durable Construction: UV stabilized, high-temperature, high-impact thermoplastic housing.
• Solid Brass Components: Knurled drive shaft and solid brass arm drive nut for enhanced durability.
• RF Shielded Circuitry: Ensures reliable operation without interference.
• Self-Parking Feature: Coast to park with adjustable right or left self-parking.
• Additional Components: Includes a 5 amp fuse and holder (on/off switch not included).

Key Features at a Glance

• Adjustable Sweep Angles: Customizable sweep settings from 50 to 110 degrees.
• Heavy-Duty Motor: Designed for robust and reliable performance.
• Waterproof Housing: Fully sealed to withstand harsh marine environments.
• Solid Brass Components: Durable knurled drive shaft and arm drive nut.
• Self-Parking: Coast to park with adjustable self-parking feature.
• RF Shielded: Circuitry protected from radio frequency interference.

Technical Specifications

• Voltage: 12V
• Shaft Diameter: 0.625" (16 mm)
• Weight: 1.75 lbs
• Dimensions: Approximately 6.625" L x 3.375" W x 2" D
• Stall Torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
• Stall Current: 9.8-10.0 amps
• No Load Current: 0.8-1.2 amps+

Product Dimensions

The compact and robust design of the Marinco Wiper Motor 1000 Series ensures it fits seamlessly into your marine setup:

• Length: 6.625 inches
• Width: 3.375 inches
• Depth: 2 inches

Variations for Customized Fit

Choose the shaft size and sweep angle that best suits your specific needs:

• 36180: Shaft Size 1.5" / Degree 80
• 36110: Shaft Size 1.5" / Degree 110
• 37161: Shaft Size 2.5" / Degree 65
• 37180: Shaft Size 2.5" / Degree 80
• 37110: Shaft Size 2.5" / Degree 110

Reliable Performance with Marinco

Equip your vessel with the Marinco Wiper Motor 1000 Series for reliable and efficient performance in all weather conditions. Its robust construction, adjustable settings, and advanced features make it an indispensable part of your marine equipment. Choose the variant that fits your needs and ensure clear visibility and safety on the water with Marinco.
