Cantalupi - 4 Channel Dimmer - For Monochromatic, RGB, and RGB+W LEDs

Revolutionary LED Power Supply for Unmatched Control

Elevate your lighting experience with the cutting-edge LED Power Supply that redefines control and versatility. Designed to bring precision to your illumination, this power supply allows you to effortlessly manage a variety of LED types, including Monochromatic, RGB, and RGB+W LEDs, as well as other loads like incandescent and halogen lamps. With 4+4 "dry-contact" type inputs and a set of pushbuttons for both output control and default scenario management, you're in command like never before.

Unleash the Power of Dimming and Protection

Experience the power of dimming with a PWM (Pulse Width Modulation) mode operating at a frequency of 300 Hz, providing smooth and consistent lighting adjustments. Safety takes center stage with electric protection against external spikes, thanks to a non-removable 25A fuse. Each output channel boasts an auto-resettable electronic fuse that safeguards against overloads and short circuits, ensuring uninterrupted operation even in challenging situations.

Seamless Integration and Connectivity

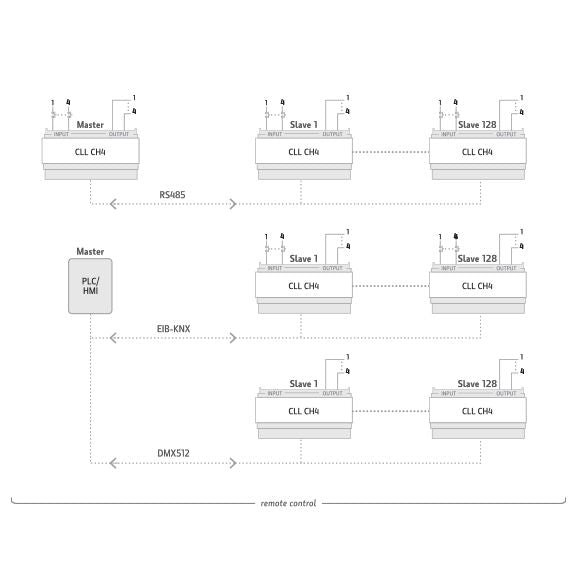

This LED Power Supply is designed for seamless integration into your lighting setup. With hardware RS 485 and support for protocols like DMX512, MODBUS, and EIB-KNX, your control possibilities are expanded, allowing for comprehensive synchronization and customization. Each input and output channel is dedicated to inpidual control, enabling tailored lighting solutions for every application.

Built to Last, Built for Safety

Crafted with uncompromising quality, the power supply's removable terminals accommodate multicore wires up to 2.5 mm² / 12 AWG, ensuring stable connections and optimal conductivity. The protection level of IP 20 shields the internal components from the elements while promoting safe operation. The v-0 material case, compliant with UL-94 standards, further underscores its commitment to safety and durability.

Highlights:

• Advanced LED power supply for Monochromatic, RGB, and RGB+W LEDs.
• Versatile control with 4+4 "dry-contact" type inputs and dedicated pushbuttons.
• PWM dimmer mode at 300 Hz for smooth lighting adjustments.
• Robust electric and electronic protections against spikes, overloads, and short circuits.
• Extensive connectivity through hardware RS 485 and DMX512, MODBUS, and EIB-KNX protocols.
• Individualized control for each input and output channel for tailored lighting solutions.
• Removable terminals supporting multicore wires up to 2.5 mm² / 12 AWG.
• IP 20 protection level and v-0 material case for safety and durability.

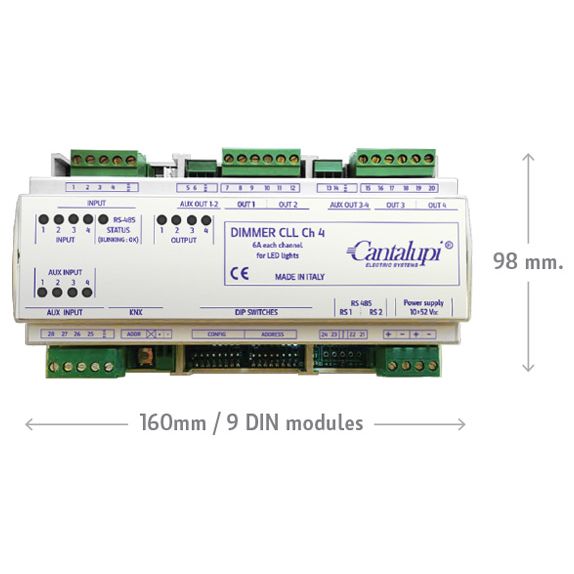

• Dimensions WxHxD (mm) 160x98x60
• Mounting: DIN/ Wall
