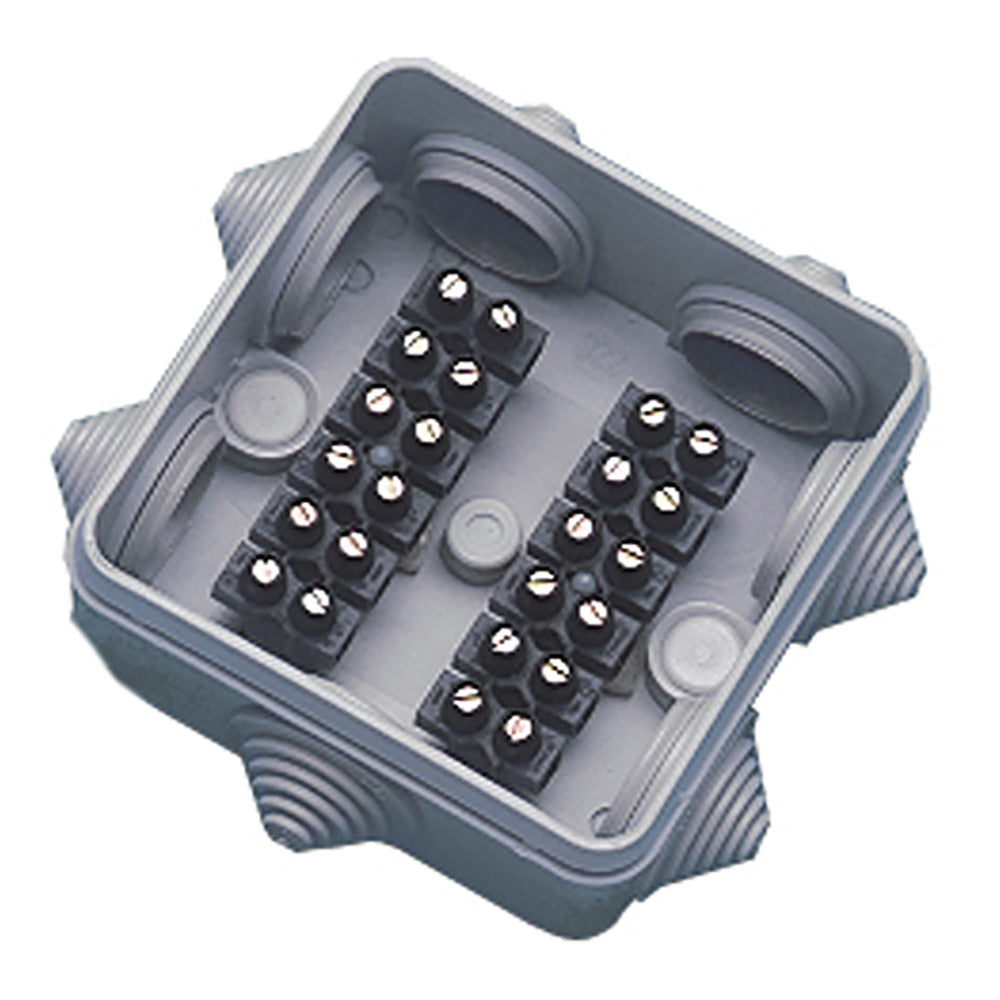

Newmar Power - PX-2 Junction Box

Ultimate Protection for Marine Wiring Connections

The Newmar PX-2 Junction Box offers a robust, waterproof solution for securing wiring connections in marine environments, whether above or below decks. Designed to withstand occasional spray, this junction box ensures your electrical systems remain safe and reliable.

General Description

Engineered for the harsh conditions of marine environments, the Newmar PX-2 Junction Box provides secure and waterproof protection for wiring connections. Made from rugged, high-impact polypropylene, it features a snap-on cover that ensures a watertight seal. This junction box is ideal for electronic installations, thanks to its durable construction and user-friendly design.

Key Features

• Waterproof Protection: Rated IP55, this junction box effectively protects against water jets from any direction.
• Durable Construction: Constructed from non-corrosive, high-impact polypropylene for long-lasting performance.
• Secure Wiring: Molded nylon connector strips with screw compression terminals secure wires without lugs, protecting copper strands from damage.
• Easy Access: Features multiple knockouts for conduit access and universal cut-to-fit cable entries for a wide range of cable sizes.
• Compliance: Meets ABYC standards for safe and reliable marine installations.

Technical Specifications

• Number of Connector Strips: 2
• Positions per Strip: 6
• Maximum Wire Gauge: 16
• Number of Cable Entry Ports: 7
• Number of Cable Entries Installed: 7
• Spare Cable Entries Provided: 0
• Cable Diameter Range:
• Inches: .14 – .81
• Millimeters: 3.5 – 20.5
• Box Size:
• Inches: 3.35 x 3.35 x 1.66
• Centimeters: 8.5 x 8.5 x 4.2

Product Dimensions

The PX-2 Junction Box has compact dimensions (3.35 x 3.35 x 1.66 inches), making it versatile for installation in various marine applications. Its small size allows for easy integration into tight spaces while ensuring robust protection for wiring connections.

Highlights

• Watertight Seal: The snap-on cover ensures a watertight seal, keeping connections secure and dry.
• High-Quality Materials: Made from rugged, non-corrosive polypropylene, this junction box is built to last.
• Versatile Installation: Multiple knockouts and cable entry ports allow for flexible and straightforward installation.
• Safe and Secure: Connector strips with captive screw compression terminals provide secure and damage-free wire connections.
• IP55 Rated: Protects against water jets, ensuring reliability in marine environments.

Applications

The Newmar PX-2 Junction Box is perfect for use in wheelhouses, below decks, and engine rooms, providing a reliable solution for marine wiring connections. Its waterproof design and durable construction make it an ideal choice for maintaining the integrity of electrical systems in challenging marine conditions.
