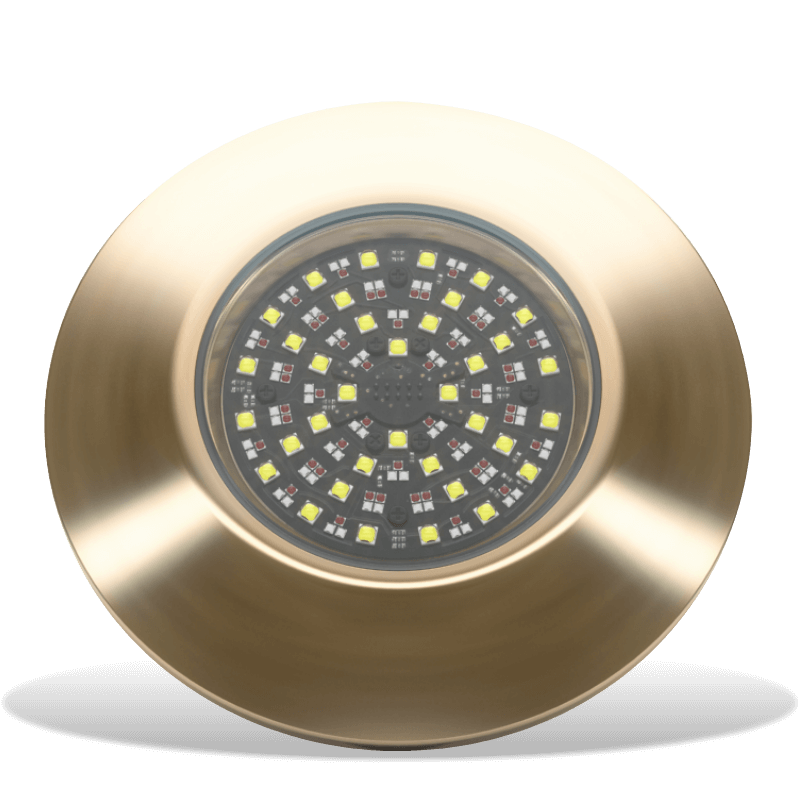

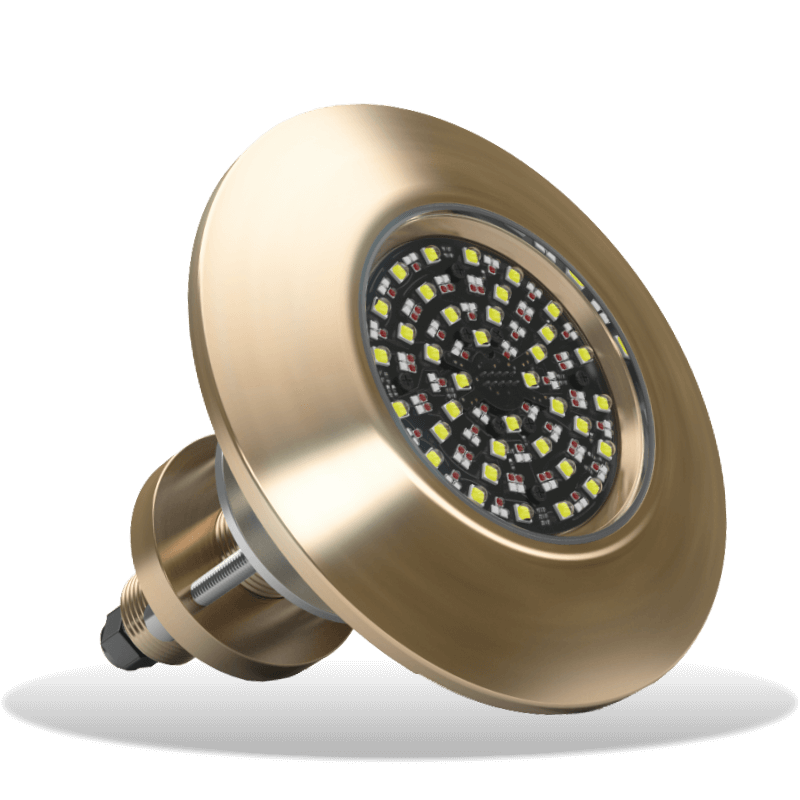

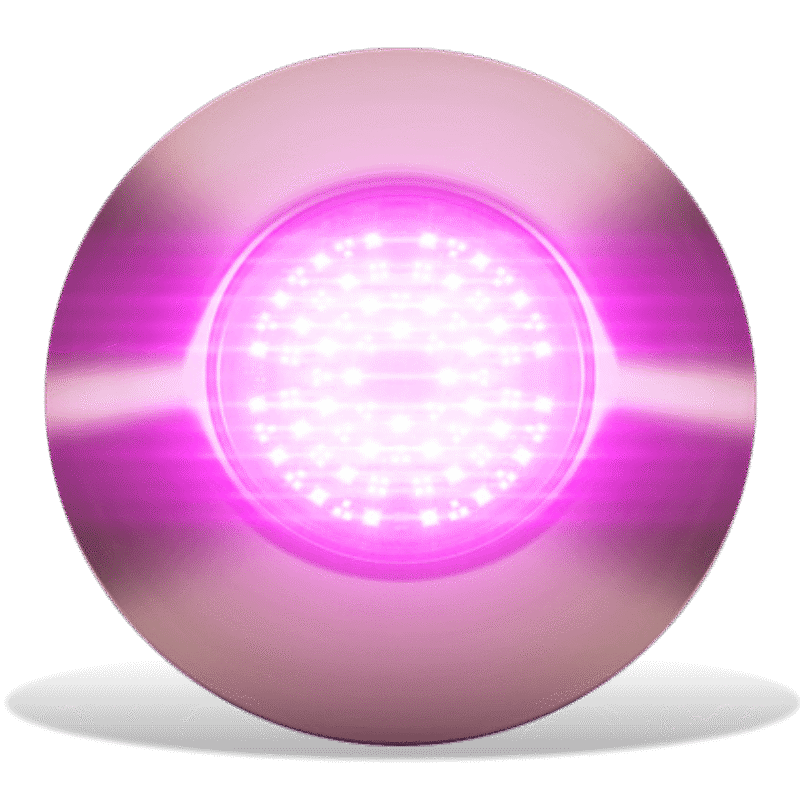

Lumishore - EOS THX1604 Thru-Hull Underwater Light - RGBW, 17500 Fixture Lumens

Ultra-Bright Marine Lighting with Versatile Color Control

The Lumishore THX1604 delivers unparalleled underwater illumination with its powerful 17,500 verified fixture lumens and an ultra-wide 110° beam angle, creating the ultimate halo effect. This advanced lighting system is designed for marine enthusiasts who demand exceptional performance and aesthetics. Its flush-fit design ensures a sleek, low-profile appearance, making it suitable for transom, side, and bottom mounting. Effortlessly control colors, modes, and special effects directly from your multifunction display (MFD) or the optional Lumishore Display.

Advanced Technical Specifications

• Fixture Lumens: 17,500 verified lumens for unmatched brightness.
• Beam Angle: Ultra-wide 110° beam for comprehensive underwater coverage.
• LED Configuration:
• White: 36 x 10W LEDs
• Green: 36 x 3W LEDs
• Blue: 36 x 3W LEDs
• Red: 48 x 3W LEDs
• LED Technology: High-intensity COB array with a lifespan of over 50,000 hours.
• Driver: Multi-channel external driver for reliable operation.
• Power Supply: 24V DC, with an AC option available.
• Maximum Current Draw: 6.5A

Durable Design for Marine Environments

Crafted from marine-grade aluminum bronze, the THX1604 is built to endure the harshest marine conditions. This rugged construction ensures long-lasting performance and resistance to corrosion.

Intuitive User Control Options

Experience complete control with customizable settings:

• Synchronize multiple lights.
• Adjust color cycle and sweep speeds.
• Program fixed or random strobe effects.
• Create and save customizable lighting scenes.
• Control via Wi-Fi with an app or integrate directly with your MFD.
• Sound-to-light synchronization and brightness adjustment.

Product Dimensions

• Approximate Shipping Weight: 9 lbs

Highlights

• 17,500 verified fixture lumens for ultimate brightness.
• Wide 110° beam angle for enhanced underwater visibility.
• Full RGBW color capabilities for customizable lighting effects.
• Marine-grade aluminum bronze housing for durability.
• Intuitive controls via MFD, Lumishore Display, or mobile app.
