Raymarine Axiom Pro 16RVX Multifunction Display, 15.6 in, No Transducer, RealVision 3D, 1kW CHIRP, LightHouse Charts North America

Overview

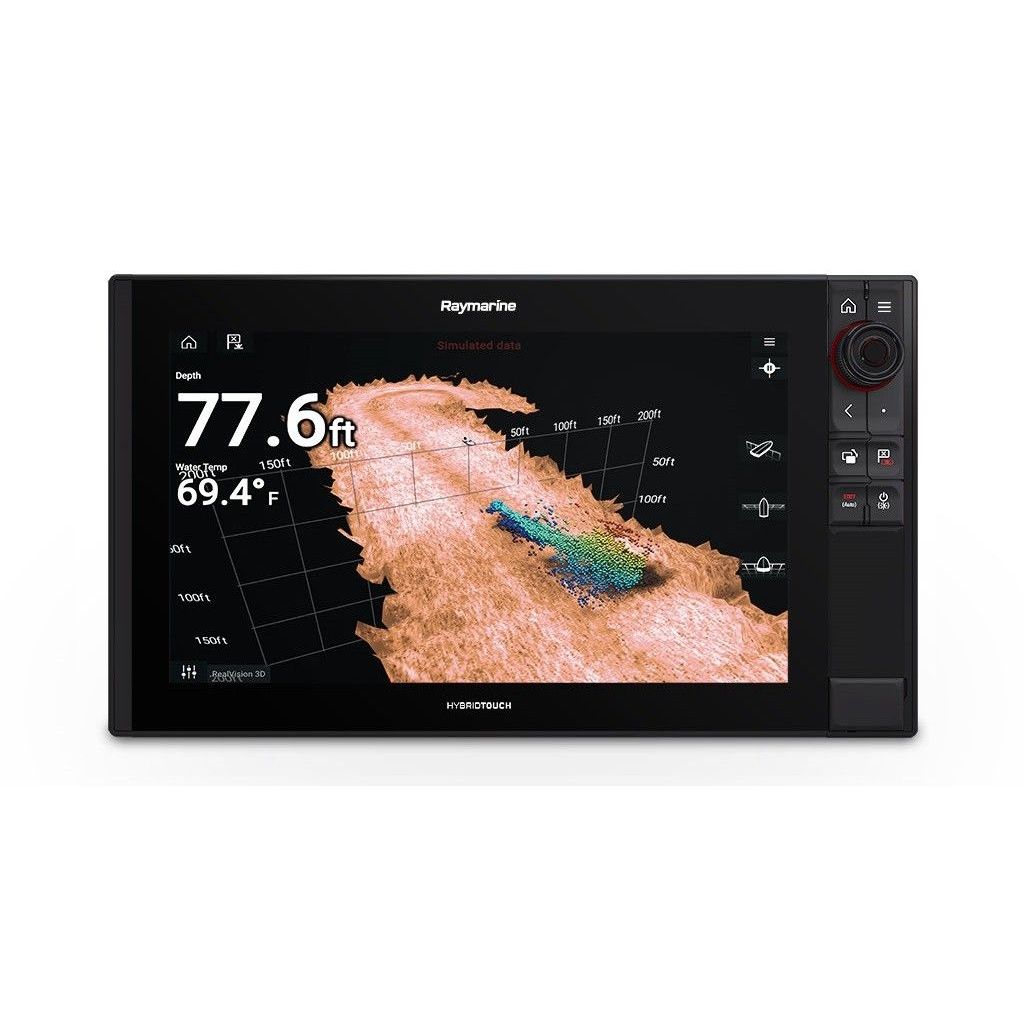

The Raymarine E70373-00-102 is a 16-inch Axiom Pro 16RVX multifunction display with built-in RealVision 3D and 1 kW CHIRP sonar, sold without a transducer and bundled with LightHouse NC3 North America chart coverage. The 15.6-inch IPS display runs at 1920 x 1080 and 1200 nits, and the unit accepts 12 V or 24 V DC systems across an 8 V to 32 V input range.

This is the larger-screen RVX version for helms that need charting, sonar, and network control on one display without giving up physical keys. HybridTouch lets you run it by touchscreen or keypad, which is useful on open boats, rough crossings, and wet helm stations where touch-only control can be awkward.

Because this package does not include a transducer, it makes sense for boats that already have a compatible Raymarine transducer plan or are replacing an existing display in a wider Raymarine network. If you want to use the built-in RVX sonar, confirm transducer type and cabling before installation.

Key features

• 15.6-inch IPS display with 1920 x 1080 resolution, 1200 nits brightness, and 88 degree viewing angles for clear viewing from across a wide helm
• HybridTouch control combines a touchscreen with a keypad for operation in spray, chop, and cold-weather use
• Built-in RealVision 3D and 1 kW CHIRP sonar processing, with no transducer included in this package
• Dual RayNet Ethernet ports, NMEA 2000, and NMEA 0183 support for tying the display into radar, autopilot, AIS, engine, and other onboard data systems
• Internal GNSS receiver works with GPS, Galileo, GLONASS, and Beidou
• Two front MicroSDXC card slots, 16 GB internal storage, Wi-Fi, Bluetooth, and a USB connection for updates, chart cards, and networked use
• IPX6 and IPX7 water resistance for exposed helm positions and washdown-prone installations
• 25-pin RealVision transducer connection, with CPT-S style transducers requiring the A80490 adapter cable

Installation and integration

The housing footprint is 17.8 x 10.2 inches, so this unit suits larger dash panels, enclosed bridges, wide center consoles, and pilothouse layouts where a full-size screen is easy to read from standing or seated positions. It can be trunnion mounted or flush mounted, and the included suncover helps protect the screen when the boat is tied up.

Power draw is roughly 41 to 45 watts depending on supply voltage, and the unit uses a 15 A fuse. On boats already carrying Raymarine electronics, it fits naturally into a shared network through RayNet and NMEA connections. It is also a practical choice for anglers and cruising crews who want a large display that can handle charting, sonar, and vessel data at the same helm station.

What’s included

• Axiom Pro 16RVX multifunction display
• Front bezel pieces and upper keypad
• Panel mount gasket
• Suncover
• Trunnion bracket and trunnion knobs
• Mounting fixings and grounding hardware
• Power, video, and NMEA 0183 cable, 1.5 m
• RayNet female-to-female network cable, 2 m
• DeviceNet to SeaTalkng adapter cable
• Documentation
• LightHouse NC3 North America chart card
