Lopolight 30W Deck/Spreader Light, 26 Deg Reflector, 10-32VDC, IP68

Overview

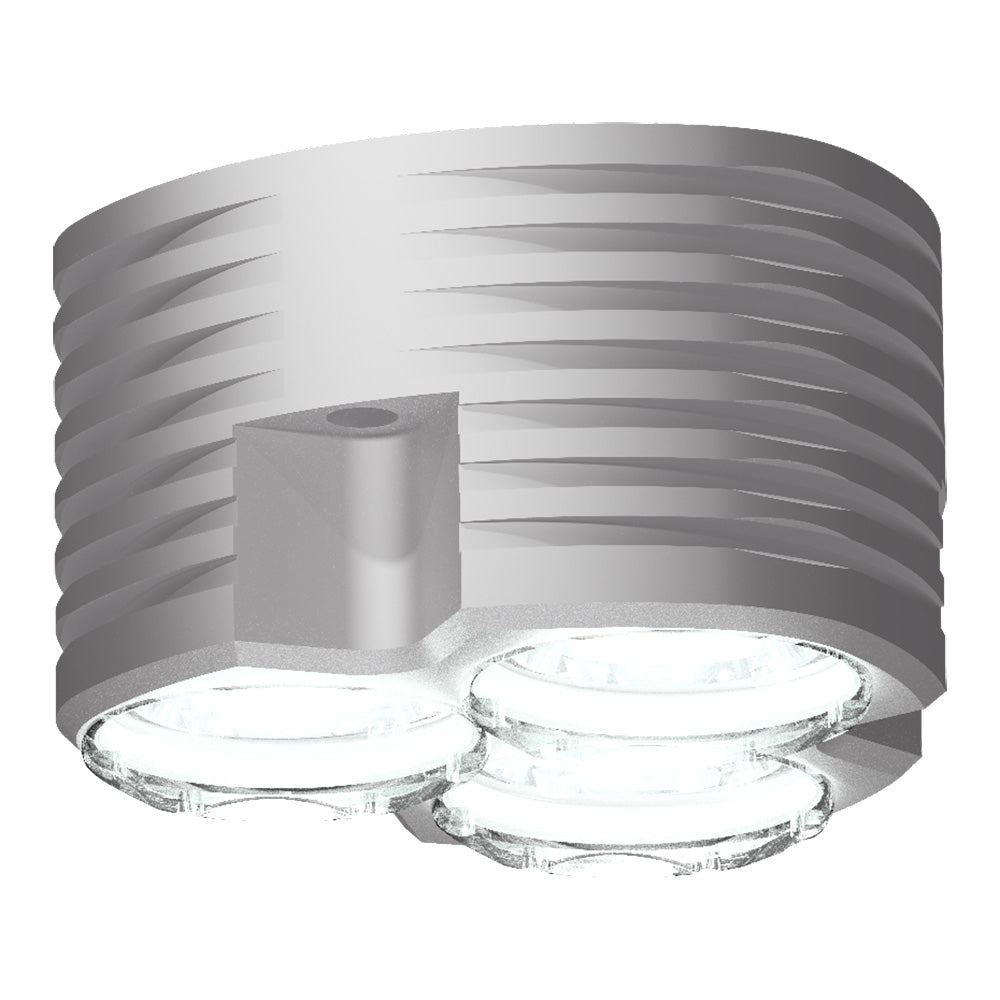

The Lopolight 400-080-26 is a 30W deck/spreader light that puts out white light through a 26° reflector and runs on 20 to 32 VDC power. It is dimmable and sealed to IP68, which suits it for exposed mounting where spray, washdowns, and vibration are part of normal life on board.

The focused 26° beam is useful when you want reach and definition instead of a wide flood, such as lighting the foredeck from a hardtop, picking out the working area around mast spreaders, or adding controlled light to a cockpit or bow work zone without blasting the whole boat.

Key features

• 20 to 32 VDC input for 24V systems; current consumption is 1150 mA at 24 VDC
• 26° reflector for a tighter beam that carries down the deck or out from the rig
• Dimmable output for night operations and close-quarters work
• IP68-rated sealing for wet installations and routine washdowns
• Silver anodized aluminum housing with 25µ anodizing, PMMA lens, and A4 stainless steel fasteners
• Compact size (about 89 x 55 mm) with a listed weight of 0.7 kg
• Operating temperature range of -25°C to 55°C
• 0.7 m attached cable; minimum feed wire gauge listed as 0.5 mm2 (22 AWG)

Installation and wiring

Plan this light for a 24V DC boat system within the 20 to 32 VDC range. The attached 0.7 m cable is meant to get you from the light body to a protected connection point, so most installs will involve extending the run with properly sized conductors, sealed connectors, and strain relief where the cable enters the structure.

Because it is dimmable, route wiring so the control gear is accessible and protected from direct spray. Use appropriate circuit protection for the branch circuit and follow your vessel’s electrical standards for terminations and drip loops.

Compatibility and fit

Check the mounting area for clearance using the listed 89 x 55 mm body size, and confirm the beam path before drilling so the 26° pattern lands where you actually work. This style of focused spreader/deck light is often placed higher to take advantage of throw, then dimmed down when you are alongside or working close in.

What’s included

• Deck/spreader light with attached cable
• Mounting hardware
• Installation guide
