Lopolight Double LED Masthead Light, 6nm, 225°, 20-32VDC

Overview

This Lopolight Double LED Masthead Light is a white navigation light with 225° coverage and a 6nm visibility range for vessels over 50m. Operating on 20-32VDC with a 13W power draw, it combines a double masthead configuration with IP68 ingress protection for marine navigation-light installations.

The fixture mounts vertically and features two 0.75m cables directed downward. Its anodized aluminum housing, PMMA lens, and A4 stainless steel screws provide a defined construction for exposed marine installations. Silver and black housing finishes are available, both with the same white light output.

Key features

• White LED masthead navigation light with 225° coverage and 6nm visibility.

• Double masthead configuration with light intensity exceeding 94cd.

• 20-32VDC operating range with 13W power consumption.

• IP68 ingress protection and operating temperature range of -25°C to 55°C.

• Vertical mounting with two 0.75m cables exiting downward.

• Fixture dimensions of 92.5mm diameter x 135mm height.

• Anodized aluminum housing with PMMA lens and A4 stainless steel screws.

• DNV certified, with approvals including COLREG 72, EN 14744, and IEC 60945.

Variants

This double masthead navigation light is available in two anodized aluminum housing finishes: Silver and Black.

Both configurations retain the same white 225° light output, 6nm visibility, electrical specifications, IP68 rating, and vertical mounting arrangement with downward-facing cables. The difference is the exterior housing finish.

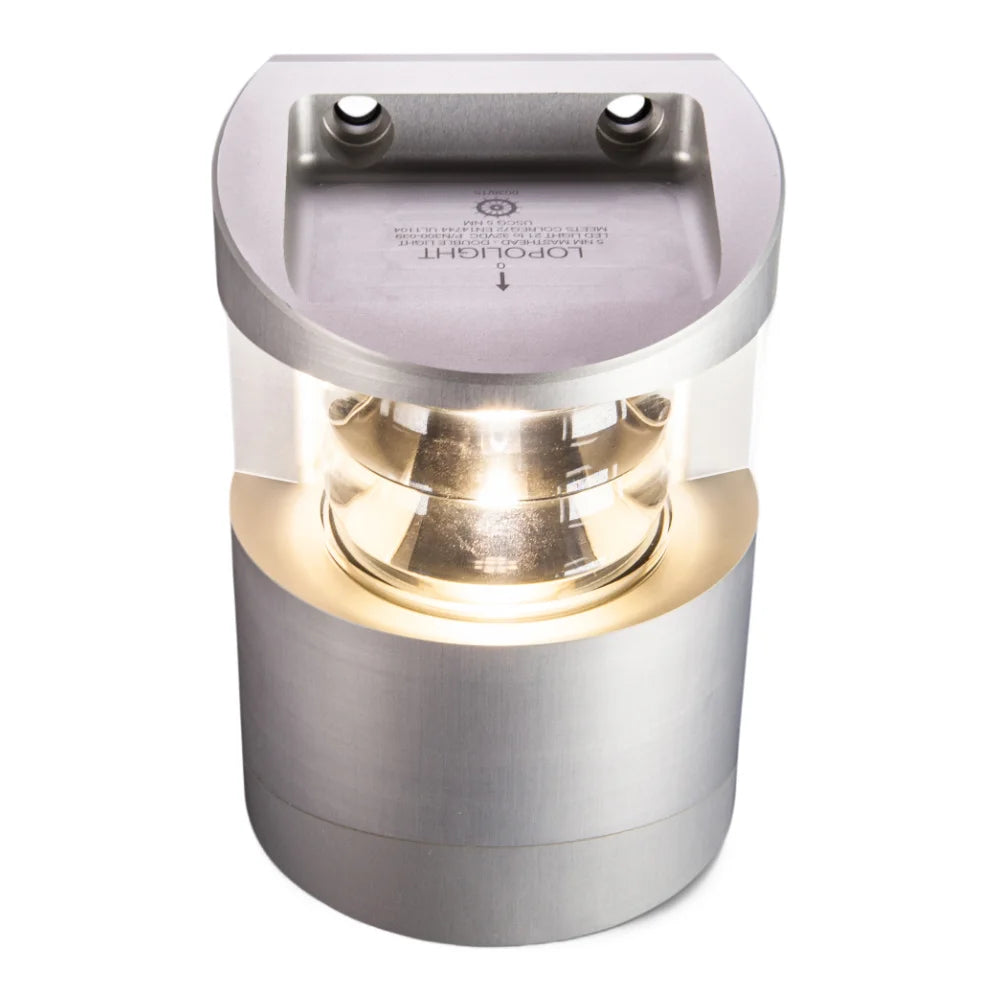

• 300-139-CD, Finish Silver: Silver-anodized aluminum housing with a metallic exterior finish and white light output.

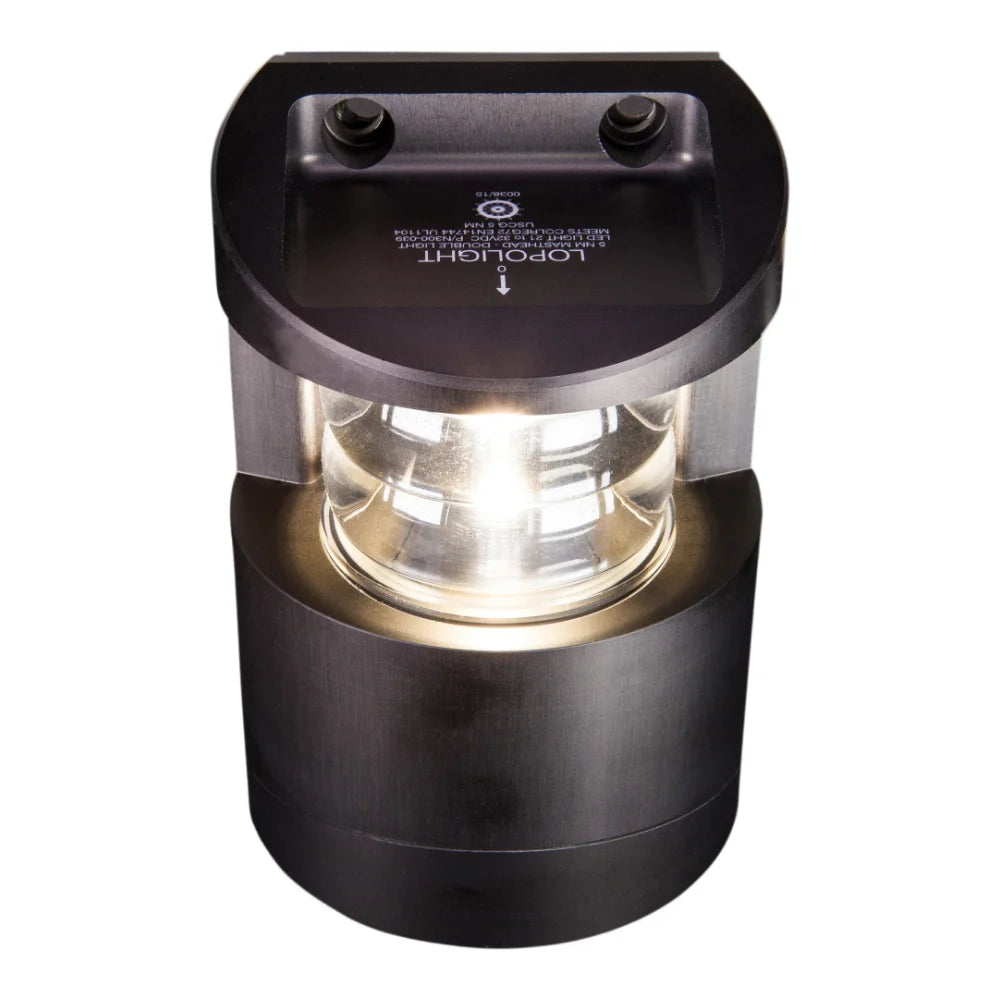

• 300-139-B-CD, Finish Black: Black-anodized aluminum housing with a dark exterior finish and white light output.

Installation and electrical integration

The fixture is intended for vertical mounting, with both cables routed downward from the installation position. The two 0.75m cable connections and specified cable direction should be considered when planning mounting clearance and wiring access.

Its 20-32VDC operating range accommodates compatible DC navigation-light systems. The specified minimum feed wire gauge is 0.5mm² (AWG 22). The 225° white light sector and 6nm visibility rating suit masthead navigation-light arrangements on vessels over 50m, subject to the vessel's applicable navigation-light requirements.
