BocaTech Mini LED Push Button Switch, 5A, IP67, SS316

Overview

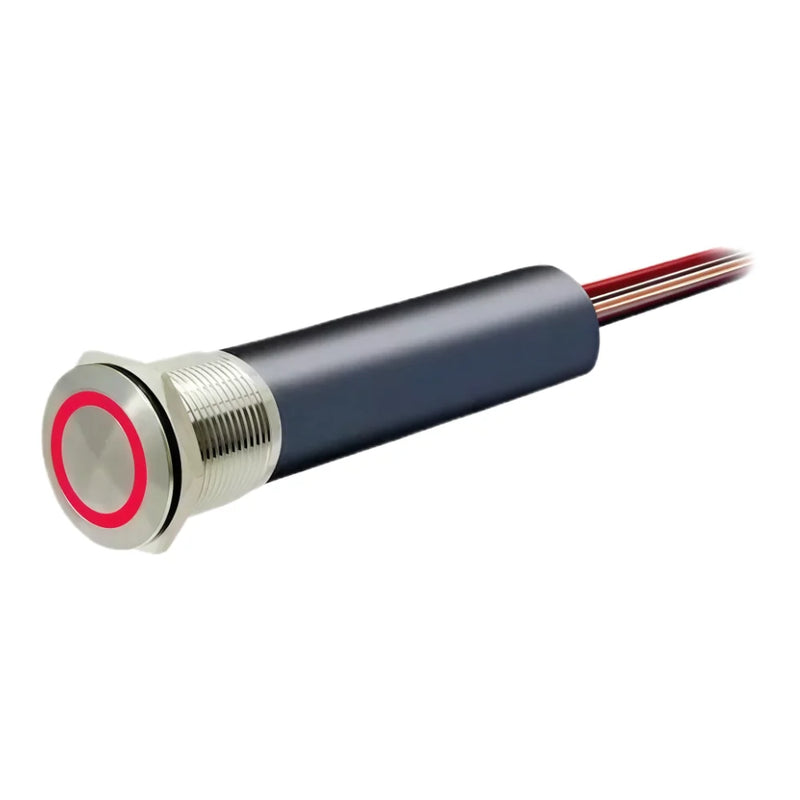

This BocaTech mini LED push button switch is a compact electrical control for marine DC systems. Rated at 5A, it features a stainless steel housing, an illuminated LED ring, and IP67 protection. Its push button design provides a space-saving control point for marine electrical panels.

The switch family includes 12V and 24V configurations with momentary or maintained On/Off operation. Red and blue LED ring options provide visual indication of switch status. The stainless steel construction and sealed design support installations where moisture exposure and limited panel space are important considerations.

Key features

• 5A electrical rating for marine DC switching applications.

• 316 stainless steel housing for corrosion resistance.

• IP67 ingress protection and IK08 impact resistance ratings.

• 19mm (0.75 in) mounting diameter for compact panel installation.

• Compatible with panel thicknesses from 1 to 10mm.

• Illuminated LED ring provides visible switch status indication.

• Push button mechanism available with momentary or maintained On/Off operation.

• Suitable for 12V or 24V DC electrical systems, depending on configuration.

Variants

The switch is available in eight configurations distinguished by operating voltage, action type, and LED ring color. Voltage options include 12V and 24V DC, while illumination is available in red or blue.

Momentary configurations provide temporary contact operation while the button is pressed. On/Off configurations maintain their switching state between presses. These options retain the same compact push button format and stainless steel construction.

Installation and setup

The switch mounts through a 19mm panel opening and accommodates panel thicknesses from 1 to 10mm. Its compact format allows installation in marine control panels and dashboards where space is limited. Electrical connections must correspond to the selected voltage and switching configuration.

Electrical and system integration

The momentary versions are intended for circuits requiring a temporary switching signal, while maintained On/Off versions provide persistent circuit control. The illuminated ring offers a visual reference for switch status. The selected configuration must match the electrical system voltage and connected load requirements.
