Vimar Idea SICURY French Standard Socket Outlet, 2P+E, 16A 250V, IP20, 2-Module, Flush Mount, Screw Terminal, Enhanced Contact Protection

Overview

The Vimar Idea 17042 is a French standard 2P+E socket outlet rated 16 A at 250 V AC, sized for a 2 reduced module opening in the Vimar Idea modular system.

It is an IP20 device for protected indoor spaces, so it belongs in dry areas on board such as the cabin, galley, nav station, or inside a sheltered panel, not in the cockpit or any location that sees spray or washdowns.

Enhanced contact protection helps reduce accidental contact with live parts, and screw terminals give you a secure connection that stays put when the boat is vibrating underway.

Key features

• French standard 2P+E outlet, 16 A, 250 V AC, 50 to 60 Hz
• 2 reduced module format for Vimar Idea modular supports and cover plates
• Flush-mount installation

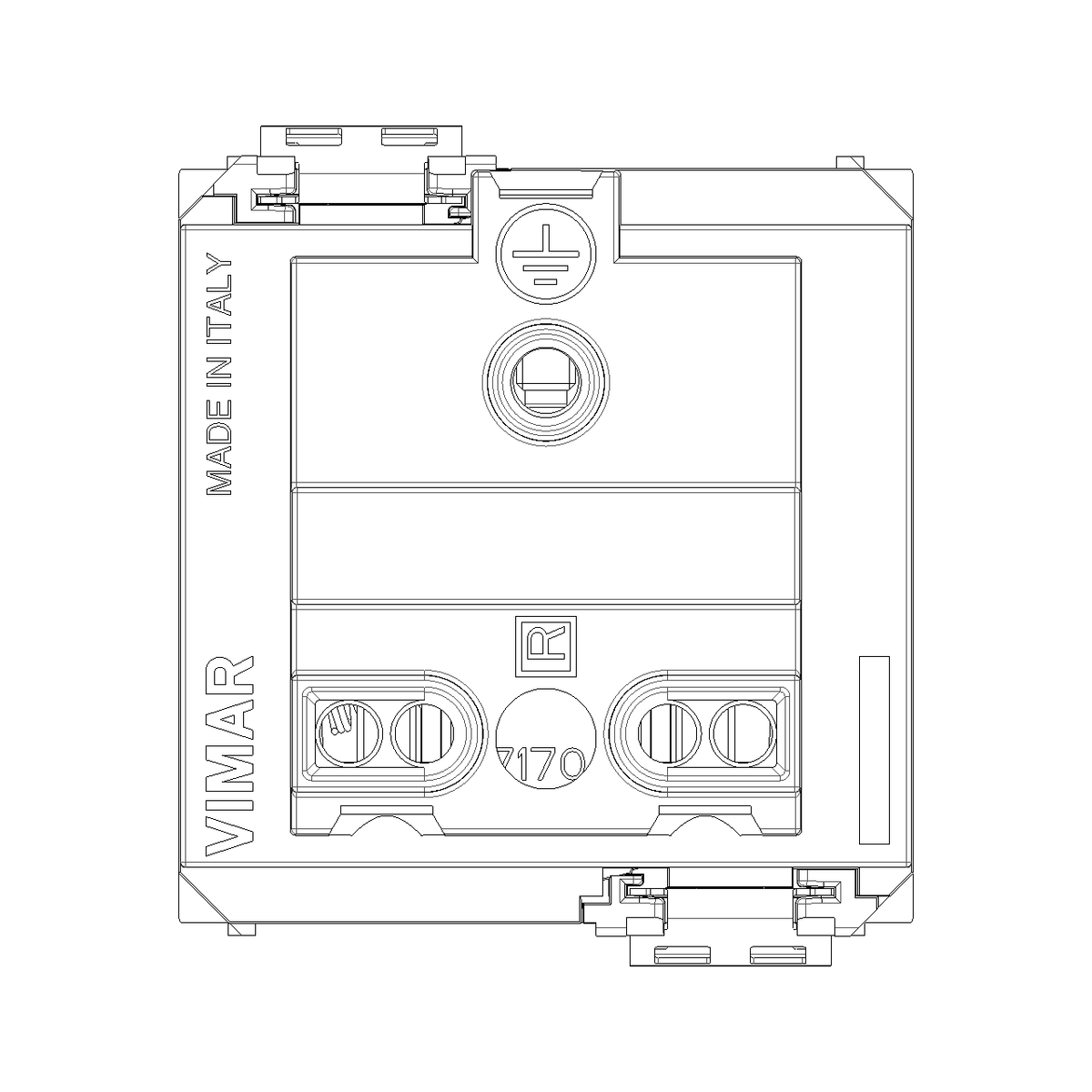

• Screwed terminal connections for a solid, serviceable wire termination
• Enhanced contact protection for safer everyday use on board
• IP20 rating for dry, sheltered interior mounting locations
• Thermoplastic, halogen-free construction with a matt finish
• Label space for circuit identification at the outlet point

Variants

This outlet is offered in multiple finishes to match different interiors and plate colors.

The outlet format and electrical rating stay consistent across the range; the visible finish is what changes between versions.

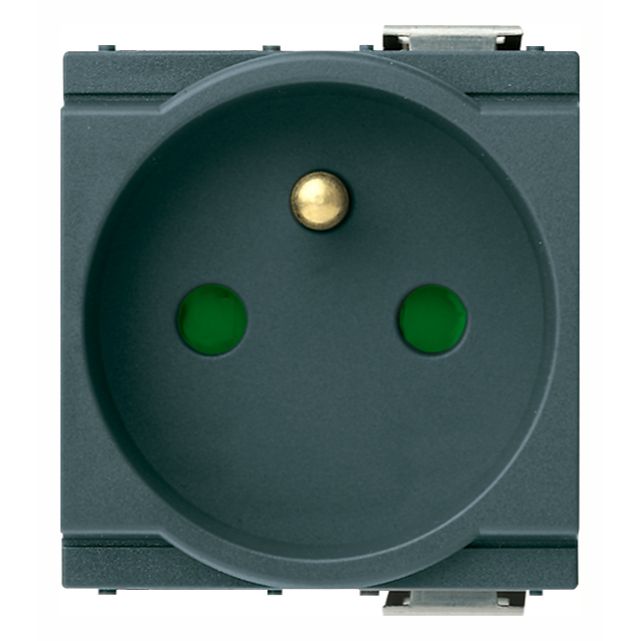

• VM17042 Finish: Gray. A darker face that pairs well with gray or charcoal panels and hides everyday marks in busy areas.

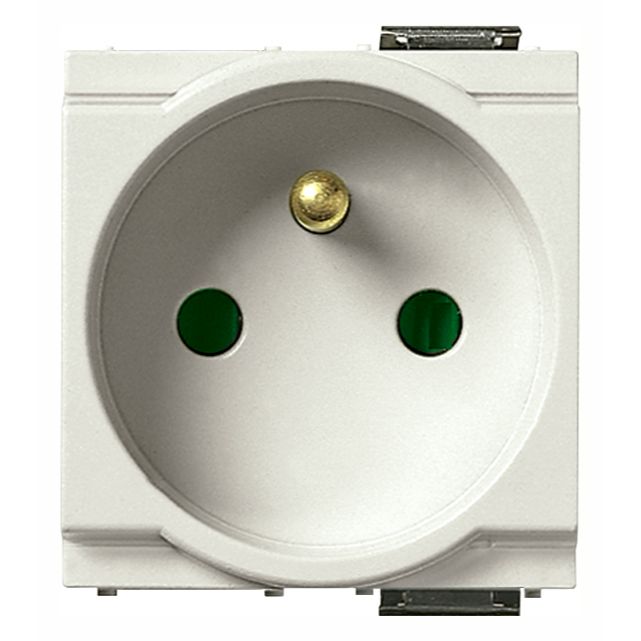

• VM17042.B Finish: Ivory. A light, off-white look that blends with classic cabin liners and traditional trim.

Installation and setup

This is an AC outlet for the boat’s shore power or inverter-fed distribution. Make sure the circuit is protected correctly for the load and that power is isolated before any wiring work.

Mount it in a compatible flush box and terminate the conductors on the screw terminals. Leave enough slack so the wiring is not pulling on the terminals when panels flex or the hull is working in a seaway.

Compatibility and fit

This is a 2 reduced module device for the Vimar Idea modular range. Confirm your existing mounting frame and cover plate accept 2 reduced modules and that your boat is set up for French 2P+E outlets.

If your vessel mixes outlet standards, keeping French outlets grouped by cabin or by circuit helps avoid adapters that can loosen under vibration.

On-board use notes

IP20 means it is intended for dry interiors. Keep it away from wet lockers, condensation-prone areas, and any surface that gets rinsed. For locations exposed to water, use a sealed enclosure or a higher-IP outlet solution.

This outlet makes sense for cruising boats and refits that want French-standard power points in interior living spaces while staying consistent with Vimar Idea modular hardware.
