Imtra Captiva Eyeball LED Downlight, 10-30VDC, White Trim, Warm White

Overview

The Imtra ILIM31700 is a Captiva PowerLED recessed downlight featuring an adjustable eyeball that allows directional control of warm white illumination. Operating on 10-30VDC with a power consumption of 3.4W, it delivers 165 lumens at a 2800K color temperature. Its white powder-coated 316 stainless steel bezel provides a clean, low-profile finish for interior marine lighting installations.

The pivoting center allows light to be directed toward specific areas, making the fixture suitable for accent lighting, wall washing, and sloped ceilings above companionways. An integrated LED driver and dimming interface support convenient lighting control without an external driver.

Key features

• Adjustable eyeball with a 62° beam angle for directional illumination.

• Warm white LED output of 165 lumens at 2800K.

• White powder-coated 316 stainless steel trim ring with a frosted polycarbonate lens.

• Integrated driver with PWM dimming compatibility using the Imtra ILIM80120 dimmer.

• Self-adjusting mounting springs for recessed installation.

• IP20 ingress protection rating for protected interior locations.

• Rated LED lifetime of 50,000 hours to 70% of initial light output.

Installation and fit

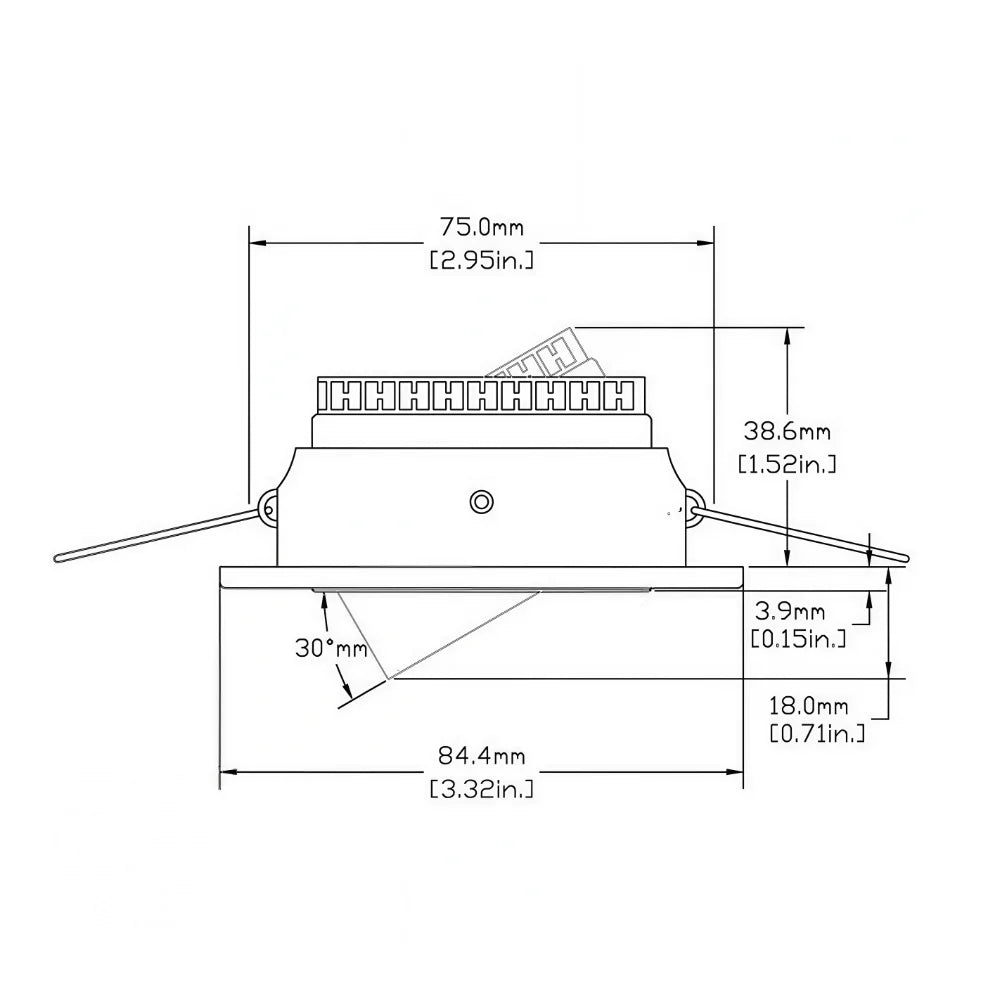

The fixture requires a 75mm (2.95 in) ceiling cutout and approximately 42mm (1.65 in) of recessed depth. Its trim ring measures 84mm (3.32 in) in diameter and extends approximately 4mm (0.15 in) from the mounting surface. Spring mounting secures the fixture without visible mounting screws.

The IP20 rating makes this downlight appropriate for dry, protected interior spaces rather than locations exposed to water spray. Its adjustable light direction is particularly useful where ceiling angles or fixture positioning require targeted illumination.
