Imtra Intervolt SLD Switchmode DC Dimmer, 9-33VDC

Overview

The Imtra Intervolt SLD is a series of switchmode DC lighting dimmers for controlling brightness in 12V and 24V marine electrical systems. Operating across a 9-33VDC input range, these dimmers use normally-open momentary push-button switches to control low-voltage lighting circuits from one or multiple locations.

The range includes single-channel models and the two-channel DuoDim configuration, with different power capacities to accommodate lighting circuit loads. Soft-start operation reduces initial current surges to filament lamps, while brightness memory restores the previous lighting level when switched on again.

Key features

• 9-33VDC input range for 12V and 24V lighting systems.

• Momentary push-button control with support for multiple switch locations.

• Soft-start function and brightness-level memory.

• Short-circuit, transient-voltage, and overtemperature protection.

• Corrosion-resistant terminal connections with insulated barriers.

Variants

The Intervolt SLD series is available in multiple configurations with different power ratings and lighting circuit control arrangements.

The single-channel models control one lighting circuit, while the DuoDim model supports two independently controlled circuits or combined operation through a single switch. All configurations use DC power and momentary push-button controls.

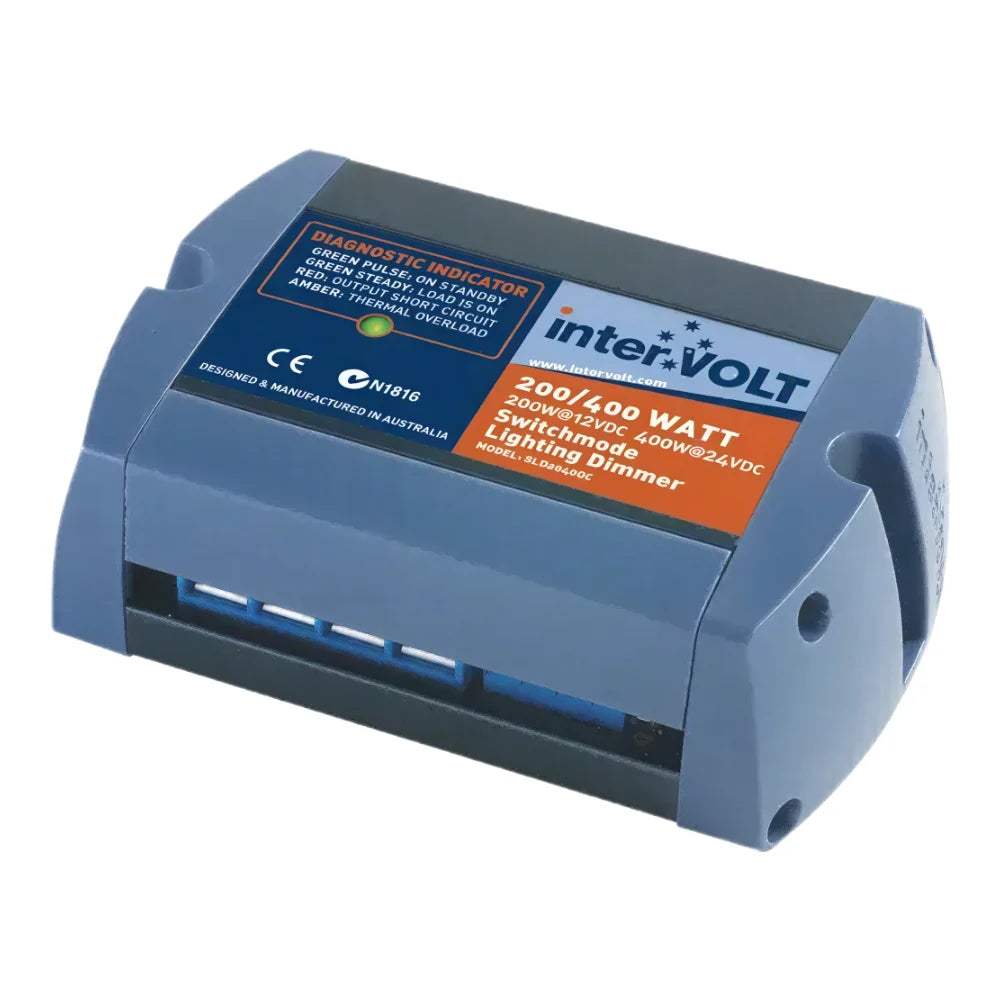

• ILSLD2040DC: Power Range 12/24V, 200/400W. Single-channel dimmer rated for 200W at 12VDC or 400W at 24VDC.

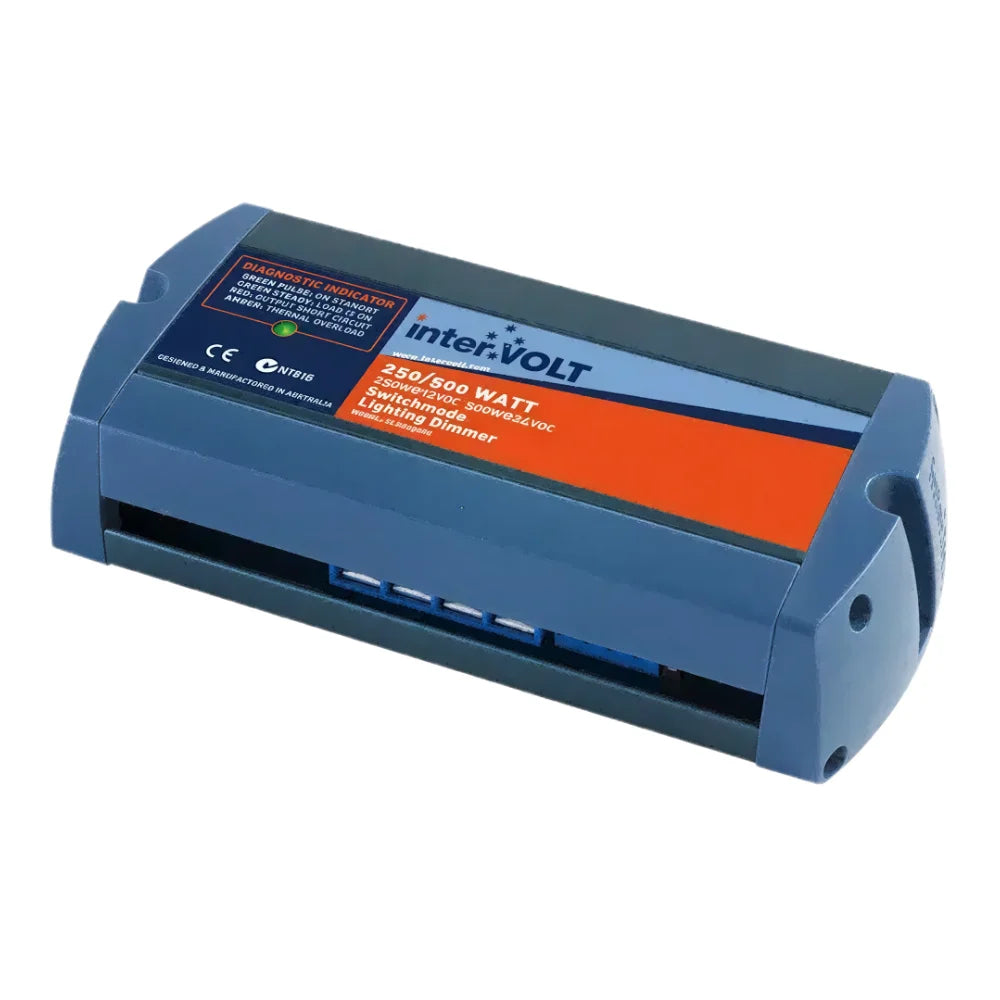

• ILSLD2550DC: Power Range 12/24V, 250/500W. Single-channel dimmer rated for 250W at 12VDC or 500W at 24VDC.

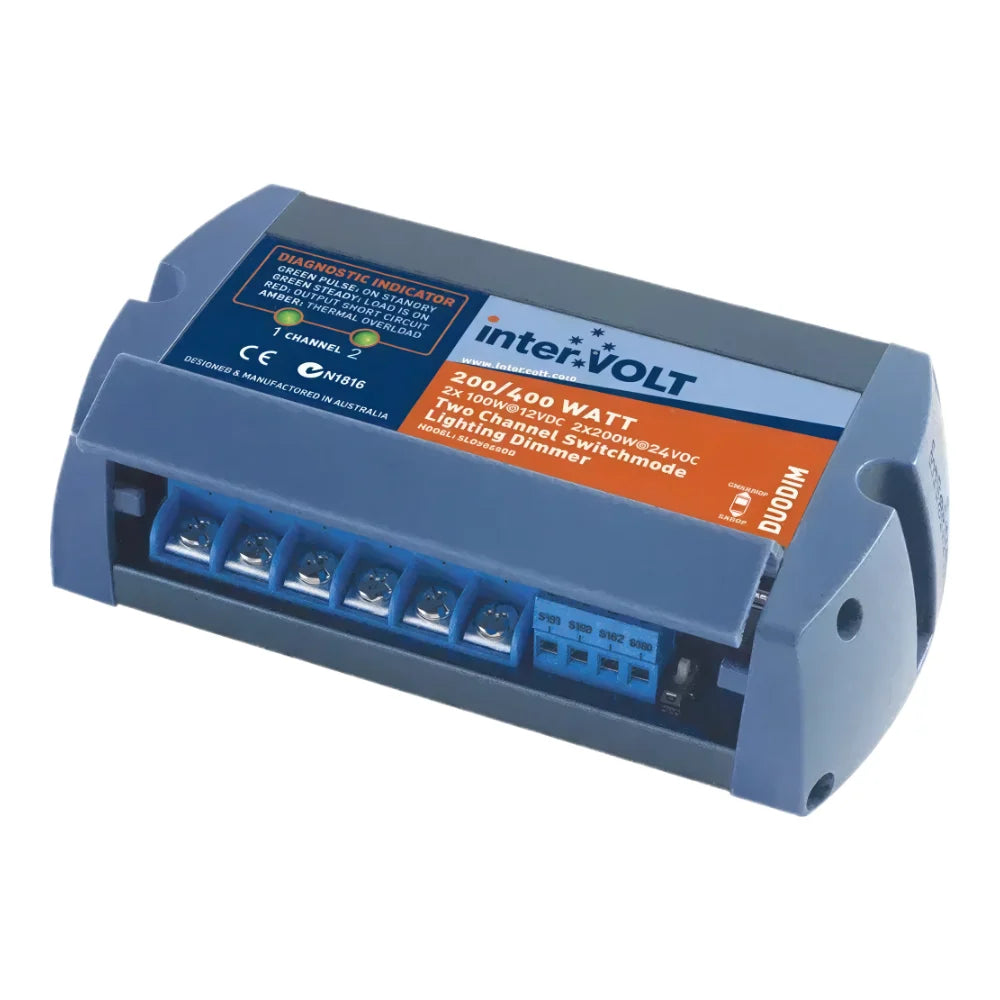

• ILSLD2040DD: Power Range 9-33VDC, 400W. Two-channel DuoDim with independent or grouped circuit control, rated for a combined 200W at 12VDC or 400W at 24VDC.

Compatibility and installation

These dimmers are intended primarily for incandescent, halogen, and other compatible filament-type DC lighting. Compatibility with LED fixtures depends on their internal electronics and should be confirmed before installation.

Installation requires appropriately rated wiring and circuit protection, with sufficient ventilation around the dimmer housing for heat dissipation. The connected lighting load must remain within the rating of the selected model and operating voltage.
