Vimar Plana 2P+E Australian SICURY Socket Outlet, 15A, 250V, 2-Module, Flush-Mounted

Overview

The Vimar Plana Series is a 2P+E Australian SICURY outlet range with two finish options, built in a flush-mounted 2-module format and rated for 15A at 250V. It uses the Australian standard AS/NZS 3112 type I pattern, has screwed terminal connections, and measures 44.8 x 49.0 x 38.7 mm.

This is a single unswitched outlet for interior AC installations where a neat flush fit matters and panel depth is limited. Enhanced contact protection and a halogen-free thermoplastic body make it well suited to cabins, saloons, galleys, and other protected areas on board. With an IP20 rating, it belongs in dry interior spaces rather than open deck or washdown locations.

Key features

• Australian standard AS/NZS 3112 type I socket outlet in a 2P+E single-outlet layout
• Rated for 15A, 250V, and 50 to 60 Hz circuits

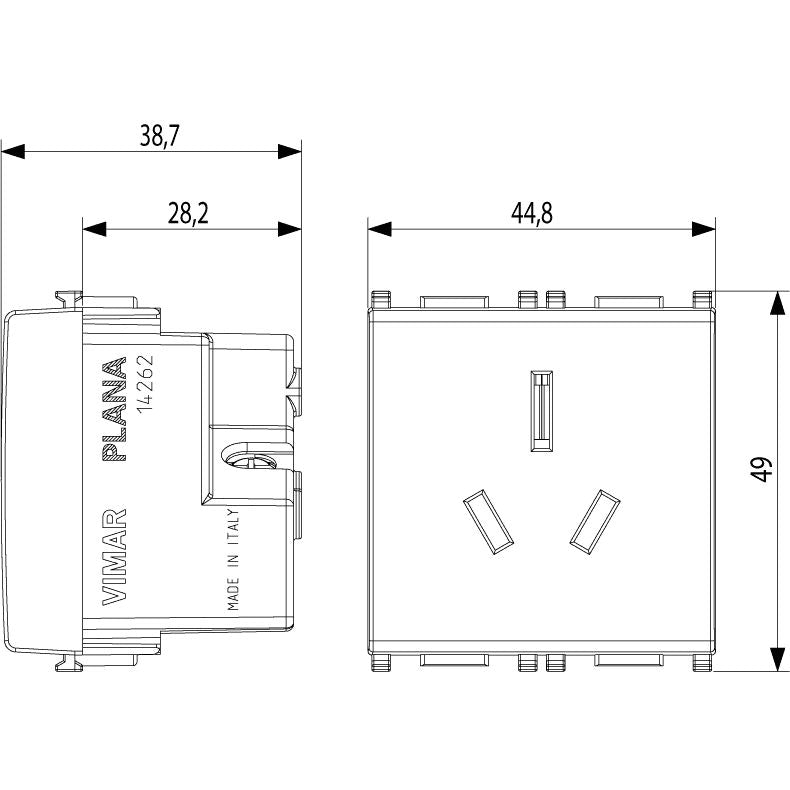

• Flush-mounted 2-module body with device size of 44.8 x 49.0 x 38.7 mm

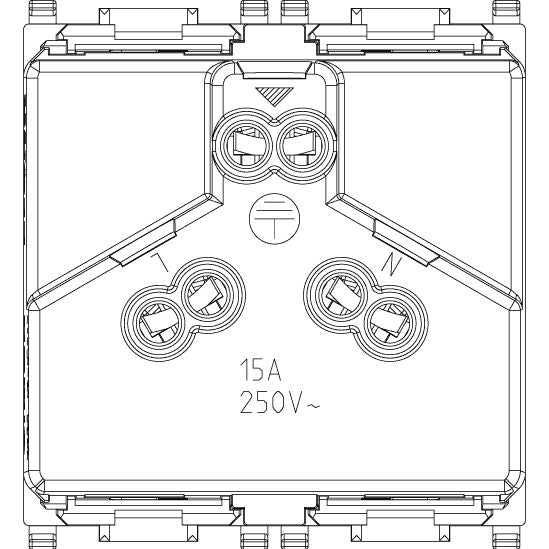

• Screwed terminal connection for fixed wiring installations
• Enhanced contact protection at the outlet face
• Halogen-free thermoplastic construction with a glossy surface
• IP20 rating for dry interior mounting positions

Variants

This outlet is offered in multiple finish configurations within the same Plana format.

Across both variants, the outlet type, 15A 250V rating, AS/NZS 3112 type I pattern, flush-mounted 2-module body, screwed terminals, IP20 protection, and 44.8 x 49.0 x 38.7 mm dimensions stay the same. The difference is the visible finish and surface treatment.

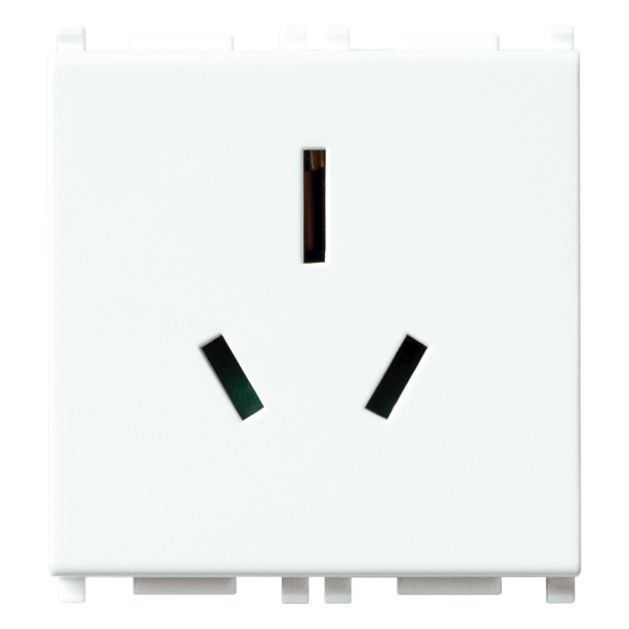

• VM14262: White, RAL 9003, with an untreated glossy surface. This version keeps the outlet face light and unobtrusive on white or pale interior panels.

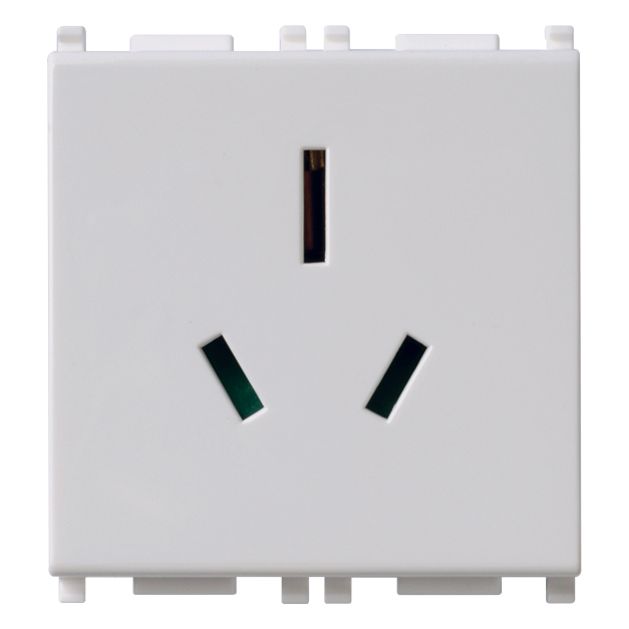

• VM14262.SL: Silver, RAL 9006, with a lacquered glossy surface. This version gives a darker visual contrast where the surrounding trim or switch gear is silver-toned.

Installation and fit

This outlet is made for flush mounting and occupies two modules within the Plana range. For boat refits, the main fit checks are the Australian type I outlet requirement, a 15A 250V circuit, enough rear depth for the 38.7 mm body, and a dry interior mounting position that keeps the face away from spray and direct water exposure.

Use on board

It suits boats that use Australian-format AC outlets in accommodation spaces, enclosed helm areas, or similar interior panels. It is also a sensible match when replacing an existing Plana outlet or keeping cabin power points consistent across a refit where a flush front matters.
